Description

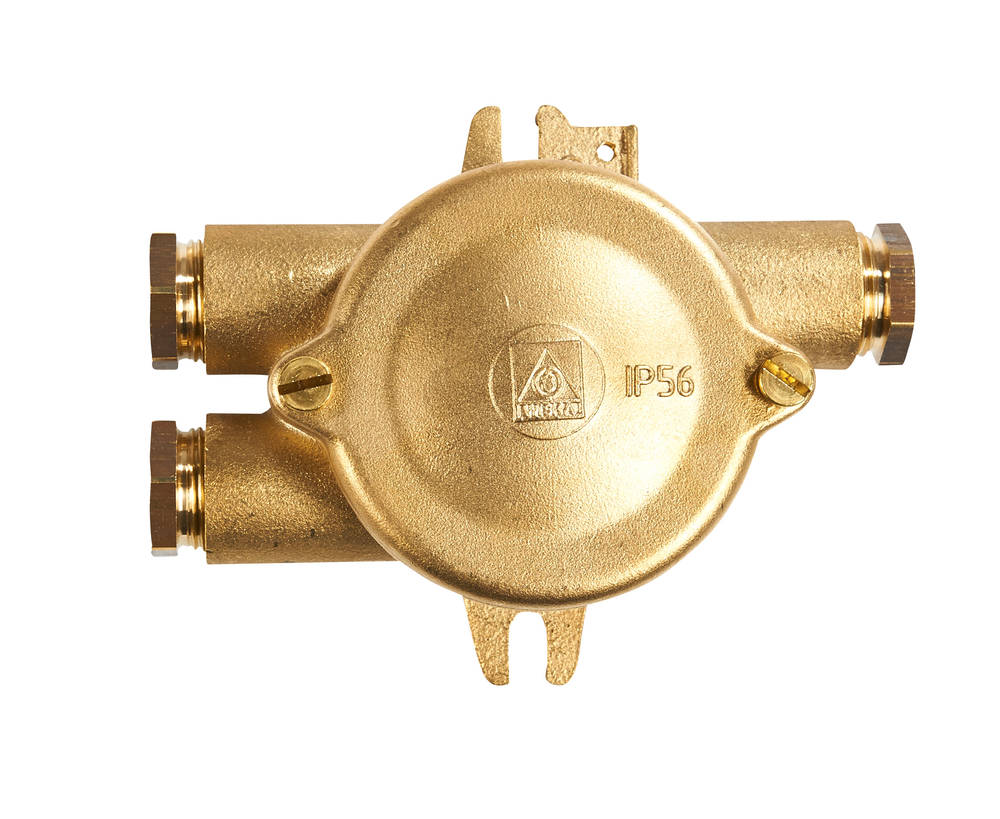

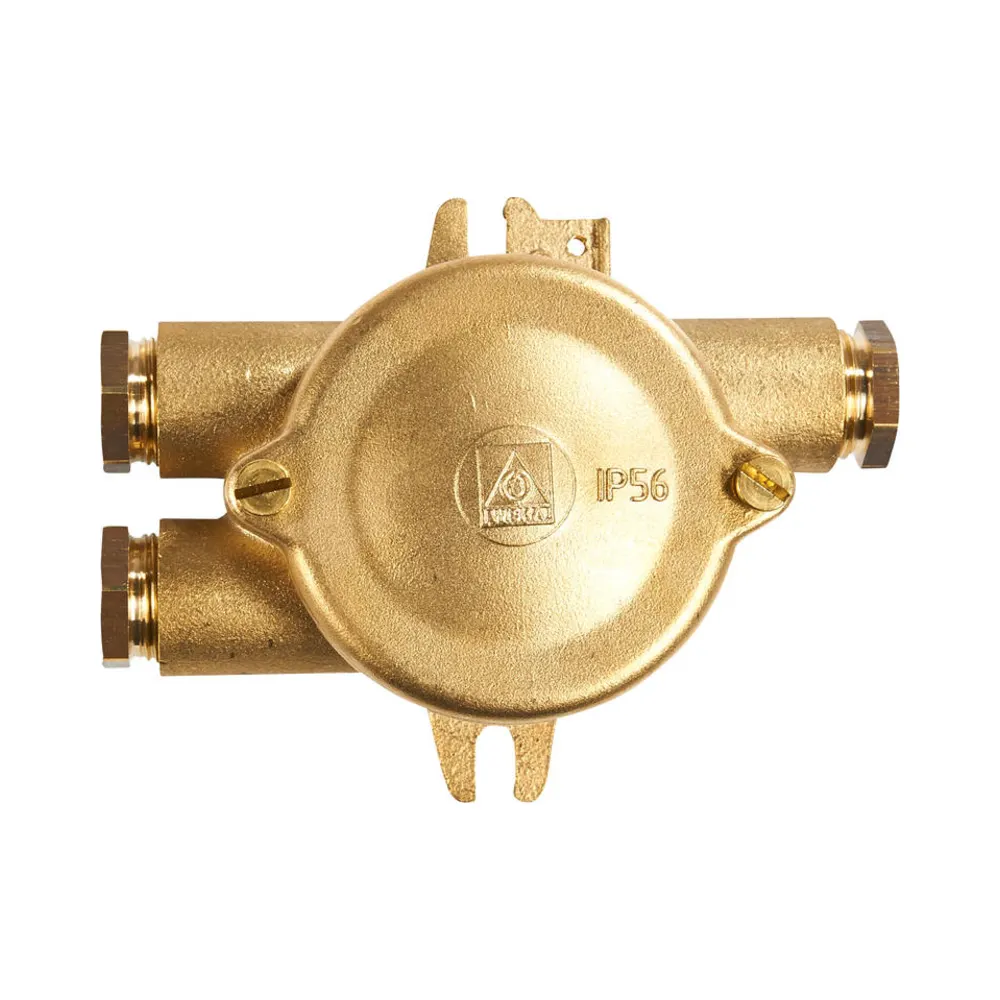

IP56 HNA Brass Junction Box – 12 – 14.5 mm
Wiska 1154-3xZ14
The Wiska 1154-3xZ14 IP56 HNA Brass Junction Box is expertly crafted to deliver secure and reliable electrical connections in the most challenging environments. Constructed from high-quality brass, this junction box is designed to accommodate armoured cables with diameters ranging from 12 mm to 14.5 mm. Its IP56 protection rating offers outstanding resistance to dust, water, and environmental stressors, making it ideal for engine rooms, outdoor installations, and indoor workspaces.
Key Features of Wiska 1154-3xZ14 IP56 HNA Brass Junction Box
- Durable Construction: Made from premium brass for exceptional strength and corrosion resistance.
- IP56 Protection: Provides strong protection against dust and water ingress, perfect for demanding environments.
- Versatile Applications: Suitable for engine rooms, outdoor environments, and indoor electrical systems.
- Secure Cable Management: Designed to support armoured cables with diameters from 12 mm to 14.5 mm.
Technical Specifications
- Type: 1154-3xZ14
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 12 mm to 14.5 mm
- Type of Cable: Armoured

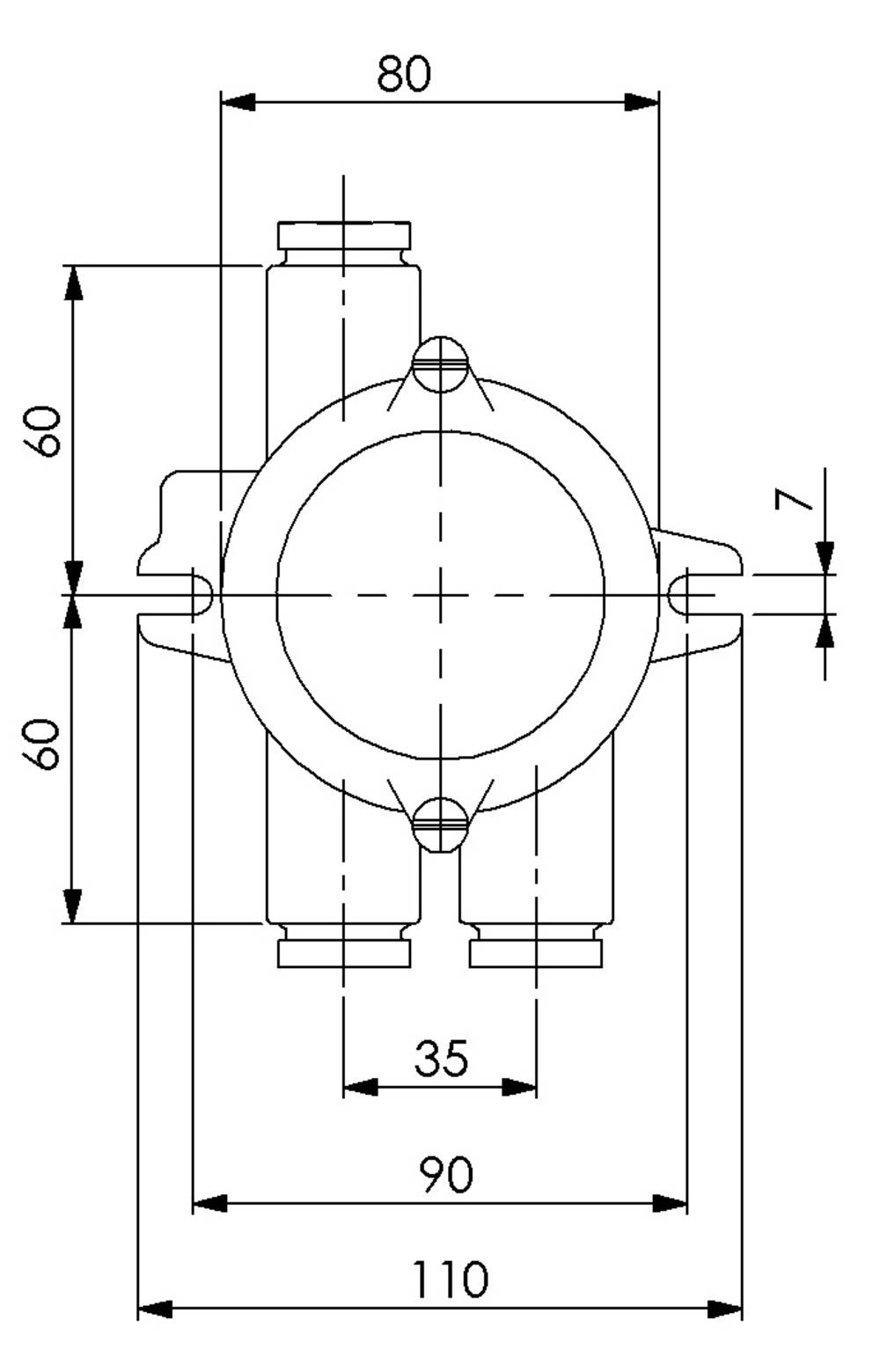

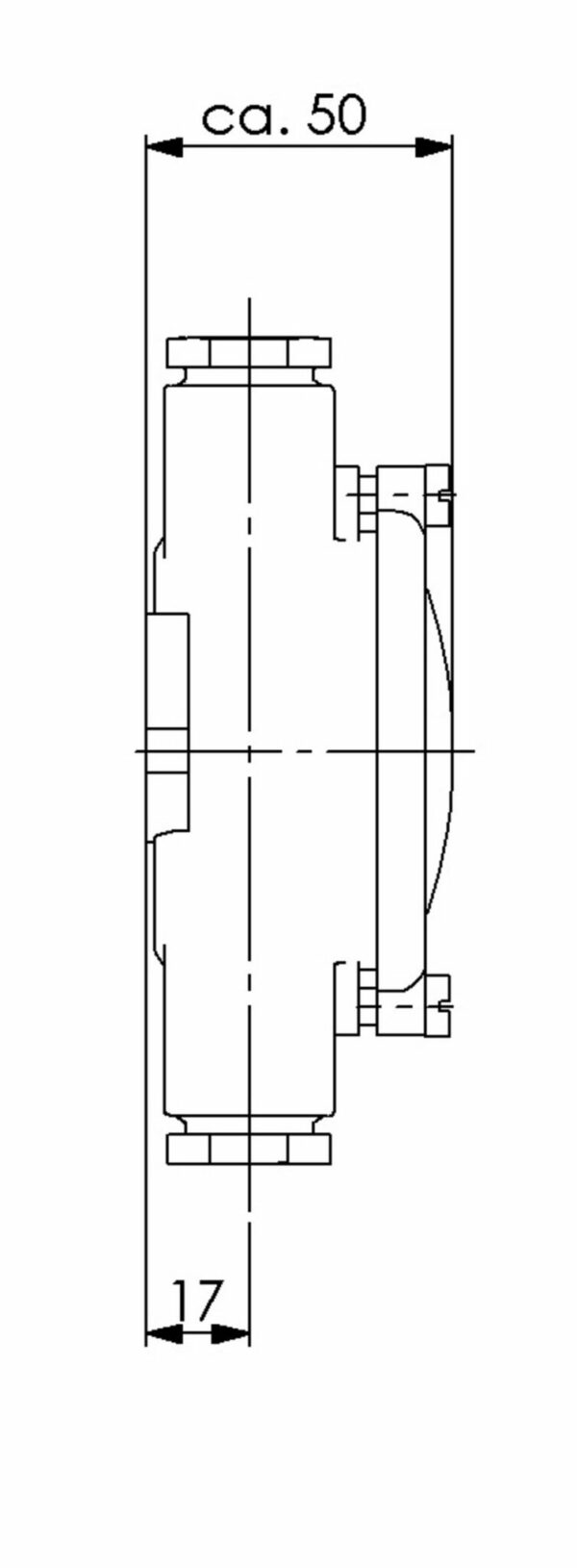

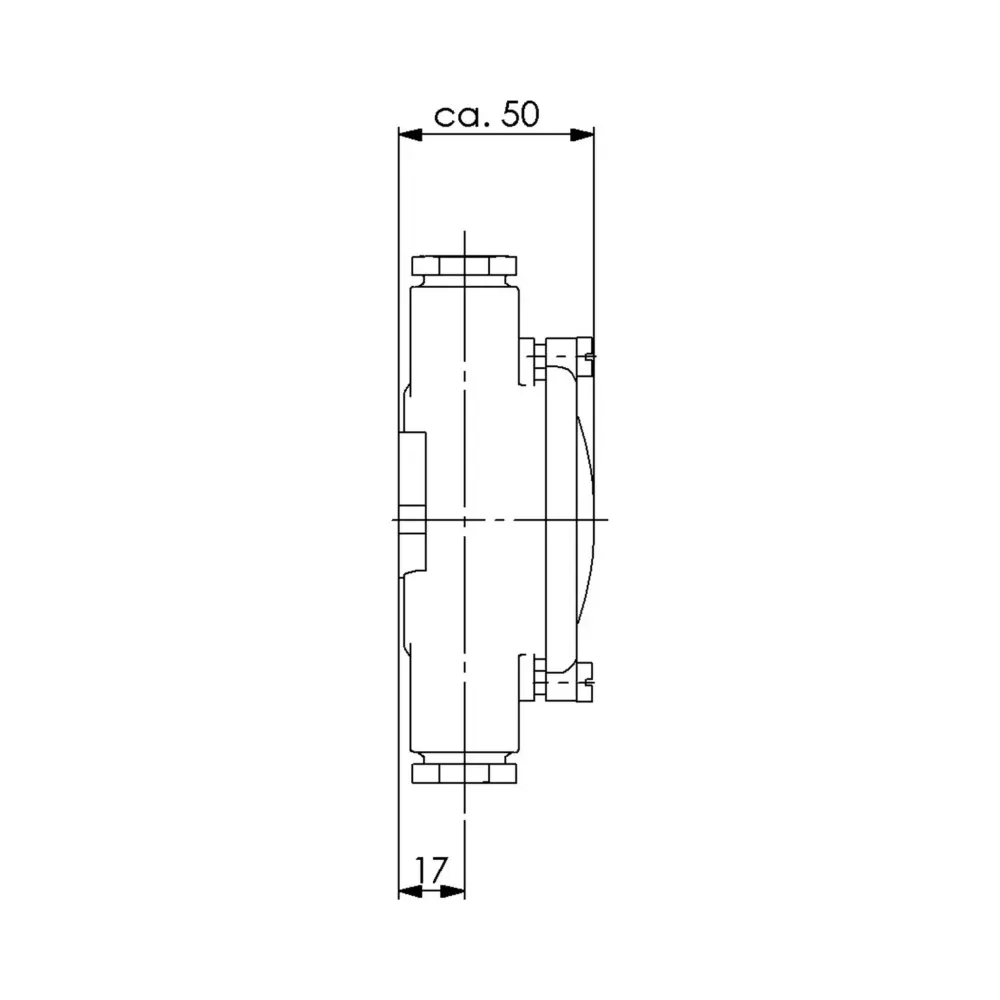

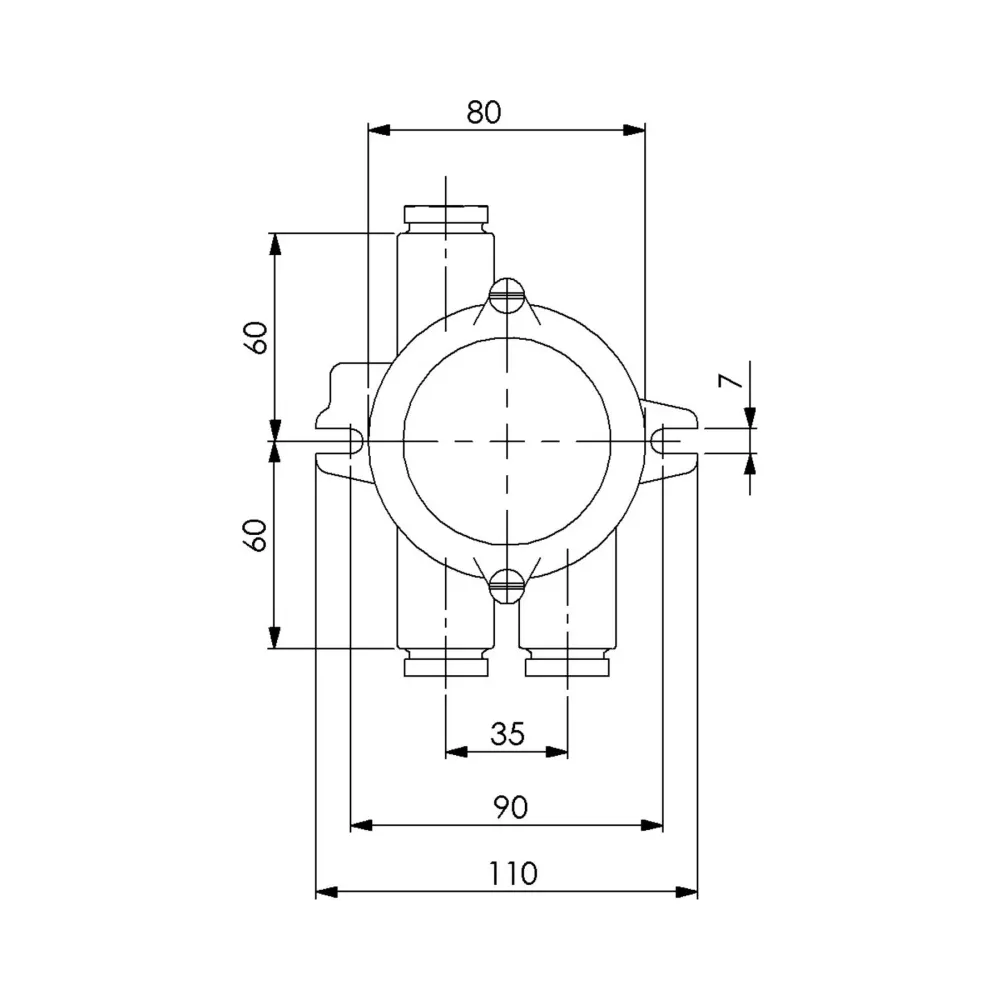

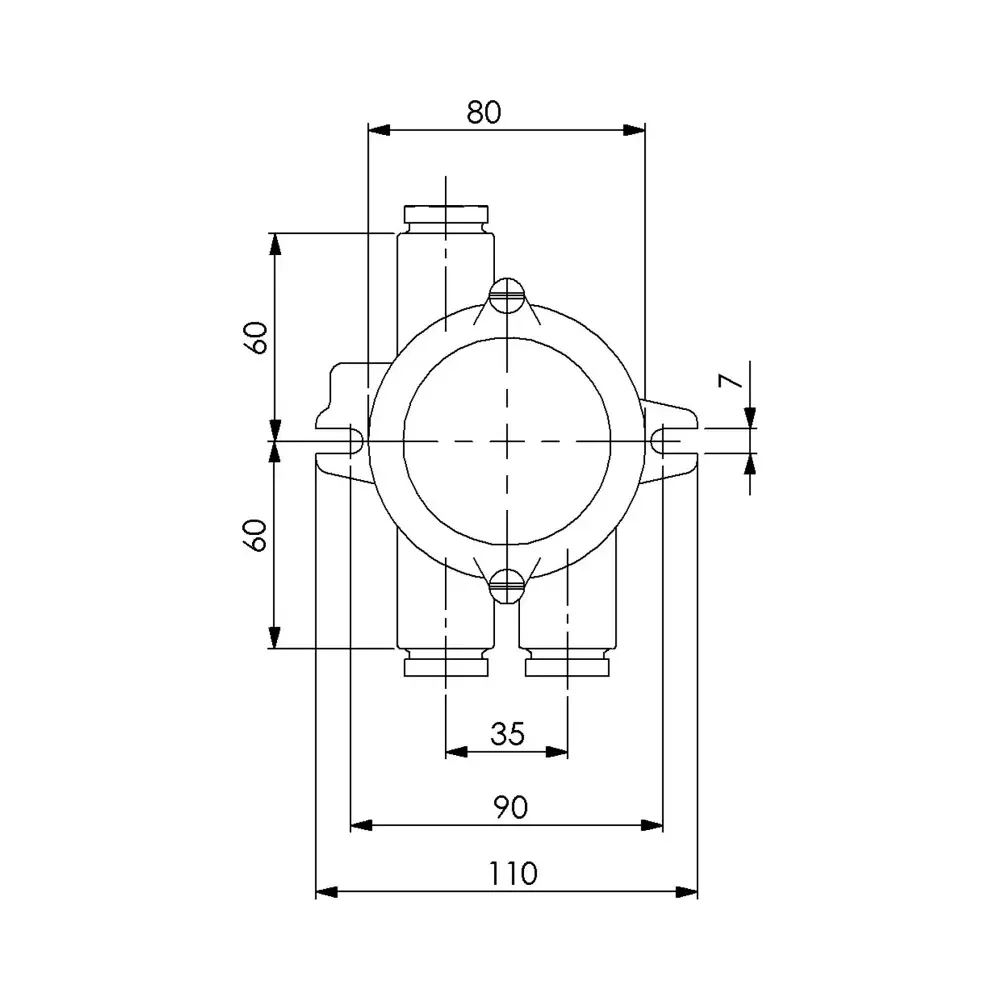

- External Dimensions (LxWxH): 110x120x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.84 kg
Why Choose the Wiska 1154-3xZ14 Brass Junction Box?
The Wiska 1154-3xZ14 Brass Junction Box offers superior durability and secure electrical connections, making it the go-to choice for professionals working in harsh environments. Its rugged brass construction and IP56-rated protection guarantee long-lasting performance, while its compatibility with armoured cables enhances its flexibility across different applications.
About Wiska
Wiska is a globally recognised leader in the electrical industry, celebrated for producing innovative, high-quality products designed to thrive in the toughest conditions. Their brass junction boxes are trusted worldwide for exceptional durability, safety, and performance.
