Description

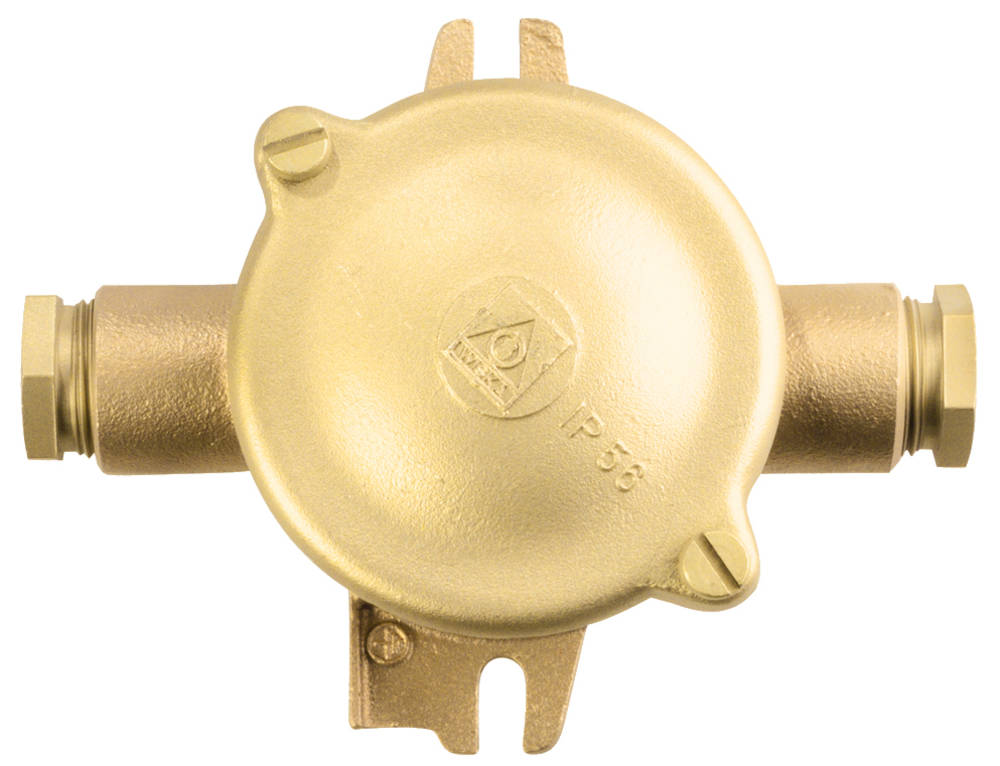

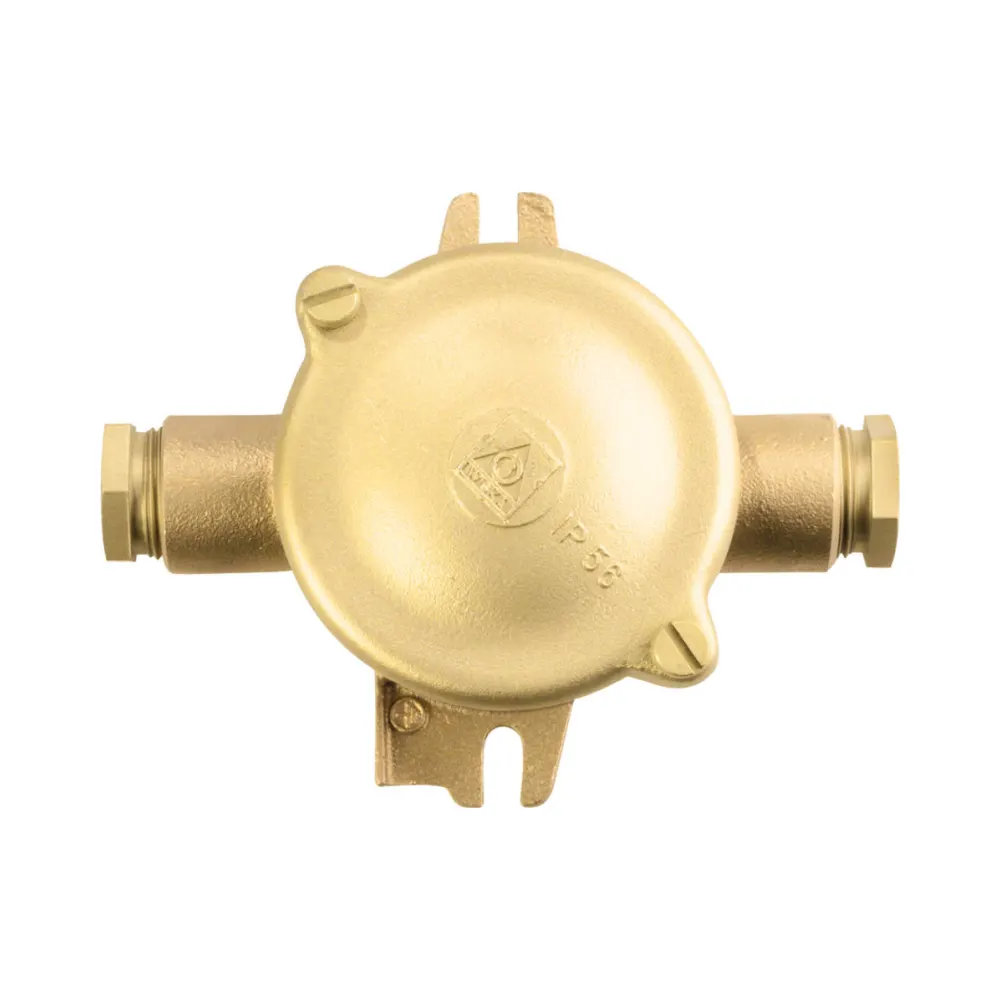

IP56 HNA Brass Junction Box – 12 – 14.5 mm
Wiska 1151-2xZ14
The Wiska 1151-2xZ14 IP56 HNA Brass Junction Box is designed for secure and reliable electrical connections in demanding environments. Built from durable brass, this junction box supports armoured cables with diameters ranging from 12 mm to 14.5 mm. Its IP56 protection rating ensures excellent resistance against dust and water, making it suitable for engine rooms, outdoor areas, and indoor workspaces.
Key Features of Wiska 1151-2xZ14 IP56 HNA Brass Junction Box
- Durable Construction: Crafted from high-quality brass for enhanced strength and corrosion resistance.
- IP56 Protection: Provides robust protection against dust and water, ideal for harsh environments.
- Versatile Applications: Suitable for engine rooms, outdoor installations, and indoor electrical systems.
- Secure Cable Management: Designed to accommodate armoured cables with diameters from 12 mm to 14.5 mm.
Technical Specifications
- Type: 1151-2xZ14
- Voltage: 500 V
- Current: 16 A
- Protection Class: IP56
- Material: Brass (Junction Box & Cable Gland)
- Cable Gland Type: M24x1.5
- Cable Diameter Range: 12 mm to 14.5 mm
- Type of Cable: Armoured

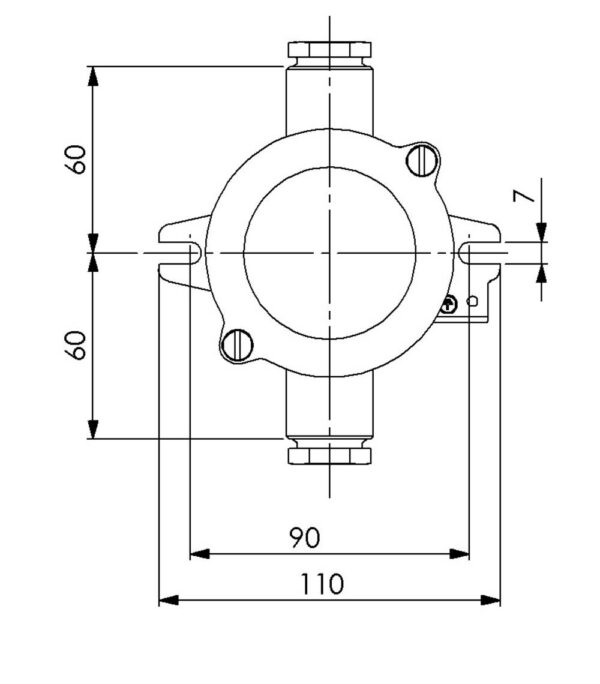

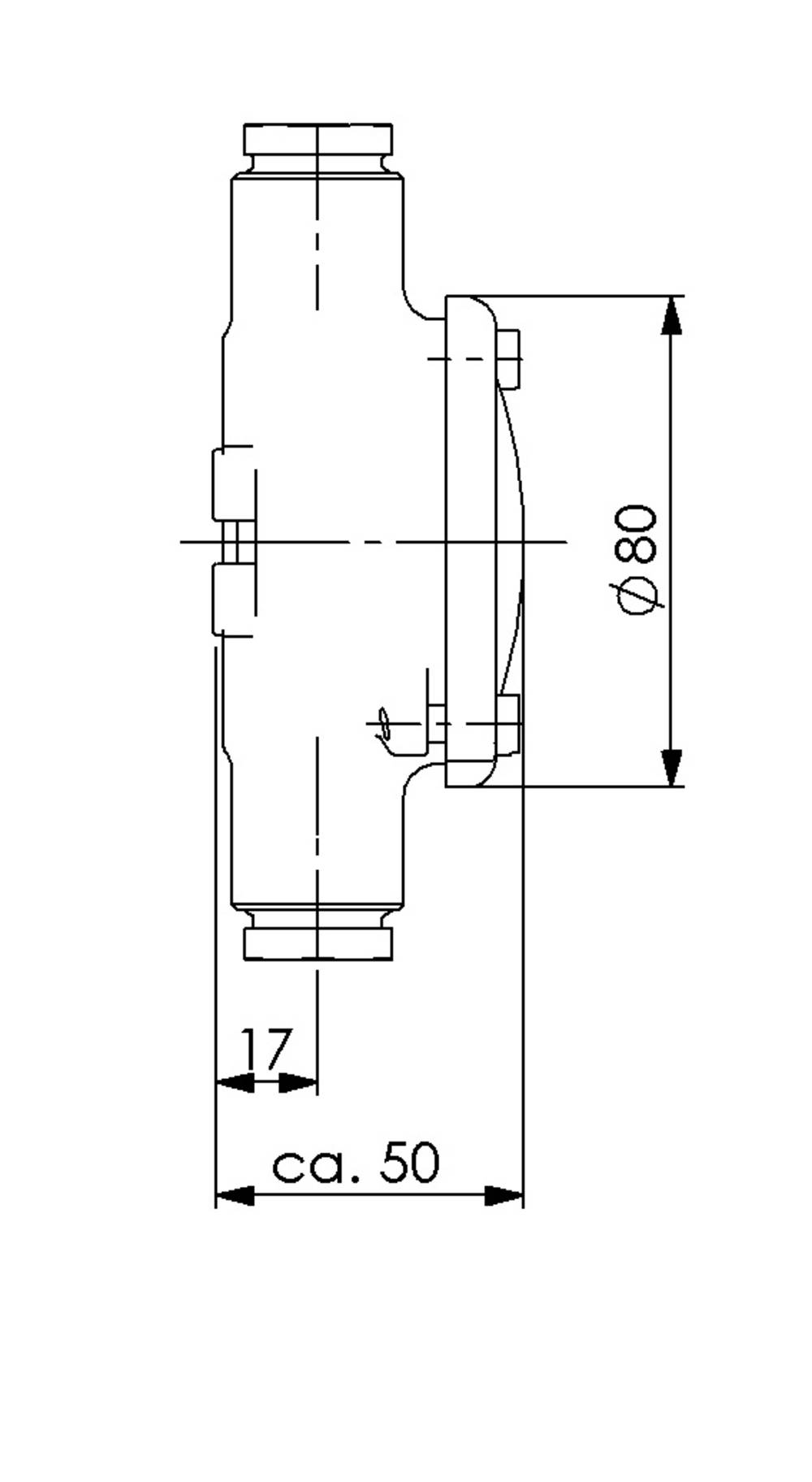

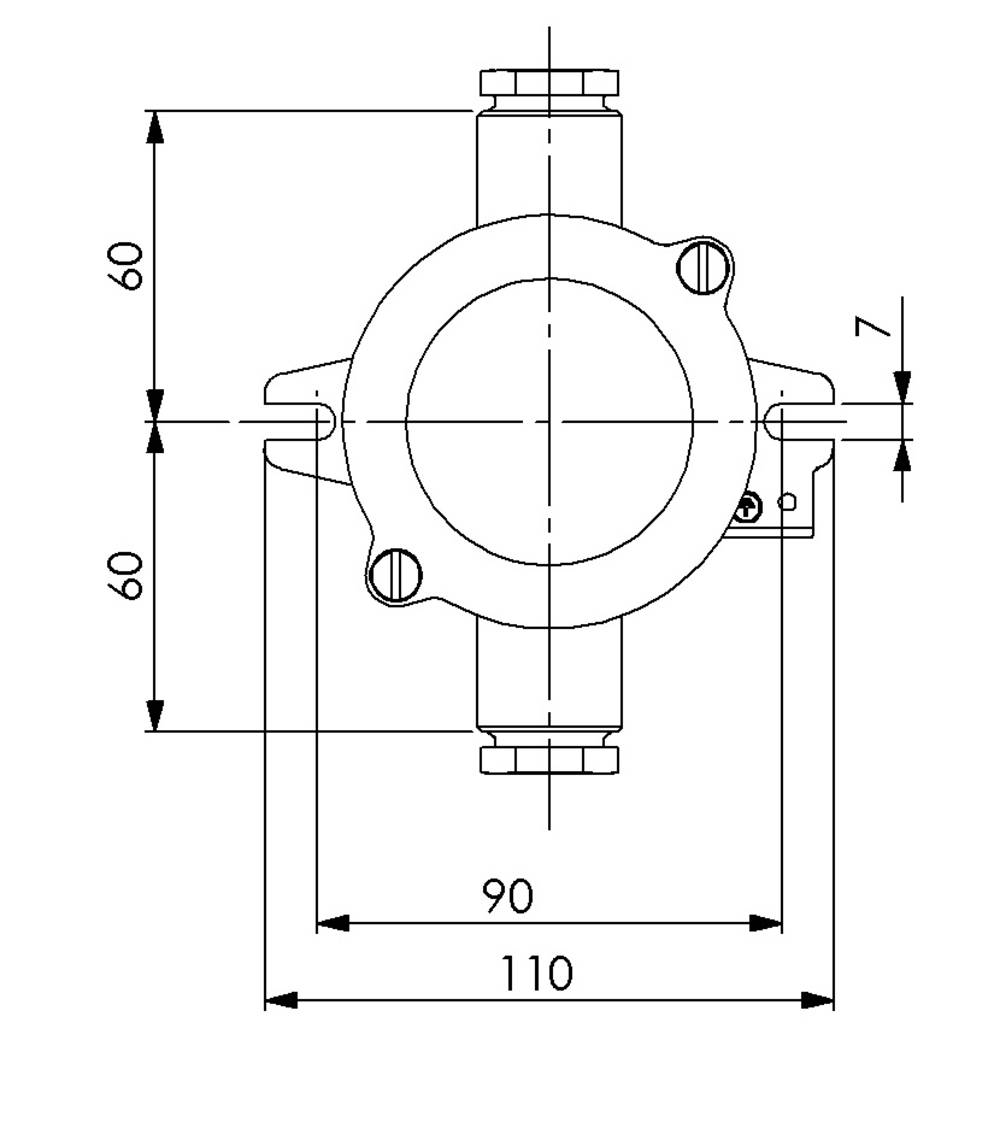

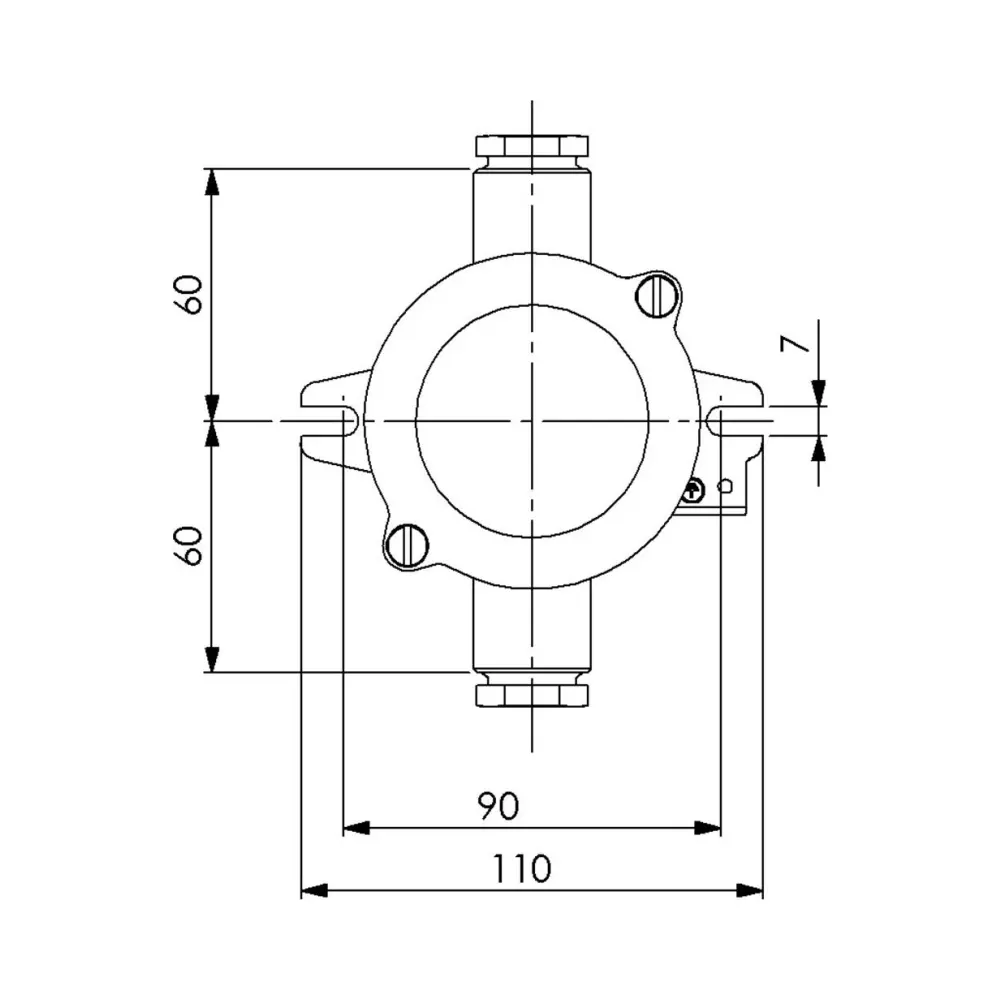

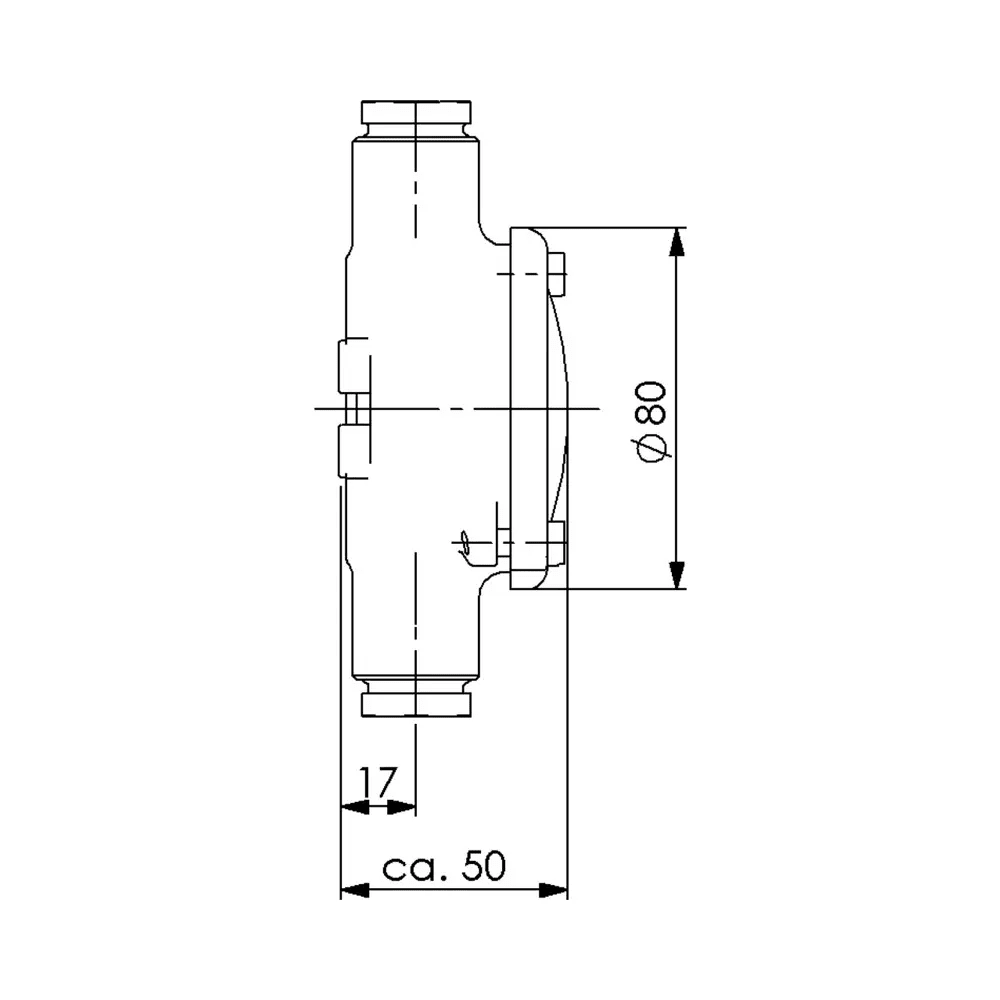

- External Dimensions (LxWxH): 110x120x50 mm
- Mounting: Surface mounting
- Temperature Range: -25°C to +45°C
- Rated Cross Section: 2.5 mm²
- Equipment: Clamp
- Terminals/Poles: 4-pole, 2.5 mm²
- Operational Areas: Engine rooms, outdoor environments, indoor workspaces
- Norm Compliance: DIN 89250
- Weight: 0.73 kg
Why Choose the Wiska 1151-2xZ14 Brass Junction Box?
The Wiska 1151-2xZ14 Brass Junction Box offers superior durability and secure connections for critical electrical systems. Its rugged brass construction and IP56-rated protection ensure long-lasting performance, while its compatibility with armoured cables adds versatility to a range of applications.
About Wiska
Wiska is a globally recognised leader in the electrical industry, known for producing high-quality, durable products designed to perform in the toughest environments. Their brass junction boxes are trusted worldwide for their reliability, safety, and innovative design.
