Description

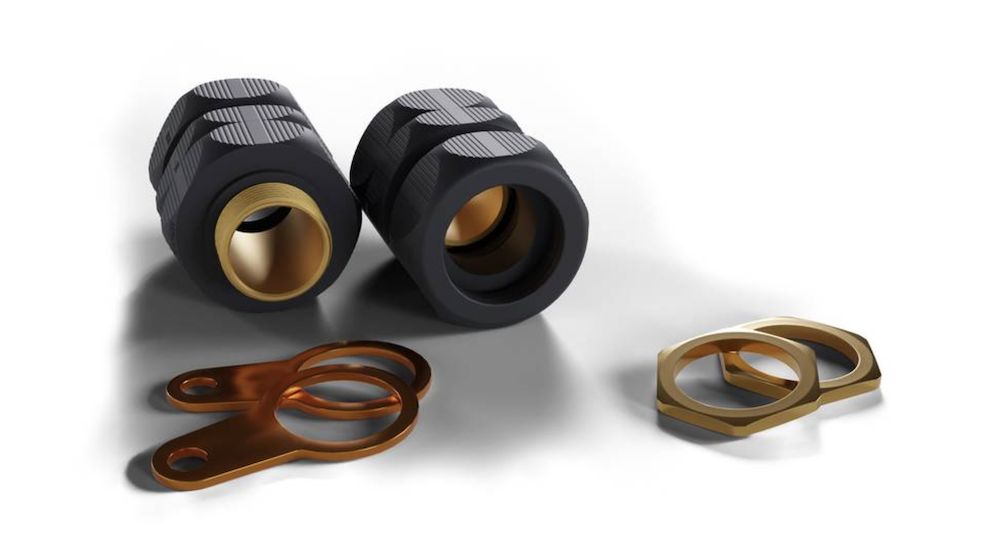

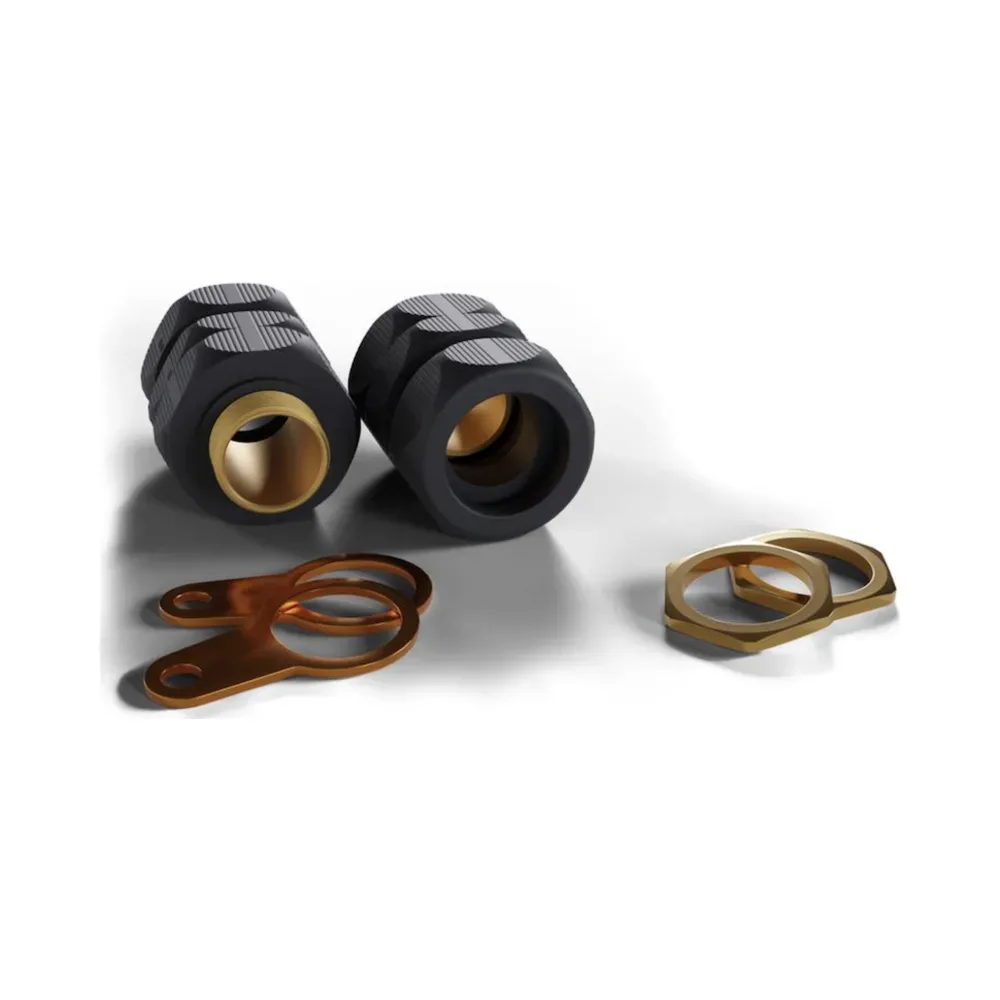

ShieldGLAND Standard M25 IP68 SWA Cable Gland – Pack of 2
Wiska 10112392
The Wiska ShieldGLAND Standard M25 IP68 Cable Gland is a high-performance alternative to conventional BW and CW glands. Designed for SWA, SY, and CY cables, this innovative hybrid gland combines a polyamide outer body with a brass core, ensuring durability and protection in demanding environments.
Unlike traditional glands, the ShieldGLAND eliminates the need for a shroud, reducing installation time while maintaining an IP68 protection rating. This makes it an ideal choice for electrical installations requiring a secure, water-tight connection. It also integrates seamlessly with Wiska’s COMBI junction box series and accessories, providing a cleaner, more efficient installation.
Key Features of Wiska ShieldGLAND M25 IP68 Cable Gland
- IP68-rated for dust, dirt, and water resistance
- Polyamide and brass hybrid construction for durability and flexibility
- No shroud required, simplifying installation and improving aesthetics
- Suitable for SWA, SY, CY, and non-armoured cables
- Includes brass locknut and earth tag for secure grounding
- Adaptable insert allows for wider cable acceptance, ensuring versatility
- Designed for use with Wiska COMBI junction boxes and accessories
Technical Specifications
- Sealing gasket material: TPE
- Temperature range: -40°C to 120°C
- Protection rating: IP68 (5 bar, 30 min)
- Thread type: M25
- Screw-in thread length: 13mm
- Minimum cable diameter: 17mm
- Maximum cable diameter: 28mm
- Cable shield diameter: 17mm – 21mm
- Key width: 41mm
- Collar diameter: 46mm
- Total length: 61mm – 68mm
Why Choose the Wiska ShieldGLAND SWA Cable Gland?
This versatile and efficient cable gland provides superior protection for electrical installations, ensuring a secure and watertight connection. The innovative two-part sealing system allows for easy adaptation to different cable sizes, while the hybrid polyamide and brass construction enhances durability and corrosion resistance. The absence of a shroud simplifies installation, saving both time and effort.
