Wiska 10101463 Wiska 10101463 COMBI 1210/5 Black Junction Box 1

Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Wiska 10101463 COMBI 1210/5 Black Junction Box

SKU: 10101463

25 In stock

More available within 1-3 working days

Confirm Availability

10 M20 threaded membrane entries and M25 knockouts

4 membrane cable entries through rear

4 captive cover screws

Inclusive terminal block 5-poles, 10mm²

4 internal openings outside of the sealing area

The Wiska 10101463 COMBI 1210/5 Black Junction Box offers IP66/IP67-rated protection, 10 M20 entries, 5-pole 10mm² terminal block, and durable polypropylene construction. Designed for secure, high-performance electrical installations, it ensures reliable connections in both indoor and outdoor environments.

£15.59 + VAT

(incl. VAT £18.71)

10 - 0

%

£15.36
20 - 0

%

£15.04

10	-	£15.36	£0.23	£15.59
20	-	£15.04	£0.55	£15.59

— OR —

Categories: Back Boxes & Enclosures, Wiska Combi, Wiska Combi Boxes, WISKA Combi Boxes & AccessoriesSupplier: Wiska

Description

COMBI 1210/5 Black Junction Box

Wiska 10101463

Durable, Versatile, and High-Performance Electrical Connection Solution

The Wiska 10101463 COMBI 1210/5 is a high-quality junction box designed for secure and efficient electrical installations. Made from durable polypropylene with a TPE sealing gasket, it ensures long-lasting performance in demanding indoor and outdoor environments. With IP66/IP67 protection, it provides excellent resistance to dust, water, and extreme temperatures, making it an ideal choice for industrial, commercial, and residential applications.

Key Features of Wiska 10101463 COMBI 1210/5 Black Junction Box

Robust Polypropylene Construction – Ensures durability and long-term performance
TPE Sealing Gasket – Enhances protection against dust, moisture, and harsh conditions
IP66/IP67 Rated – Reliable waterproof and dustproof protection for secure installations
Wide Temperature Range – Operates from -30°C to 100°C for versatile applications
10 M20 Threaded Membrane Entries & M25 Knockouts – Offers flexible cable management
4 Rear Membrane Cable Entries – Provides additional wiring options
Inclusive 5-Pole 10mm² Terminal Block – Supports high-performance electrical connections
Glow Wire Tested (750°C) – Meets stringent safety standards
Internal Mounting Openings – Enables easy installation outside the sealing area

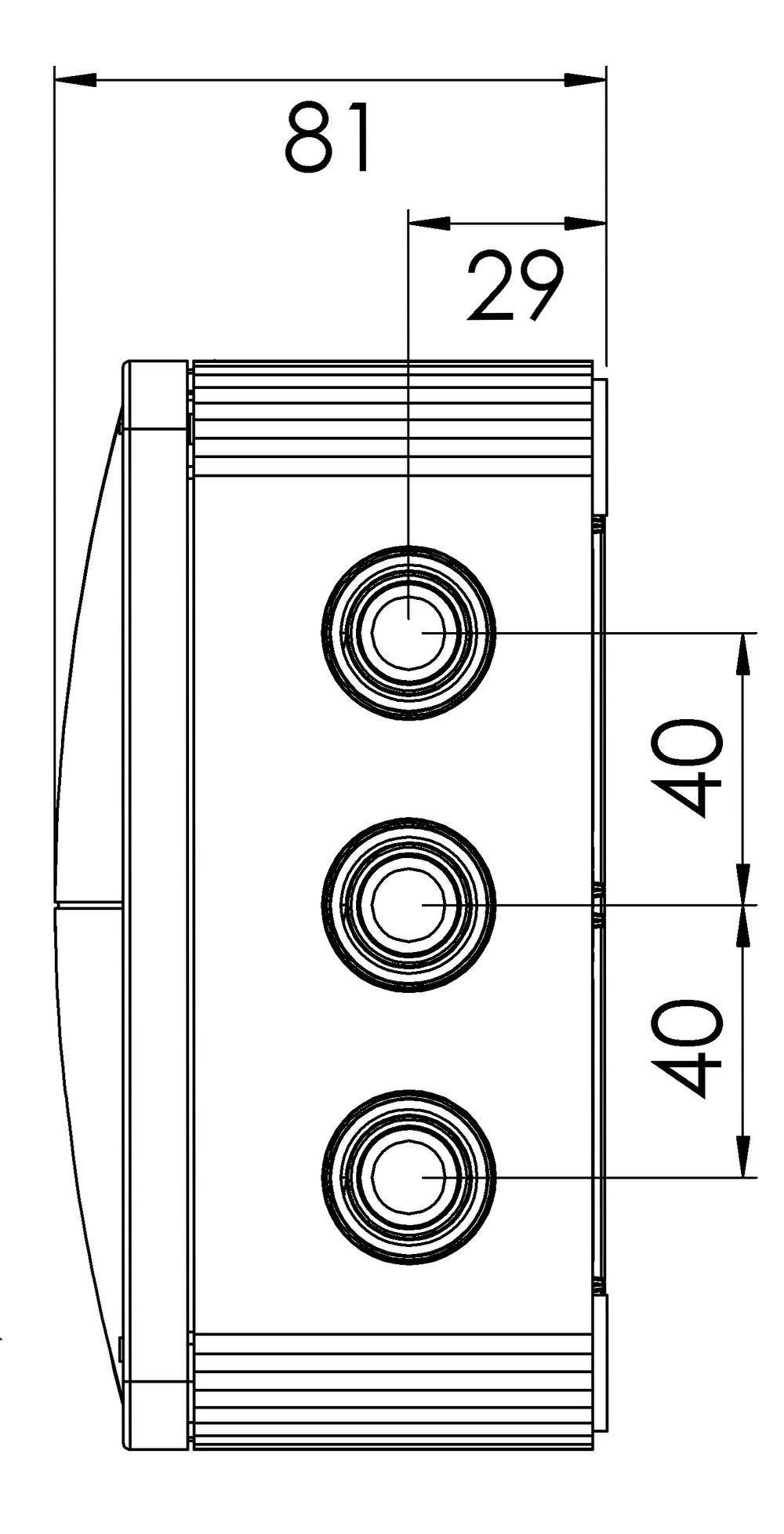

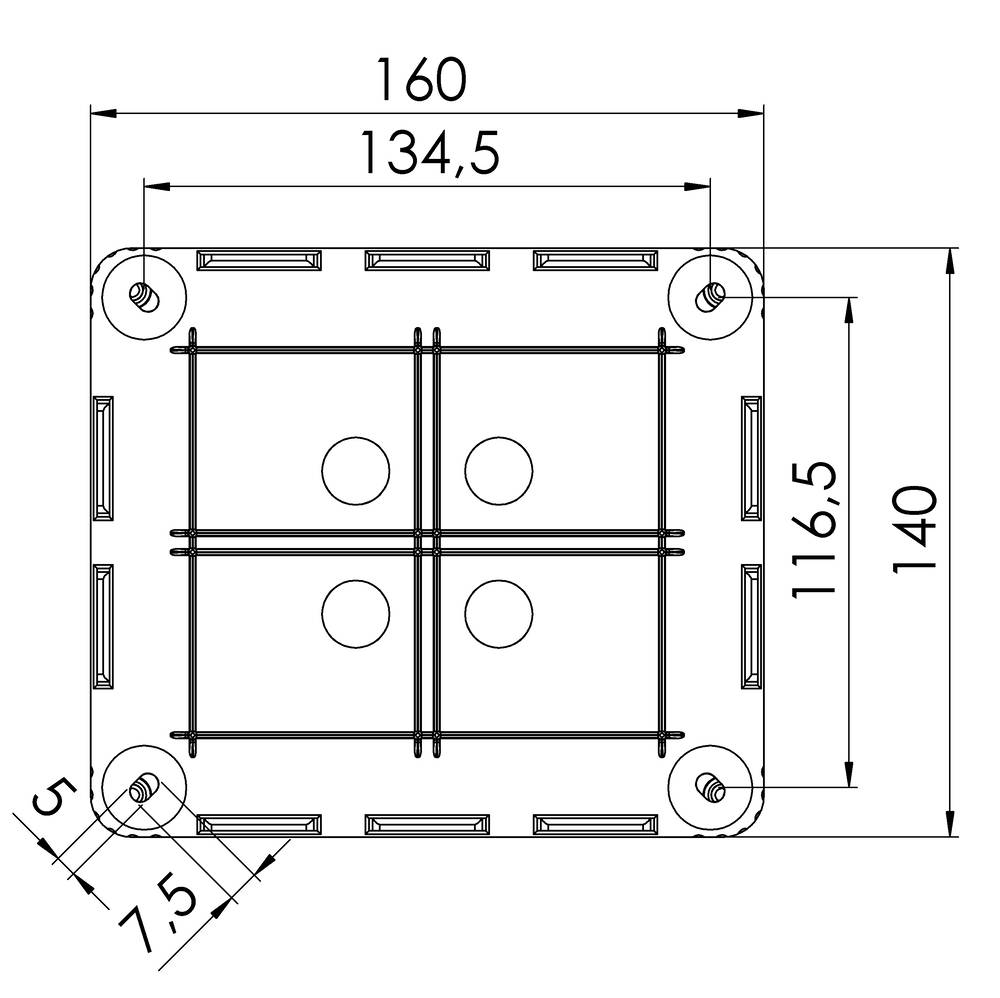

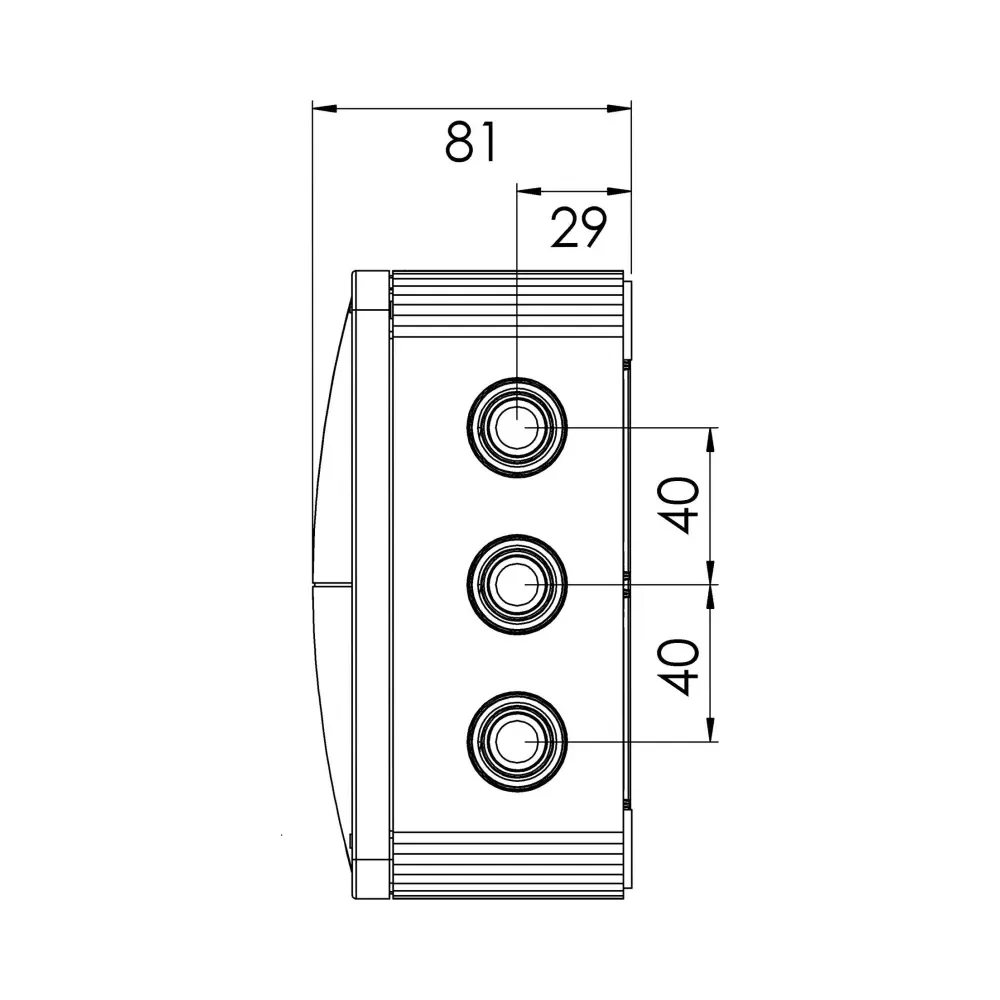

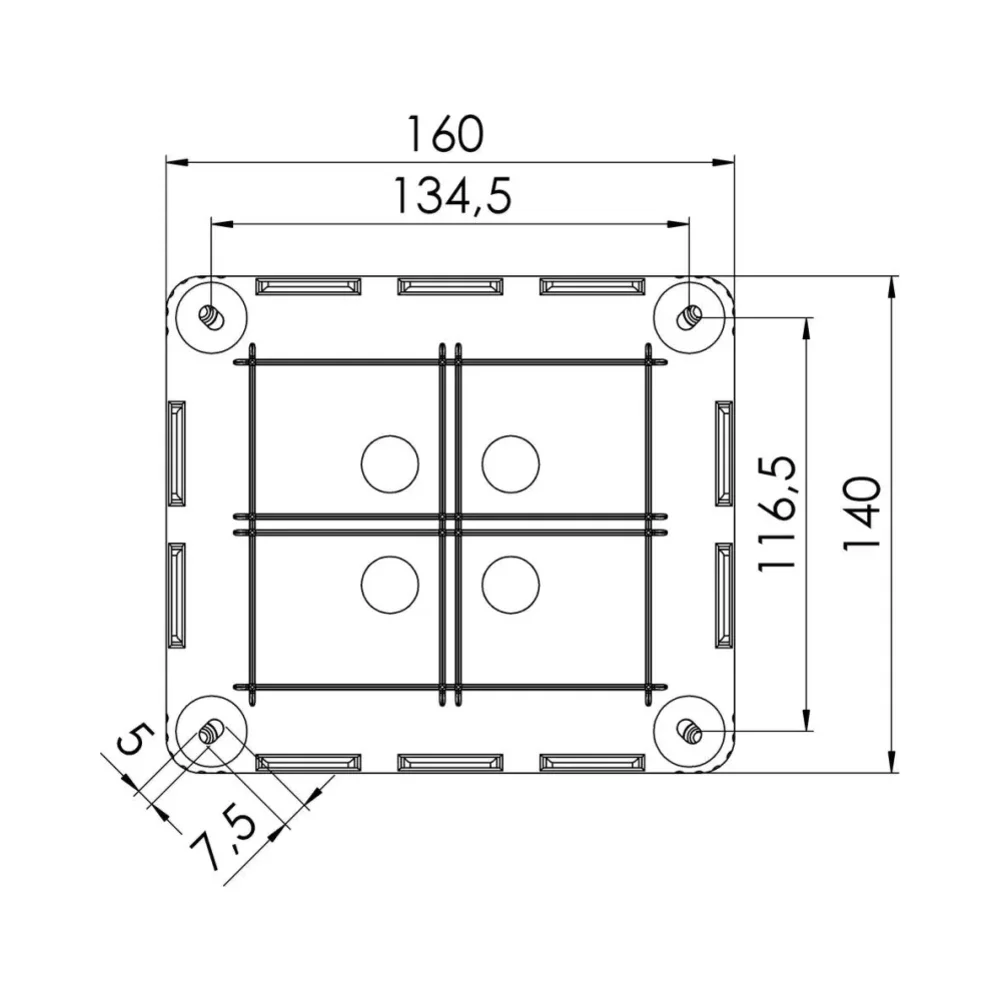

Compact & Spacious Design – External dimensions: 160 x 140 x 81mm

Technical Specifications

Material: Polypropylene
Sealing Gasket: TPE
Voltage Rating: 690V
Current Rating: 57A
Rated Cross Section: 10mm²
Cable Diameter: 3mm – 12mm
Fixing Method: 4 Internal Openings
Protection Class:
- IP66 (with membrane entry)
- IP67 (with threaded entry and ESKV cable gland)
Installation Temperature: -5°C to 60°C
Operating Temperature Range: -30°C to 100°C
Product Color: Black (RAL 9005)

Why Choose the Wiska COMBI 1210/5 Junction Box?

This high-performance junction box is engineered for secure and hassle-free installations. Whether for industrial, commercial, or residential applications, its waterproof protection, flexible cable entries, and durable construction ensure maximum reliability and ease of use.
