Description
10kA 25A Curve C Miniature Circuit Breaker
Reliable Circuit Protection for WCED TP&N Three Phase Distribution Boards

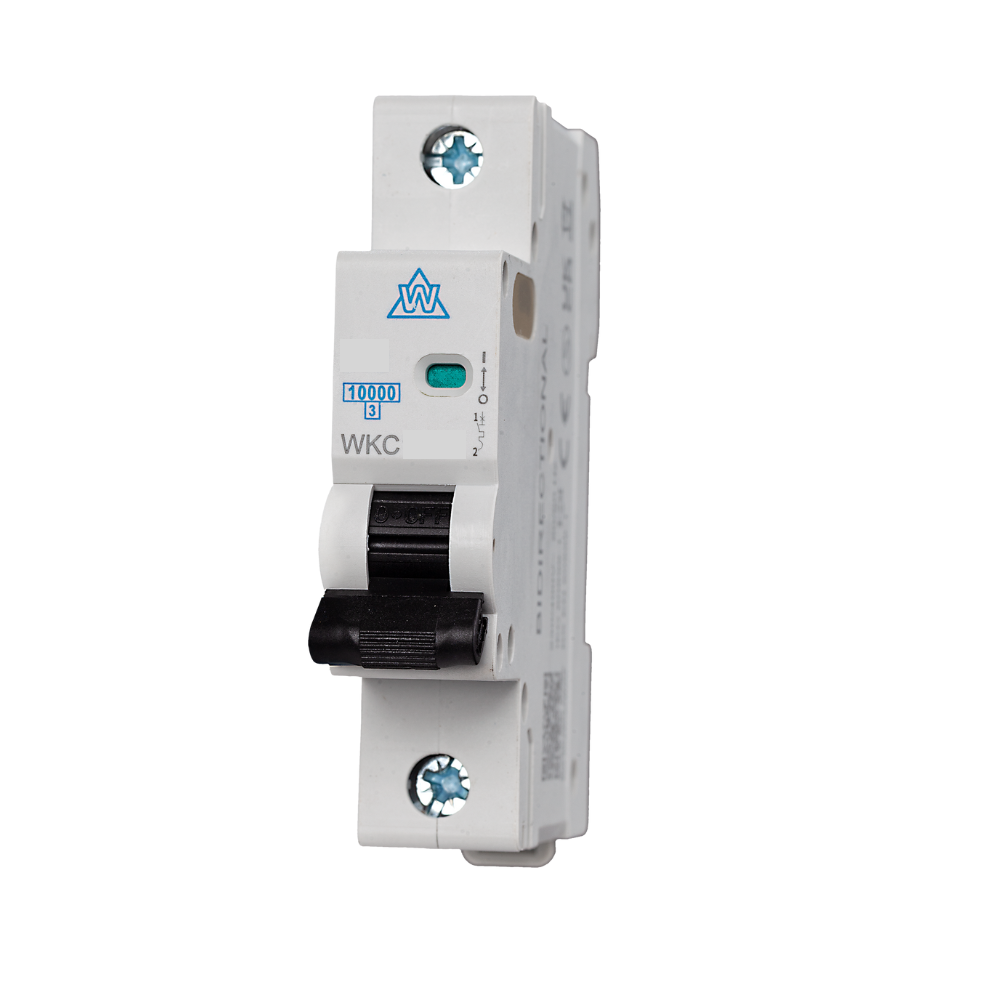

WCED WKC125C – 10kA MCB
The WCED WKC125C is a high-performance MCB designed for precise overcurrent detection and short-circuit protection.
Built for use in WCED TP&N Three Phase Distribution Boards, it ensures stable and efficient circuit protection across commercial, industrial, and domestic applications.
Key Features
- Rated Current: 25A
- Curve Type: C Curve
- Breaking Capacity: 10kA
- Designed for WCED TP&N Three Phase Distribution Boards
- Compliant with IEC/EN 60898-1 standards
- Space-saving design for compact installations
- Manufactured under WCED – Whitecliffe Electrical Distribution for superior quality
Applications
- Commercial electrical distribution
- Industrial setups
- Domestic installations with a three-phase link
Technical Data
- Rated Current: 25A
- Rated Voltage Ue: 230/400V
- Insulation Voltage Ui: 500V
- Rated Frequency: 50/60Hz
- Rated Breaking Capacity: 10kA
- Thermo-Magnetic Release Characteristic: C
- Electrical Life: 4,000 Cycles
- Mechanical Life: 20,000 Cycles
- Protection Degree: IP20
- Ambient Temperature: -5℃ to +40℃
- Storage Temperature: -25℃ to +70℃
- Mounting: On DIN rail EN 60715 (35mm)
- Connection: From top and bottom
About the Brand
WCED – Whitecliffe Electrical Distribution is a trusted manufacturer of high-quality electrical protection devices. It is designed with precision and compliance to meet modern safety standards. WCED MCBs offer top-tier performance for electrical installations.
