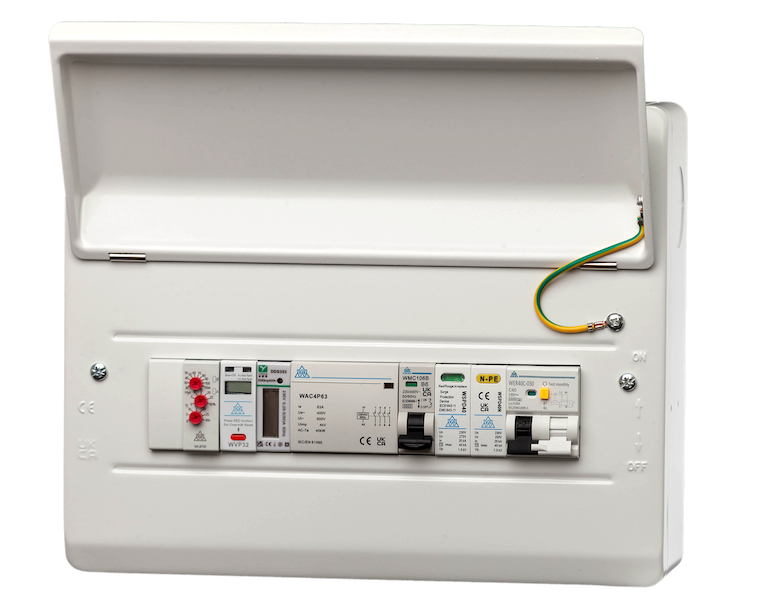

PME / PEN Fault Detection Unit with Load Balancing and kWh Meters
WCED WPEPME12/LBK
The WPEPME12/LBK is a premium PME / PEN Fault Detection Unit housed in a weatherproof IP65-rated enclosure, offering advanced safety and efficiency for your electrical systems. This 12-module unit integrates a C40A RCBO, 4P 63A contactor, Type 2 Surge Protection Device (SPD), PME relays, load balancing, and kWh meters, providing a comprehensive solution for residential, commercial, and industrial applications.
Key Features of PME / PEN Fault Detection Unit WPEPME12/LBK
- C Curve 40A RCBO: Ensures reliable overcurrent and residual current protection, with a 40A rating ideal for a variety of setups.
- 4P 63A Contactor: Provides dependable switching and control for system reliability.
- Type 2 SPD: Shields your system from harmful voltage spikes, with visual indicators to show status: Green (Good) and Red (Replace).
- PME Relays: Actively detect PME faults, including PEN faults and PEN loss, isolating the system to prevent hazards.
- Load Balancing: Optimises power distribution across connected devices to prevent overloading, ideal for properties with high-demand appliances.
- kWh Meters: Monitor real-time energy consumption, helping you manage and reduce energy costs effectively.
- IP65 Enclosure: Weatherproof and dust-tight, ensuring durability and reliable operation in harsh environments.
- Compact 12-Module Design: Space-efficient, fitting into a range of installations.
- Easy Installation: Designed for quick and straightforward setup by professional electricians.
Specifications of PME / PEN Fault Detection Unit WPEPME12/LBK
- Model: WPEPME12/LBK
- IP Rating: IP65, suitable for outdoor and indoor use.
- RCBO: C40A, Double Pole, Type A.
- Contactor: 4P 63A.
- Surge Protection: Type 2 SPD with status indicators.
- Voltage Monitoring Range: 207V-253V AC.
- Rated Voltage: 230V / 240V AC.
- Frequency: 50Hz.
- Enclosure Size: 12-module compact design.
Load Balancing Explained
Load balancing prevents electrical overcapacity by distributing the available power equally across connected devices. The WPEPME12/LBK utilises a current transformer on the main supply cable to monitor and manage power distribution efficiently. This feature is particularly useful in properties with high-energy appliances, such as induction hobs, electric showers, or heating systems, alongside EV chargers.
Understanding PME Faults, PEN Faults, and PEN Loss
PME faults, PEN faults, and PEN loss represent critical safety concerns in PME (Protective Multiple Earthing) systems:
- PEN Fault: A partial failure of the PEN conductor, causing unsafe voltage levels on the protective earth (PE).
- PEN Loss: A complete disconnection of the PEN conductor, creating risks of electric shock or equipment damage.
- PME Fault: A general term for faults in PME systems that compromise safety and compliance.
The WPEPME12/LBK actively detects and isolates these faults, ensuring safe and reliable system operation.
Applications
- Residential: Safeguards single-phase EV chargers like Tesla, addressing PME faults and providing energy monitoring.
- Commercial: Ideal for EV charging points in parking lots, retail spaces, and offices.
- Industrial: Essential for facilities with high electrical demands requiring robust fault detection and load balancing.
Why This Unit is Essential
The WPEPME12/LBK combines PME fault detection, load balancing, surge protection, and energy monitoring in one robust unit. Its IP65-rated enclosure ensures reliable performance in outdoor environments, while its user-friendly design simplifies installation. This unit is indispensable for ensuring the safety, efficiency, and compliance of modern EV charging systems.
