WCED WME12/MS100 WCED 10 Way Main Switch RCBO Consumer Unit

Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

WCED 6 Way Main Switch Consumer Unit

SKU: WME08/MS100

Delivery usually within 1-3 working days

Confirm Availability

Raised keyholes for secure easy installation

Raised din rail improves cable routing

Supplied with neutral and earth terminal bars

Neutral cable and pin-style bar

232mm (W) x 240mm (H) x 112mm (D)

Multiple circular cable entry knock-outs (25 & 32mm) on top and bottom, 40mm on the sides and back plus larger rear slots.

£27.11 + VAT

(incl. VAT £32.53)

2 - 0

%

£24.40
3 - 0

%

£23.86
4 - 0

%

£23.31

2	-	£24.40	£2.71	£27.11
3	-	£23.86	£3.25	£27.11
4	-	£23.31	£3.80	£27.11

— OR —

Categories: 6 Way Consumer Units, Consumer Units, Main Switch Consumer Units, RCBO Consumer Units, WCED Main Switch Consumer UnitsSupplier: WCED

Description

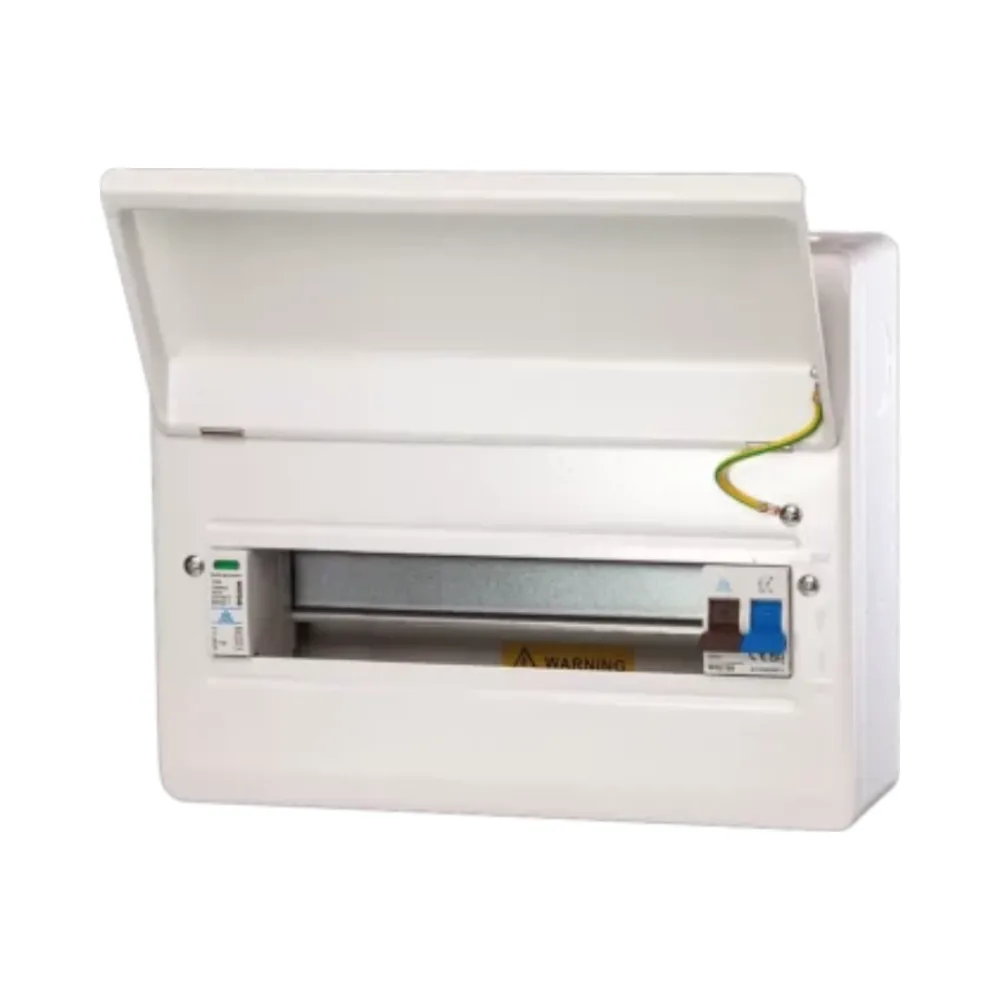

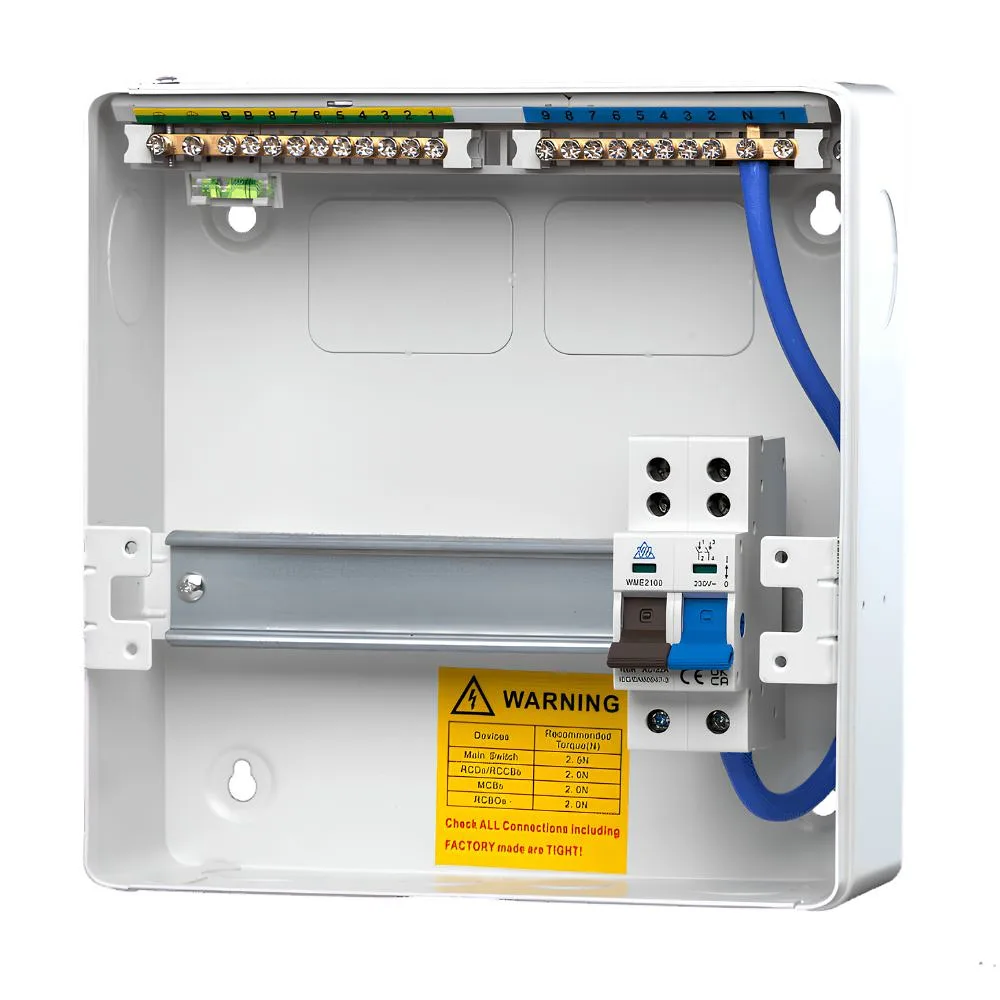

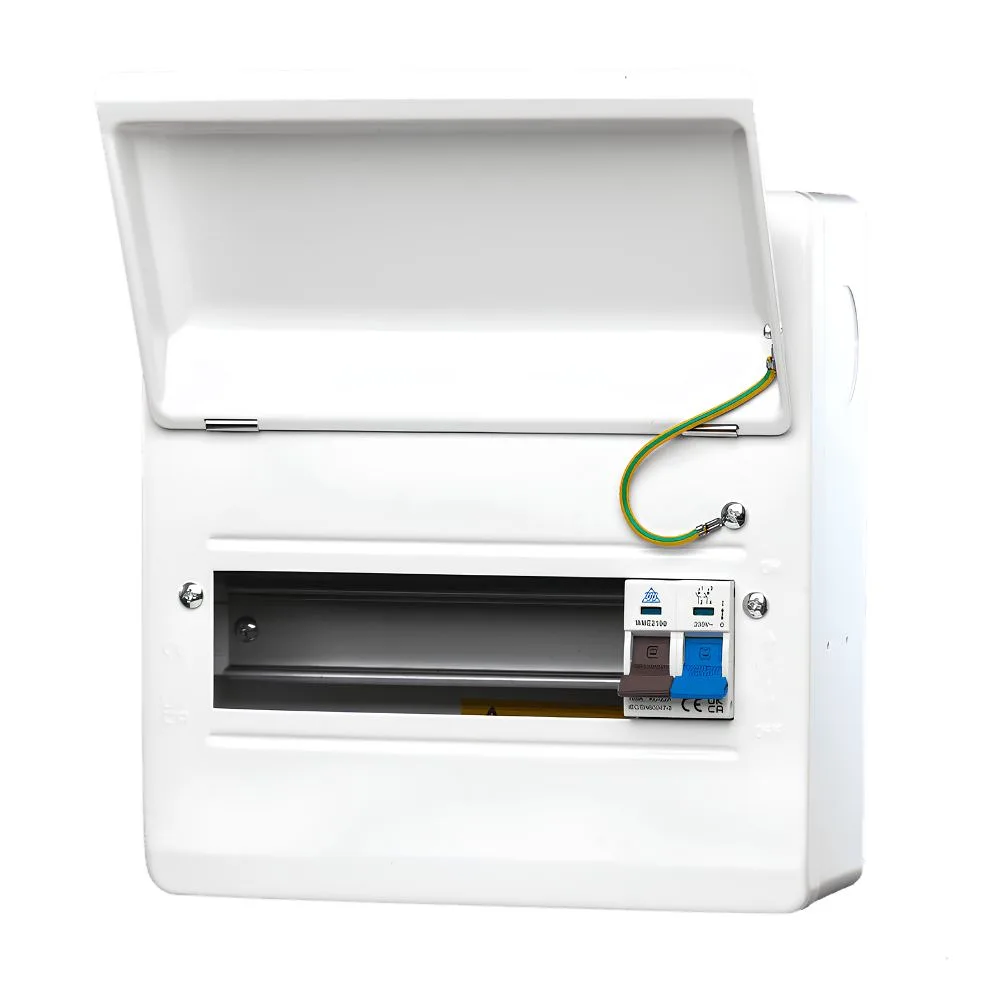

WCED 6 Way Main Switch Consumer Unit

Optimise your electrical setup with the WCED 6 Way Main Switch Consumer Unit.

This unit offers reliable and efficient control over your electrical circuits, ideal for homes and small businesses.

It features multiple circular cable entry knock-outs (25mm and 32mm) on the top and bottom, 40mm on the sides and back, plus larger rear slots for easy wiring.

The 8 module, 6 usable way CU includes a 100A main switch.

Designed for straightforward installation, it ensures safety and compliance with the highest industry standards.

With dimensions of 232mm (W) x 240mm (H) x 112mm (D), its compact design fits neatly into any space, providing robust protection and long-lasting performance.

Multiple circular cable entry knock-outs (25 & 32mm) on top and bottom, 40mm on the sides and back plus larger rear slots.
8 Module 6 Usable Way CU With 100A Main Switch
W:232mm H:240mm D:112mm

Please check below for other products from WCED that may be helpful to complete your project

Check also other available sizes of Consumer Units from WCED with & without SPD

Additional information

Brand	WCED
Usable Ways	6
Width (mm)	232
Height (mm)	240
Depth (mm)	112
Product	Consumer Unit
Consumer Unit Type	RCBO Consumer Unit, Main Switch Consumer Unit

This product will be ordered from one of ours suppliers. The usual dispatch time to you is displayed above. You will receive a notification if there are any delays once your order is placed.

WCED Technical Support 0161 723 1451
