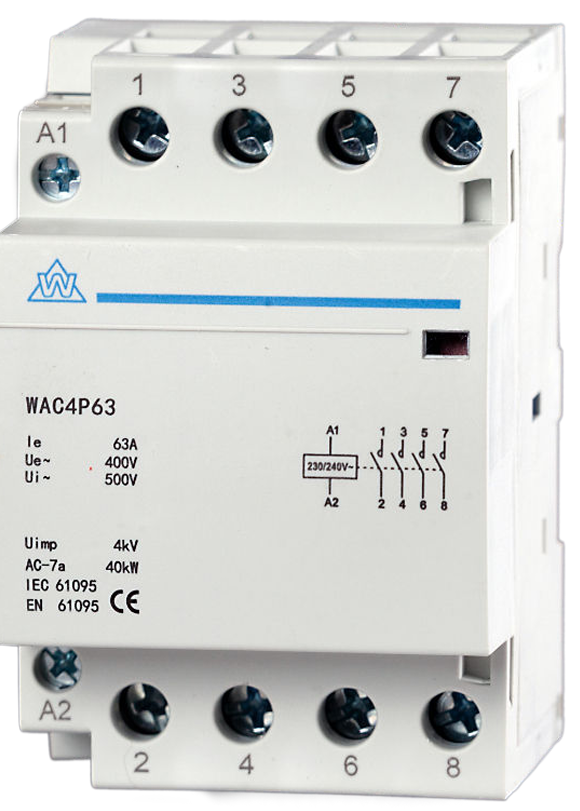

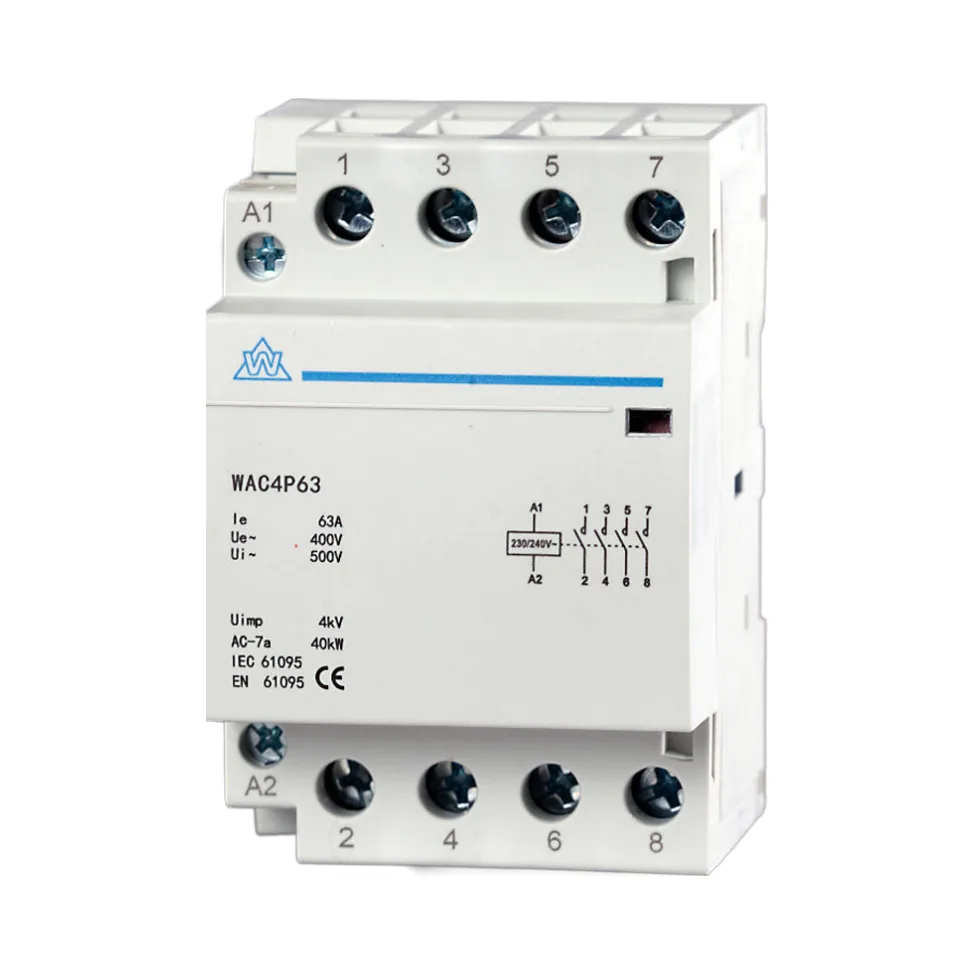

WCED 4P 40A 4NO 24V Modular contactor

Description

4 Pole 40A Normally Open 24V Modular Contactor

The WCED 4P 40A 4NO 24V Modular Contactor is a reliable and versatile switching device designed for controlling circuits in residential, commercial, and industrial setups. This modular contactor combines robust performance with silent operation, making it an ideal choice for modern electrical systems.

Key Features of 4 Pole 40A Normally Open 24V Modular Contactor

• Compact Modular Design: Space-saving construction suitable for consumer units and modular enclosures.
• Dual Voltage Operation: Operates with a 230V control circuit while utilizing a 24V electromagnetic coil for switching.
• Silent Performance: Designed for quiet operation, ideal for noise-sensitive environments.
• High Voltage Compatibility: Rated operational voltage of 230/400V @ 50Hz for reliable load switching.
• Durable Construction: IP20 protection ensures safety, conforming to BS EN 60529.
• Advanced Utilisation Categories: Supports AC-7a and AC-1 applications, complying with BS EN 60947-4-1.
• Ambient Operating Temperature: Functions efficiently between -25 °C and +40 °C.
• Secure Mounting: Equipped with a 35 mm DIN rail mounting system and a recommended torque of 2.0Nm.
• Comprehensive Compliance: Meets BS EN 61095 for modular contactors.

Additional Technical Specifications:

• Number of Poles: 4P (Four Poles)
• Contact Configuration: 4NO (Four Normally Open Contacts)
• Rated Current: 40A
• Control Voltage: 24V DC electromagnetic coil activated via a 230V AC control circuit.
• Switching Frequency: High switching capability suitable for repetitive operations.
• Insulation Voltage: Rated up to 500V.
• Mechanical Endurance: Up to 1,000,000 operations for extended lifespan.
• Utilization Categories:
  • AC-7a: Suitable for resistive loads (lighting, heating).
  • AC-1: Suitable for slightly inductive loads (HVAC, pumps).

How Contactors Work

Contactors function as electrically controlled switches that enable or interrupt the flow of electrical power. The WCED Modular Contactor uses a 24V DC electromagnetic coil, energized by a 230V AC control circuit, to perform its switching operations:

1. Electromagnetic Coil Activation:
   • When the 230V AC control circuit energizes the coil, it creates a magnetic field.
   • This field pulls the armature, closing the normally open (NO) contacts and allowing current to flow to the connected load.
2. Load Switching:
   • The contacts are made of high-quality materials, such as silver alloys, to withstand high currents and minimize arcing.
   • The modular design allows for efficient load switching in applications like lighting, heating, and motor control.
3. Reset Mechanism:
   • When the control circuit is de-energized, the spring mechanism returns the armature to its original position, reopening the contacts and stopping the flow of power.

Applications:

• Residential: Lighting, heating systems, and garden pumps.
• Commercial: HVAC systems, ventilation, and large-scale lighting setups.
• Industrial: Motor control, conveyors, and automation systems requiring repetitive switching.

Why Choose the WCED 4P 40A 4NO 24V Modular Contactor?

With its robust design, silent operation, and advanced technical specifications, the WCED 4P 40A 4NO 24V Modular Contactor offers reliable and efficient performance. Its compliance with international standards and suitability for a wide range of applications makes it a preferred choice for electricians and engineers.
