Description

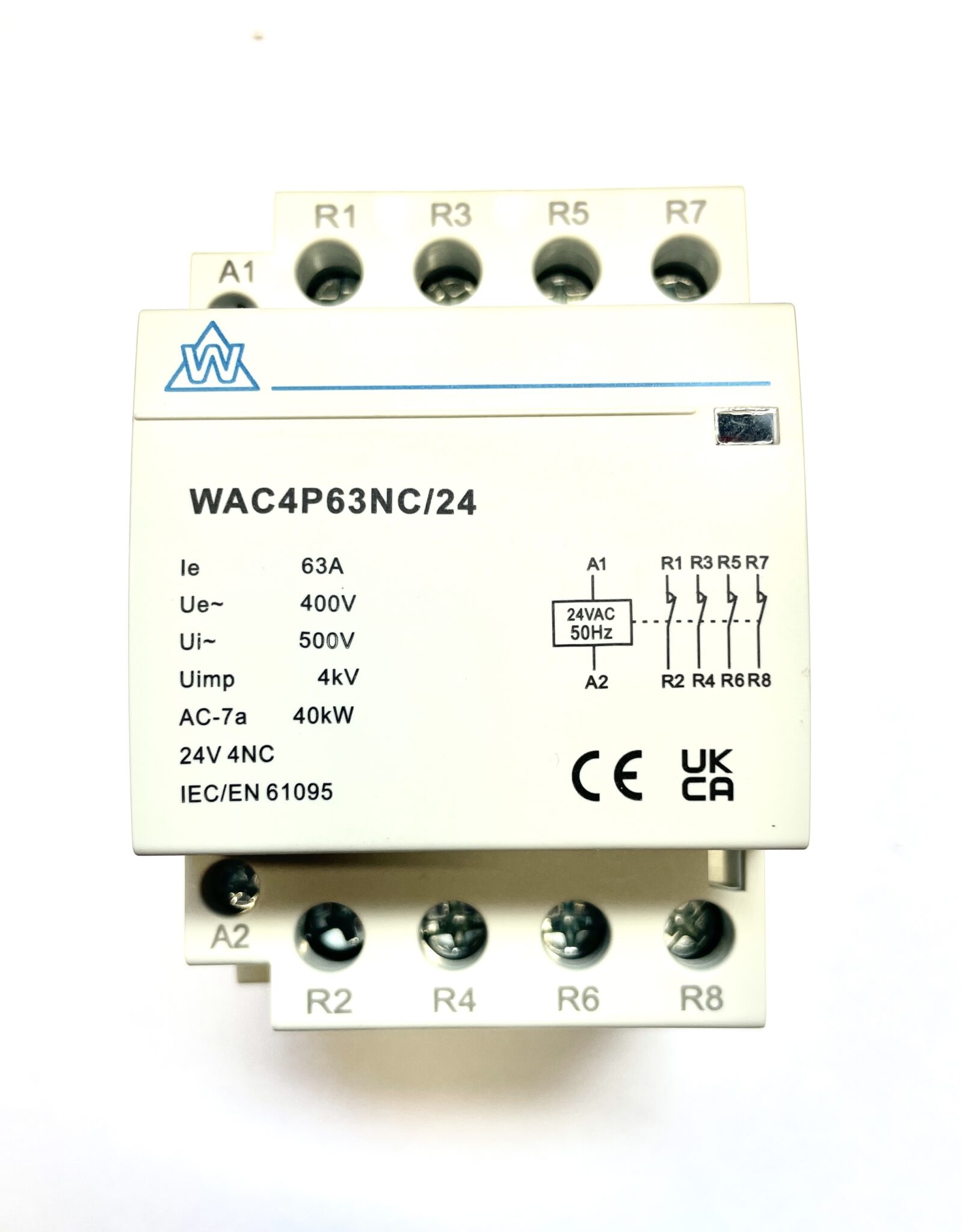

4 Pole 63A 24V NC Normally Closed AC Modular Contactor
The WCED 4 Pole 63A 24V Normally Closed AC Modular Contactor offers a robust and reliable solution for managing high-capacity electrical circuits. Its compact design ensures efficient use of space within modular panels, consumer units, and enclosures, while its silent operation makes it perfect for noise-sensitive environments. This contactor is ideal for installations where fail-safe functionality is critical.
Key Features of 4 Pole 63A 24V NC Normally Closed AC Modular Contactor
- Compact Modular Design: Fits neatly into consumer units and modular enclosures, optimising installation space.
- Silent Operation: Designed for noise-free performance, suitable for residential, commercial, and industrial environments.
- Normally Closed Configuration: Keeps circuits closed by default, opening only when the 24V coil is energised, ensuring fail-safe operation.
- High Current Capacity: Handles loads of up to 63A, making it suitable for heavy-duty applications.
- Durable and Reliable: Built with high-quality materials for consistent performance under demanding conditions.
- Versatile Application: Suitable for lighting systems, heating controls, and industrial machinery.
Technical Specifications
- Brand: WCED
- Poles: 4 Pole
- Current Rating: 63A
- Control Voltage: 24V AC electromagnetic coil
- Operational Voltage: 230/400V AC @ 50Hz
- Operation Type: Normally Closed
- Degree of Protection: IP20, conforming to BS EN 60529
- Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads), compliant with BS EN 60947-4-1
- Ambient Temperature Range: -25 °C to +40 °C
- Mounting: 35 mm DIN rail, with a recommended torque of 2.0Nm
- Compliance: Certified to BS EN 61095 for modular contactors
How It Works
The WCED 4 Pole 63A 24V NC Modular Contactor operates using an electromagnetic coil:
- Default State: The contacts remain closed, allowing uninterrupted current flow in its normally closed (NC) configuration.
- Activation: When the 24V AC coil is energised, the magnetic field moves the armature, opening the contacts to interrupt the circuit.
- Fail-Safe Reset: Upon de-energising the coil, the spring mechanism resets the armature, returning the contacts to their closed position for reliable operation.
Applications
- Residential: Efficiently control high-capacity lighting, heating systems, and appliances.
- Commercial: Ideal for managing HVAC systems, retail lighting, and office equipment.
- Industrial: Suitable for heavy-duty applications such as motors, pumps, and large machinery.
Why Choose This Contactor?
The WCED 4 Pole 63A 24V NC Modular Contactor is designed for demanding applications where reliability, safety, and quiet operation are essential. Its compliance with British and international standards ensures dependable performance, making it a trusted choice for electricians and engineers.
