Description

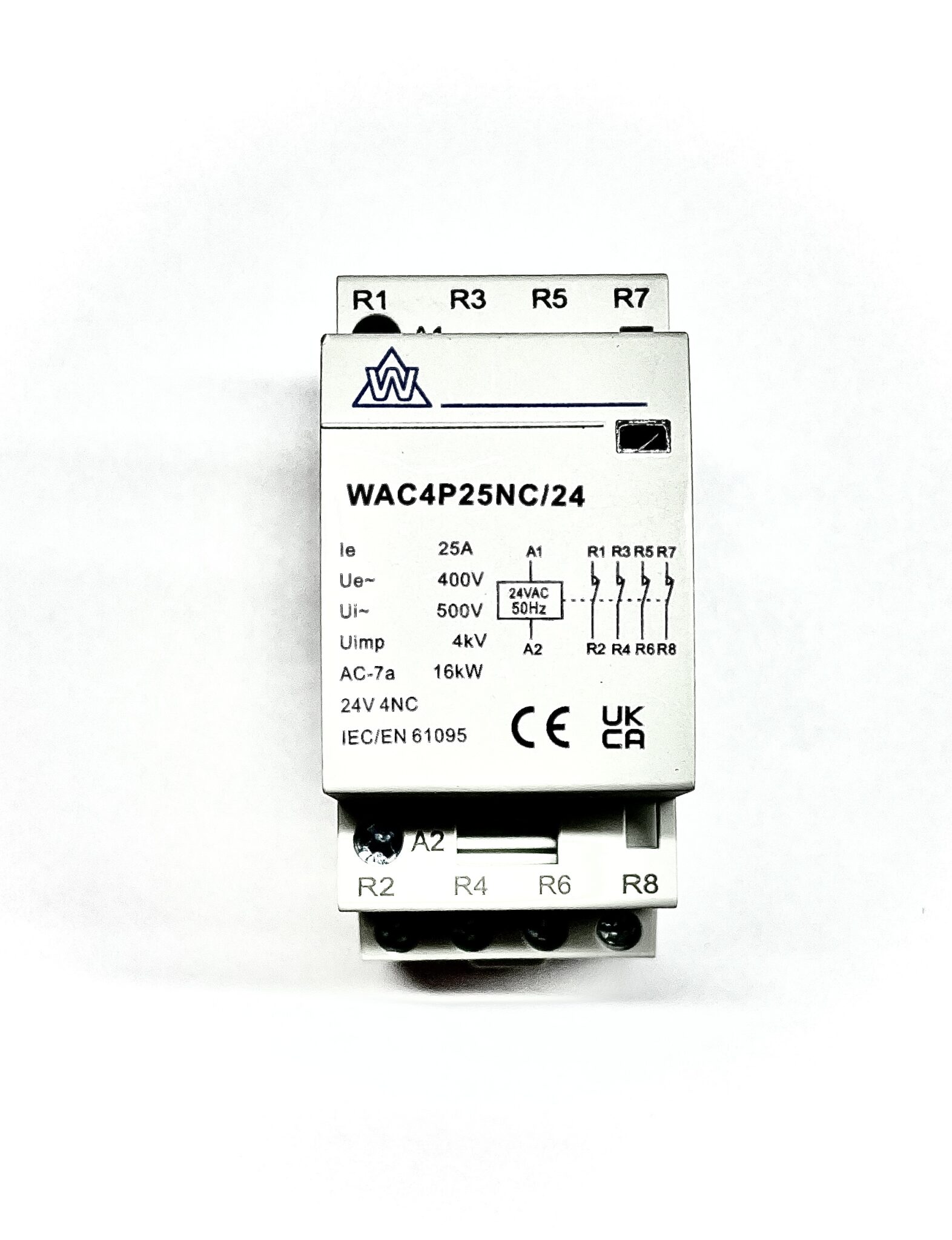

4 Pole 25A 24V NC Normally Closed AC Modular Contactor
The WCED 4 Pole 25A 24V NC Normally Closed AC Modular Contactor is a reliable and compact solution for managing electrical circuits in modular panels, consumer units, and enclosures. Designed for fail-safe operation and quiet performance, it is ideal for residential, commercial, and industrial installations where space and noise reduction are essential.
Key Features of 4 Pole 25A 24V NC Normally Closed AC Modular Contactor
- Compact Modular Design: Fits neatly into consumer units and modular enclosures, optimising space usage.
- Silent Operation: Noise-free performance, perfect for environments requiring quiet operation.
- Normally Closed Configuration: Keeps the circuit closed by default and opens it only when the 24V coil is energised, ensuring fail-safe control.
- Durable Construction: Built for long-lasting reliability and consistent performance.
- Versatile Application: Suitable for use in various electrical setups, including lighting and automation systems.
Technical Specifications
- Brand: WCED
- Poles: 4 Pole
- Current Rating: 25A
- Control Voltage: 24V AC electromagnetic coil
- Operational Voltage: 230/400V AC @ 50Hz
- Operation Type: Normally Closed
- Degree of Protection: IP20, conforming to BS EN 60529
- Utilisation Categories: AC-7a (resistive loads) and AC-1 (slightly inductive loads), compliant with BS EN 60947-4-1
- Ambient Temperature Range: -25 °C to +40 °C
- Mounting: 35 mm DIN rail, with a recommended torque of 2.0Nm
- Compliance: Certified to BS EN 61095 for modular contactors
How It Works
The WCED 4 Pole 25A 24V NC Modular Contactor operates using an electromagnetic coil:
- Default State: In its normally closed (NC) configuration, the contacts remain closed, allowing current flow through the circuit.
- Activation: When the 24V AC coil is energised, the magnetic field moves the armature, opening the contacts and interrupting the current.
- Fail-Safe Reset: Upon de-energising the coil, a spring mechanism returns the contacts to their default closed state, ensuring reliable operation.
Applications
- Residential: Ideal for controlling lighting and heating systems.
- Commercial: Suitable for office lighting, HVAC systems, and retail applications.
- Industrial: Effective in managing motors, pumps, and machinery requiring fail-safe switching.
Why Choose This Contactor?
The WCED 4 Pole 25A 24V NC Modular Contactor combines durability, compact design, and silent operation, ensuring reliable performance across a range of applications. Its compliance with British and international standards guarantees safety and quality, making it a trusted choice for professional electricians.
