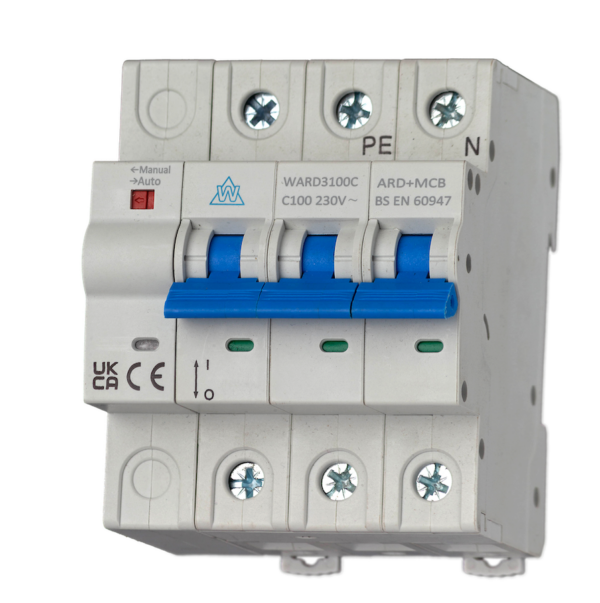

100A Single Phase Automatic Reset Device with Built-In PME Fault Protection
Whitecliffe Electrical WARD3100C
The WARD3100C Single Phase Automatic Reset Device is engineered to provide top-tier safety by complying with BS: 7671 2018, Amendment 1: 2020 for TN systems. With PME fault protection built-in, this device monitors supply voltage and will completely disconnect live, neutral, and earth if a fault is detected, ensuring the safety of the entire electrical system.
The WARD3100C handles a 100A current and automatically responds to under-voltage or over-voltage events. For under-voltage, it automatically resets once the voltage returns to normal. However, for over-voltage, the device requires manual reset by switching the toggle to the “ON” position for added safety. This device is ideal for installations where no earth electrodes are required and offers additional overload and short-circuit protection.
Key Features of 100A Automatic Reset Device with PME Fault Protection
- Monitors supply voltage for 230V and 240V
- Automatically disconnects live, neutral, and earth within 5 seconds during under-voltage (<207V) or over-voltage (>253V)
- Automatic reset after under-voltage; manual reset after over-voltage for safety
- No earth electrodes required
- Includes overload and short-circuit protection
- Complies with BSEN 60898-1, BS EN 60947, and BS EN 50557 standards
Specifications:
- Rated Current: 100A
- Rated Voltage: 230V AC
- Rated Insulation Voltage: 500V
- Frequency: 50/60Hz
- Rated Short Circuit Capacity: 10kA
- Impact Resistance Voltage: 6kV
- Tripping Characteristics: C (5In~10)
- Operating Range: 207V – 253V (disconnects within 5 seconds)
- IP Rating: IP20
- Ambient Temperature: -25°C to +55°C
- Storage Temperature: -35°C to +55°C
- Pole Configuration: 2P+PE (4 modules)
Part Number:
- WARD3100C: 4 Mod 2P+PE 100A Single Phase Automatic Reset Device
The WARD3100C is the ideal solution for ensuring reliable protection in single-phase systems, offering PME fault protection, overload, and short-circuit safety features, while ensuring compliance with modern electrical standards.
