Wago 2687-2142 24V DC Power Supply – Eco 2

Description

24V DC Power Supply – Eco 2

Wago 2687-2142

Reliable and Efficient 24V DC Power Supply

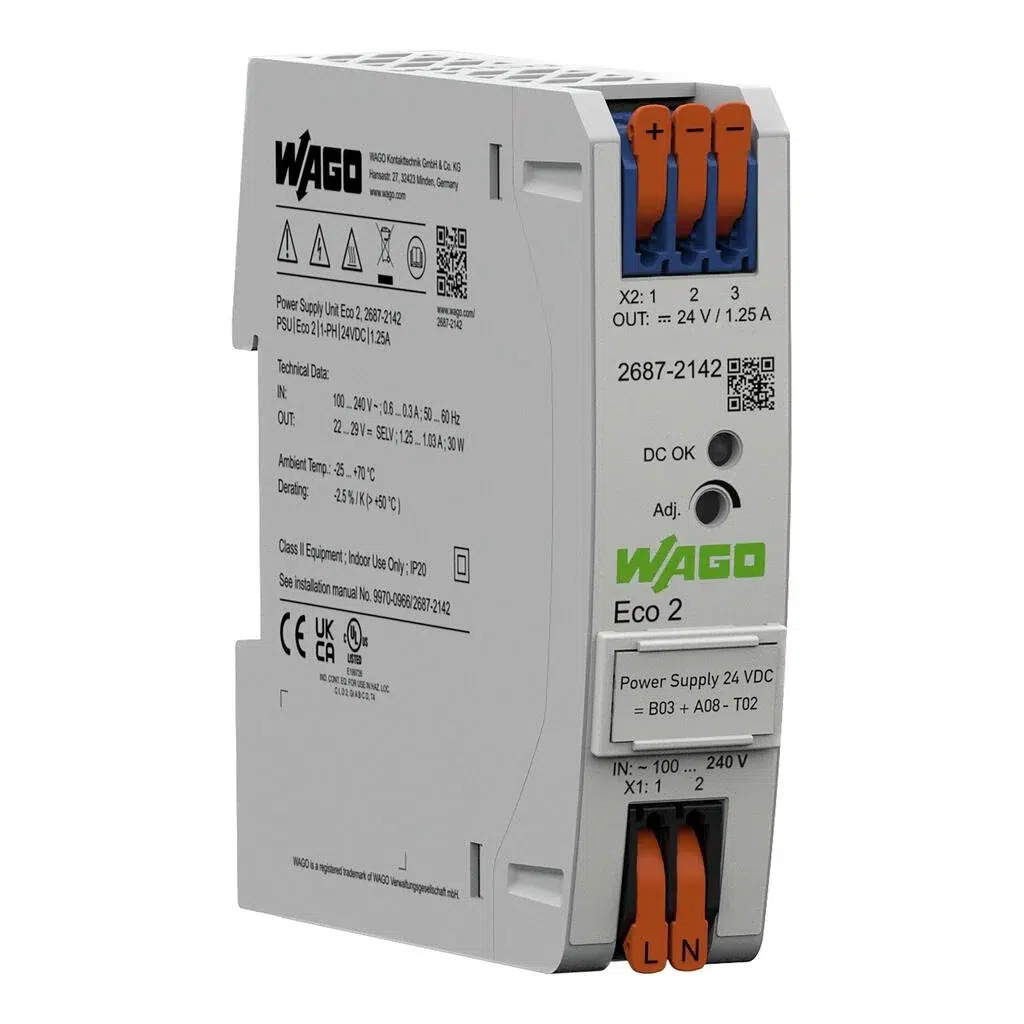

The Wago 2687-2142 24V DC Power Supply – Eco 2 series is a compact and efficient 1-phase power supply designed for industrial and automation applications. Delivering a stable 24 VDC output voltage at 1.25 A, it ensures consistent performance and reliability. Featuring a DC-OK LED, this unit provides real-time status indication. Additionally, with push-in termination and tool-free lever operation, installation is quick and straightforward.

Key Features of the Wago 2687-2142 24V DC Power Supply

• Optical Status Indication – The DC-OK LED provides real-time operational feedback.
• Parallel & Series Operation – Supports both configurations for flexible system integration.
• Natural Convection Cooling – Operates efficiently when mounted horizontally, eliminating the need for active cooling.
• Push-in CAGE CLAMP® Technology – Enables secure and tool-free wiring.
• Electrically Isolated Output Voltage – Meets SELV/PELV safety standards per EN 61010/UL 61010.
• Marker Slot – Compatible with WAGO marking cards (WMB) and marking strips (Marker slot 2789-1223, not included).

Technical Data

Input

• Phases: 1
• Nominal Input Voltage: 1 x AC 100–240 V
• Input Voltage Range: 1 x AC 90–264 V
• Nominal Mains Frequency Range: 50–60 Hz
• Input Current:
  • ≤ 0.3 A (230 VAC, nominal load)
  • ≤ 0.6 A (100 VAC, nominal load)
• Inrush Current: ≤ 10 A (after 1 ms)
• Power Factor Correction (PFC): Passive
• Mains Failure Hold-up Time:
  • ≥ 120 ms (230 VAC)
  • ≥ 15 ms (110 VAC)

Output

• Nominal Output Voltage: DC 24 V (SELV)
• Output Voltage Range: DC 22–29 V (adjustable)
• Default Setting: DC 24 V
• Nominal Output Current: 1.25 A (24 VDC)
• Nominal Output Power: 30 W
• Deviation: ≤ 1%
• Residual Ripple: ≤ 30 mV (Peak-to-peak, at 230 VAC)
• Overload Behaviour:
  • Constant power up to 125%
  • Shutdown and automatic restart in the event of a short circuit

Signalling and Communication

• Signalling: 1 x LED DC-OK (green)

Efficiency & Power Losses

• Power Loss:
  • ≤ 0.2 W (No load)
  • ≤ 4.3 W (Nominal load)
• Efficiency (typical): 88%

Circuit Protection

• Internal Fuse: T 1 A / 250 VAC
• Backup Fusing (Recommended): 16 A (for USA/Canada: 15 A)

Safety & Protection

• Isolation Voltage (Primary-Secondary, AC): 3510 V
• Protection Class: II
• Protection Type: IP20 (per EN 60529)
• Resistance to Reverse Feed: ≤ DC 35 V
• Overvoltage Category:
  • III (≤ 2000 m above sea level)
  • II (Above 2000 m)
• Pollution Degree: 2
• Short-Circuit Protection: Yes
• Open-Circuit Protection: Yes
• Parallel Operation: Yes
• Series Operation: Yes

Connection Data

• Connection Type: Input/Output
• Connection Technology: Push-in CAGE CLAMP®
• Solid Conductor: 0.2–4 mm² / 24–12 AWG
• Fine-Stranded Conductor: 0.2–4 mm² / 24–12 AWG

Physical Data

• Width: 25 mm / 0.984 inches
• Height: 100 mm / 3.937 inches
• Depth from Upper Edge of DIN-Rail: 100 mm / 3.937 inches

Mechanical Data

• Mounting Type: DIN-35 Rail

Material Data

• Fire Load: 0 MJ
• Weight: 160 g

Environmental Requirements

• Ambient Temperature (Operation at UN): -25°C to 70°C (Device starts at -40°C, type-tested)
• Surrounding Air Temperature (Storage): -40°C to +85°C
• Relative Humidity: 5–96% (No condensation permissible)
• Derating: See type label/manual
• Operating Altitude (Max.): 5000 m

Standards & Specifications

• Conformity Marking: CE
• Standards/Specifications:
  • EN 61010-1
  • EN 61010-2-201
  • EN 61204-3
  • UL 61010-1
  • UL 61010-2-201

Commercial Data

• ETIM 8.0 Classification: EC002540
• ETIM 7.0 Classification: EC002540
• Pack Unit (PU/SPU): 1 Piece
• Country of Origin: China (CN)
• GTIN: 4066966156492
• Customs Tariff Number: 85044082900

This Wago 2687-2142 24V DC Power Supply – Eco 2 is designed to meet high standards for safety, efficiency, and reliability in automation and industrial applications. With parallel and series operation support, push-in termination, and natural convection cooling, it ensures seamless integration into electrical systems.
