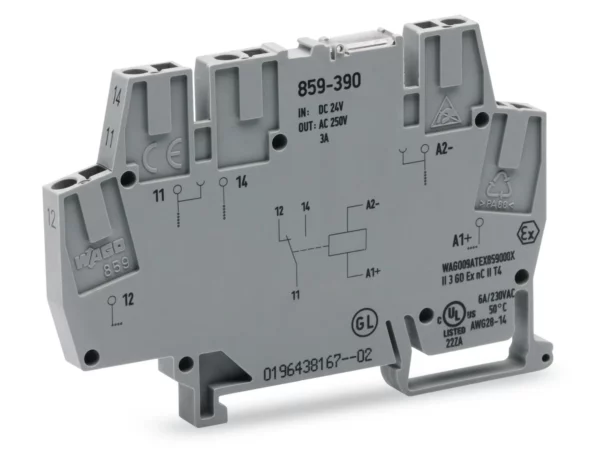

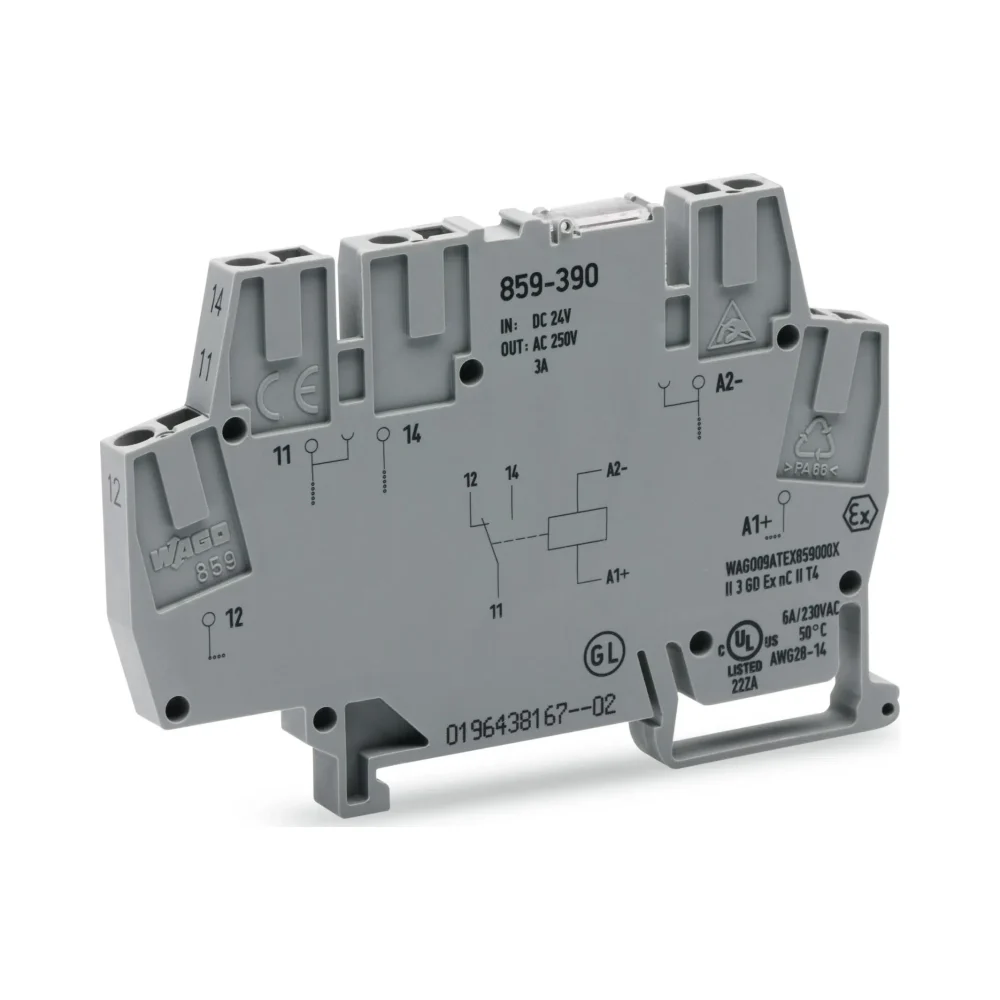

Railway Relay Module with 1 Changeover Contact
Wago 859-390: 24V DC 5A 2.5mm² Grey
The Wago 859-390 Railway Relay Module (SKU: 859-390) provides efficient switching with one changeover contact and a continuous current capacity of up to 5A. Designed for railway and industrial applications, it operates at a nominal input voltage of 24V DC and features a red status indicator for real-time system feedback.
Wago’s Push-in CAGE CLAMP® technology ensures secure, tool-free connections, making installation quick and easy. The compact 6 mm width saves valuable space in control panels, making it ideal for applications where space is limited.
Key Features of the Wago 859-390 Railway Relay Module:
- Nominal Input Voltage: Operates at 24V DC with a nominal input current of 12 mA, ensuring stable performance in railway control systems.
- One Changeover Contact: Supports flexible switching with a continuous current capacity of up to 5A.
- Red Status Indicator: Provides clear real-time feedback, simplifying system monitoring.

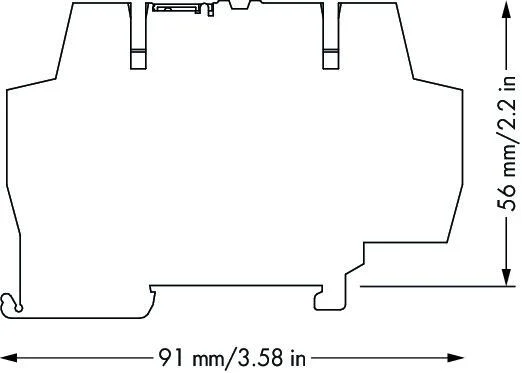

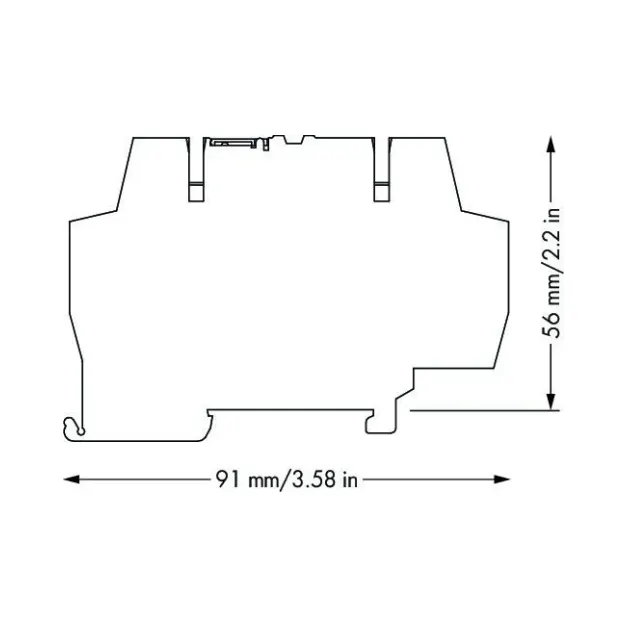

- Compact Design: With a slim 6 mm module width, it is ideal for space-constrained installations.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage applications.
- Switching Power: Rated for 1250 VA (resistive load), delivering strong performance in demanding environments.
- Switching Capacity: AC-15: 3A at 250V AC; DC-13: 2A at 24V DC, offering versatile switching for both AC and DC systems.
- Fast Response: Features a pull-in and drop-out time of 6 ms for efficient and responsive switching.
Connection Data:
- Wago Push-in CAGE CLAMP®: Enables fast, secure, and tool-free connections, simplifying the installation process.
- Wire Compatibility: Supports both solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG), with insulated ferrules for fine-stranded conductors from 0.08 to 1.5 mm² (28 to 16 AWG).
- Strip Length: Requires a strip length of 5 to 6 mm for optimal wire connections.
Applications for Wago 859-390 Railway Relay Module:
- Railway Control Systems: Designed for railway applications requiring efficient and reliable switching operations.
- Automation Systems: Suitable for automated systems that need fast, precise relay performance.
- Building Automation: Ideal for building automation projects that demand consistent and space-saving relay solutions.
The Wago 859-390 Railway Relay Module (SKU: 859-390) provides a dependable and compact solution for switching tasks in railway control, automation, and building installations. With Wago’s Push-in CAGE CLAMP® technology, it offers easy installation and long-lasting performance in both industrial and commercial environments.
