Description
Relay Module with 1 Changeover Contact – 24V DC 5A 2.5mm² Grey
Wago 859-304
The Wago 859-304 Relay Module (SKU: 859-304) delivers reliable switching with one changeover contact and a continuous current capacity of up to 5A. Designed for industrial and automation applications, it operates at a nominal input voltage of 24V DC and features a red status indicator for real-time system feedback.
Wago’s Push-in CAGE CLAMP® technology ensures fast, tool-free connections, simplifying installation in control panels and other systems. Its compact design, with a 6 mm width, saves valuable space in installations.
Key Features of the Wago 859-304 Relay Module:
- Nominal Input Voltage: Operates at 24V DC with a nominal input current of 10 mA, ensuring stable performance.
- One Changeover Contact: Supports flexible switching with up to 5A continuous current capacity.
- Red Status Indicator: Provides clear, real-time system feedback for easy monitoring.

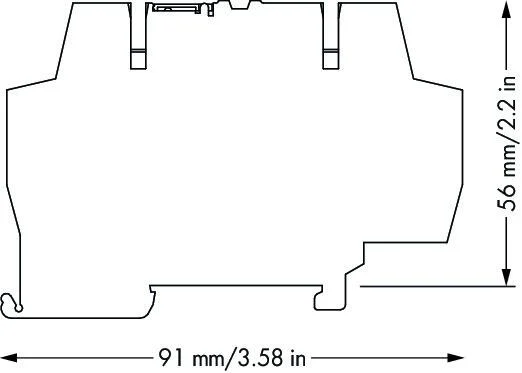

- Compact Design: At only 6 mm in width, this module is perfect for space-constrained installations.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage applications.
- Switching Power: Rated for 1250 VA (resistive load), ensuring robust performance in demanding environments.
- Switching Capacity: AC-15: 3A at 250V AC; DC-13: 2A at 24V DC, offering versatility in both AC and DC systems.
- Fast Response: Features a pull-in time of 6 ms and drop-out time of 6 ms for efficient switching operations.
Connection Data:
- Wago Push-in CAGE CLAMP®: Allows for secure, tool-free wire connections, making installation faster and easier.
- Wire Compatibility: Supports both solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 14 AWG), with insulated ferrules for fine-stranded conductors from 0.08 to 1.5 mm² (28 to 16 AWG).
- Strip Length: Requires a strip length of 5 to 6 mm for optimal wire connections.
Applications for Wago 859-304 Relay Module:
- Control Panels: Ideal for use in control panels requiring efficient and reliable switching.
- Automation Systems: Suitable for automated systems that demand quick and precise relay performance.
- Building Automation: Perfect for modern building automation projects where compact and efficient relay modules are required.
The Wago 859-304 Relay Module (SKU: 859-304) offers a reliable and compact solution for switching tasks in control systems, automation, and building installations. Wago’s Push-in CAGE CLAMP® technology ensures easy installation and long-lasting performance, making it ideal for both industrial and commercial environments.
