Wago 858-304 Manual Operation Relay Module with 4 Changeover Contacts – 24V DC 5A 1.5mm² Grey

Description

Manual Operation Relay Module with 4 Changeover Contacts – 24V DC 5A 1.5mm² Grey

Wago 858-304

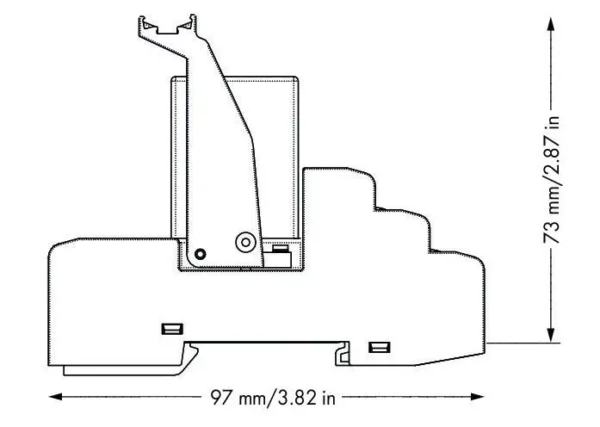

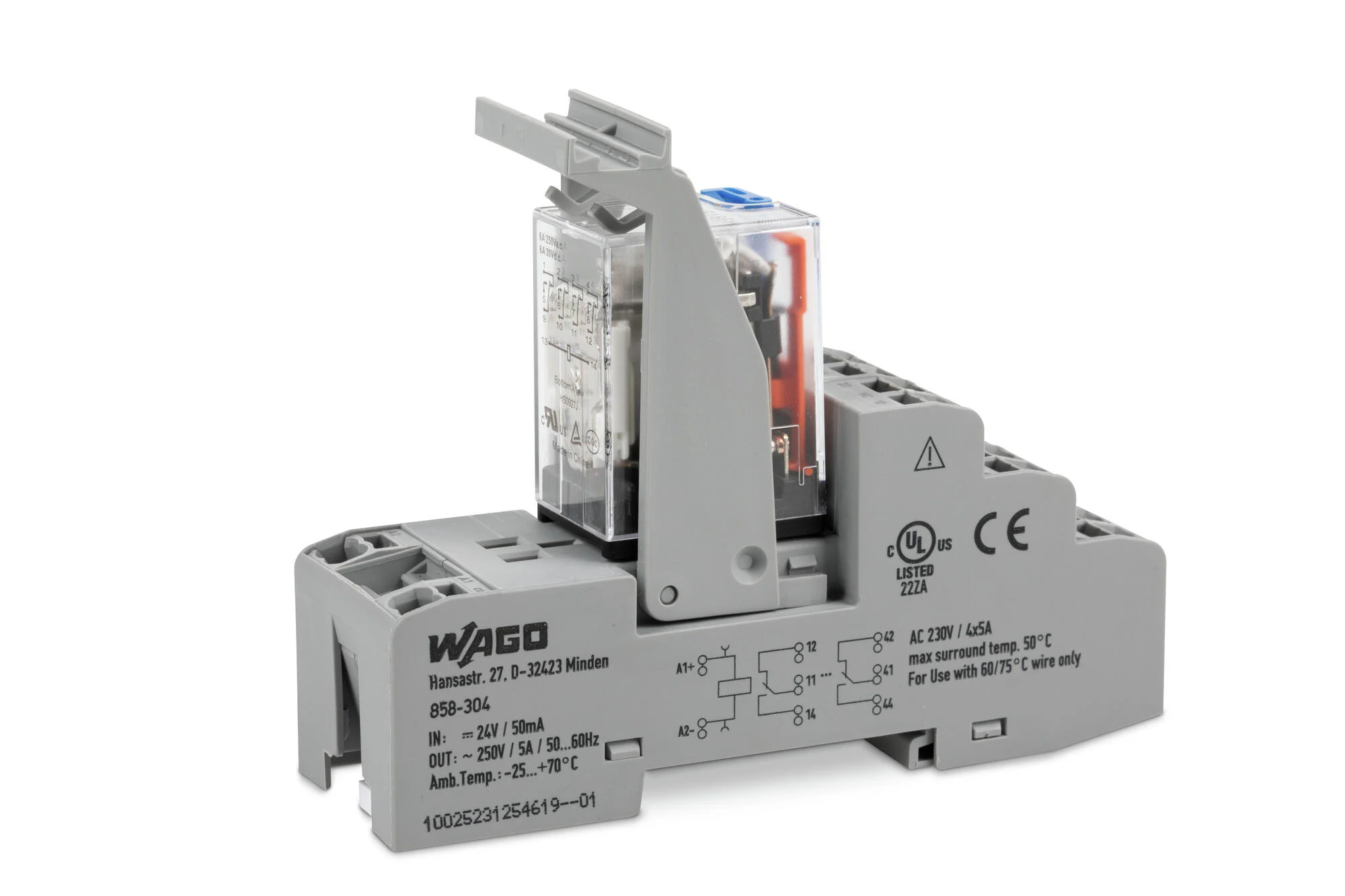

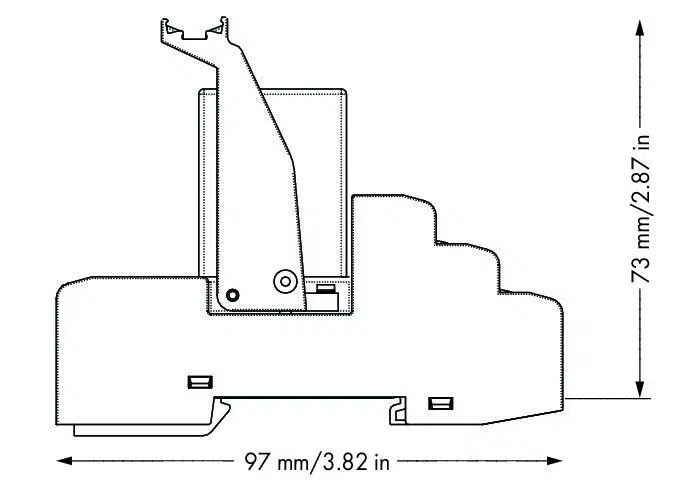

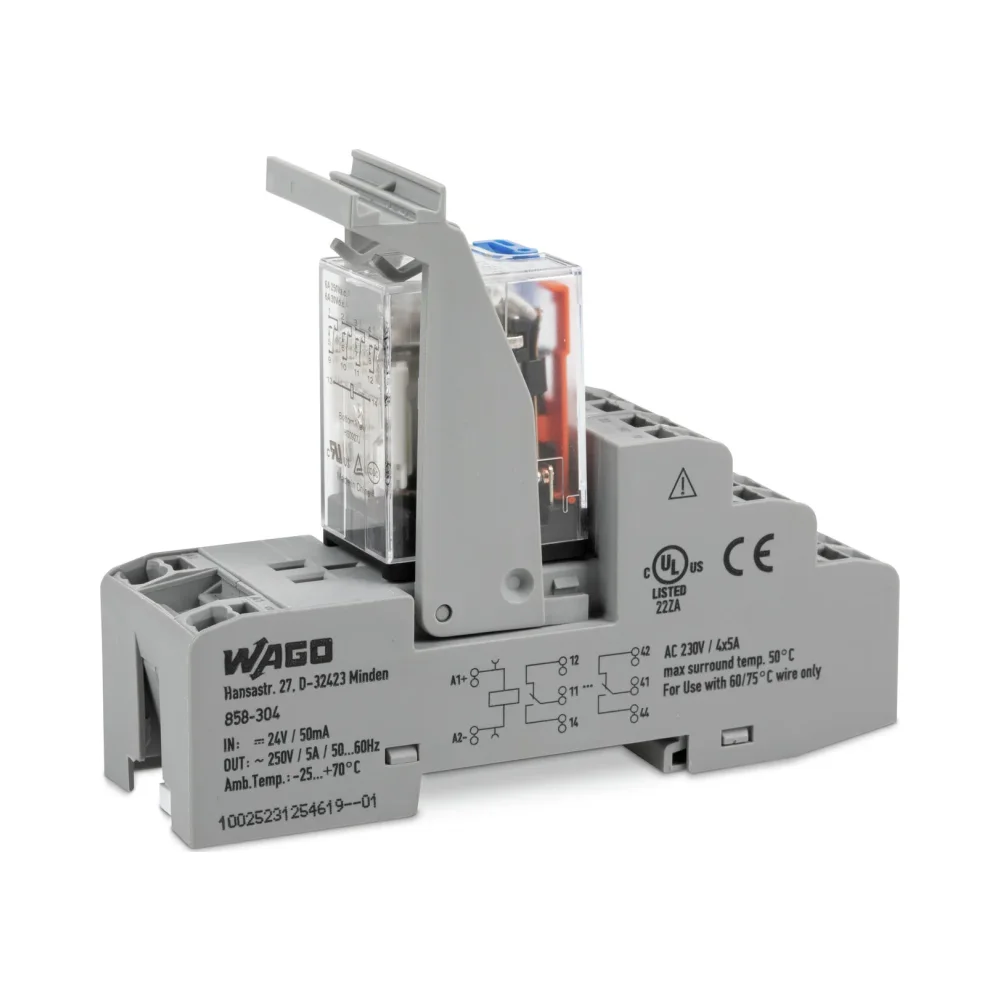

The Wago 858-304 Manual Operation Relay Module (SKU: 858-304) is designed to offer reliable switching with its four changeover contacts and manual operation capability. Operating at a nominal input voltage of 24V DC, it supports up to 5A continuous current, making it suitable for control panels, automation systems, and building installations.

With Wago’s Push-in CAGE CLAMP® technology, the module ensures quick and secure connections. The integrated red status indicator provides real-time system feedback, while the manual operation option allows for added flexibility in controlling electrical circuits.

Key Features of the Wago 858-304 Relay Module:

• Nominal Input Voltage: Operates at 24V DC with a nominal input current of 37 mA, providing stable performance for control systems.
• Four Changeover Contacts: Supports flexible switching with four changeover contacts and up to 5A continuous current.
• Manual Operation: Allows for manual control of relay functions, enhancing operational flexibility.
• Red Status Indicator: The integrated red LED offers real-time feedback for monitoring system status.
• Compact Design: With a module width of 31 mm, this relay is designed to fit in space-limited applications.

Electrical Specifications:

• Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage applications.
• Switching Power: Rated for 1250 VA (resistive load), providing robust performance in demanding environments.
• Inrush Current: Manages inrush currents up to 15A for 4 seconds, ensuring reliable start-up.
• Switching Capacity: AC-15: 1A at 240V AC; DC-13: 2A at 24V DC, offering versatility for AC and DC systems.
• Fast Response: Features a pull-in time of 25 ms and drop-out time of 25 ms for efficient switching.

Connection Data:

• Wago Push-in CAGE CLAMP®: Ensures fast, tool-free wire connections, simplifying installation.
• Wire Compatibility: Supports both solid and fine-stranded conductors from 0.34 to 1.5 mm² (22 to 16 AWG).
• Strip Length: Requires a strip length of 9 to 10 mm for secure wire connections.
• Conductor Options: Supports conductor cross-sections of 2 x 0.34 mm² to 2 x 1.5 mm² or 1 x 2.5 mm².

Applications for Wago 858-304 Relay Module:

• Control Panels: Perfect for control panels that require manual operation and reliable switching.
• Automation Systems: Ideal for automated systems requiring flexible switching and manual operation capabilities.
• Building Automation: Suitable for modern building automation systems where consistent performance and real-time monitoring are essential.

The Wago 858-304 Manual Operation Relay Module (SKU: 858-304) provides a dependable and flexible solution for switching tasks in control systems, automation, and building installations. Its compact design, manual operation, and Wago’s Push-in CAGE CLAMP® technology make it a practical choice for industrial and commercial applications.
