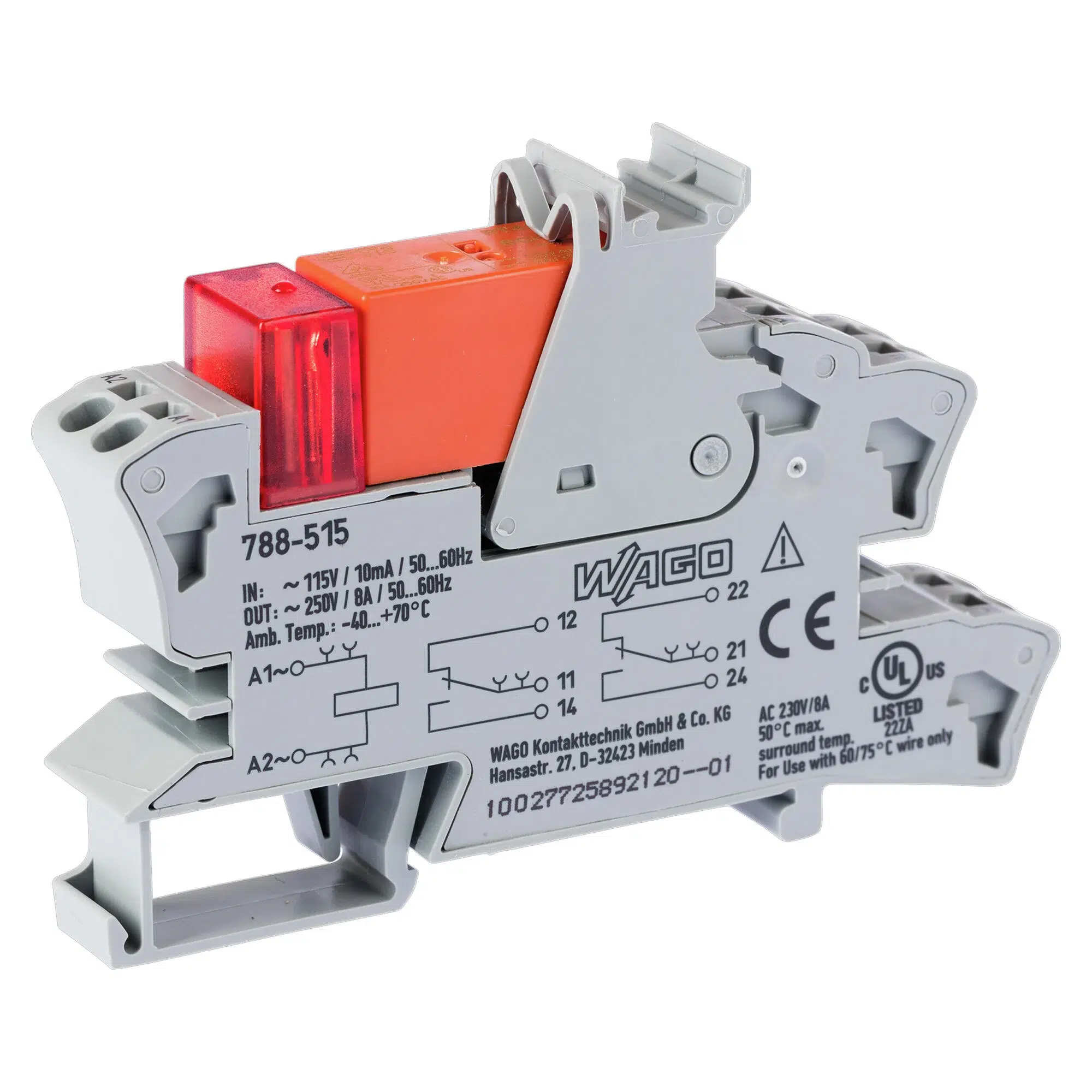

Relay Module with 2 Changeover Contacts – 115V AC 8A 2.5mm² Grey
Wago 788-515
The Wago 788-515 Relay Module (SKU: 788-515) is built for reliable switching in a variety of control systems. With a nominal input voltage of 115V AC and two changeover contacts, this relay can handle up to 8A continuous current, making it perfect for use in control panels, automation systems, and building installations. Wago’s Push-in CAGE CLAMP® technology ensures quick, secure connections, reducing installation time.
Additionally, the integrated red status indicator provides real-time feedback, simplifying system monitoring and troubleshooting.
Key Features of the Wago 788-515 Relay Module:
- Nominal Input Voltage: Operates at 115V AC with an input current of 8 mA, ensuring consistent performance in control systems.
- Two Changeover Contacts: Supports up to 8A continuous current, offering flexible switching for a variety of applications.
- Red Status Indicator: The built-in LED provides clear, instant feedback, allowing easy system monitoring.
- Durable Contact Material: Constructed with AgNi 90/10 for long-lasting performance and reliable conductivity.
Electrical Specifications:
- Switching Voltage: Handles up to 250V AC, making it suitable for high-voltage switching tasks.
- Switching Power: Rated for 2000 VA (resistive load), delivering strong performance in demanding environments.
- Switching Capacity: AC-15: 3A at 250V AC; DC-13: 2A at 24V DC, offering versatility for both AC and DC systems.
- Fast Response: Features a pull-in time of 10 ms and drop-out time of 35 ms for efficient switching.
Connection Data:
- Wago Push-in CAGE CLAMP®: Allows fast, tool-free wire connections, simplifying installation and ensuring secure performance.
- Wire Compatibility: Supports both solid and fine-stranded conductors from 0.34 to 2.5 mm² (22 to 14 AWG).
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connections.
Applications for Wago 788-515 Relay Module:
- Control Panels: Ideal for use in control panels where efficient switching is essential.
- Automation Systems: Suitable for automated systems requiring quick and reliable relay operations.
- Building Automation: Perfect for modern building installations that demand consistent and precise relay performance.
The Wago 788-515 Relay Module (SKU: 788-515) offers a dependable and efficient solution for switching tasks in control panels, automation, and building installations. Its compact design and Wago’s Push-in CAGE CLAMP® technology ensure quick installation and long-term reliability in both industrial and commercial settings.
