Relay Module with 2 Changeover Contacts – 24V DC 8A 2.5mm² Grey

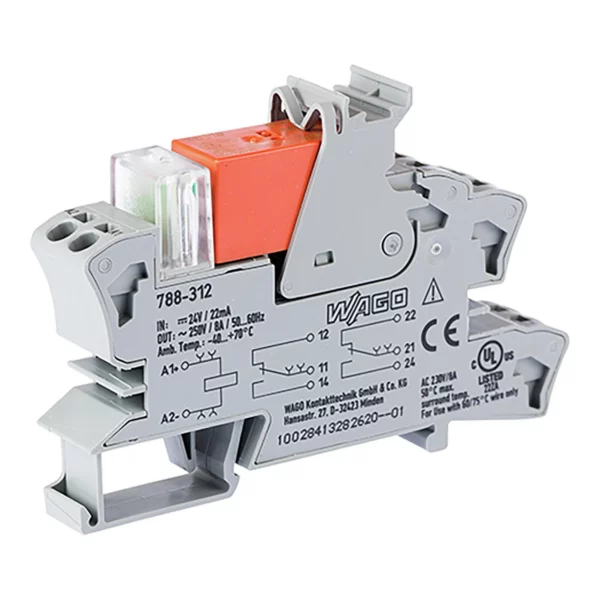

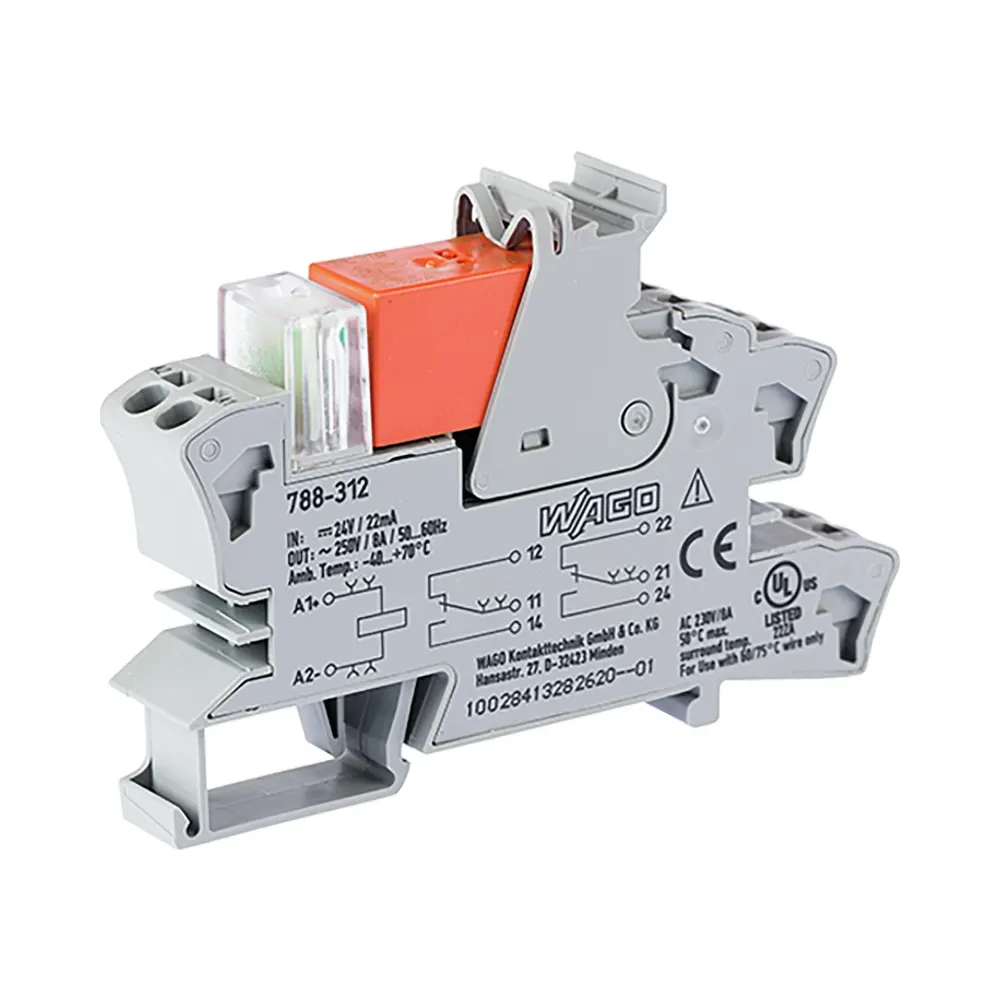

Wago 788-312
The Wago 788-312 Relay Module (SKU: 788-312) is designed to provide efficient switching for a wide range of applications. With two changeover contacts and a nominal input voltage of 24V DC, this Wago relay supports a continuous current capacity of 8A, making it ideal for control panels, automation systems, and building installations.
Wago’s Push-in CAGE CLAMP® technology allows for quick, tool-free connections, reducing installation time while ensuring secure performance. The integrated red status indicator provides instant feedback for easy system monitoring and troubleshooting.
Key Features of the Wago 788-312 Relay Module:
- Nominal Input Voltage: Operates at 24V DC with an input current of 19 mA, ensuring stable performance for various control systems.
- Two Changeover Contacts: Supports up to 8A of continuous current, providing flexible and reliable switching.
- Red Status Indicator: The built-in red LED offers clear visual feedback for easy monitoring.
- Durable Contact Material: Constructed with AgNi 90/10 for long-lasting performance and reliable conductivity.
Electrical Specifications:
- Switching Voltage: Capable of handling up to 250V AC, making it suitable for high-voltage switching applications.
- Switching Power: Rated for 2000 VA (resistive load), ensuring robust performance in demanding environments.
- Inrush Current: Handles inrush currents up to 15A for 4 seconds, ensuring stable operation during startup.
- Fast Switching: With a pull-in time of 8 ms and drop-out time of 13 ms, the Wago 788-312 offers efficient and reliable switching.
Connection Data:
- Wago Push-in CAGE CLAMP®: Allows for quick, tool-free wire connections, simplifying the installation process.
- Wire Compatibility: Supports both solid and fine-stranded conductors from 0.34 to 2.5 mm² (22 to 14 AWG).
- Strip Length: Requires a strip length of 9 to 10 mm for optimal wire connections.
Applications for Wago 788-312 Relay Module:
- Control Panels: Ideal for control panels that require secure and efficient switching operations.
- Automation Systems: Suitable for automated systems that need fast and reliable relay performance.
- Building Automation: Perfect for building automation systems that demand precise and consistent switching.
The Wago 788-312 Relay Module (SKU: 788-312) offers a reliable and efficient solution for switching tasks in control panels, automation systems, and building installations. Its compact design and Wago’s Push-in CAGE CLAMP® technology ensure quick, secure installations, making it an excellent choice for professionals.
