Wago 788-304 Relay Module with 1 Changeover Contact – 24V DC 16A 2.5mm² Grey

Description

Relay Module with 1 Changeover Contact – 24V DC 16A 2.5mm² Grey

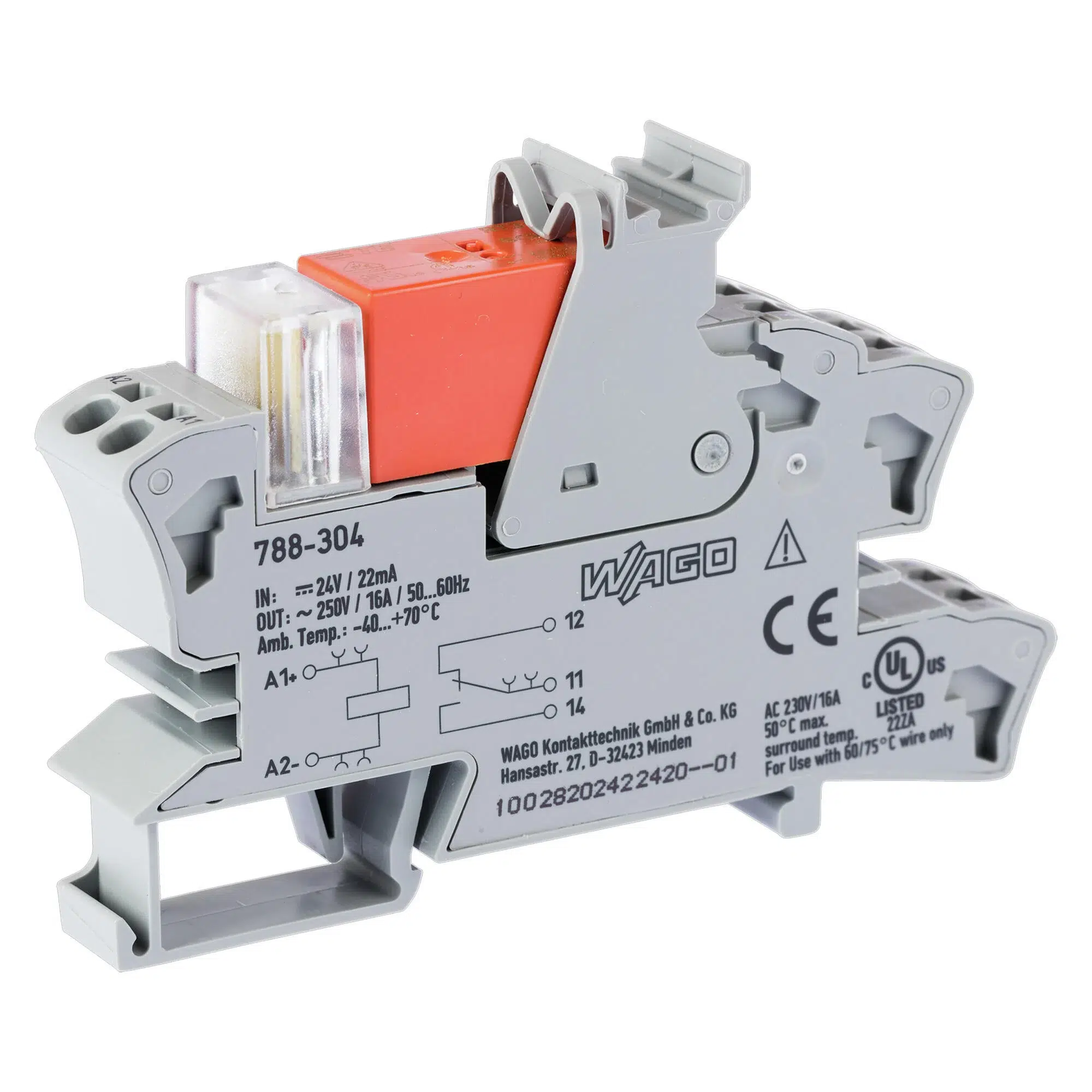

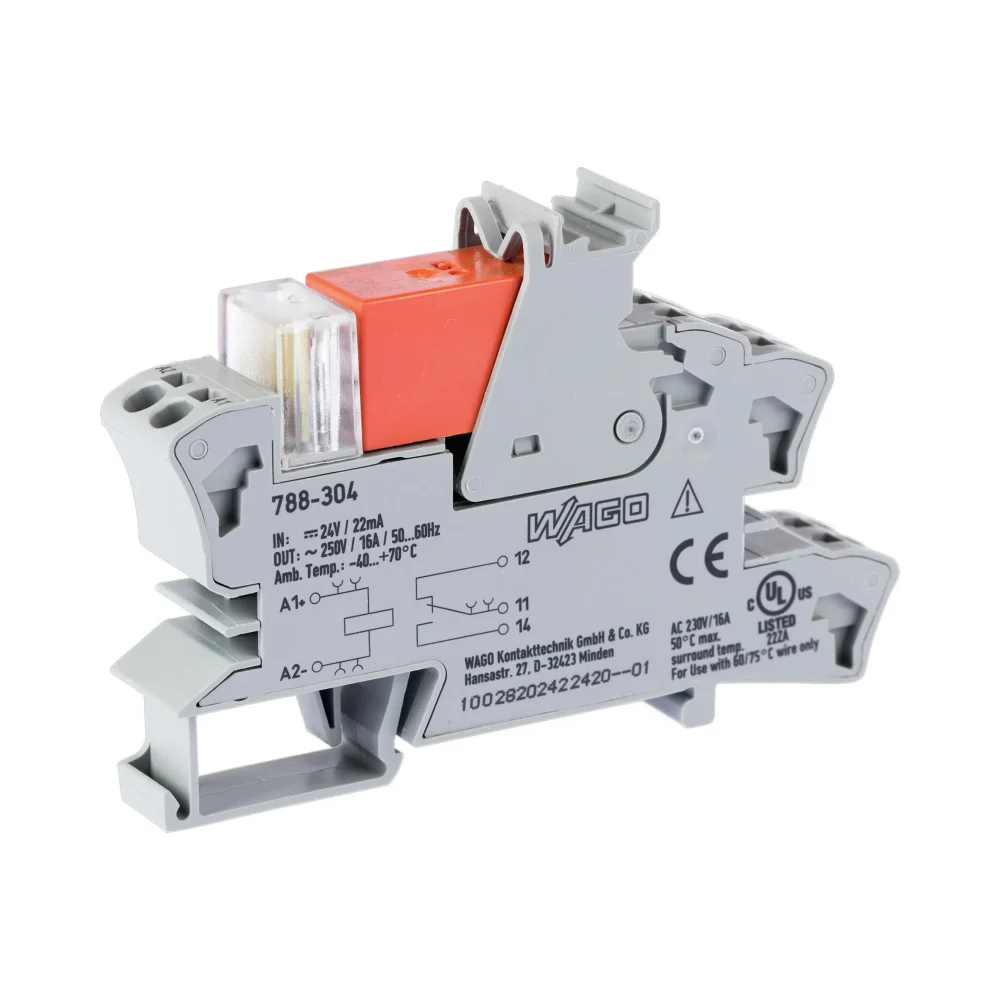

Wago 788-304

The Wago 788-304 Relay Module (SKU: 788-304) ensures reliable switching in various electrical applications. With a nominal input voltage of 24V DC and a continuous current capacity of 16A, this relay can handle moderate electrical loads. Additionally, Wago’s Push-in CAGE CLAMP® technology enables fast and secure wire connections, reducing installation time. The red status indicator offers easy monitoring for quick troubleshooting.

Key Features of the Wago 788-304 Relay Module:

• Nominal Input Voltage: Operates at 24V DC with a 19 mA input current, ensuring compatibility with control systems.
• 1 Changeover Contact: Supports flexible switching for up to 16A, making it ideal for various electrical setups.
• Red Status Indicator: The built-in red LED provides clear status updates for easy monitoring.
• Durable Contact Material: Constructed with AgNi 90/10 for long-lasting reliability and conductivity.

Electrical Specifications:

• Switching Voltage: Handles up to 250V AC, ideal for high-voltage switching tasks.
• Switching Power: Rated for 4000 VA (resistive load), delivering strong performance.
• Inrush Current: Handles up to 30A for 4 seconds, ensuring reliability in demanding applications.

Connection Data:

• Wago Push-in CAGE CLAMP®: Enables quick, tool-free connections for secure installations.
• Wire Compatibility: Supports solid and fine-stranded wires from 0.34 to 2.5 mm² (22 to 14 AWG).

Applications for Wago 788-304 Relay Module:

• Control Panels: Ideal for use in control panels where efficient switching is required.
• Building Installations: Perfect for building automation systems that need reliable switching.
• Industrial Automation: Suitable for automated systems that require fast and efficient relay operations.
