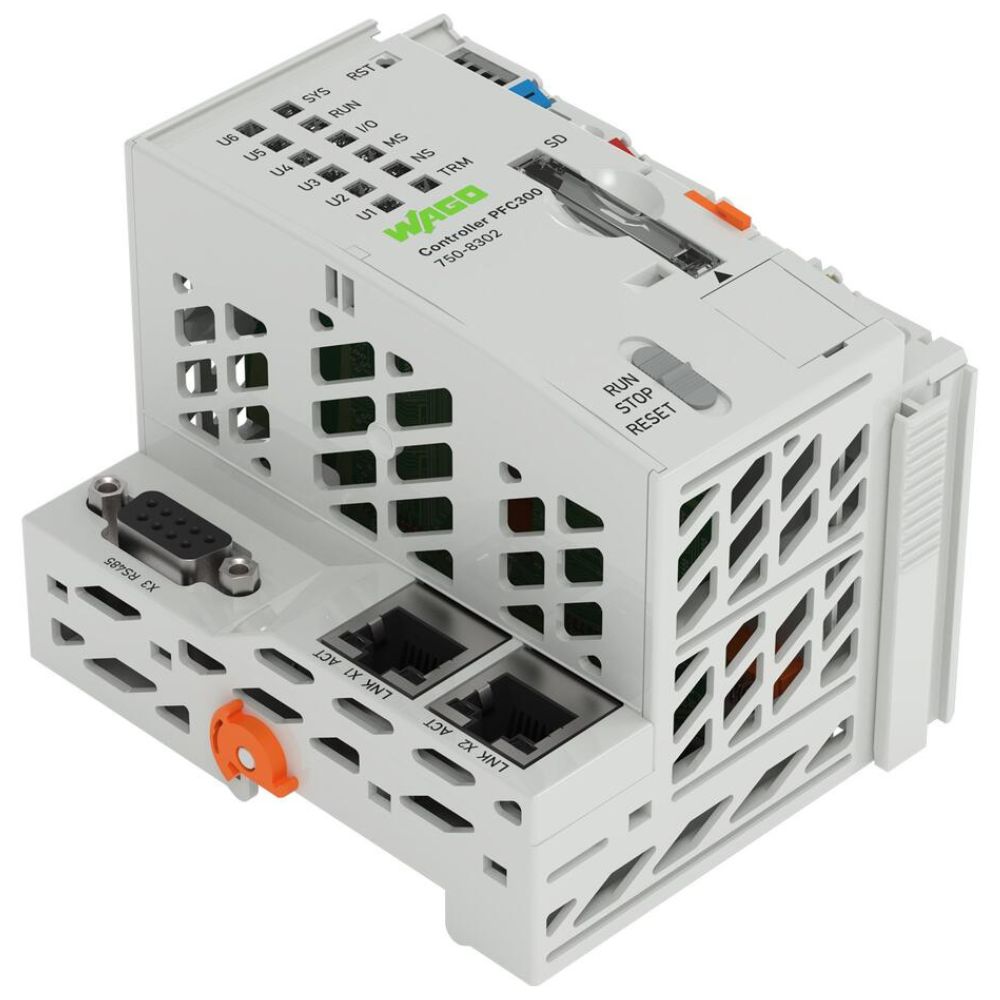

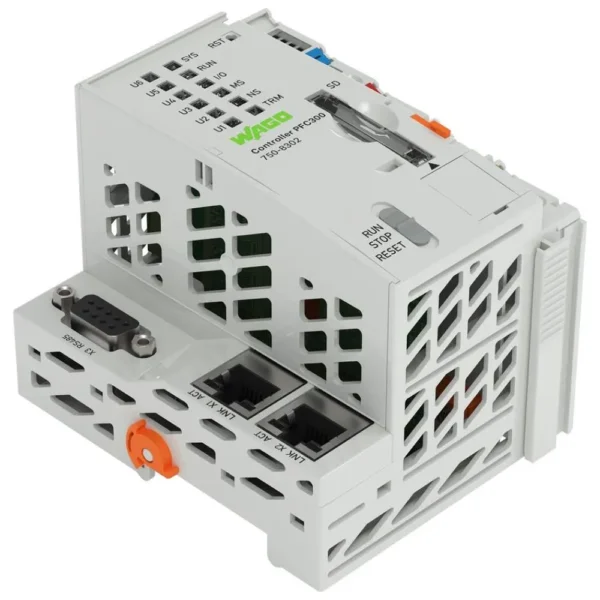

WAGO 750-8302 PFC300 Compact PLC Controller 2 x ETHERNET RS-485

Description

PFC300 Compact PLC Controller 2 x ETHERNET RS-485

WAGO 750-8302 – High-Performance Controller for Modular Automation

The WAGO PFC300 Controller is a powerful and compact programmable logic controller (PLC) designed for modular automation. It is fully compatible with the WAGO 750/753 Series I/O system, allowing seamless integration of digital, analog, and specialty modules.

With dual Ethernet interfaces, an RS-485 communication port, and support for various fieldbus protocols, the PFC300 ensures flexible connectivity for industrial automation. The integrated web server allows for remote configuration and real-time status monitoring, enhancing operational efficiency and control.

This high-performance PLC is ideal for processing industries, building automation, and machinery control, including packaging, manufacturing, and metal or wood processing systems.

Key Features of the WAGO PFC300 Compact PLC Controller 2 x ETHERNET RS-485

• Programmable per IEC 61131-3 – Supports multiple programming languages
• CODESYS V3.5 Compatibility – Ensures efficient PLC programming
• Dual Core Cortex A53 Processor (1.25 GHz) – Provides high-speed data processing
• Integrated Web Server – Enables remote system monitoring and configuration
• Two Ethernet Ports with Integrated Switch – Supports daisy-chain wiring and networking flexibility
• RS-485 Communication Port – Enhances connectivity options
• Fieldbus Support – Compatible with Modbus TCP, EtherCAT, PROFINET, and more
• Real-Time Linux OS with PREEMPT_RT Patch – Ensures stable and responsive operation
• Compact and Durable Design – Built for reliable performance in industrial environments
• Product code: 750-8302

Communications & Connectivity

The WAGO PFC300 supports multiple communication interfaces and fieldbus protocols, ensuring seamless system integration:

• Ethernet Interfaces: 2 x RJ-45 (100/1000 Mbps, configurable)
• Serial Communication: RS-485 (1 x D-sub 9 socket)
• Supported Fieldbuses:
  • Modbus TCP (Master/Slave)
  • Modbus UDP
  • Modbus RTU
  • EtherNet/IP Adapter (Slave)
  • EtherNet/IP Scanner
  • EtherCAT Master
  • PROFINET Controller (Limited)
  • OPC UA Server/Client
  • OPC UA Pub/Sub (Installable later)
• Supported Ethernet Protocols:
  • DHCP, DNS, NTP
  • SFTP, FTP, FTPS
  • SNMP, HTTP, HTTPS
  • SSH

Processing Power & Memory

• CPU: Dual Core Cortex A53, 1.25 GHz
• Main Memory (RAM): 2 GB LPDDR4
• Internal Memory (Flash): 32 GB eMMC
• Non-Volatile Hardware Memory: 128 KB
• Program Memory: 32 MB
• Data Memory: 512 MB
• Memory Card Support: SD, SDHC, SDXC (WAGO memory card recommended)

I/O & Expansion Capabilities

• Max Modules per Node: 250
• Max Modules Without Bus Extension: 64
• Process Image (Internal): 1000 input words / 1000 output words
• Process Image (Modbus via CODESYS V3): 32,000 input words / 32,000 output words

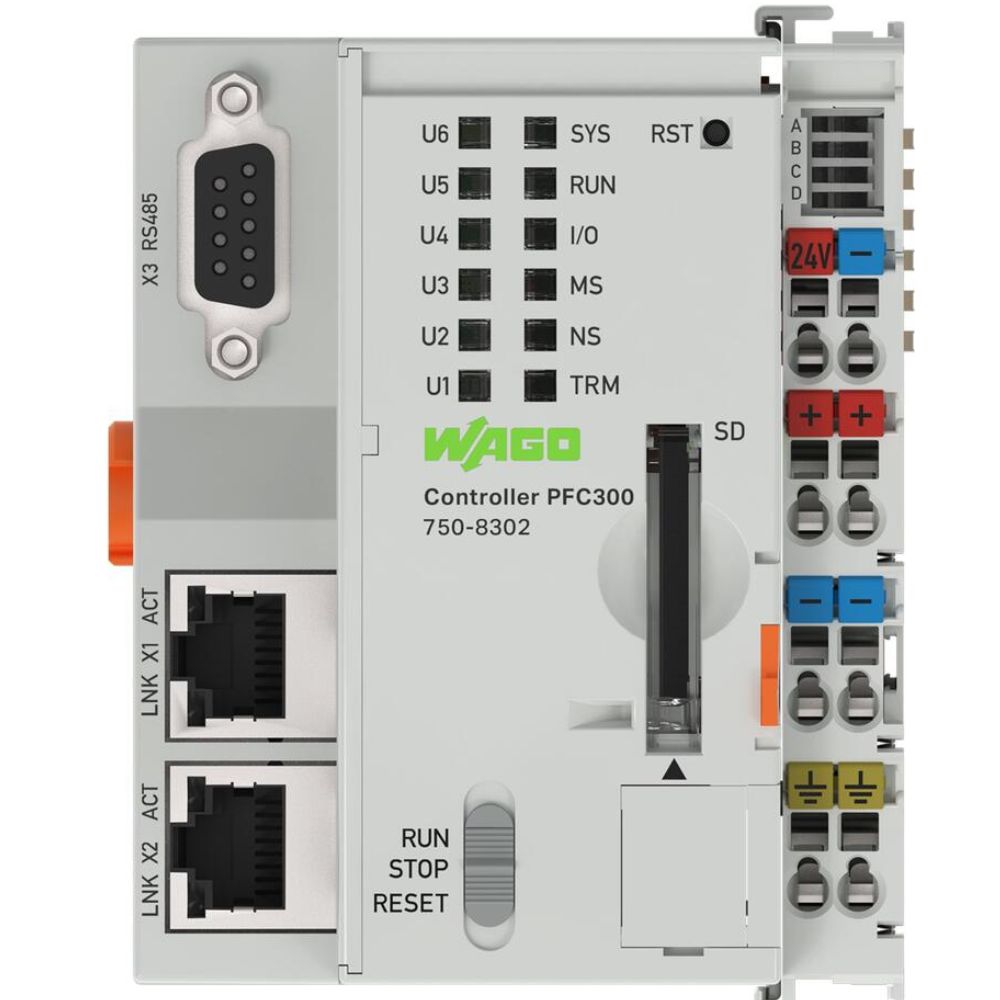

Indicators & Diagnostics

• LED Status Indicators:
  • SYS, RUN, I/O, U1–U7 (Red/Green/Orange) – System, Program, Local Data Bus, Programmable via CODESYS
  • A, B (Green) – System Power Supply, Field Supply

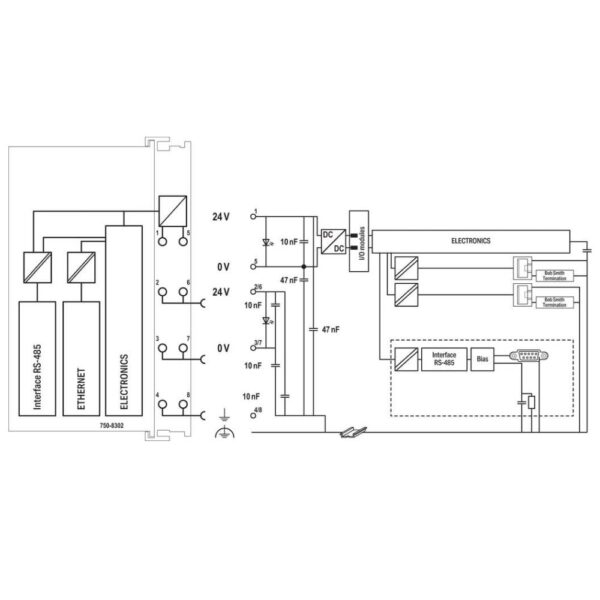

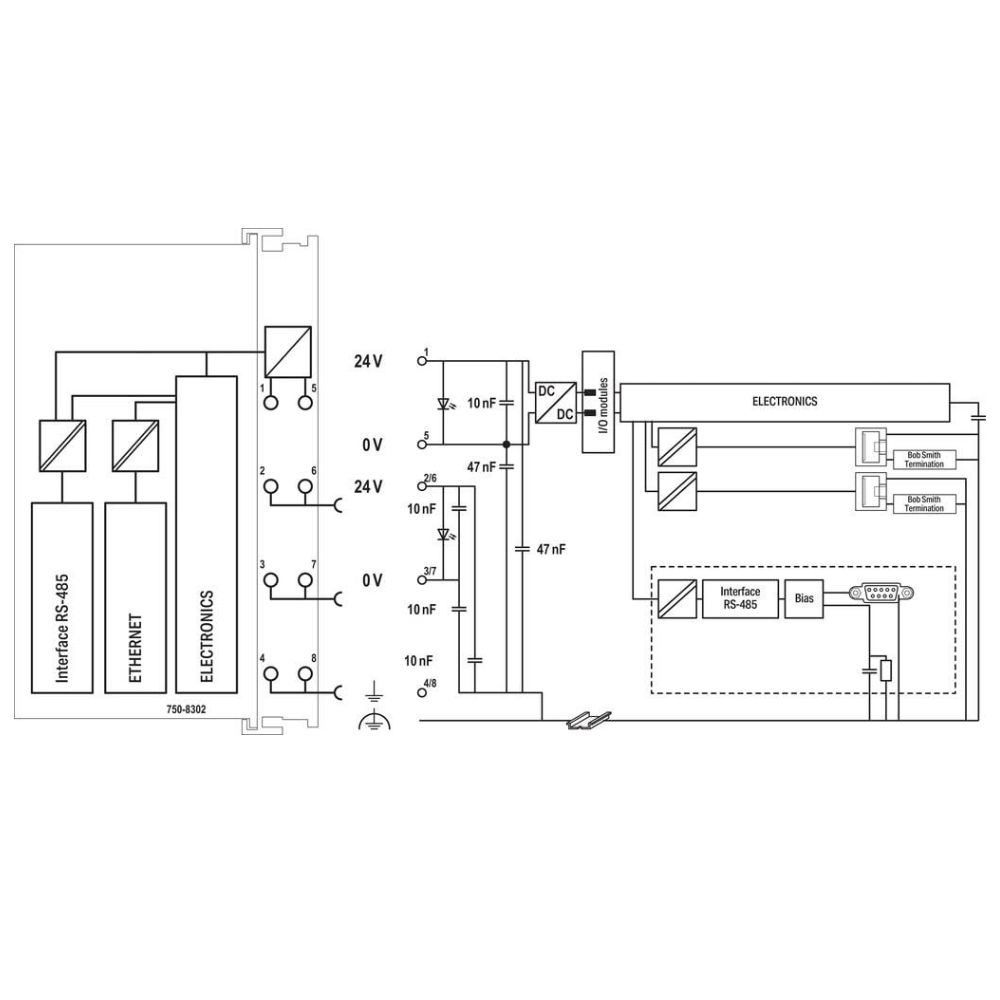

Power Supply & Electrical Specifications

• System Supply Voltage: 24V DC (-25% to +30%)
• Input Current at 24V: 550mA
• Total Current (System Supply): 1,700mA
• Field Supply Voltage: 24V DC (-25% to +30%)
• Power Jumper Current Capacity: 10A
• Isolation: 500V DC (System/Field)

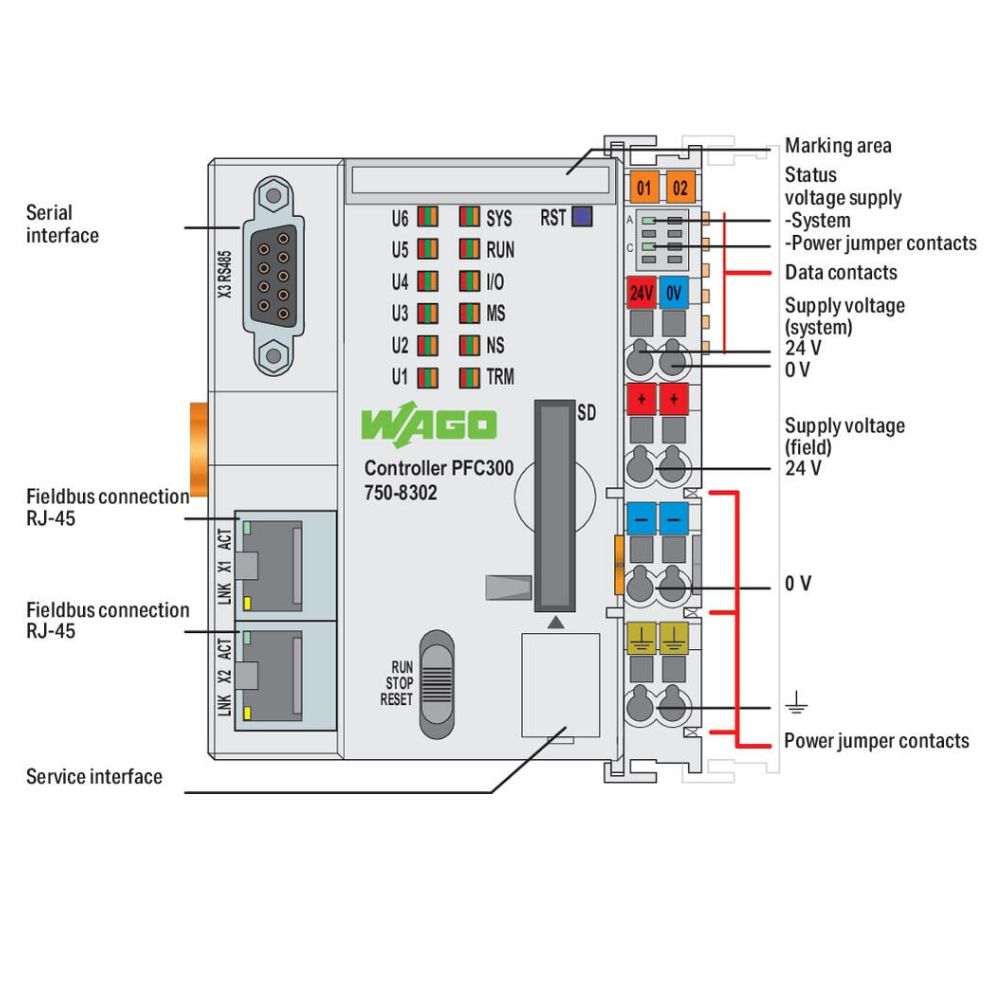

Connection Technology

• System Supply & Field Supply: CAGE CLAMP® Connection
• Communication & Fieldbus Connections:
  • Modbus TCP/UDP – 2 x RJ-45
  • Modbus RTU – 1 x D-sub 9 socket
  • RS-485 – 1 x D-sub 9 socket
• Device Configuration: 1 x USB-C 2.0

Physical & Environmental Specifications

• Dimensions (W x H x D): 78.6 mm x 100 mm x 71.9 mm
• Weight: 207.7g
• Housing Material: Polycarbonate, Polyamide 6.6
• Protection Rating: IP20
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -25°C to +85°C
• Mounting: DIN-35 Rail
• Vibration Resistance: 4g (IEC 60068-2-6)
• Shock Resistance: 15g (IEC 60068-2-27)
• Altitude Rating:
  • 0–2000 m: No Derating
  • 2000–5000 m: 0.5K/100m Derating
• Humidity (Non-Condensing): 95%
• Pollution Degree: 2 (per IEC 61131-2)

Why Choose This Product?

The WAGO PFC300 Controller is a powerful, scalable, and flexible PLC designed for modular automation applications. With its advanced connectivity, real-time Linux OS, and support for multiple programming languages, it ensures efficient system control and easy integration. Whether used in industrial automation, building management, or manufacturing, this PLC delivers exceptional reliability and performance.
