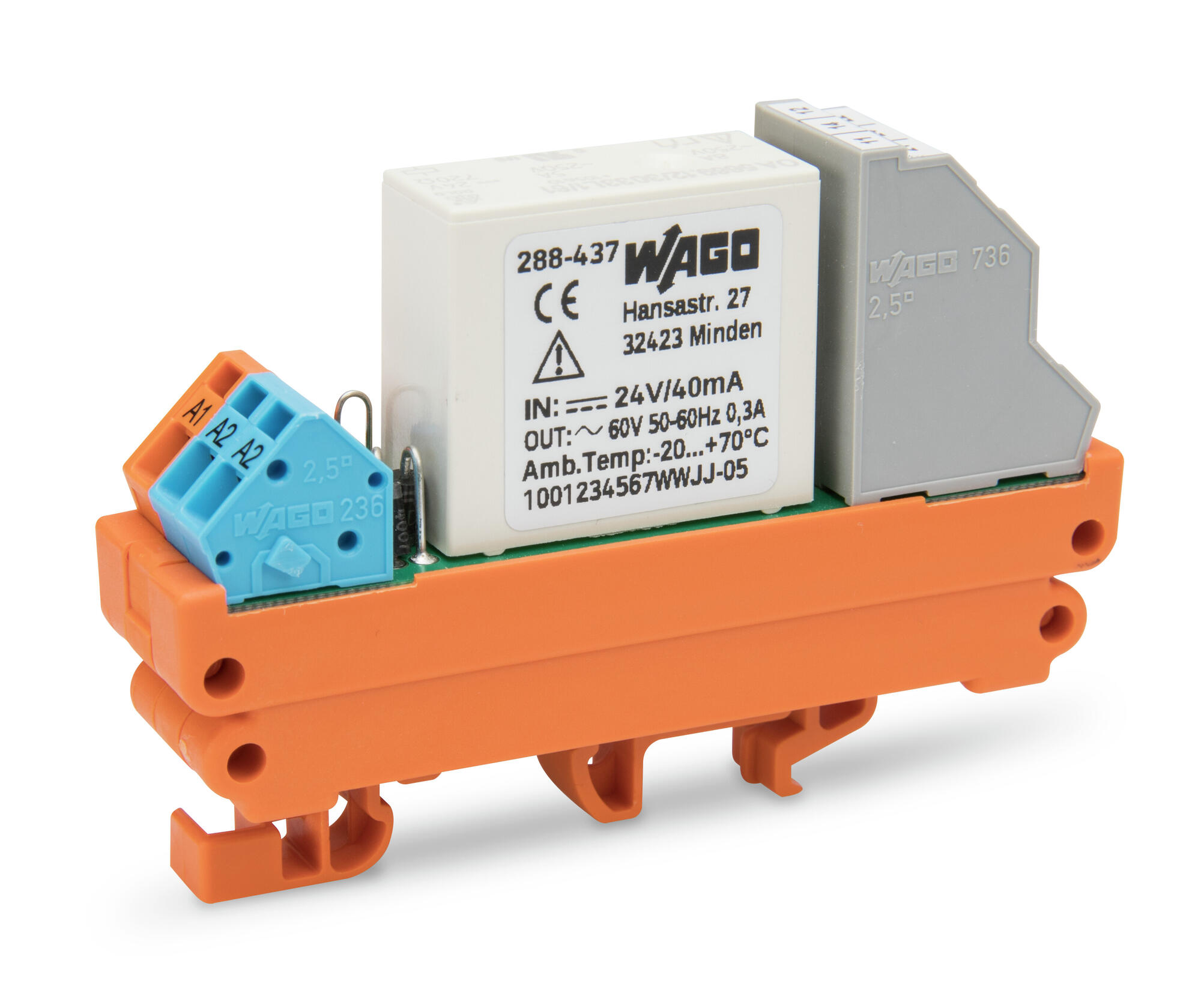

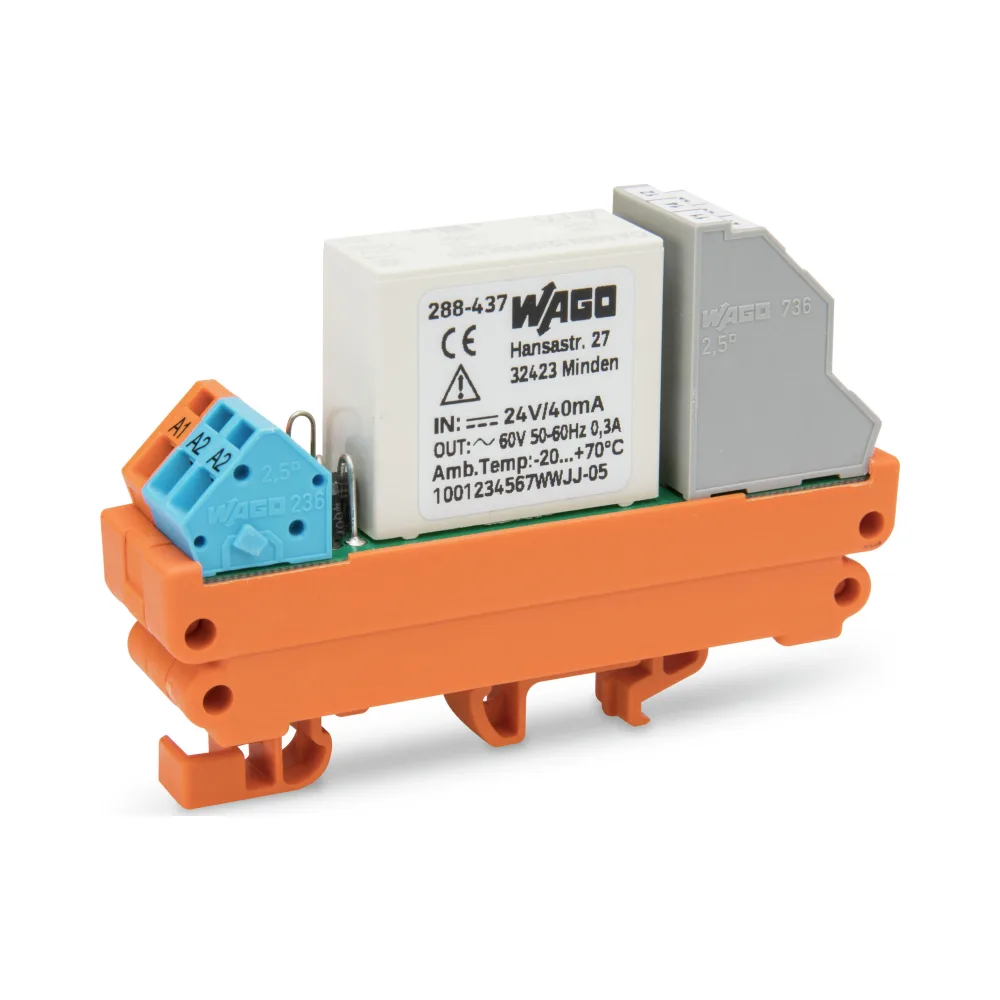

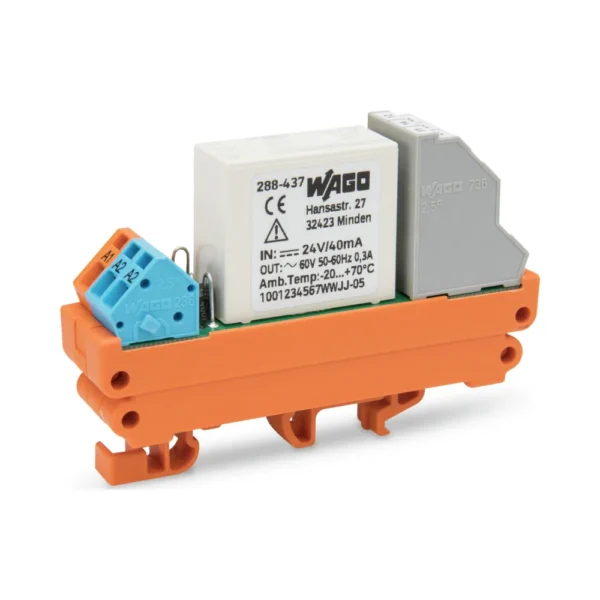

Wago 288-437 Relay Module with Driven Contacts – 2 Changeover Contacts – 24V DC 5A 2.5mm²

Description

Relay Module with Driven Contacts – 2 Changeover Contacts – 24V DC 5A 2.5mm²

Wago 288-437

The Wago 288-437 Relay Module (SKU: 288-437) provides reliable switching for a range of applications, thanks to its two driven changeover contacts. It operates at a nominal input voltage of 24V DC and supports up to 5A continuous current, making it perfect for control panels and automation systems. Additionally, Wago’s Push-in CAGE CLAMP® technology enables quick, tool-free wiring, ensuring fast and secure installation.

With a compact width of 19 mm, it saves valuable space, which is especially useful in smaller installations.

Key Features of the Wago 288-437 Relay Module:

• Nominal Input Voltage: The Wago 288-437 operates at 24V DC with an input current of 36 mA, ensuring stable performance across control systems.
• Two Changeover Contacts: This relay offers two driven contacts, each supporting up to 5A of continuous current, providing flexibility in switching operations.
• High-Quality Contact Material: Constructed with AgNi 10 + Au, these contacts ensure long-lasting durability and high conductivity.

Electrical Specifications:

• Switching Voltage: Capable of handling up to 250V AC, making it ideal for high-voltage applications.
• Switching Power: Rated for 1250 VA (resistive load), ensuring robust performance even in demanding environments.
• Versatile Switching Capacity: AC-15: 3A at 250V AC; DC-13: 2A at 24V DC, giving you flexibility for both AC and DC systems.

Connection Data:

• Push-in CAGE CLAMP®: Wago’s technology allows for tool-free, secure connections, speeding up the installation process.
• Wire Compatibility: The relay supports both solid and fine-stranded conductors from 0.08 to 2.5 mm² (28 to 12 AWG).
• Strip Length: Requires a strip length of 5 to 6 mm for reliable wire connections.

Applications for Wago 288-437 Relay Module:

• Control Panels: Ideal for use in control panels, ensuring reliable and efficient switching.
• Automation Systems: Suitable for automated systems where quick and secure relay operations are necessary.
• Building Automation: Perfect for modern building installations, offering consistent and precise relay performance.

The Wago 288-437 Relay Module (SKU: 288-437) offers a dependable and flexible solution for control panels, automation, and building installations. Its compact design, paired with Wago’s Push-in CAGE CLAMP® technology, ensures easy installation and long-lasting reliability.
