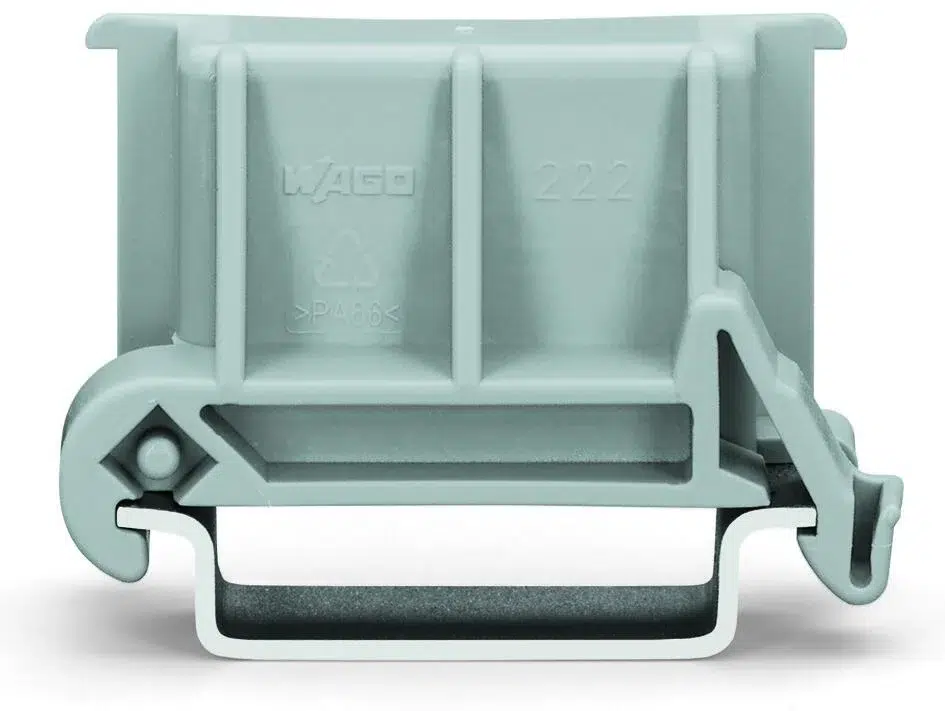

Wago 222-510 Angled DIN Rail Adapter

Description

The Wago 222-510 Angled DIN Rail Adapter provides a secure solution for mounting your 221 or 222 Series connectors on a DIN rail.

This angled adapter ensures optimal positioning and easy access for wire connections, suitable for residential and commercial applications.

Its robust construction ensures long-lasting durability and easier installation and maintenance.

Angled DIN-rail adapter; in combination with mounting carrier; 221-500 or 222-500; for DIN-35 rail mounting; grey

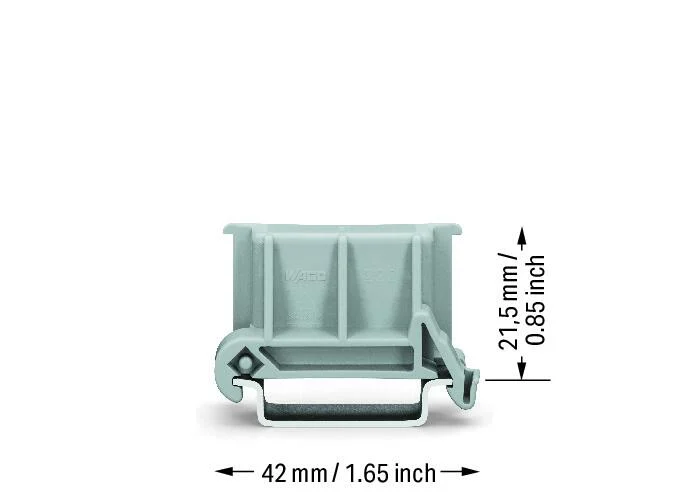

• Width  18.5 mm / 0.728 inches
• Height 42 mm / 1.654 inches
• Depth from upper-edge of DIN-rail   21.5 mm / 0.846 inches
• Mounting type DIN-35 rail
• Suitable in combination with a mounting carrier (221‑500 or 222‑500)
