Description

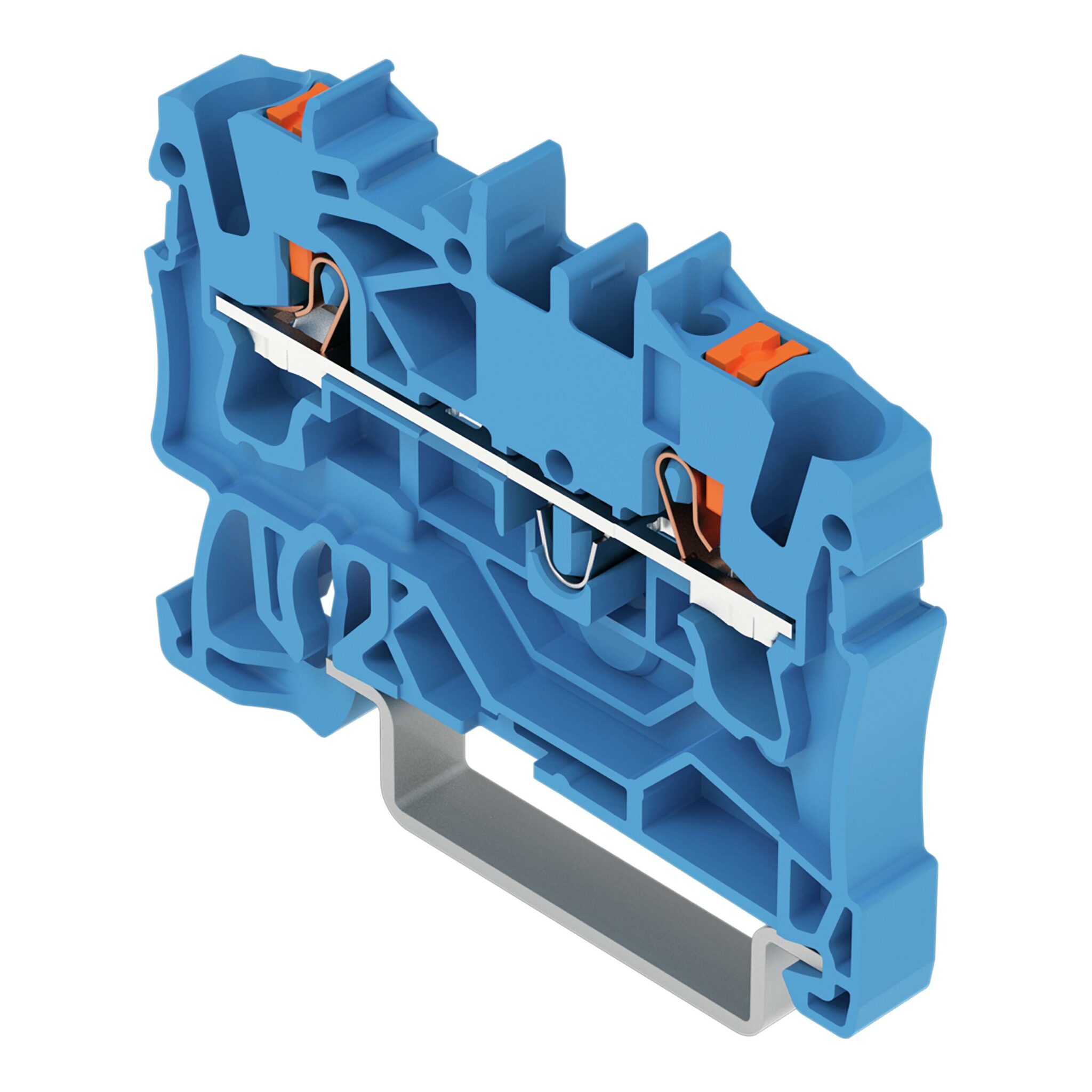

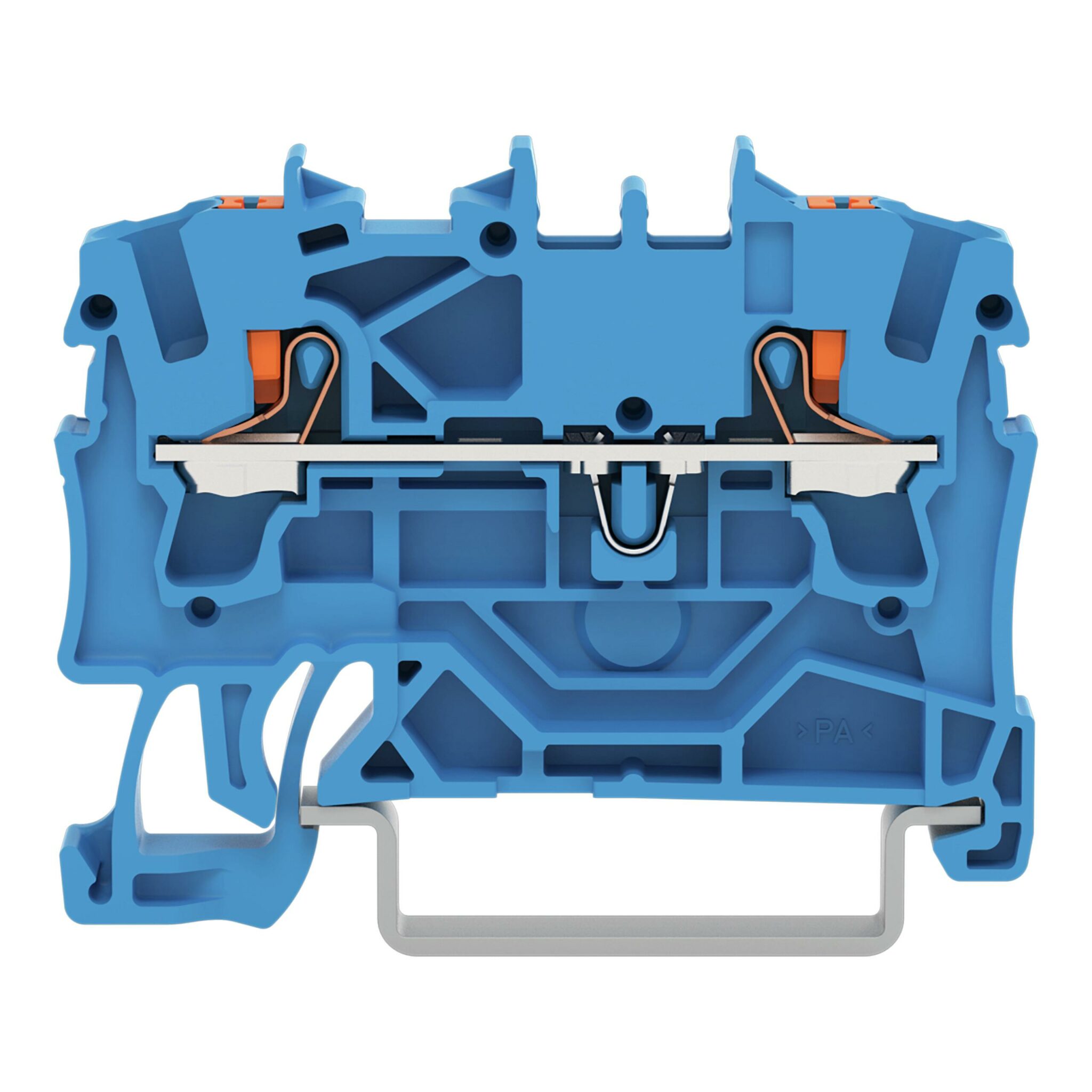

2-Conductor Through Terminal Block with Push-Button and Push-In Cage Clamp
Wago 2202-120
The WAGO 2202-1204 2-Conductor Through Terminal Block offers a reliable and efficient connection solution for high-voltage electrical systems. Equipped with Push-in CAGE CLAMP® technology and a push-button actuation, this terminal block ensures secure and tool-free wiring, allowing quick and easy installation. With a nominal voltage rating of 800V and a current capacity of 24A, it is suitable for various industrial applications.
The 2.5 mm² conductor capacity supports copper conductors, making it ideal for control panels, automation systems, and electrical distribution boards.
Key Features
- Push-Button Actuation: Simplifies wiring and disconnection without tools, making installation and maintenance faster.
- Push-in CAGE CLAMP® Technology: Ensures fast, secure connections for both solid and fine-stranded copper conductors.
- High Voltage Capacity: Rated for 800V and 24A, it is perfect for industrial electrical systems.
- DIN-Rail Mounting: Compatible with DIN-35 rails, providing easy installation in standard control panel setups.
- Front-Entry Wiring: Offers convenient access in confined spaces, making wiring more efficient.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 24 A
- Max Current at Conductor Cross-Section: 32 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 2.5 mm²
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Fine-Stranded Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Strip Length: 10 to 12 mm

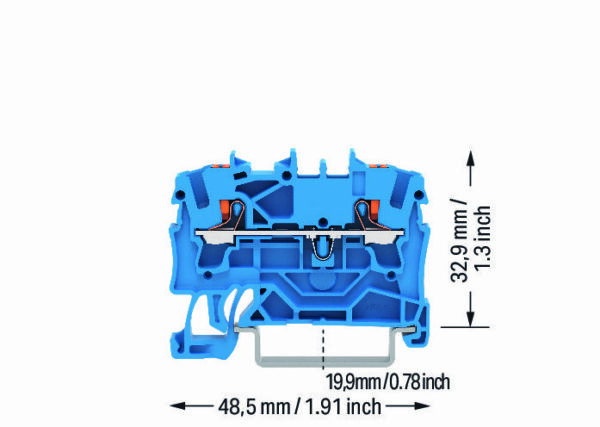

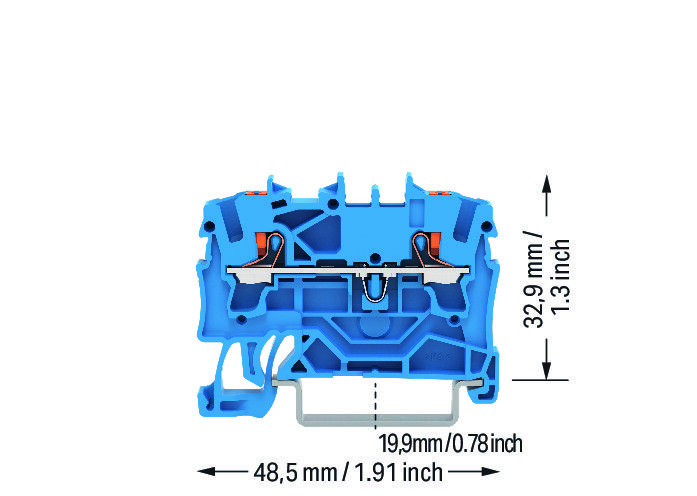

Physical Data
- Width: 5.2 mm
- Height: 48.5 mm
- Depth from Upper-Edge of DIN-Rail: 32.9 mm
Applications
The WAGO 2202-1204 2-Conductor Through Terminal Block is ideal for use in industrial control panels, automation systems, and electrical distribution boards. Its push-button operation and Push-in CAGE CLAMP® technology ensure quick, secure, and tool-free wiring, making it a perfect choice for new installations and upgrades.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the WAGO 2202-1204 Terminal Block and a variety of other WAGO products. Contact us today to learn about bulk discounts and special pricing for larger orders.
FAQs – WAGO 2202-1204 2-Conductor Through Terminal Block
1. How does the push-button actuation simplify installation?
The push-button allows for quick and tool-free wiring, making installation and disconnection easier and faster.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® technology enables secure, tool-free connections for both solid and fine-stranded copper conductors, reducing installation time.
3. Is this terminal block compatible with DIN-rails?
Yes, it is designed for DIN-35 rails, which are common in industrial and control panel setups.
4. What types of conductors are supported?
The terminal block supports solid and fine-stranded copper conductors with cross-sections ranging from 0.25 mm² to 4 mm².
5. Can I get a discount for bulk purchases?
Yes, Electrical4Less offers project discounts for bulk orders. Contact us to receive a customised quote for your specific needs.
About WAGO
WAGO is a global leader in electrical connection technology, known for their reliable CAGE CLAMP® solutions. Professionals trust WAGO products for their durability, ease of use, and safety in industrial applications.
