Description

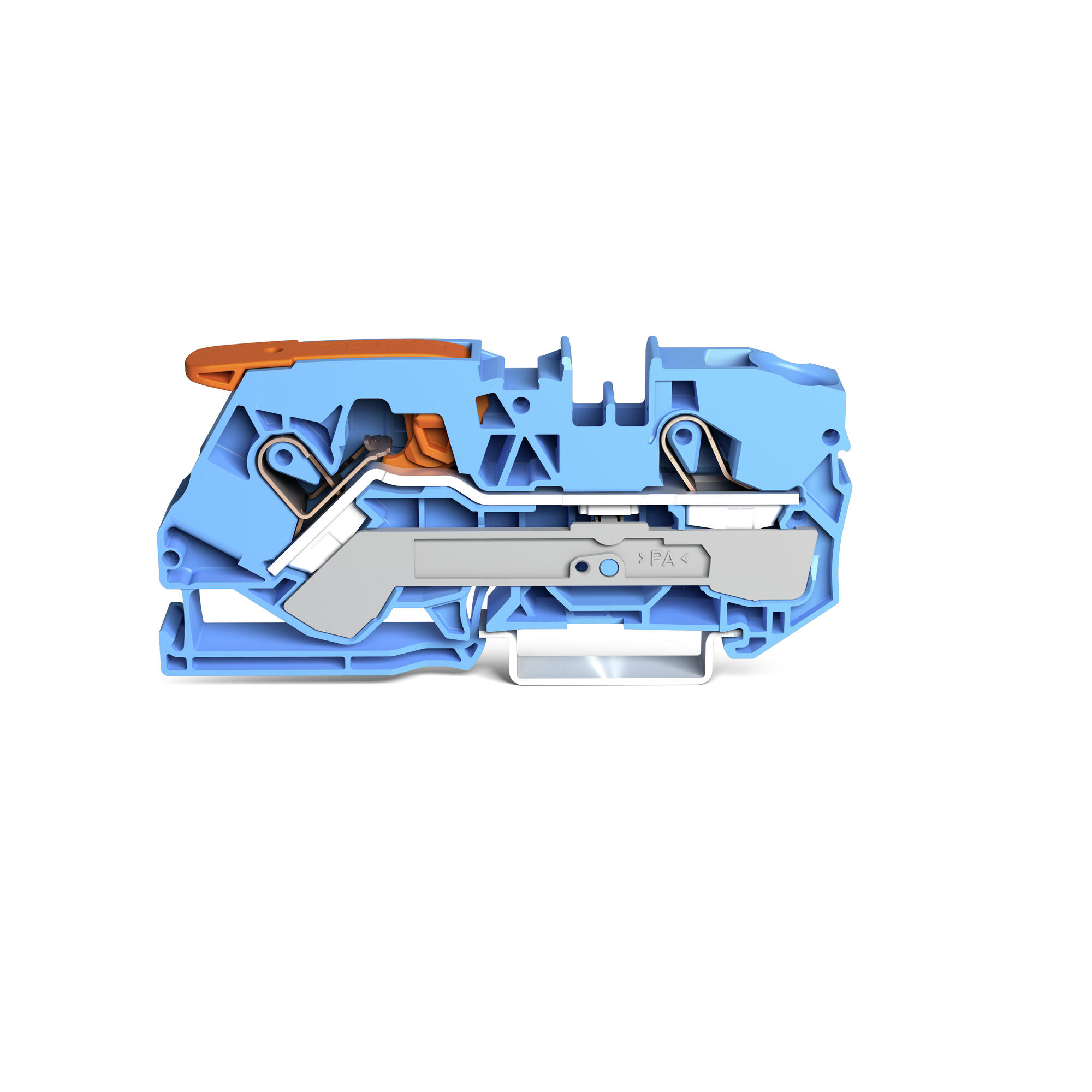

2-Conductor Through Terminal Block with Lever and Push-In Cage Clamp – 800V 57A 10mm² Blue
Wago 2110-1204
The WAGO 2110-1204 2-Conductor Through Terminal Block is a versatile and reliable solution for industrial and electrical systems that require high voltage and current capacity. Equipped with Push-in CAGE CLAMP® technology and a lever-actuated design, this terminal block ensures tool-free, quick, and secure wiring. With a nominal voltage of 800V and a rated current of 57A, it is perfect for heavy-duty applications.
Its 10 mm² conductor capacity supports both solid and fine-stranded copper conductors, making it ideal for use in control panels, automation systems, and electrical distribution networks.
Key Features
- Lever-Operated Design: The lever allows for easy, tool-free wiring and secure connections, enhancing installation speed and efficiency.
- Push-in CAGE CLAMP® Technology: Ensures fast, reliable, and tool-free wiring for both solid and fine-stranded copper conductors.
- High Voltage and Current Capacity: Rated for 800V and 57A, suitable for demanding electrical systems and industrial setups.
- DIN-Rail Mounting: Easily mounts on DIN-35 rails, ensuring compatibility with standard industrial installations.
- Front-Entry Wiring: Designed for easy access in tight installation spaces, improving overall wiring efficiency.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 57 A
- Max Current at Conductor Cross-Section: 74 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 10 mm²
- Compatible Conductor Materials: Copper
- Solid Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Fine-Stranded Conductor: 0.5 to 16 mm² (20 to 6 AWG)
- Strip Length: 17 to 19 mm

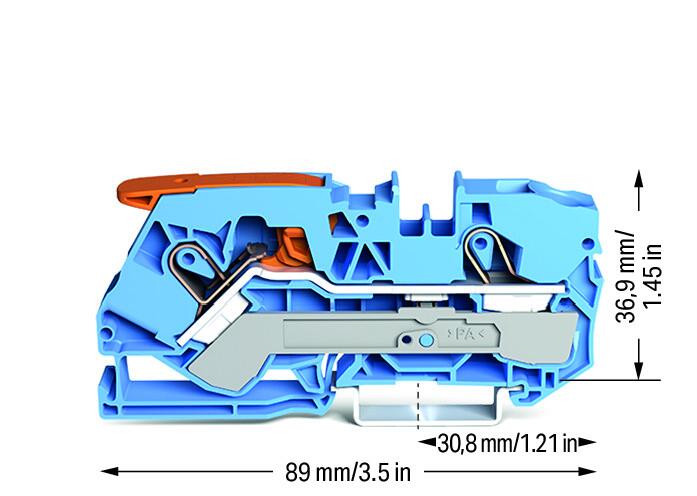

Physical Data
- Width: 10 mm
- Height: 89 mm
- Depth from Upper-Edge of DIN-Rail: 36.9 mm
Applications
The WAGO 2110-1204 2-Conductor Through Terminal Block is ideal for use in high-voltage industrial control panels, electrical distribution systems, and automation applications. Its lever and Push-in CAGE CLAMP® technology simplify installation, making it an excellent choice for both new installations and maintenance projects.
Purchase from Electrical4Less
At Electrical4Less, we are an authorised WAGO distributor offering the WAGO 2110-1204 Terminal Block alongside a wide selection of other WAGO products. Contact us today to inquire about project discounts and bulk order options.
FAQs – WAGO 2110-1204 2-Conductor Through Terminal Block
1. How does the lever improve installation?
The lever allows for fast, tool-free wiring, making the installation process quicker and more secure.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® technology enables tool-free wiring for both solid and fine-stranded conductors, ensuring reliable and fast connections.
3. What types of conductors can this terminal block support?
It supports both solid and fine-stranded copper conductors with a cross-section range of 0.5 mm² to 16 mm².
4. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2110-1204 is designed to mount on DIN-35 rails, providing flexibility for standard industrial installations.
5. Can I get a bulk discount for large orders?
Yes, Electrical4Less offers project discounts for bulk purchases. Contact us to discuss your specific project requirements and receive a personalised quote.
About WAGO
WAGO is a trusted leader in electrical connection technology, known for their reliable CAGE CLAMP® system. Their products are used worldwide for their ease of use, durability, and safety in demanding industrial applications.
