Description

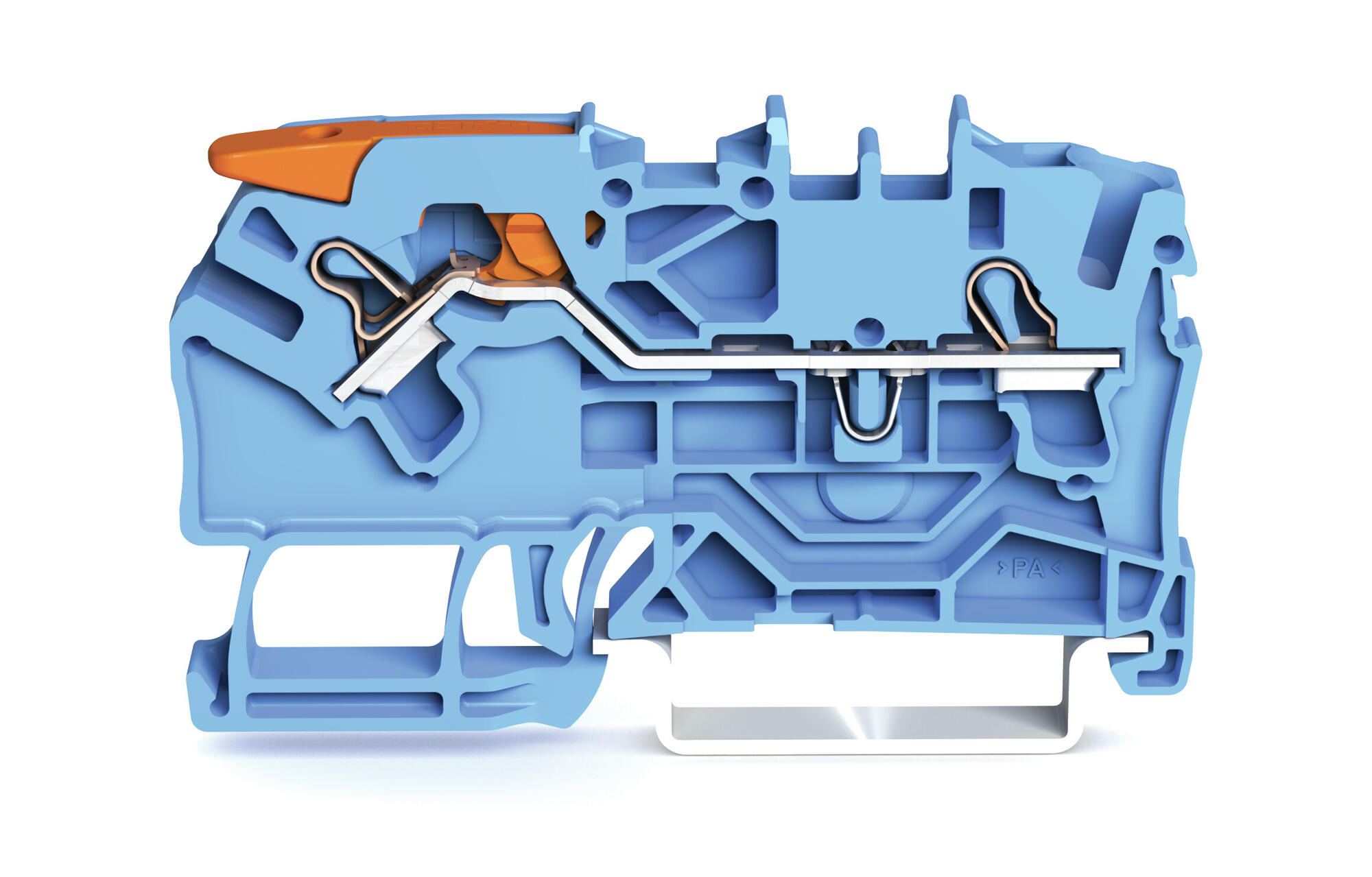

Through Terminal Block with Lever and Push-In Cage Clamp
Wago 2102-1204
The WAGO 2102-1204 Through Terminal Block combines the convenience of a lever mechanism with the reliability of Push-In CAGE CLAMP® technology, providing a secure and user-friendly solution for electrical connections. Designed for professionals and DIY enthusiasts alike, this terminal block ensures easy installation and long-lasting performance in various electrical setups.
Supporting 800V and 24A, it is perfect for industrial, commercial, and residential applications.
Key Features
- Lever Operation: Offers quick and effortless connections. The lever securely holds the conductor in place, simplifying installation and maintenance.
- Push-In CAGE CLAMP® Technology: Enables tool-free wiring, allowing for fast, secure connections by simply inserting the conductor.
- Through Terminal Design: Allows direct wiring across circuits, making it ideal for continuous and uninterrupted electrical connections.
- DIN-Rail Mounting: Easily mounts on DIN-35 rails, ensuring a clean and organised setup within control panels and distribution boards.
- Versatile Compatibility: Supports various conductor types, including solid, stranded, and fine-stranded wires, making it adaptable to different wiring needs.
- Durable Construction: Built with high-quality materials to withstand demanding environments, ensuring reliable and long-lasting performance.
- Clear Identification: Features easy-to-read markings for quick circuit identification, simplifying installation and troubleshooting.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 24 A
- Max Current at Conductor Cross-Section: 32 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 2.5 mm²
- Connectable Conductor Materials: Copper
- Solid Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Fine-Stranded Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Strip Length: 10 to 12 mm

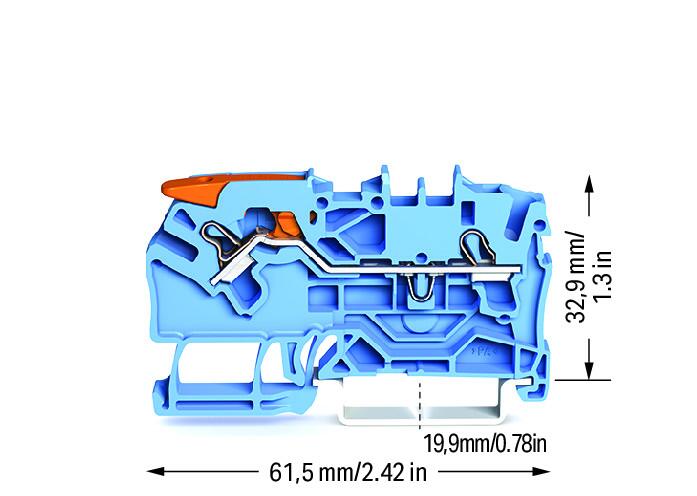

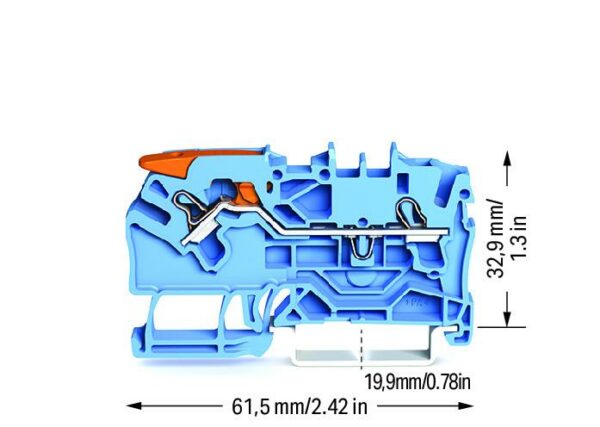

Physical Data
- Width: 5.2 mm
- Height: 61.5 mm
- Depth from Upper-Edge of DIN-Rail: 32.9 mm
Applications
- Industrial Control Systems: Ideal for automation and control systems, where quick and reliable electrical connections are critical.
- Commercial Electrical Installations: Ensures secure, easy-to-manage connections in commercial projects.
- Residential Wiring Projects: Perfect for complex residential wiring, providing a reliable and easy-to-install solution.
- Renewable Energy Systems: Suitable for renewable energy applications like solar panel installations, ensuring safe and efficient connections.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers the WAGO 2102-1204 Terminal Block and a full range of WAGO products. Contact us for bulk discounts and project-specific pricing.
FAQs – WAGO 2102-1204 Through Terminal Block
1. How does the lever operation work?
The lever mechanism allows for easy, tool-free conductor insertion, securing it in place for fast and reliable connections.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® ensures quick, secure connections without the need for tools, improving installation speed and consistency.
3. Is this terminal block compatible with DIN-rails?
Yes, the WAGO 2102-1204 is designed to mount on DIN-35 rails, ensuring easy installation in control panels and distribution boards.
4. What types of conductors can this terminal block support?
The terminal block supports solid, stranded, and fine-stranded copper conductors with cross-sections from 0.25 mm² to 4 mm².
5. Can I get a discount for large orders?
Yes, Electrical4Less offers project discounts for bulk purchases. Contact us to receive a customised quote based on your needs.
