Description

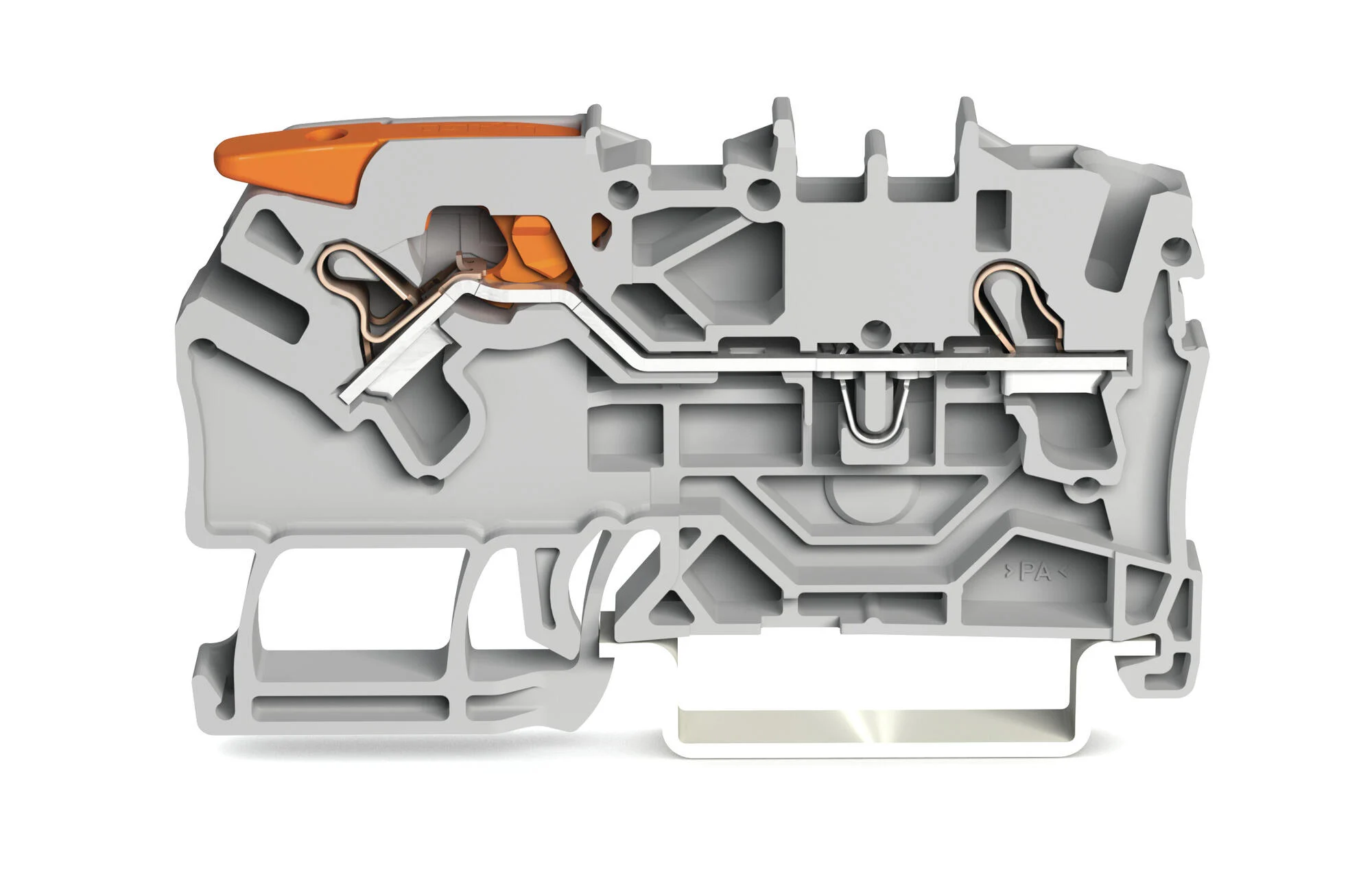

2-Conductor Through Terminal Block with Lever and Push-In Cage Clamp
Wago 2102-1201
The WAGO 2102-1201 2-Conductor Through Terminal Block is designed for efficient and secure electrical connections, ideal for use in industrial control panels and automation systems. This terminal block features Push-in CAGE CLAMP® technology and a lever actuation, allowing for quick, tool-free wiring and easy disconnection. With a rated voltage of 800V and current capacity of 24A, it provides reliable performance for demanding applications.
Its 2.5 mm² capacity supports copper conductors, while the front-entry wiring and compact design make it an excellent choice for space-constrained installations.
Key Features
- Lever-Operated Design: The integrated lever allows for easy, tool-free wiring and secure disconnections, speeding up installation.
- Push-in CAGE CLAMP® Technology: Enables tool-free, secure wiring for both solid and fine-stranded copper conductors.
- High Voltage Capacity: Rated for 800V and supports up to 24A current, making it suitable for industrial systems.
- DIN-Rail Mounting: Easily mounts on DIN-35 rails, ensuring compatibility with standard control panel setups.
- Front-Entry Wiring: Designed for ease of access in tight spaces, improving installation efficiency.
Electrical Specifications
- Nominal Voltage: 800 V
- Rated Impulse Voltage: 8 kV
- Rated Current: 24 A
- Max Current at Conductor Cross-Section: 32 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 1
- Number of Levels: 1
- Number of Jumper Slots: 2
- Nominal Cross-Section: 2.5 mm²
- Compatible Conductor Materials: Copper
- Solid Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Fine-Stranded Conductor: 0.25 to 4 mm² (22 to 12 AWG)
- Strip Length: 10 to 12 mm

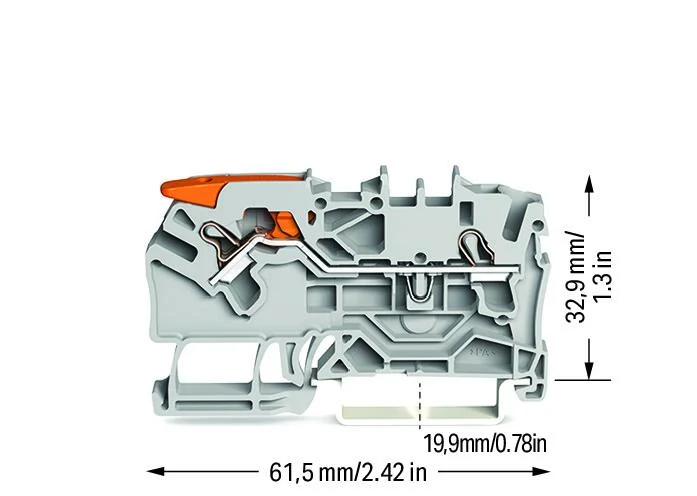

Physical Data
- Width: 5.2 mm
- Height: 61.5 mm
- Depth from Upper-Edge of DIN-Rail: 32.9 mm
Applications
The WAGO 2102-1201 2-Conductor Through Terminal Block is ideal for industrial control panels, electrical distribution systems, and automation applications. Its high voltage rating and ease of installation make it a versatile solution for wiring and circuit management in both new installations and maintenance work.
Purchase from Electrical4Less
At Electrical4Less, we are proud to be an authorised WAGO distributor. We offer the WAGO 2102-1201 Terminal Block along with a wide range of WAGO products. Contact us today to inquire about project discounts and bulk order options.
FAQs – WAGO 2102-1201 2-Conductor Through Terminal Block
1. How does the lever design improve installation?
The lever makes it easy to wire and disconnect without tools, ensuring faster installations and secure connections.
2. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® technology allows for tool-free wiring, providing fast, reliable connections for both solid and fine-stranded conductors.
3. What types of conductors can this terminal block support?
It supports both solid and fine-stranded copper conductors with a cross-section ranging from 0.25 mm² to 4 mm².
4. Is this terminal block compatible with DIN-rails?
Yes, it is designed to be mounted on DIN-35 rails, making it suitable for a variety of control panel and industrial setups.
5. Can I get a discount for bulk orders?
Yes, Electrical4Less offers project discounts for large orders. Contact us to discuss your project needs and receive a personalised quote.
About WAGO
WAGO is a global leader in electrical interconnection technology, trusted for their reliable CAGE CLAMP® system. WAGO products are known for their ease of use, durability, and innovation.
