Description

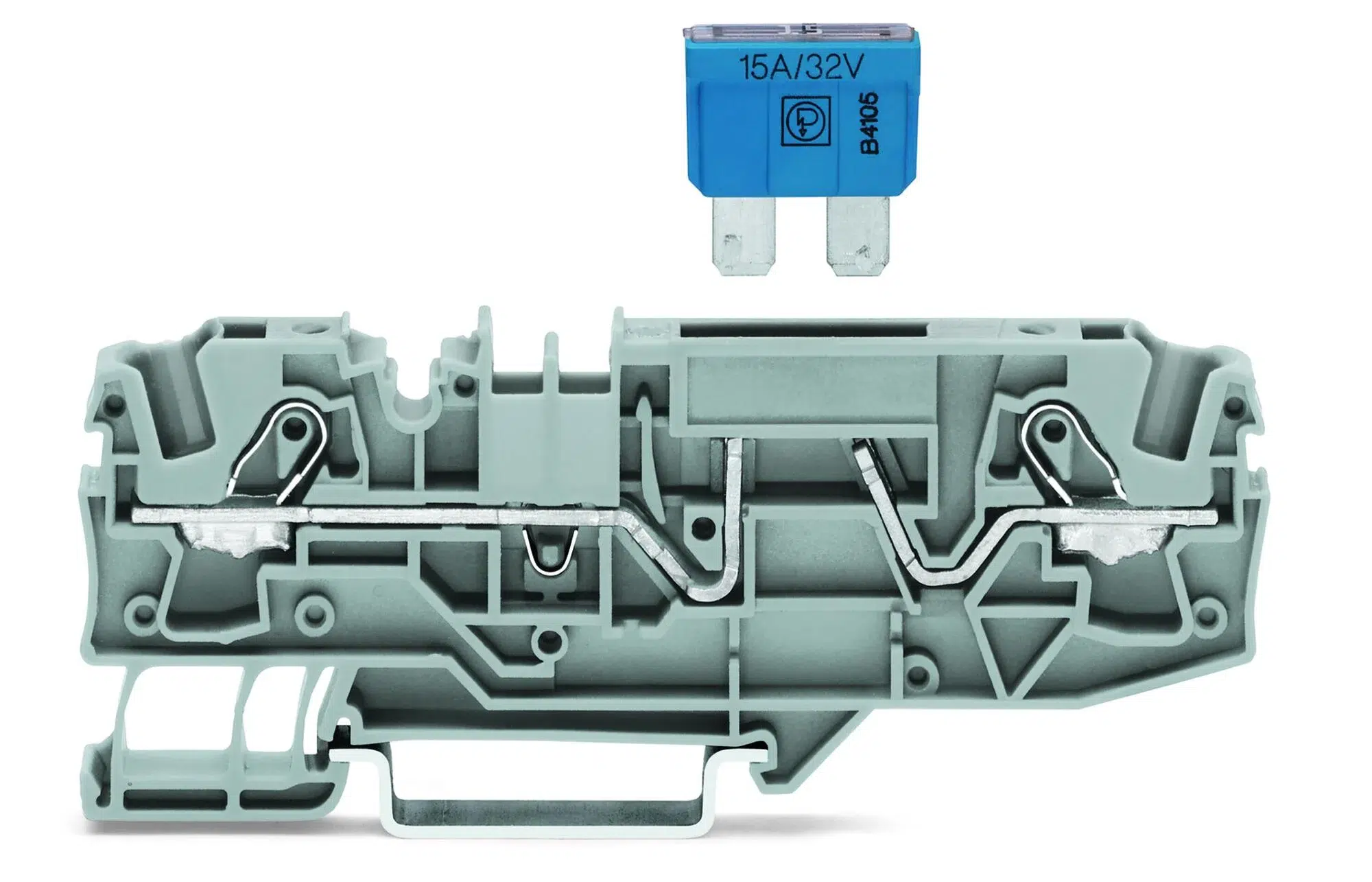

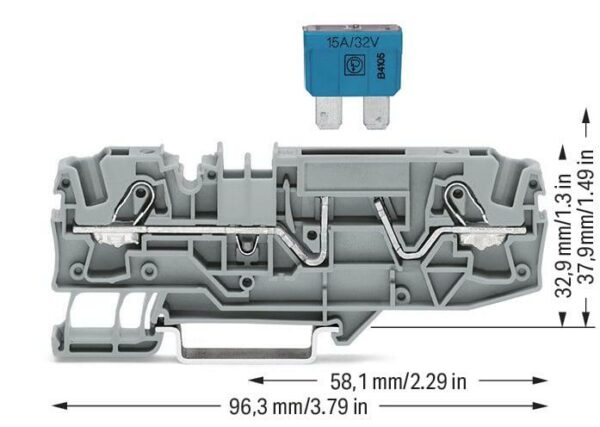

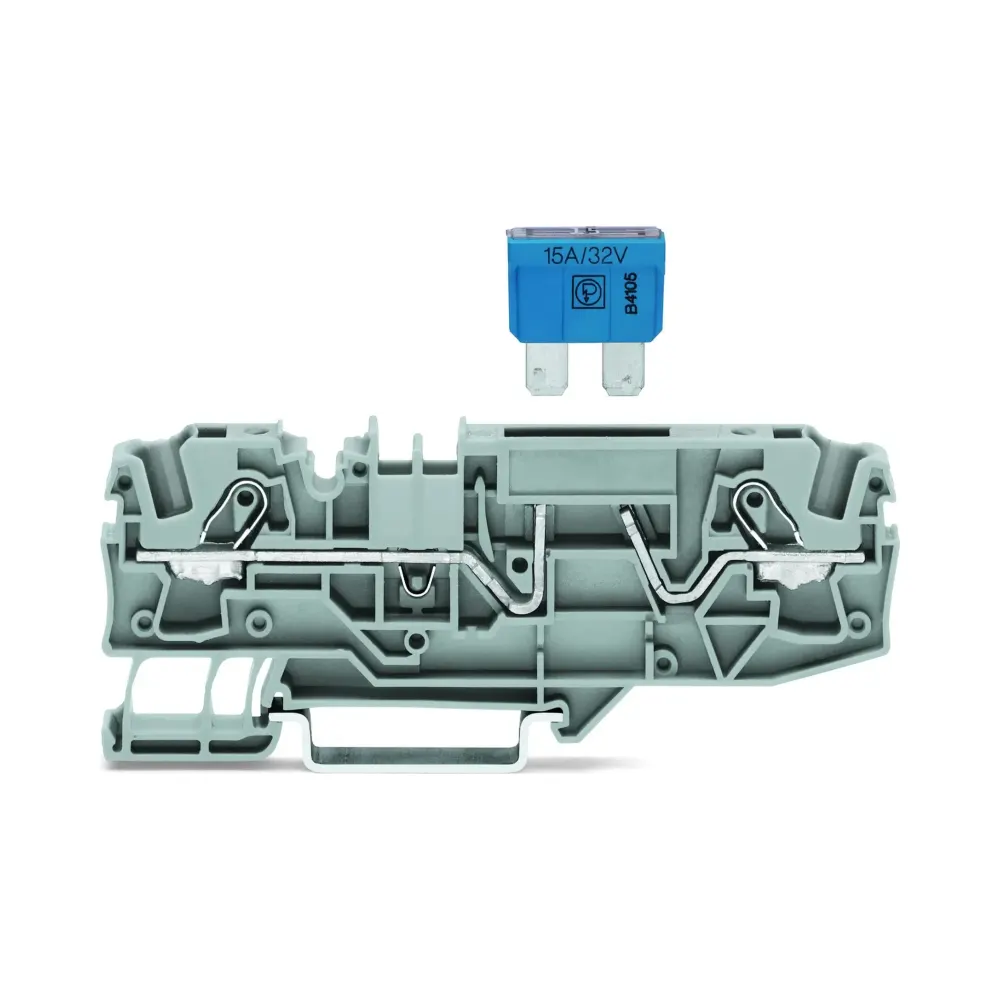

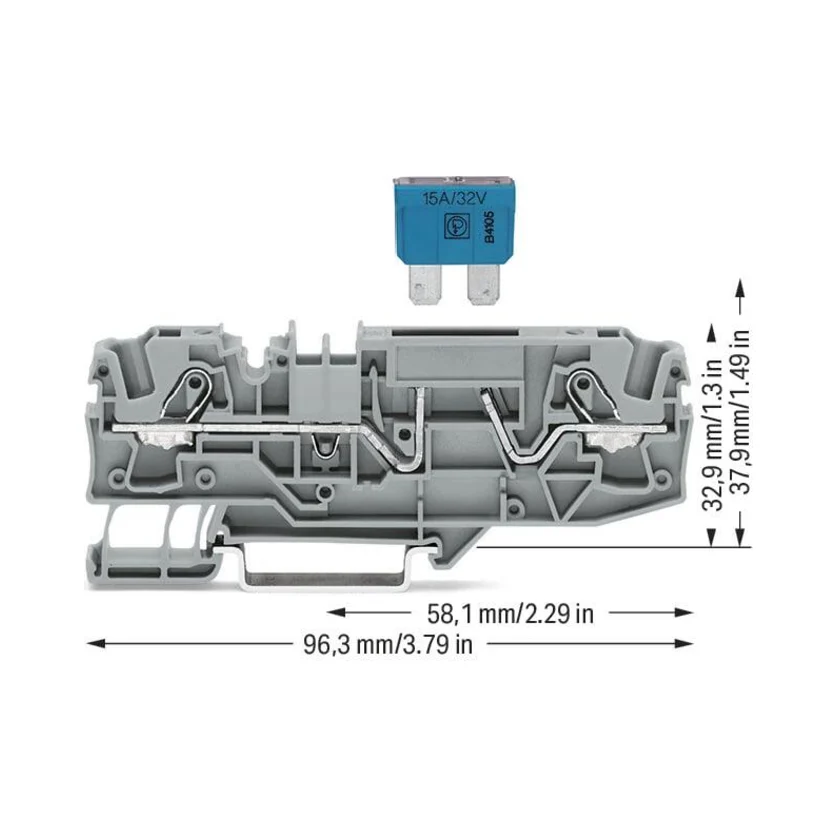

2-Conductor Fuse Terminal Block for Automotive Blade-Style Fuses – 6mm² Grey
Wago 2006-1681 Rail Mount Terminal Block
The WAGO 2006-1681 2-Conductor Fuse Terminal Block is specifically designed for use with automotive blade-style fuses, offering a reliable and compact solution for protecting circuits in various electrical installations. This terminal block supports Push-in CAGE CLAMP® technology, enabling quick and secure tool-free wiring. It comes with a test option to facilitate easy maintenance, though it does not feature a blown fuse indication.
The pluggable fuse receptacle accepts standard flat plug-in fuses (19.1 x 5.1 x 18.5 mm), making it versatile for both automotive and industrial applications.
Key Features
- For Automotive Blade-Style Fuses: Designed to accept standard automotive blade-style fuses, ensuring compatibility with a wide range of applications.
- Test Option Available: The integrated test option allows for quick checks and maintenance, improving system reliability.
- Push-in CAGE CLAMP® Technology: Enables tool-free wiring for faster installation and secure connections.
- DIN-Rail Mount Compatibility: Fits 35 x 15 and 35 x 7.5 DIN-rails, providing flexibility for different setups.
- No Blown Fuse Indication: This model does not include a blown fuse indicator.
Electrical Specifications
- Overvoltage Category: III, III, II
- Pollution Degree: 3, 2, 2
- Nominal Voltage: 500 V
- Rated Surge Voltage: 8 kV
- Rated Current: 25 A
- Max Current at Conductor Cross-Section: 30 A
Connection Data
- Connection Points: 2
- Total Number of Potentials: 2
- Number of Levels: 1
- Number of Jumper Slots: 2
Applications
The WAGO 2006-1681 Fuse Terminal Block is ideal for automotive applications, control panels, and industrial electrical systems where blade-style fuses are used. Its test option makes maintenance easy, ensuring that electrical systems can be checked without removing the fuses.
Purchase from Electrical4Less
At Electrical4Less, we are an authorised WAGO distributor, offering a wide selection of WAGO products, including the WAGO 2006-1681 Fuse Terminal Block. Contact us today to discuss project discounts and bulk order options for your electrical projects.
FAQs – WAGO 2006-1681 2-Conductor Fuse Terminal Block
1. What type of fuses does this terminal block support?
The WAGO 2006-1681 supports standard flat plug-in automotive fuses with dimensions of 19.1 x 5.1 x 18.5 mm.
2. Does this terminal block have a blown fuse indicator?
No, this model does not feature a blown fuse indicator. However, it includes a test option for easy maintenance.
3. What is Push-in CAGE CLAMP® technology?
Push-in CAGE CLAMP® technology allows for tool-free wiring, ensuring faster installations and more reliable connections.
4. Is this terminal block compatible with DIN-rails?
Yes, it is compatible with 35 x 15 and 35 x 7.5 DIN-rails, offering flexibility in installation.
5. How can I get a project discount for bulk purchases?
At Electrical4Less, we offer project discounts for bulk orders. Get in touch to discuss your project needs and receive a personalised quote.
About WAGO
WAGO is a global leader in electrical connection technology, renowned for their innovative CAGE CLAMP® system. WAGO products are trusted by professionals worldwide for their ease of use and reliability in demanding environments.
