Description

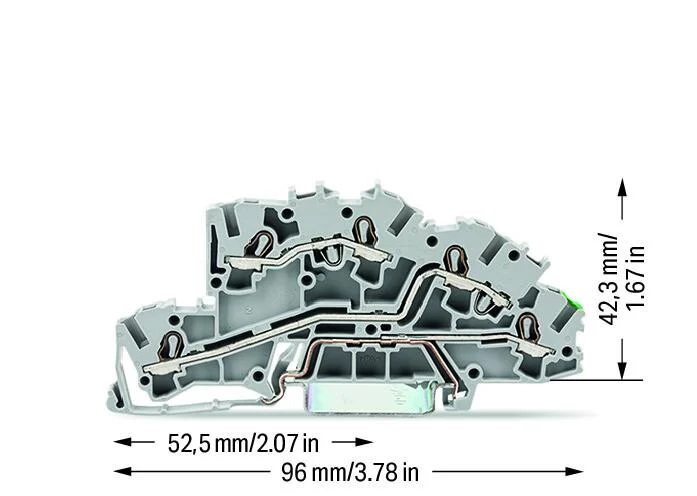

Multilevel Installation Terminal Block with Operating Slots

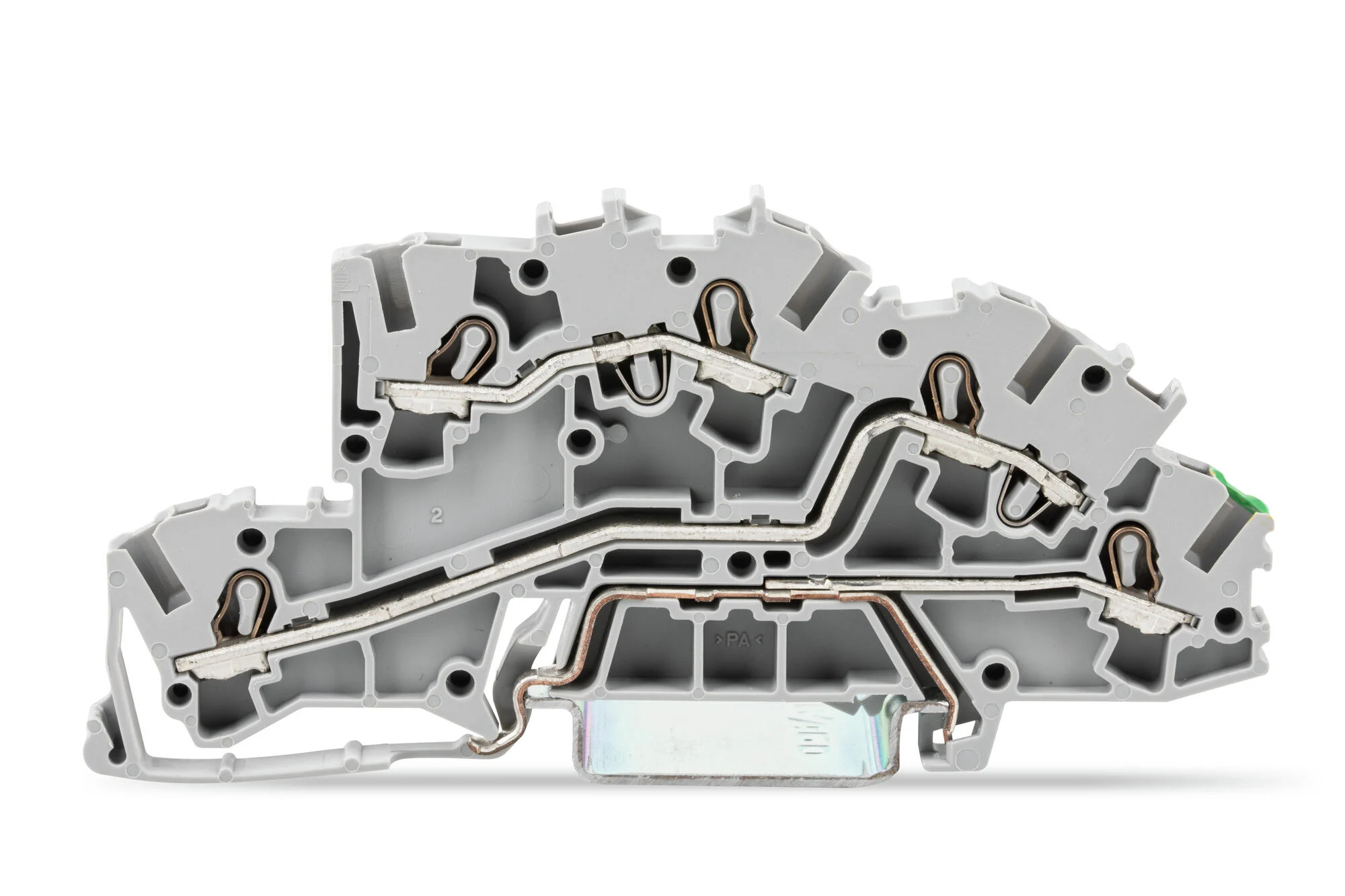

Wago 2003-7645 Rail Mount Terminal Block
The WAGO 2003-7645 Multilevel Installation Terminal Block is a highly efficient, space-saving solution designed for complex electrical installations. Featuring operating slots for easy access and management, this terminal block provides secure and reliable connections across multiple levels. With Push-in CAGE CLAMP® technology, the installation process is quick and tool-free, ensuring secure wiring.
The block is ideal for DIN-rail mounting in control panels and industrial automation systems, where compact, multilevel connections are required.
Key Features
- Multilevel Design: Allows for multiple connections in a compact space, maximising efficiency in control panels and electrical installations.
- Operating Slots: Provides easy access for testing and maintenance, streamlining workflows.
- Push-in CAGE CLAMP® Technology: Enables tool-free wiring for faster, more reliable installations.
- DIN-Rail Mount Compatibility: Fits both 35 x 15 and 35 x 7.5 DIN-rails, offering flexible installation options.
- High Electrical Ratings: Rated for 250 V and 400 V nominal voltage, supporting currents up to 24 A and surge voltages of up to 6 kV.
Electrical Specifications
- Overvoltage Category: III, III, II
- Pollution Degree: 3, 2, 2
- Nominal Voltage: 250 V and 400 V
- Rated Surge Voltage: 4 kV and 6 kV
- Rated Current: 24 A
- Max Current at Conductor Cross-Section: 32 A
Connection Data
- Power Loss Per Pole: 0.766W
- Resistance Value: 0.001 Ω
Applications
The WAGO 2003-7645 is ideal for multilevel installations in control panels, industrial automation systems, and electrical distribution networks. Its operating slots make it especially useful in environments where frequent testing and maintenance are required.
Purchase from Electrical4Less
As an authorised WAGO distributor, Electrical4Less offers a comprehensive selection of WAGO products, including the WAGO 2003-7645 Multilevel Installation Terminal Block. Contact us today to learn more about our project discounts and bulk order options.
FAQs – WAGO 2003-7645 Multilevel Installation Terminal Block
1. What are the benefits of the multilevel design?
The multilevel design allows for multiple connections in a compact space, making it ideal for use in control panels where space is limited but complex wiring is required.
2. How do the operating slots improve usability?
The operating slots provide easy access for testing and maintenance, allowing for efficient management of electrical connections without the need for disconnecting wiring.
3. What is Push-in CAGE CLAMP® technology?
This technology allows for tool-free wiring, speeding up installation and ensuring secure, reliable connections.
4. What DIN-rails are compatible with this terminal block?
The WAGO 2003-7645 is compatible with both 35 x 15 and 35 x 7.5 DIN-rails, providing flexible installation options.
5. Can I get a discount for large orders?
Yes, Electrical4Less offers project discounts for bulk purchases. Contact us to discuss your project needs and receive a personalised quote.
