Description

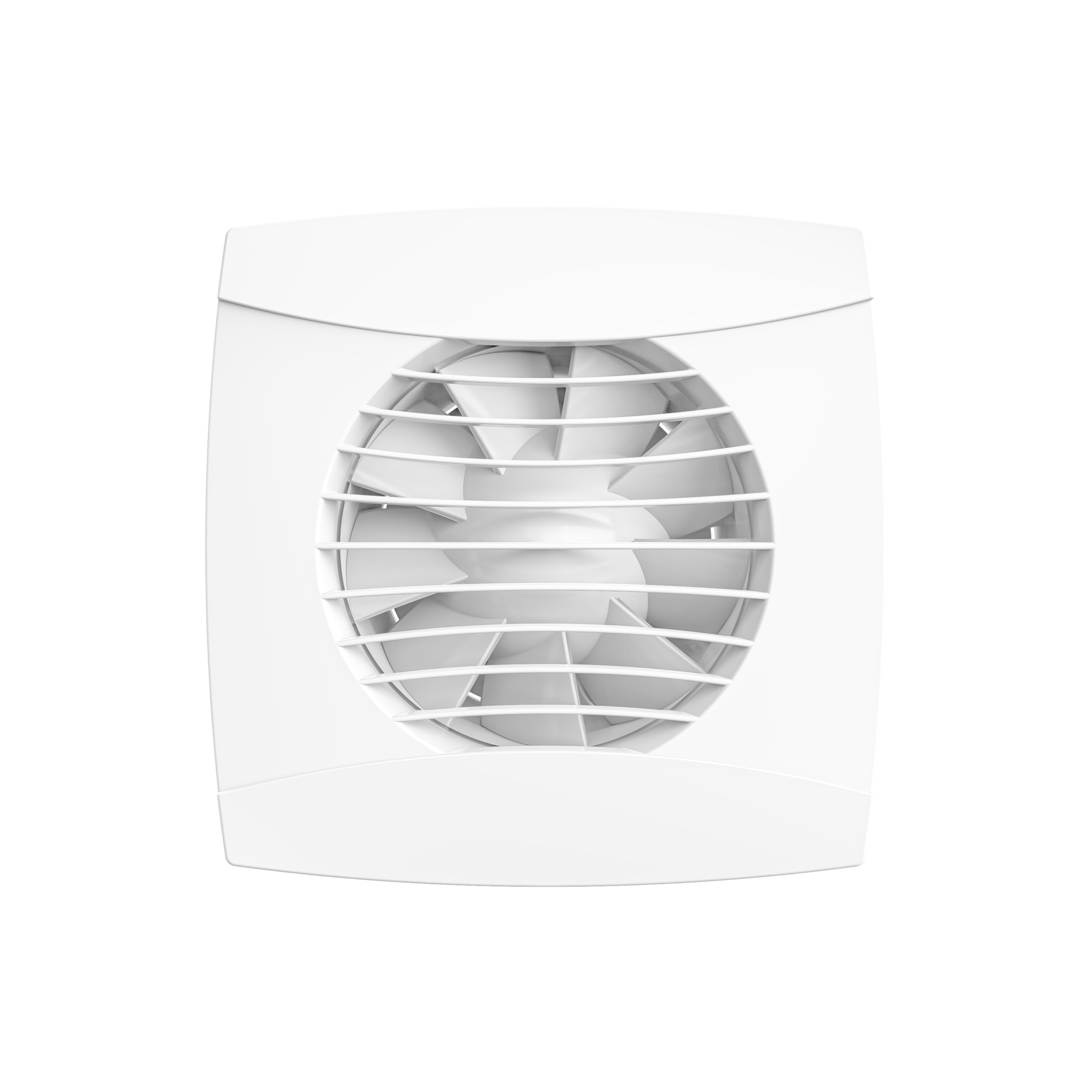

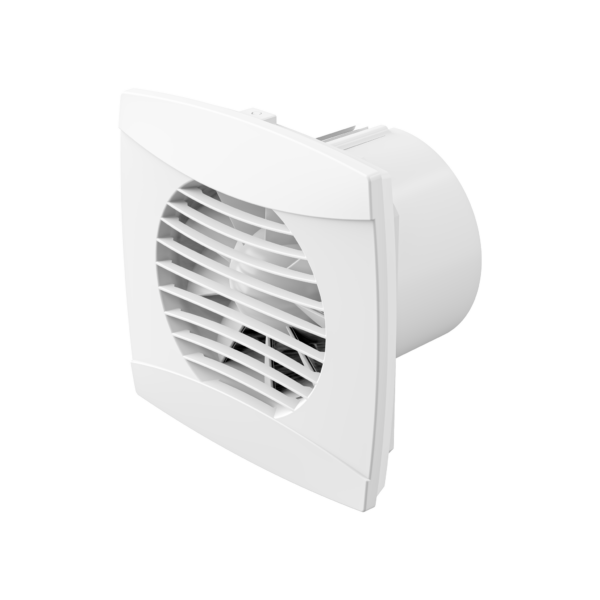

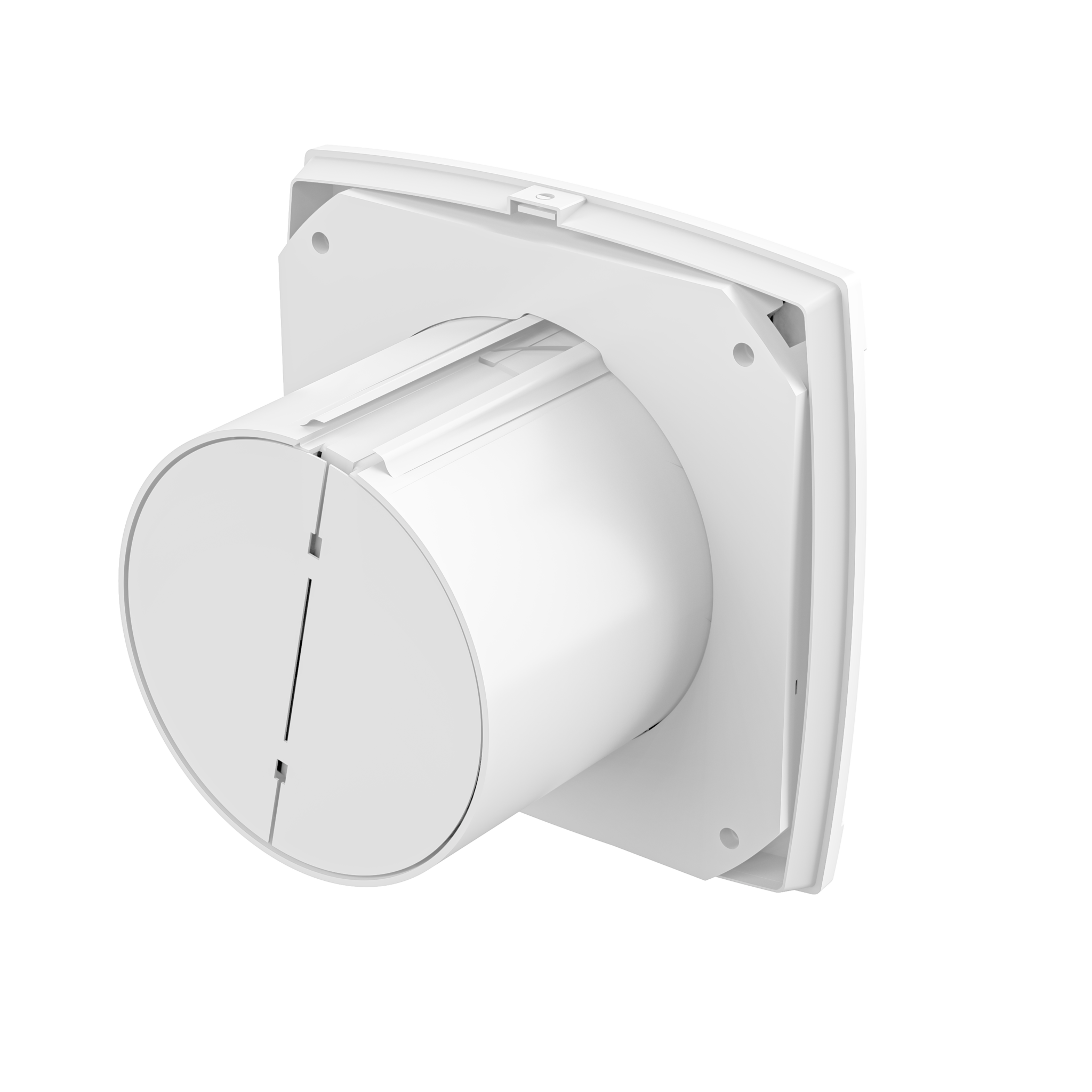

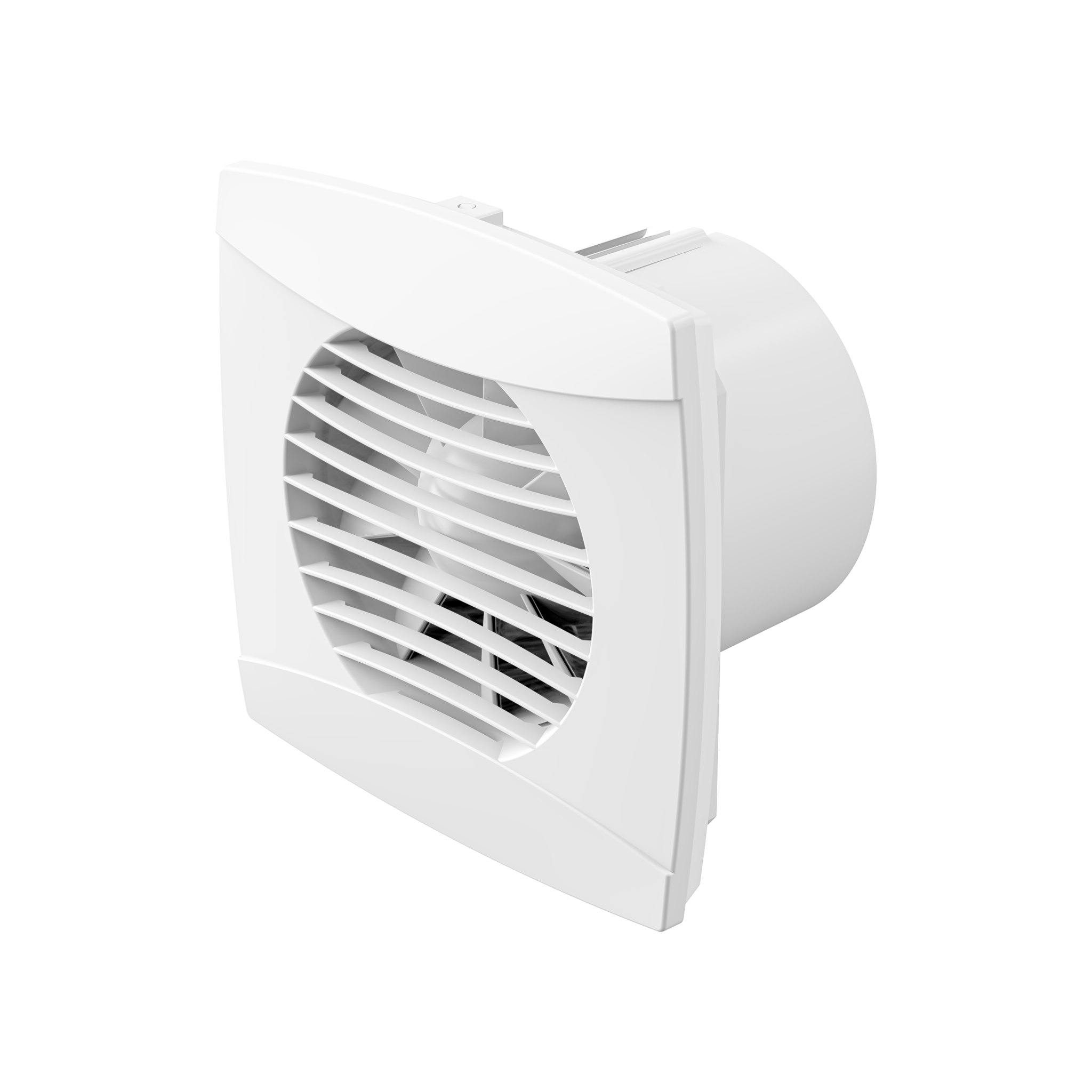

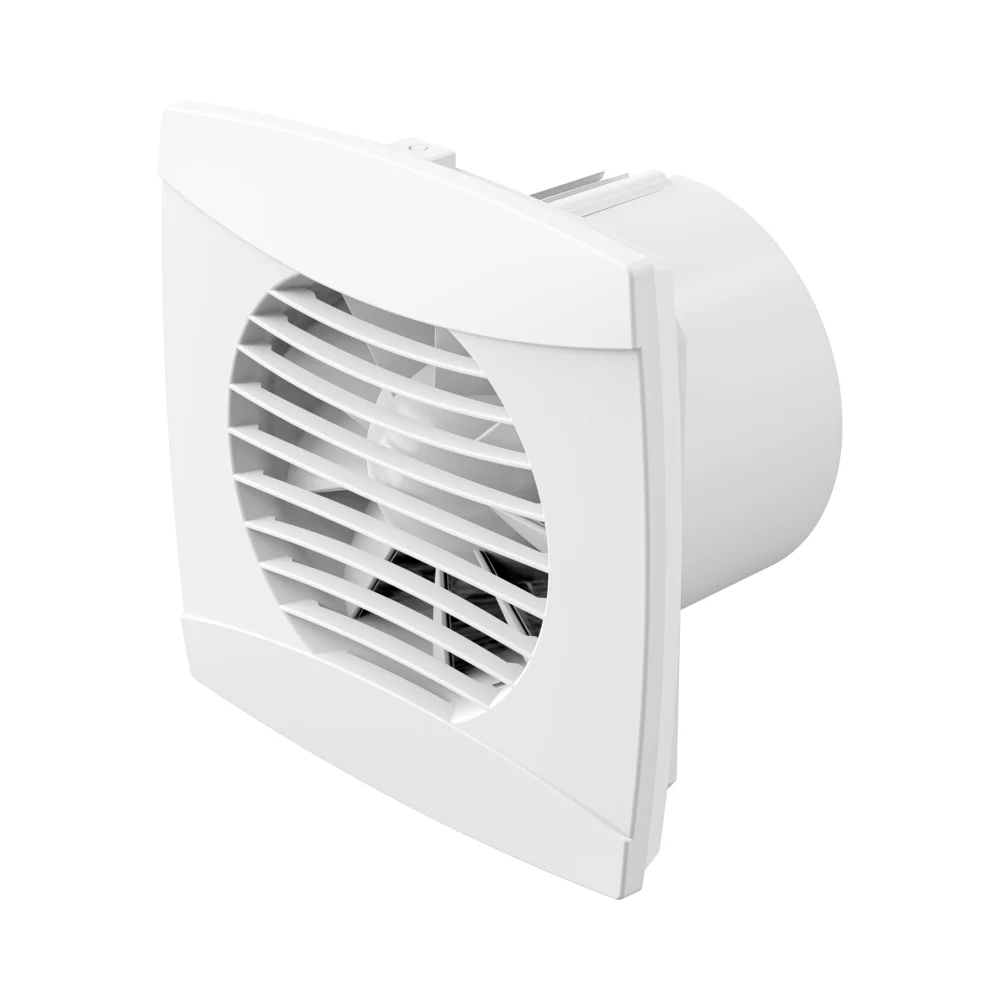

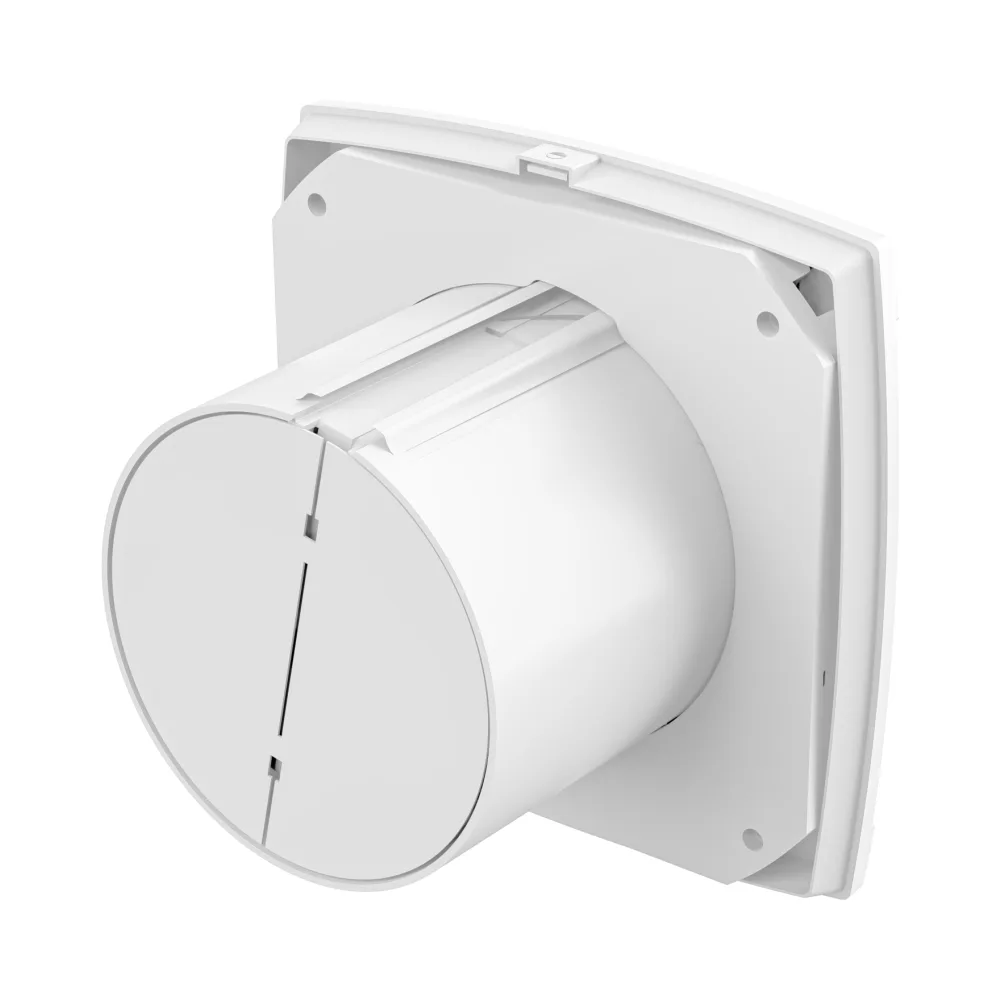

Velair EVEHA100T001 Helix Air Extractor Fan with Timer – 100mm
Efficient and Quiet Air Extraction for Your Home
The Velair EVEHA100T001 Helix Air Extractor Fan is designed to provide effective ventilation for bathrooms and other small spaces. With its sleek white finish, this fan not only performs well but also blends seamlessly into any interior. It features an adjustable electronic timer, allowing you to customize the operation from 1 to 20 minutes, ensuring your space stays fresh and well-ventilated.
Key Features
- High Air Flow: Capable of moving up to 110 m³/h (30 L/s) with a maximum fan speed of 2200 RPM, ensuring efficient air extraction.
- Energy Efficient: Operates at 8W, making it both powerful and energy-efficient, in line with Building Regulations (Approved Document L).
- Quiet Operation: Produces a minimum sound level of just 20dB at 3 meters, ensuring quiet operation without disturbing the peace of your home.
- Adjustable Timer: Features an electronic timer that can be adjusted from 1 to 20 minutes, offering flexibility in ventilation.
- IP45 Rating: Suitable for installation in Zone 1 of bathrooms, providing protection against water jets.
- Durable Construction: Made from ABS and Polypropylene materials, ensuring longevity and reliability.
- Easy Installation: Designed with hole diameters of 110mm for walls and 105mm for panels, making installation straightforward.
Specifications
- Finish: White
- Materials: ABS & Polypropylene
- Weight: 0.65kg
- Hole Diameters: Wall – 110mm, Panel – 105mm
- Input Power: 8W
- Rated Voltage: 220-240V
- Maximum Fan Speed: 2200 RPM
- Maximum Air Flow: 110 m³/h (30 L/s)
- Motor Class: Class B
- Certifications: UKCA
- IP Rating: IP45
- Zone: Zone 1
- Compliance: Meets Building Regulations for air flow (Approved Document F) and energy efficiency (Approved Document L)
- Back Draught: Yes, included
- Sound Level: 20dB at 3 meters
- Timer: Adjustable from 1 to 20 minutes
- Warranty: 5 years (24-hour replacement)
- Dimensions: ØA – 98mm, B – 150mm, C – 77.5mm, D – 18.5mm
