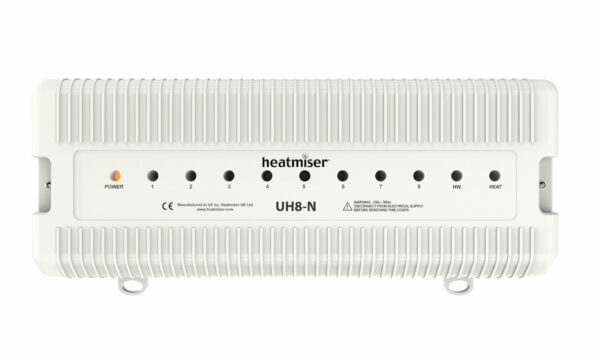

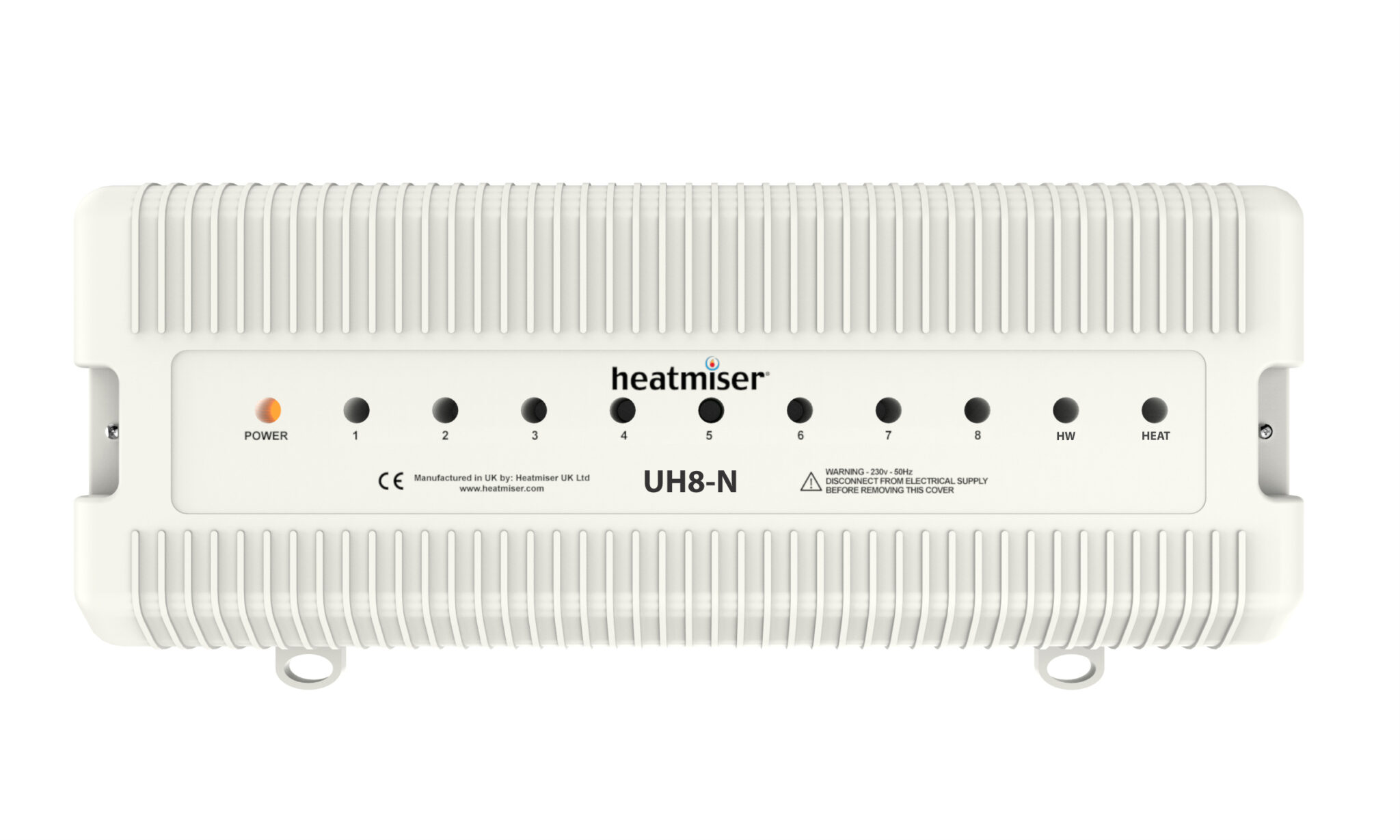

Heatmiser UH8-N 8 Zone 12V Wiring Centre

Description

8 Zone 12V Wiring Centre

Heatmiser UH8-N

The Heatmiser UH8-N 8 Zone 12V Wiring Centre is a central wiring switch box designed for seamless integration with Heatmiser’s 12V thermostats. This unit provides a neat and efficient solution for managing underfloor heating systems, allowing for central control of up to 8 heating zones.

Ideal for residential and commercial applications, the UH8-N simplifies the wiring process, reducing installation time while enhancing system performance. It also supports radiator and domestic hot water control, making it a versatile choice for multi-zone heating systems.

Key Features:

• Supports Up to 8 Zones: Central wiring for up to 8 zone actuators
• Underfloor Heating Control: Activates underfloor heating valve and pump when any connected thermostat calls for heat
• Compatible with 12V Thermostats: Designed to work seamlessly with Heatmiser low voltage thermostats
• Radiator Zone Output: Dedicated output for controlling a single radiator zone
• Domestic Hot Water Output: Built-in output for domestic hot water (DHW) control
• Network Connectivity: Supports network connection to the Heatmiser Touchpad for enhanced control
• Actuator Outputs: Provides 240V actuator outputs for reliable system operation
• DIN Rail Mounting: Designed for easy DIN rail installation in control cabinets

Technical Specifications:

• Zones Supported: Up to 8 heating zones
• Thermostat Compatibility: 12V Heatmiser thermostats
• Actuator Outputs: 240V
• Pump/Valve Control: Activates underfloor heating pump and valve on heat demand
• Radiator Control: Output for one radiator zone
• Domestic Hot Water Control: Yes
• Network Connection: Compatible with Heatmiser Touchpad
• Mounting: DIN rail compatible

Applications:

• Underfloor Heating Systems: Ideal for controlling multi-zone underfloor heating setups
• Radiator Systems: Supports additional radiator zones alongside underfloor heating
• Domestic Hot Water Control: Efficiently manages DHW systems in conjunction with heating
• Smart Home Integration: Works with Heatmiser smart thermostats and control panels

Benefits:

• Simplified Wiring: Reduces complexity in multi-zone installations
• Flexible Control: Manage underfloor heating, radiators, and hot water from a central point
• Energy Efficient: Activates pumps and valves only when needed, optimizing energy use
• Easy Installation: DIN rail design allows for quick and tidy setup in control cabinets
• Enhanced System Performance: Provides reliable connections and central control for all heating components

What’s Included:

• 1 x Heatmiser UH8-N 8 Zone 12V Wiring Centre
• Installation Guide
