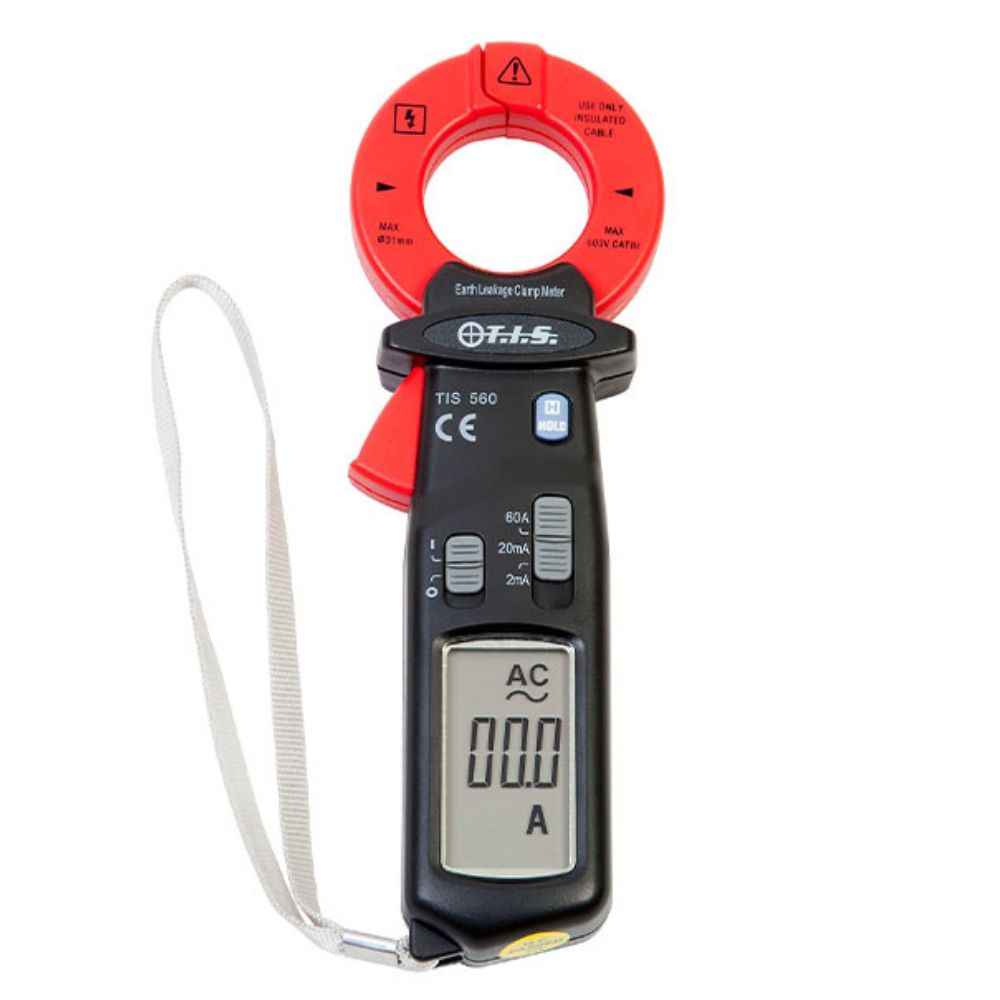

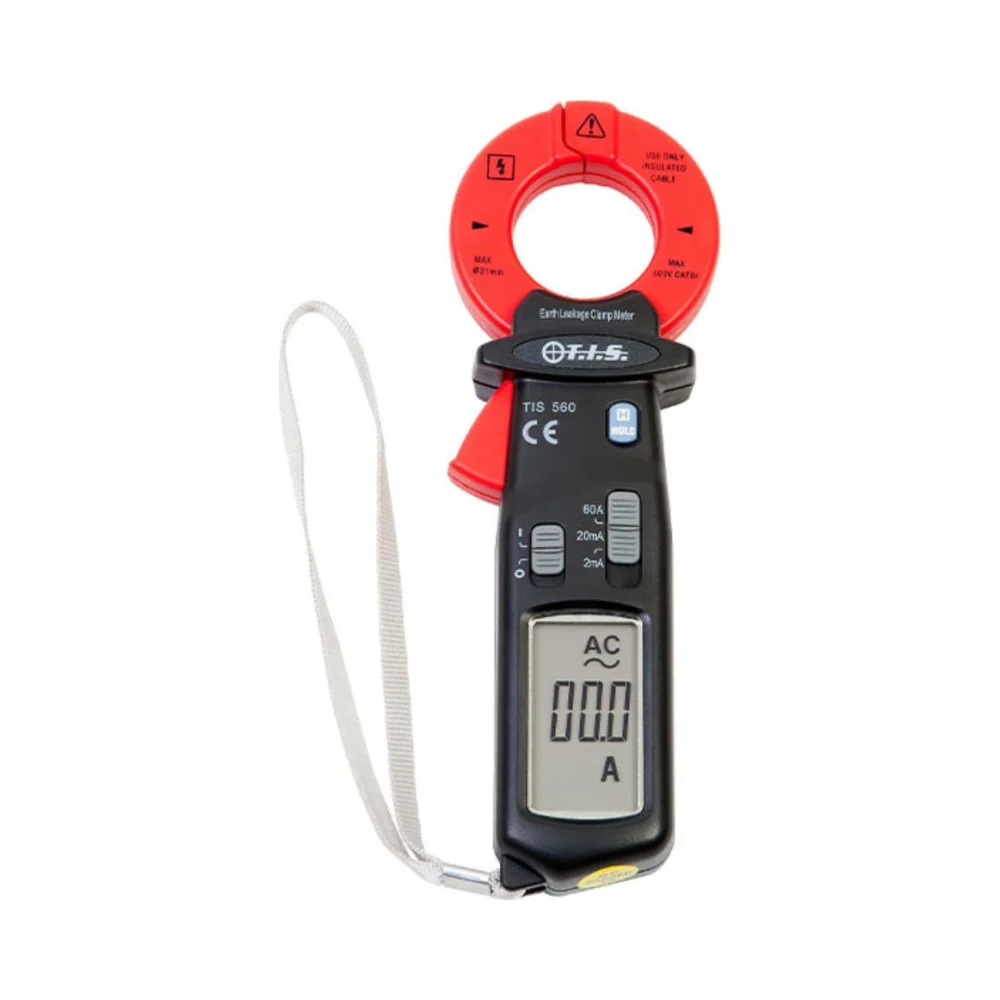

TIS 560 Earth Leakage Clamp Meter

Description

Earth Leakage Clamp Meter

TIS 560 – Compact, Accurate & Essential for Electrical Testing

Pocket-Sized, Precision TIS 560 Earth Leakage Clamp Meter for Professional Testing

The TIS 560 earth leakage clamp meter is a compact and highly accurate tool designed to measure earth leakage currents in milliamps (mA) on RCD-protected circuits. Built to comply with 17th Edition regulations (314 division of installation) and 18th Edition regulation 531.2.2, this meter ensures that electrical installations meet safety standards by helping to reduce unwanted RCD tripping caused by excessive leakage currents.

This lightweight, pocket-sized device is capable of measuring AC current up to 60A and provides essential features such as data hold, frequency measurement, and a clear LCD display. Designed for professional electricians and engineers, the TIS 560 clamp meter is the perfect tool for diagnosing leakage faults and ensuring electrical safety in residential, commercial, and industrial environments.

Key Features

• Measures earth leakage currents in milliamps (mA)
• AC current measurement up to 60A
• High-resolution LCD display with 1999 count
• Frequency measurement 50/60Hz
• Data hold function for easy recording
• Low battery warning for uninterrupted use
• Compact and lightweight design for portability
• Large 31mm jaw opening for easy clamping

Specifications

AC Current Measurement:

• 2mA range – Resolution 0.001mA, Accuracy ±(2.0%+5d)
• 20mA range – Resolution 0.01mA, Accuracy ±(2.0%+5d)
• 60A range – Accuracy ±(2.0%+5d)
• Frequency 50-60Hz, Accuracy ±(3.0%+5d) for >50A
• Maximum permitted input: 120% of full range for 60 seconds

Special Functions

• Earth leakage detection as low as 0.001mA
• AC current measurement up to 60A
• Frequency measurement 50/60Hz
• Data hold function
• Low battery warning
• LCD display with clear readings
• Compact and lightweight for easy handling

General Characteristics

• Power: 2 x AAA batteries (included)
• Weight: 150g
• Dimensions: 176mm x 59mm x 28mm
• Jaw opening: 31mm

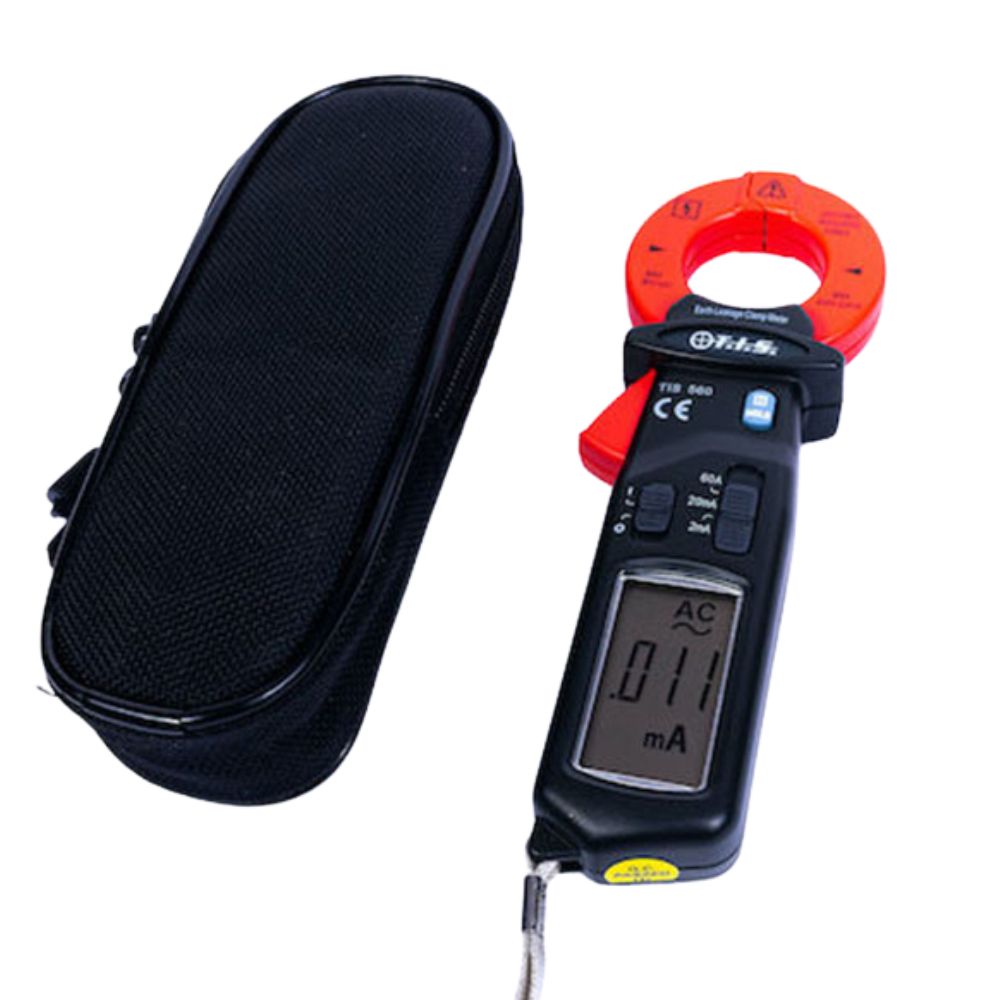

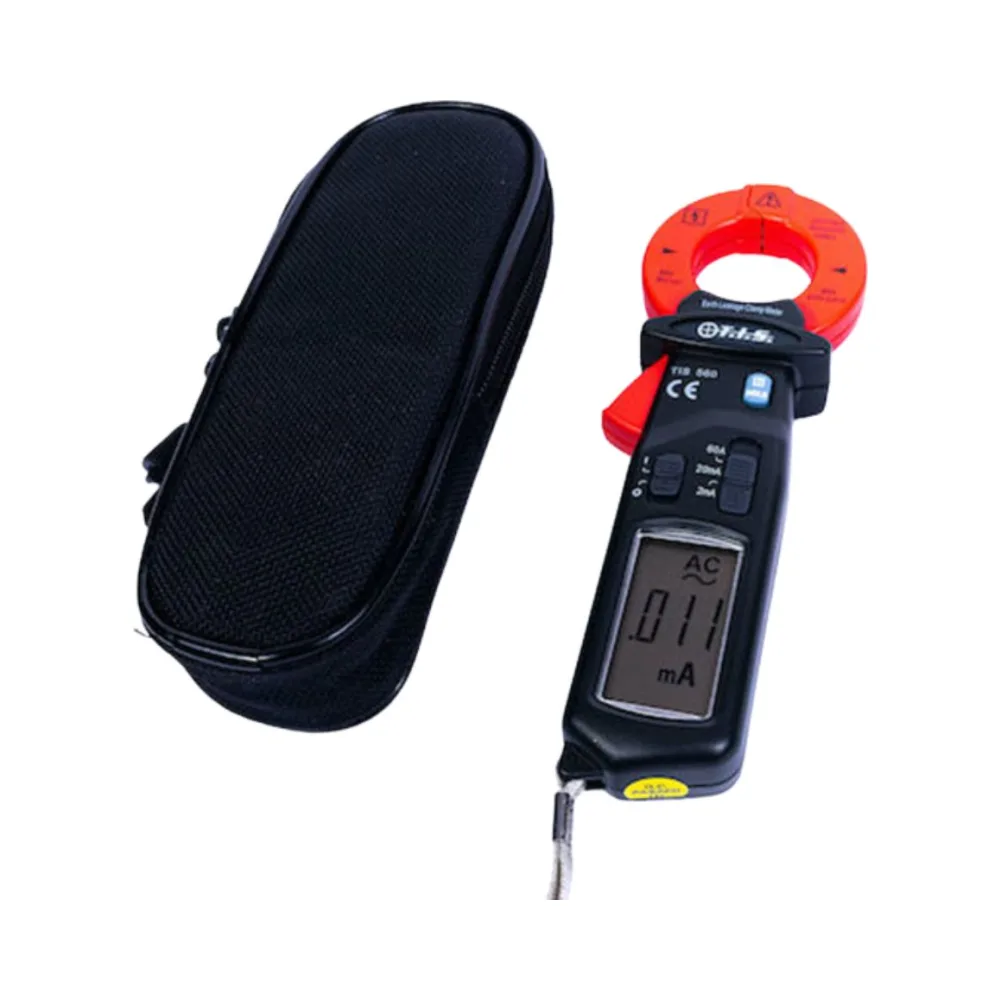

• Standard accessories: 2 x AAA batteries, wrist strap, soft padded case

Safety & Compliance

• Meets EMC & LVD standards:
  • EN: 61010-1
  • EN: 61010-02-031
• Conforms to the 18th Edition regulation 531.2.2

Why Choose the TIS 560 Earth Leakage Clamp Meter?

• Ideal for troubleshooting RCD tripping issues – Helps narrow down leakage sources.
• Accurate earth leakage detection – Essential for fault-finding in installations.
• Portable and easy to use – Compact design fits easily in a tool kit.
• Meets industry regulations – Ensures compliance with the 17th and 18th Edition wiring regulations.

Frequently Asked Questions (FAQs)

• What is the TIS 560 used for?
  The TIS 560 is used to measure earth leakage currents on RCD-protected circuits, helping electricians identify leakage faults and prevent nuisance tripping.
• Can it measure standard AC current?
  Yes, it can measure AC current up to 60A, making it useful for general electrical diagnostics.
• What is the jaw opening size?
  The clamp has a 31mm jaw opening, allowing it to measure leakage currents in larger cables.
• Does it come with batteries?
  Yes, it includes 2 x AAA batteries, a wrist strap, and a soft padded case.
• What’s the EAN Barcode for this product?
  The EAN Barcode for the TIS 560 Earth Leakage Clamp Meter is 5060508211259.
