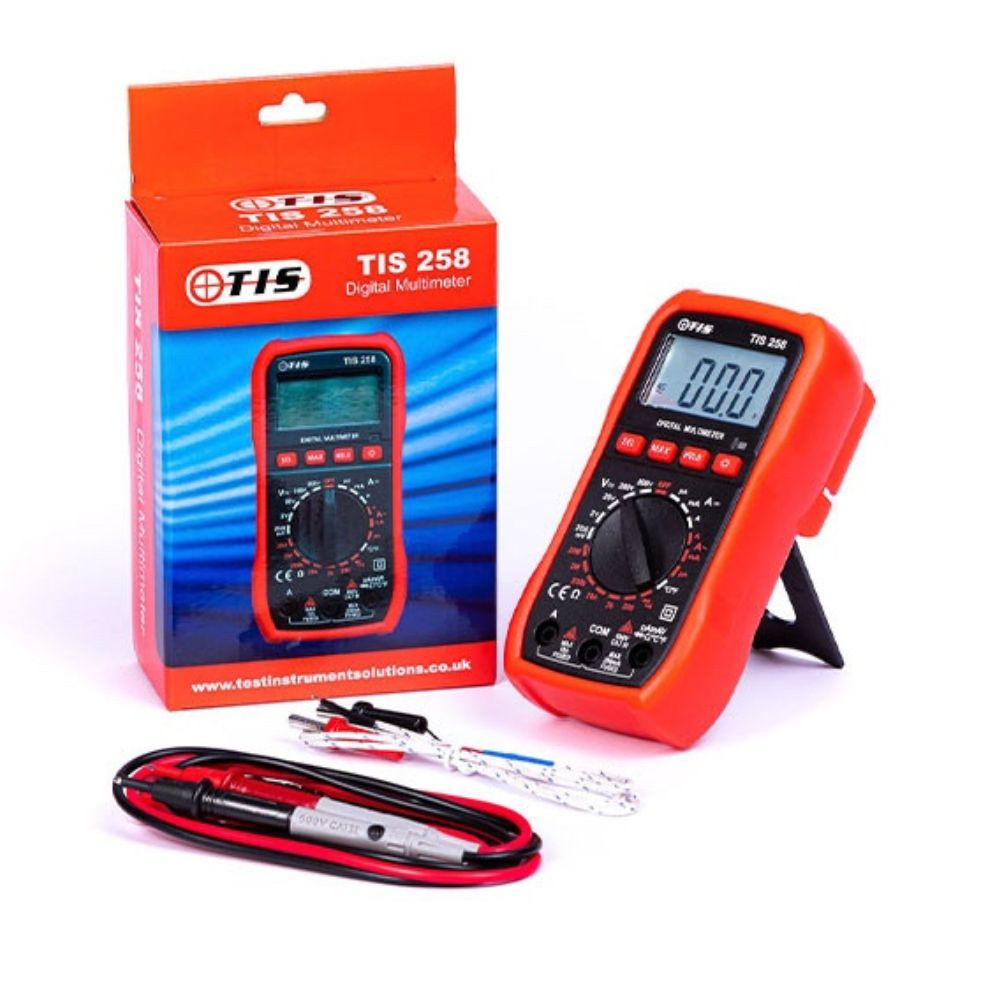

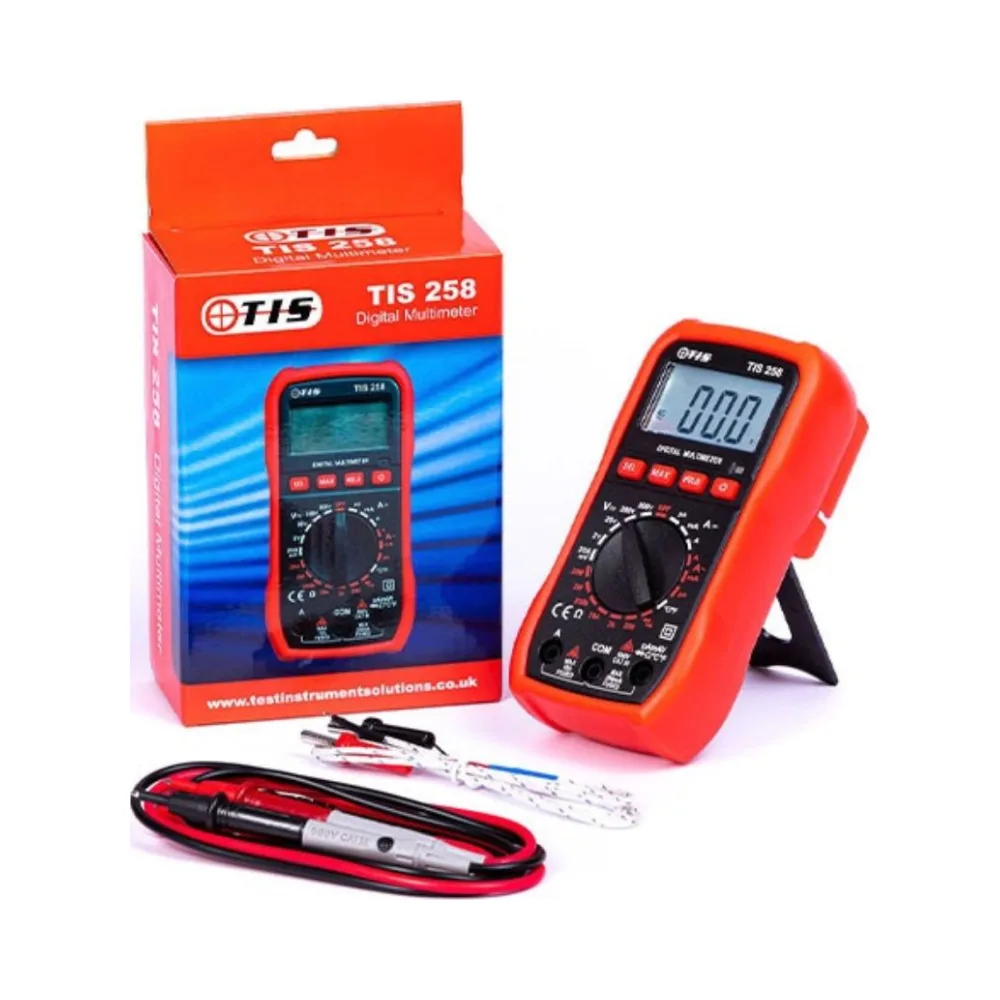

TIS 258 Digital Multimeter with Temperature Measurement

Description

Digital Multimeter with Temperature Measurement

TIS 258 – Compact, Reliable, and Feature-Packed for Professional and Home Use

Pocket-Sized, Robust TIS 258 Digital Multimeter with Temperature Measurement AC/DC Voltage, Current and Resistance

The TIS 258 Digital Multimeter with Temperature is a versatile, pocket-sized tool designed for electricians, engineers, and DIY users. Despite its compact size, this multimeter offers accurate AC/DC voltage and current measurements, resistance testing up to 20MΩ, and temperature measurement from -20°C to 750°C (-4°F to 1382°F).

With a rugged rubber boot for protection, a built-in stand for hands-free use, and a 2000-count LCD display with backlight, the TIS 258 ensures precision, durability, and ease of use in various applications. It also includes diode testing, continuity checking, and a data hold function, making it ideal for both professional electricians and maintenance personnel.

Key Features

• AC/DC voltage measurement up to 500V
• AC/DC current measurement from 200µA to 10A
• Resistance testing from 200Ω to 20MΩ
• Temperature measurement from -20°C to 750°C (-4°F to 1382°F)
• 2000-count LCD display with backlight for clear readings
• Diode test and continuity buzzer for quick diagnostics
• Data hold function to freeze measurements
• Auto power-off to conserve battery life
• Manual ranging for precise control
• Rugged rubber boot for durability
• Built-in stand for hands-free operation

Specifications

Voltage Measurement:

• DC Voltage: 200mV – 500V
• AC Voltage: 200mV – 500V

Current Measurement:

• DC Current: 200µA – 10A
• AC Current: 200µA – 10A

Resistance Measurement:

• 200Ω – 20MΩ

Temperature Measurement:

• -20°C to 750°C (-4°F to 1382°F)

Compliance & Safety Standards

• IEC 61010 CAT II 600V
• EN 61326, EN 61010-2-031

General Characteristics

• Power supply: 9V battery (included)
• Weight: Compact and lightweight for easy portability
• Standard accessories: Test leads and temperature probe included

Why Choose the TIS 258 Digital Multimeter?

• Compact and portable – Ideal for on-the-go professionals and DIY users
• Versatile functionality – Measures voltage, current, resistance, and temperature
• Durable and reliable – Rubber boot for added protection
• Easy to use – Manual range selection, backlit display, and built-in stand
• Safe and compliant – Meets IEC 61010 CAT II 600V safety standards

Frequently Asked Questions (FAQs)

• What temperature range does the TIS 258 measure?
  The multimeter measures temperatures from -20°C to 750°C (-4°F to 1382°F), making it ideal for electrical and HVAC applications.
• Can it measure both AC and DC current?
  Yes, it supports AC/DC current measurement from 200µA to 10A.
• Does the TIS 258 have a backlight?
  Yes, the LCD display includes a backlight, ensuring clear readings in low-light environments.
• Is this multimeter safe for professional use?
  Yes, it meets IEC 61010 CAT II 600V safety standards, ensuring safe operation.
• What’s the SKU code and EAN barcode for this product?
  • SKU: TIS 258
  • EAN Barcode: 5060508210054

The TIS 258 Digital Multimeter with Temperature is a compact, durable, and highly functional tool for measuring voltage, current, resistance, and temperature. With a rugged design, backlit LCD, and essential features like diode testing and continuity checking, it is perfect for both professionals and home users.
