Timeguard RCD05WAVN Valiance+ RCD Protected Active Double Gang Switched Socket

Description

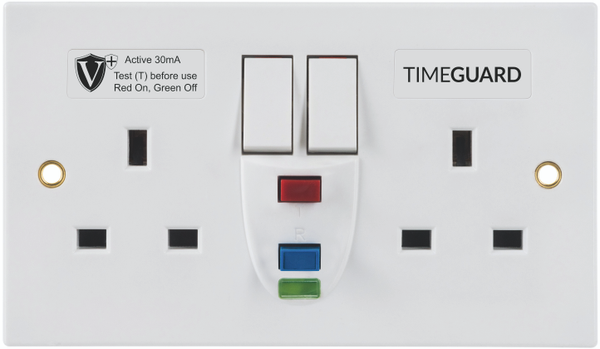

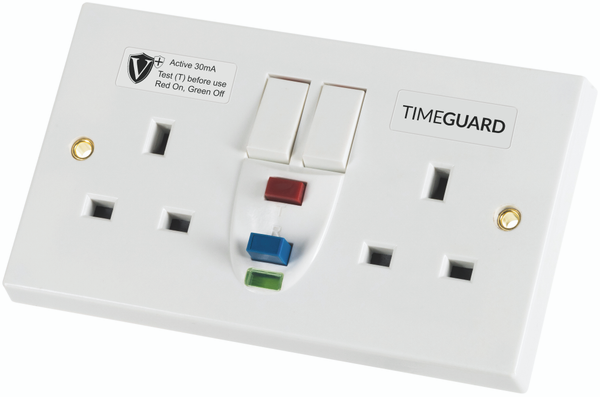

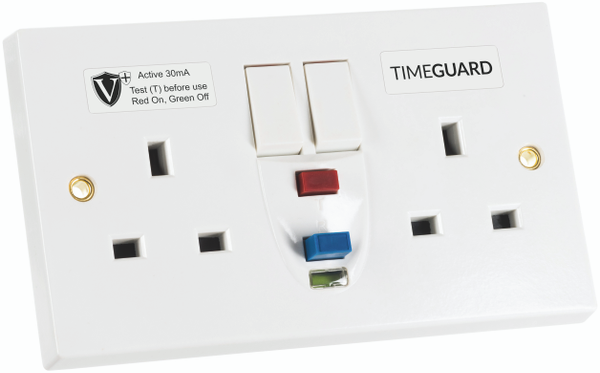

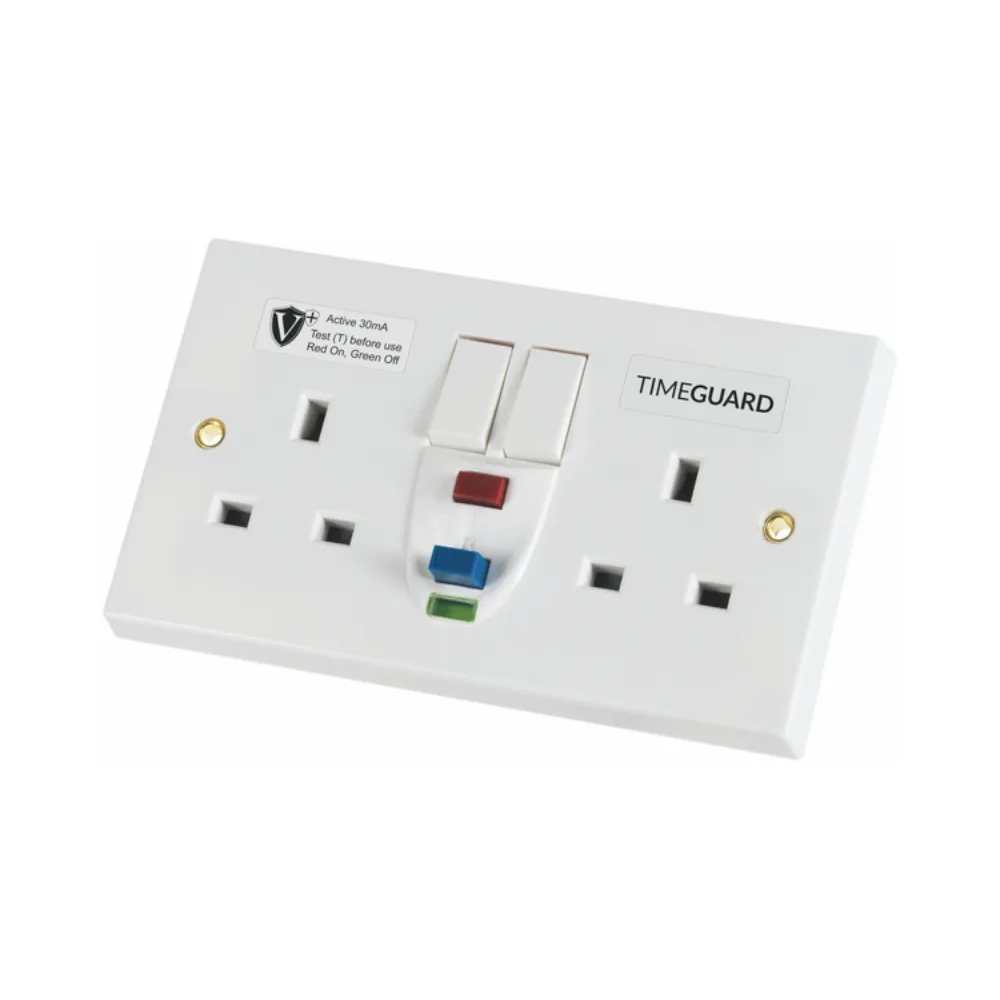

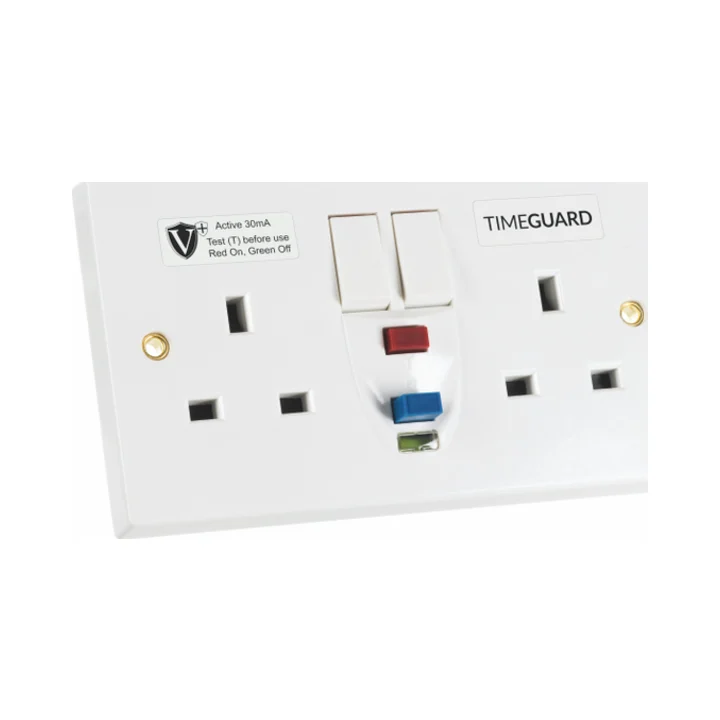

RCD Protected Active Double Gang Switched Socket – White

Advanced Safety with Dual Flag RCD Technology

Timeguard RCD05WAVN Valiance+

The Timeguard RCD05WAVN Valiance+ RCD Protected Active Double Gang Switched Socket provides enhanced electrical safety with its innovative Dual Flag Technology, designed to protect both installers and end users. This Type A RCD socket meets the latest BS7288:2016 safety standards, ensuring high EMC immunity, reduced nuisance tripping, and continued protection against lost neutral and pulsating DC earth faults.

Key Features

• Dual Flag RCD Technology –
  • RED flag: Indicates the device is ON with a live supply to the appliance.
  • GREEN flag: Indicates the device is safe with the power switched OFF.
• High EMC Immunity – Minimises nuisance tripping from RF interference (e.g., mobile phones, walkie-talkies).
• Certified to BS7288:2016 & BS1363-2 – Meets the latest IET Wiring Regulations for superior safety.
• Lost Neutral & Pulsating DC Earth Fault Protection – Ensures continued safety under fault conditions.
• Non-Latching (Active) RCD – The socket automatically switches off after a power cut, preventing unexpected restarts.
• Designed, Tested, and Certified in the UK – Built to the highest safety and quality standards.
• Fits Standard Depth Wall Boxes – Easy installation with a minimum 25mm back box depth.

Why Choose the Timeguard Valiance+ Active RCD Socket?

This active RCD-protected double gang socket is an ideal choice for workshops, commercial buildings, and safety-critical environments. With innovative mechanical flag indication, high EMC immunity, and non-latching protection, it provides a safe and reliable solution for modern electrical installations.

Technical Specifications

• Operating Voltage: 230V AC
• Frequency: 50Hz
• Installation Type: Surface or Recessed
• Earth Class Rating: Class I
• Operating Temperature: -5°C to 40°C
• Back Box Minimum Depth: 25mm
• Operational Classification: Non-Latching (Active)
• Rated Trip Current: 30mA
• Trip Speed: Less than 40msec at 150mA residual current
• Mounting Hole Centres: 120mm
• Body Construction: Thermoset

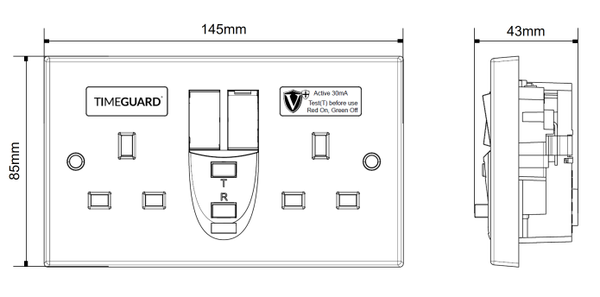

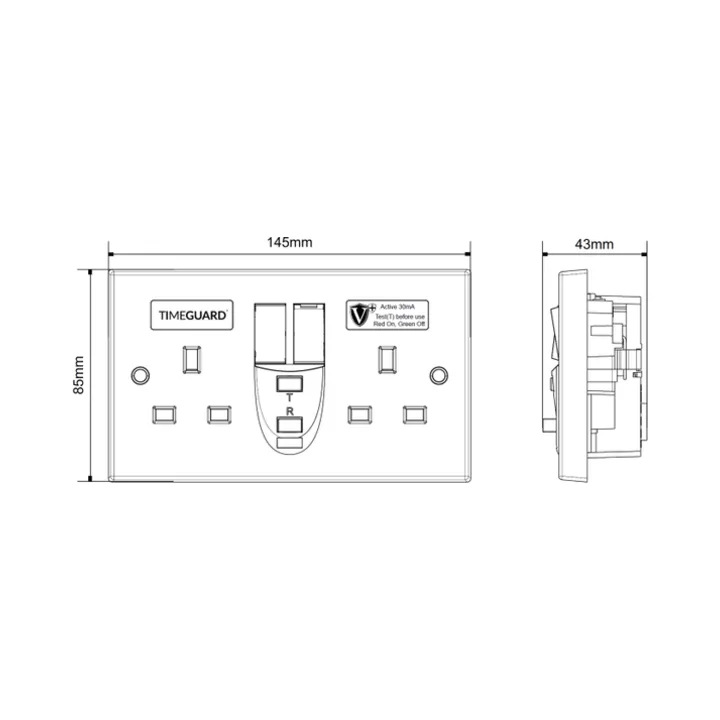

• Dimensions:
  • Height: 85mm
  • Width: 145mm
  • Depth: 43mm
