Description

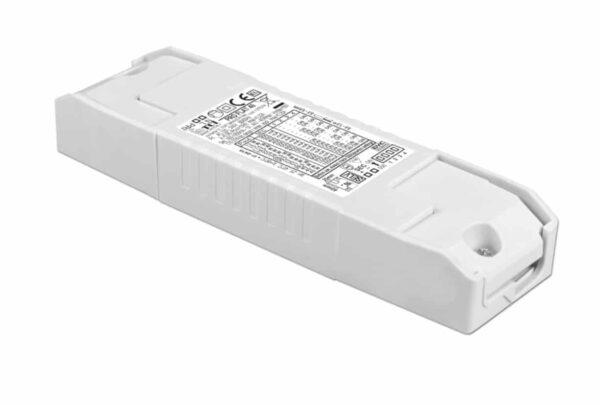

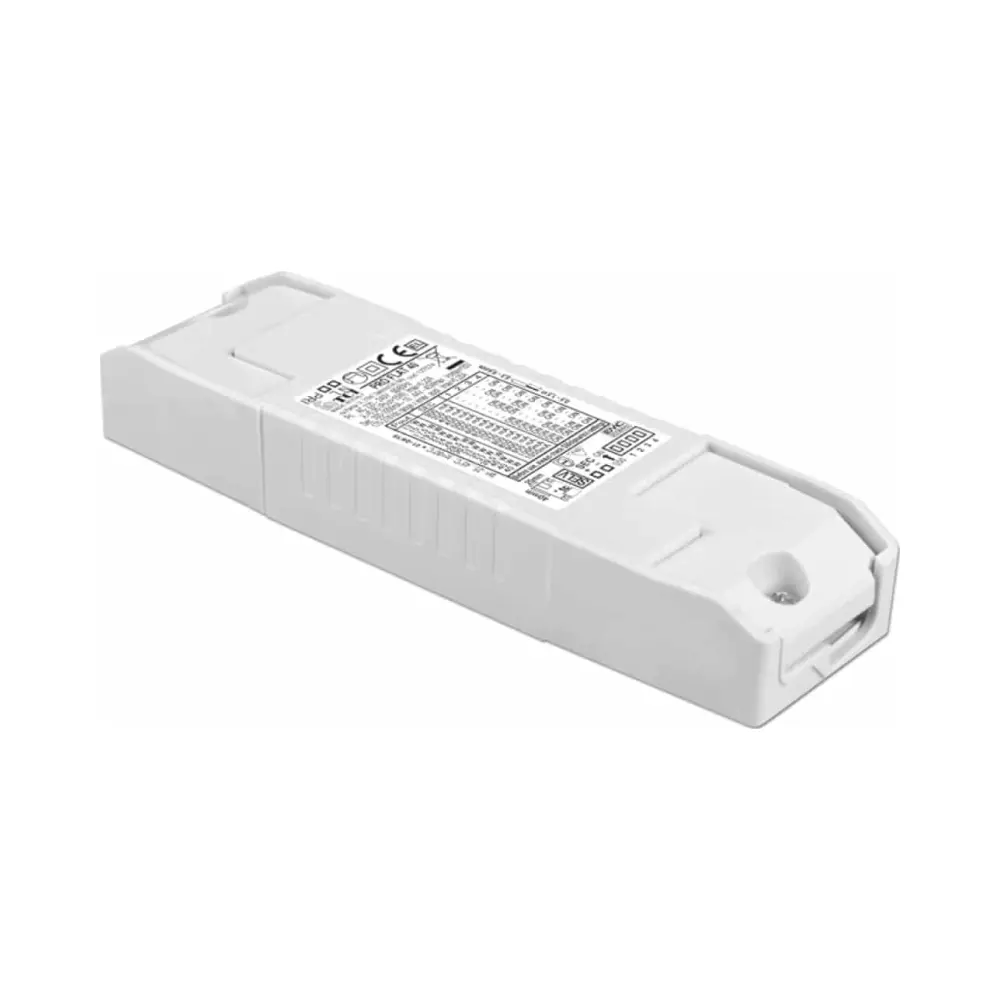

Pro Flat 40 Constant Current Multi-Power LED Driver
TCI 127574 – Compact and Versatile
The TCI 127574 Pro Flat 40 Multi-Power LED Driver is a high-performance solution for indoor LED lighting systems. With a dip-switch for precise output current selection and ripple-free technology, this driver ensures reliable, efficient, and flicker-free operation. Its slim design and robust safety features make it an ideal choice for professional and residential installations.
Key Features of TCI 127574 Pro Flat 40 Constant Current Multi Power LED Driver
- Multi-Power Functionality:
- Dip-switch for selecting output current, offering versatility for various LED setups.
- Ripple-free output ensures flicker-free and consistent lighting quality.
- Compact and Durable Design:
- Slim and lightweight for easy integration into limited-space installations.
- Secured using screw slots for stable mounting.
- Advanced Safety Protections:
- Safeguards against overheating, short circuits, overloads, and mains voltage spikes.
- Thermal protection (C.5.a) ensures reliable operation under challenging conditions.
- Energy-Efficient Technology:
- Active Power Factor Corrector (PF > 0.95) minimizes energy waste.
Technical Specifications
- Input Voltage: 220-240V AC (198-264V AC operating range)
- Output Power: 5W to 40W
- Output Current Range: Adjustable via dip-switch from 300mA to 1,050mA
- Output Voltage Range: 5V to 44V DC
- Efficiency: Greater than 90% at full load
- Ripple-Free Output: <3% for steady illumination
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature:
- Ambient (ta): -25°C to +45°C
- Max case temperature (tc): 75°C

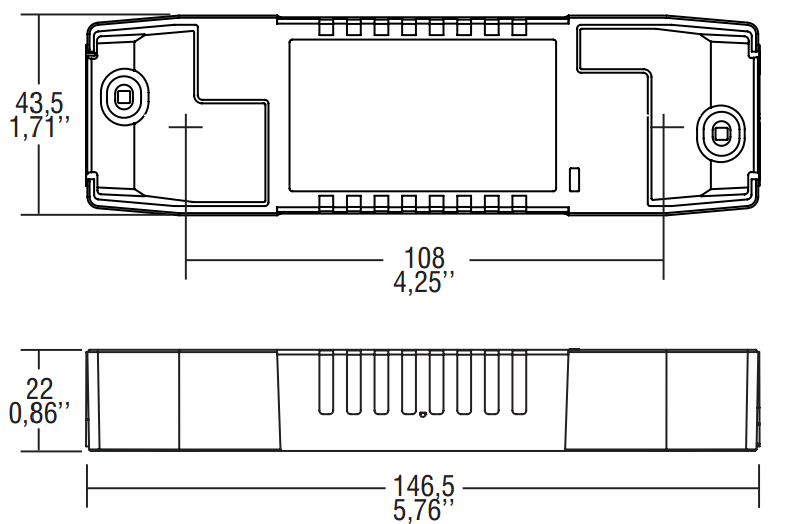

- Dimensions: 146.5 x 43.5 x 22 mm (5.76″ x 1.71″ x 0.86″)
- Weight: 131 g (4.6 oz)
Certifications and Approvals
- Standards Compliance:
- EN 55015
- EN 61000-3-2
- EN 61000-3-3
- EN 61347-1
- EN 61347-2-13
- EN 61547
- EN 62384
- Certified by: KEMAKEUR, ENEC, CCC, RCM, CE, EAC, UKCA
Benefits
- Customizable Output: Adjust the current to match specific lighting requirements.
- Energy Efficiency: Reduces energy consumption while maintaining excellent performance.
- Robust Safety Features: Comprehensive protection ensures long-term reliability.
- Flicker-Free Lighting: Ripple-free technology delivers consistent illumination for optimal comfort.
- Space-Saving Design: Slim profile fits easily into compact installations.
Applications
The Pro Flat 40 Driver is ideal for:
- Residential Lighting: Suitable for kitchens, living rooms, and hallways.
- Commercial Spaces: Perfect for retail shops, showrooms, and office environments.
- Industrial Use: Durable and reliable for professional LED systems.
FAQs
Q: Is the TCI 127574 Pro Flat 40 Driver dimmable?
A: No, this driver is not dimmable.
Q: Can it be used outdoors?
A: No, it is designed for indoor use only, as indicated by its IP20 rating.
Q: What is the maximum adjustable output current?
A: The maximum adjustable output current is 1,050mA.
Upgrade Your Lighting System with the TCI Pro Flat 40 Driver
The TCI 127574 Pro Flat 40 Driver combines precision, reliability, and energy efficiency in a slim and compact form. Whether you’re designing residential, commercial, or industrial LED lighting systems, this driver delivers exceptional performance and safety. Upgrade your setup today with the Pro Flat 40!
