Description

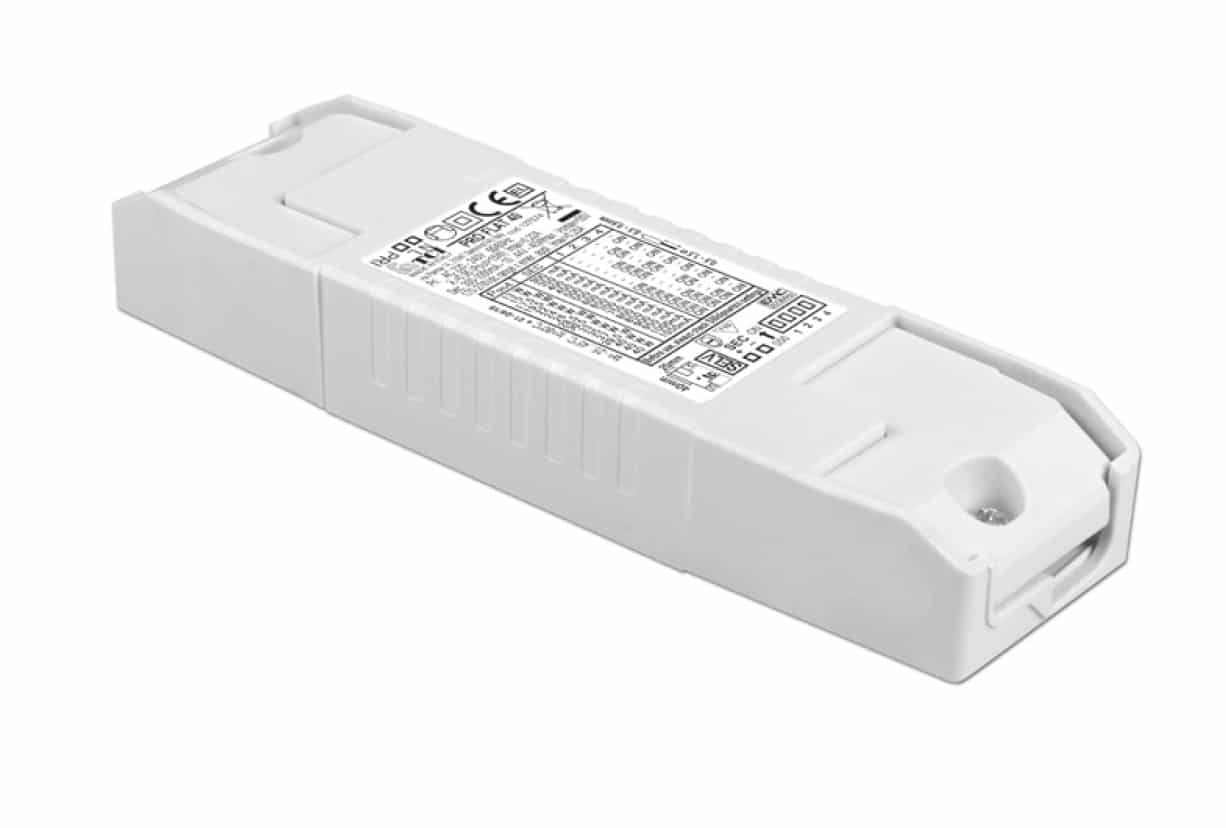

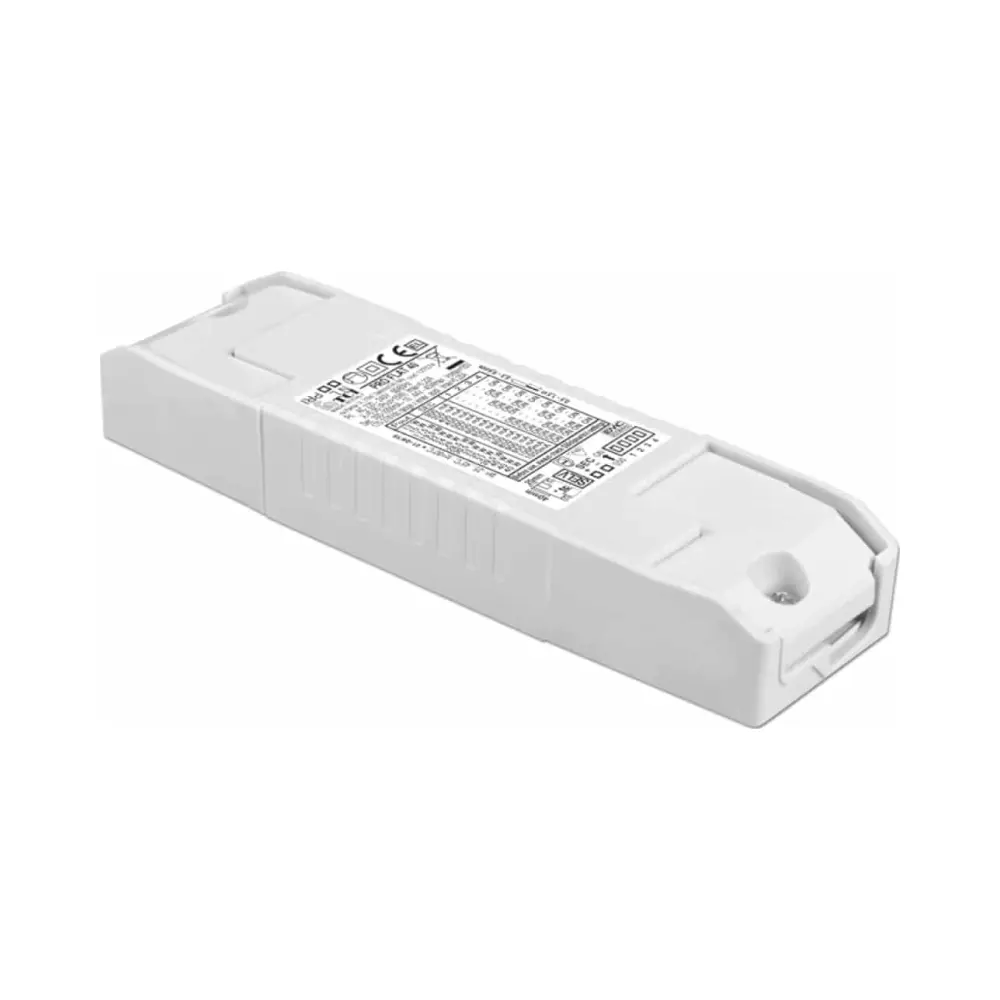

Pro Flat 30 Constant Current Multi-Power LED Driver
TCI 127572 – Compact and Versatile
The TCI 127572 Pro Flat 30 Multi-Power LED Driver is a compact, reliable solution for a variety of LED lighting systems. With a dip-switch for precise output current selection, this driver offers exceptional versatility and control. Designed for built-in use, it ensures optimal safety, performance, and efficiency in professional and residential applications.
Key Features of TCI 127572 Pro Flat 30 Constant Current Multi Power Driver
- Multi-Power Functionality: Easily adjust the output current via the integrated dip-switch to suit various LED setups.
- Compact Design: Slim and lightweight, making it ideal for installations with space constraints.
- Active Power Factor Corrector: Delivers high energy efficiency and stable operation with a power factor > 0.95.
- Ripple-Free Output: Ensures flicker-free illumination, improving lighting quality and visual comfort.
- Advanced Protections: Built-in safeguards against overheating, short circuits, mains voltage spikes, and overloads.
Technical Specifications
- Input Voltage: 220-240V AC (198-264V operating range)
- Output Power: 3W to 32W
- Output Current Range: 350mA to 725mA (adjustable via dip-switch)
- Output Voltage Range: 2V to 44V DC
- Efficiency: >90% at full load
- Ripple: ≤3% for steady, flicker-free performance
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature: -25°C to +50°C (ambient); max tc = 75°C
- Standards Compliance:
- EN 50172 (VDE 0108)
- EN 55015
- EN 61000-3-2
- EN 61000-3-3
- EN 61347-1
- EN 61347-2-13
- EN 61547
- EN 62384
Additional Features
- User-Friendly Design:
- Input and output terminals on opposite sides for easy wiring.
- Supports cable diameters between 3 mm and 10 mm, with wire cross-sections up to 1.5 mm².
- Includes screw slots for secure mounting.
- Thermal Protection: Integrated C.5.a safeguard prevents overheating, ensuring durability and reliability.
- Compliance and Certifications:
- Certified by KEMAKEUR, ENEC, CCC, RCM, CE, EAC, UKCA.
- Fully compliant with international safety and performance standards.
Applications
The Pro Flat 30 driver is suitable for:
- Residential Lighting: Ideal for compact installations in kitchens, living rooms, and hallways.
- Commercial Spaces: Perfect for offices, retail outlets, and hospitality venues.
- Professional Use: Robust enough for industrial and specialized lighting setups.
Benefits
- Flexible Performance: The dip-switch allows precise customization for different LED configurations.
- Space-Saving Design: Compact dimensions make it perfect for limited-space installations.
- Energy Efficiency: Reduces energy costs while providing consistent, high-quality illumination.
- Enhanced Safety: Comprehensive protection features ensure reliability and peace of mind.
- Simple Integration: Easy wiring and mounting streamline installation.
FAQs
Q: Is the TCI 127572 Pro Flat 30 Driver dimmable?
A: No, this model is not dimmable.
Q: Can this driver be used outdoors?
A: No, the IP20 rating indicates it is designed for indoor use only.
Q: What is the maximum output current?
A: The maximum adjustable output current is 725mA.
Upgrade Your Lighting System with the TCI 127572 Pro Flat 30 Driver
The TCI 127572 Pro Flat 30 offers unmatched precision, energy efficiency, and reliability in a slim and compact design. Perfect for professional, commercial, and residential lighting projects, it delivers consistent, flicker-free illumination with robust protection features. Upgrade your LED installations today with the Pro Flat 30!
