Description

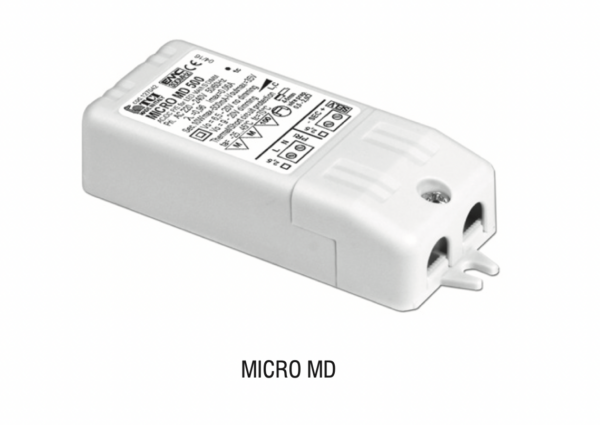

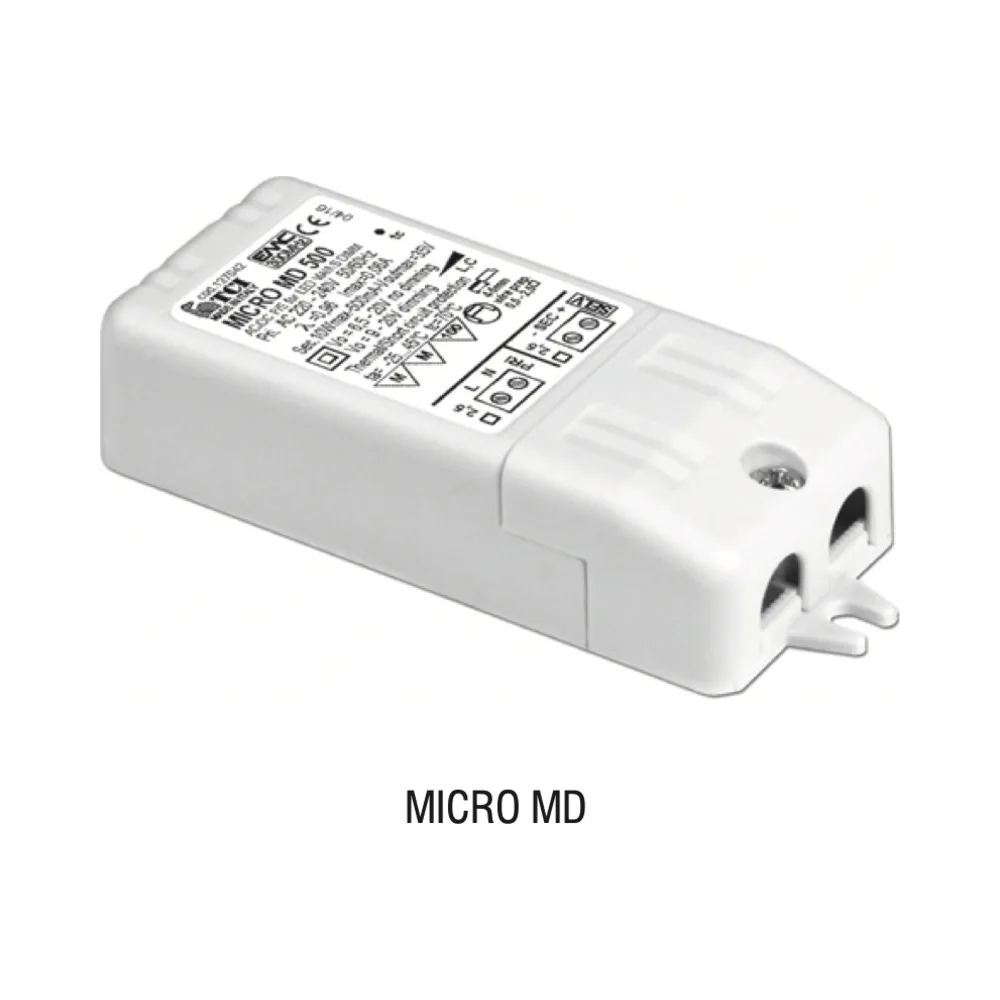

Micro MD 700 Dimmable 700mA Constant Current LED Driver
TCI 127046 – Compact Power and Reliability
The TCI 127046 Micro MD 700 LED Driver is a compact, high-performance solution for constant current LED systems. Designed for indoor applications, it delivers reliable 700mA output with smooth dimming functionality and advanced safety features. Its small size and robust build make it ideal for installations where space is limited, while maintaining exceptional efficiency and reliability.
Key Features of TCI 127046 Micro MD 700 Dimmable 700mA LED Driver
- Constant Current Output: Provides a stable 700mA output for consistent LED performance.
- Dimmable Functionality: Smooth and precise dimming to customise lighting levels.

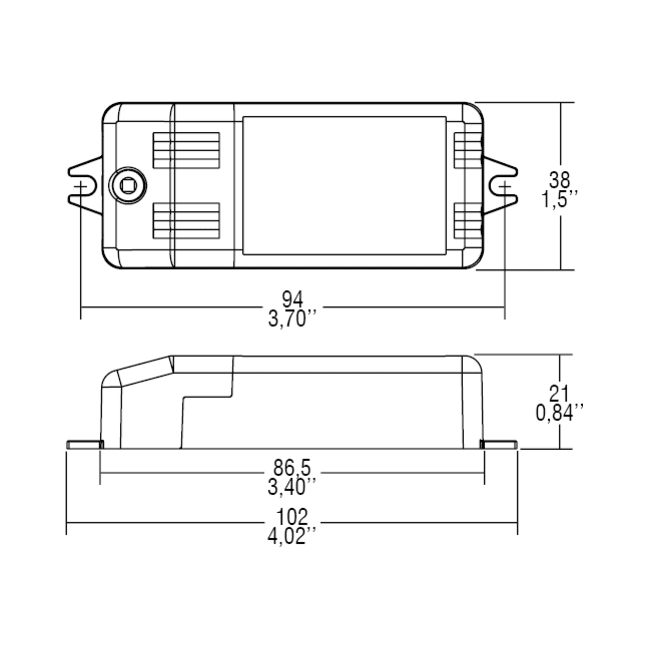

- Compact Design: Small dimensions (102 x 21 x 38 mm) with a minimum cut-out diameter of 42 mm for tight spaces.
- Safety Compliance: Class II protection against electric shock for both direct and indirect contact.
- Advanced Protections: Safeguards against overheating, short circuits, and mains voltage spikes.
- Thermal Protection: Integrated C.5.a safeguard ensures reliable operation under high-temperature conditions.
- Active Power Factor Corrector: Optimizes energy efficiency and performance.
Technical Specifications
- Input Voltage: 220-240V AC (198-264V operating range)
- Output Current: 700mA
- Output Voltage Range: 6V to 42V DC
- Efficiency: Greater than 85%
- Ingress Protection: IP20 (indoor use only)
- Operating Temperature:
- Ambient (ta): -25°C to +50°C
- Maximum case temperature (tc): 80°C
- Terminal Blocks:
- Input and output on the same side for convenient wiring.
- Supports wire cross-sections up to 1.5 mm² (AWG15).
- Clamping Screws:
- Supports cable diameters from 3 mm to 8 mm.
Additional Features
- User-Friendly Installation:
- Supplied with terminal covers and cable retainers for secure and organized wiring.
- Features screw slots for stable mounting.
- Italian Craftsmanship: Designed by TCI, a global leader in LED driver technology with over three decades of innovation and reliability.
- Compliance with International Standards:
- EN 61347-1
- EN 61347-2-13
- EN 55015
- EN 61000-3-2
- EN 61547
Applications
The Micro MD 700 Driver is ideal for:
- Residential Lighting: Suitable for LED strips and task lighting in kitchens, bedrooms, and living areas.
- Commercial Spaces: Perfect for retail displays, offices, and restaurants requiring reliable dimmable LED drivers.
- Professional Installations: Compact size makes it suitable for installations with limited space.
Benefits
- Compact Form Factor: Fits into tight spaces with ease.
- Reliable Performance: Consistent 700mA output ensures stable lighting quality.
- Smooth Dimming: Enables precise control over lighting ambiance.
- Energy Efficiency: Active Power Factor Correction reduces energy consumption.
- Enhanced Safety: Advanced protections ensure long-lasting reliability.
FAQs
Q: Can this driver be used outdoors?
A: No, the IP20 rating is designed for indoor use only.
Q: Is this driver compatible with all constant current LEDs?
A: It is suitable for LEDs requiring a 700mA constant current output. Compatibility should be confirmed with specific LED modules.
Q: Does the driver include thermal protection?
A: Yes, the integrated C.5.a thermal safeguard ensures safe operation under high-temperature conditions.
Upgrade Your LED System with the TCI Micro MD 700 Driver
The TCI 127046 Micro MD 700 LED Driver offers exceptional reliability, energy efficiency, and dimming performance in a compact form. Ideal for residential, commercial, and professional setups, this driver ensures consistent performance and long-term durability. Upgrade your lighting projects today with the TCI Micro MD 700!
