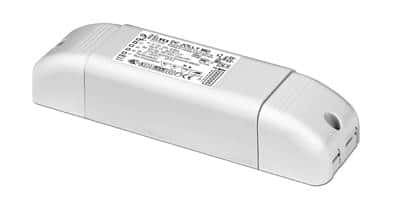

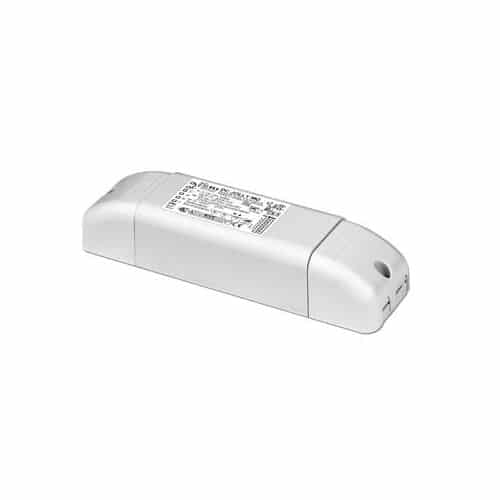

TCI 122260 DC Jolly MD Dimmable Multi Power LED Driver

The TCI 122260 DC Jolly Multi Power LED Driver is a highly versatile and efficient LED driver designed for indoor use. It is equipped with a dip-switch for precise output current selection, making it an ideal choice for professional LED applications. With dimmable functionality, robust protections, and compatibility with a wide range of LED systems, this driver ensures reliable performance and flexibility for various setups.

Key Features of TCI 122260 DC Jolly Multi Power LED Driver

• Multi-Power Functionality: Dip-switch allows for easy output current selection to match specific lighting requirements.
• Dimmable Technology: Supports phase-cut dimming (IGBT, TRIAC, and PUSH) with smooth adjustment from 0.5% to 100%.
• Robust Protection: Comprehensive safeguards against overheating, short circuits, overloads, and voltage spikes.
• Energy Efficiency: Integrated Active Power Factor Correction for optimal energy usage.
• User-Friendly Design: Input and output terminals on opposite sides, with wire cross-sections up to 2.5 mm² supported.

Additional Features

1. Thermal Protection: Equipped with C.5.a thermal protection for enhanced safety.
2. Flexible Installation: Double terminal blocks allow looping to other drivers for easy integration.
3. Low Ripple Output: Ensures steady and flicker-free illumination for improved lighting quality.
4. Push Dimming Functionality:
   • Short push for on/off.
   • Long push for adjusting light intensity.
   • Memory function retains dimming level after power restoration.
5. Synchronisable: Allows up to 10 synchronised drivers (1 master + 9 slaves) with a synchronization cable (available separately).

Technical Specifications of TCI 122260 DC Jolly Multi Power LED Driver

• Input Voltage: 220-240V AC (198-264V operating range).
• Frequency: 50/60 Hz.
• Output Current: Adjustable (350 mA to 750 mA constant).
• Output Voltage Range: 2V to 47V, depending on current.
• Maximum Power Output: 32W.
• Ingress Protection: IP20 (indoor use only).
• Operating Temperature: -25°C to +50°C (ambient); max tc = 75°C.
• Standards Compliance:
  • EN 50172 (VDE 0108)
  • EN 55015
  • EN 61000-3-2, EN 61000-3-3
  • EN 61347-1, EN 61347-2-13
  • EN 61547
  • EN 62384

Benefits

1. Precision Control: The dip-switch makes it simple to select the exact output current for your setup.
2. Enhanced Safety: Built-in protections ensure durability and reliability in demanding environments.
3. Energy Savings: Power factor correction reduces energy consumption without compromising performance.
4. Seamless Integration: The compact and lightweight design (185g) simplifies installation.
5. Wide Compatibility: Works with power LEDs and LED modules for various applications.

Applications

• Residential: Perfect for indoor LED installations in kitchens, living rooms, and offices.
• Commercial: Suitable for shops, showrooms, and offices requiring reliable dimmable LED drivers.
• Industrial: Ideal for professional LED setups needing precise control and robust performance.

Accessories (Sold Separately)

• Synchronization Cable:
  • 20 cm (7.87″) – Code 485720516
  • 50 cm (19.68″) – Code 485720515
  • 1.5 m (4 ft) – Code 485720512
  • 4 m (13 ft) – Code 485720513
• BMU DMX Interface: Code 122066
• Wireless Interfaces:
  • ETDU29 – Code 180426
  • ETD2E9 – Code 180427

FAQs

Q: What dimming methods are supported?
A: The driver supports phase-cut dimming (TRIAC, IGBT), as well as PUSH dimming for smooth and precise control.

Q: Can this driver be used outdoors?
A: No, the IP20 rating makes it suitable for indoor applications only.

Q: How many drivers can be synchronised?
A: Up to 10 drivers can be synchronised (1 master + 9 slaves) using a synchronization cable.

Q: What is the maximum cable length for PUSH dimming?
A: The maximum cable length is 15 m (49 ft) from the push button to the last transformer.

Upgrade to the TCI 122260 DC Jolly MD Driver

The TCI 122260 DC Jolly MD Driver is not just a high-performance LED driver—it’s a revolutionary tool designed for precision, efficiency, and fault-finding excellence. Whether you’re tackling complex installations or seeking a reliable, dimmable driver, this model is the perfect choice. Experience unmatched reliability and versatility today!
