Surge Devices Type 1+2+3 50kA Single Phase SPD with All/Full Mode Protection & LED Indication in IP65 Polycarbonate Enclosure

Description

Surge Devices Type 1+2+3 50kA Single Phase SPD with Full Mode Protection & LED Indication in IP65 Polycarbonate Enclosure

The Surge Devices Type 1+2+3 50kA Single Phase SPD offers comprehensive lightning and surge protection for sensitive electronic equipment. Housed in an IP65 polycarbonate enclosure, this device provides full mode protection and includes LED indication for easy status monitoring.

Key Features:

• Protection Level: Lightning protection level 3, handling up to 50kA 10/350µs surges.
• Compliance: Fully compliant with BSEN62305, BSEN61643-11, and BS7671 standards.
• Combined Arrester: Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.
• Very Low Let Through Voltage: Less than 600V between all conductors.
• Full Mode Protection: Phase to earth, phase to neutral, phase to phase, neutral to earth.
• Visual Status Indication: LED indicators provide easy monitoring of operational status.
• Remote Monitoring: Changeover contacts can link to BMS, buzzer, light, etc.
• Safety Features:
  • Extinguishes follow currents after activation.
  • Internal thermal disconnector.
• Mounting: DIN rail mountable for easy installation.
• Installation Requirements:
  • Minimum Backup Fuse / MCB: 63A
  • Recommended Cable Size: 25mm²

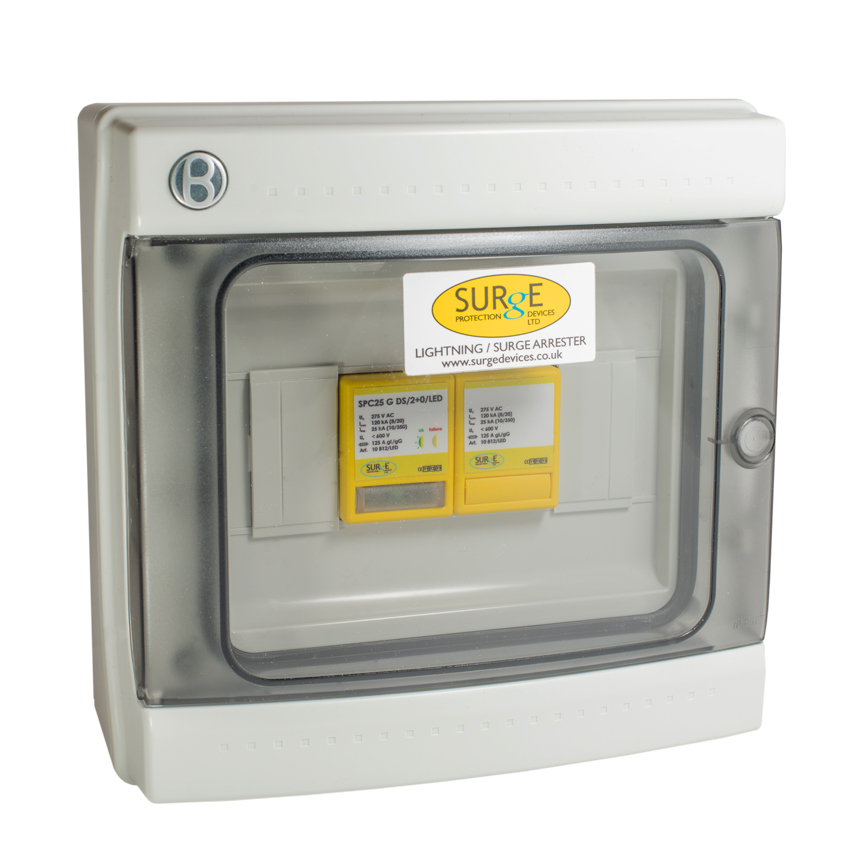

• Enclosure: Supplied in a robust IP65 polycarbonate enclosure.

This SPD ensures the protection and reliability of your single-phase electrical installations, making it an essential component for safeguarding sensitive equipment.
