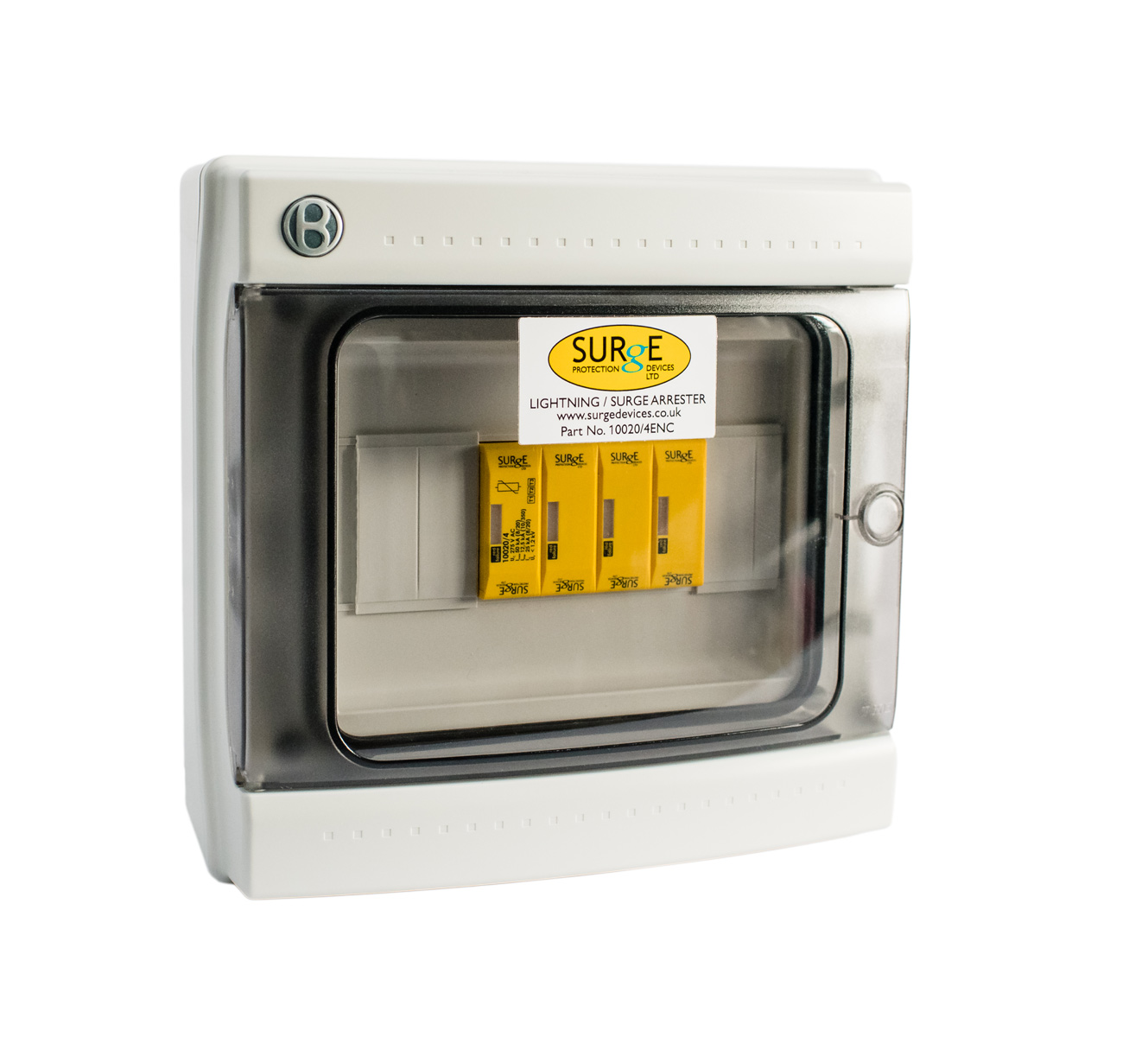

Surge Devices 10020/4ENC Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester with Indication in IP65 Polycarbonate Enclosure
Products may differ in size, colour and appearance to those shown. If you require further information please contact us directly.

Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester with Indication in IP65 Polycarbonate Enclosure

SKU: 10020/4ENC
Delivery usually within 1-3 working days*
Confirm Availability

Lightning protection level 3, 50KA 10/350μs.

Fully compliant to BSEN62305, BS61643-11 & BS7671.

Low let through voltage <1.2kV.

Visual indication of status.

Complete in a polycarbonate enclosure.

£394.83 + VAT

(incl. VAT £473.80)

Add to quote
Category: Supplier: Surge Protection Devices

Description

Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester with Indication in IP65 Polycarbonate Enclosure

The Surge Devices Type 1+2+3 50kA 3 Phase Lightning and Surge Arrester provides comprehensive protection for your electrical systems. Encased in a durable IP65 polycarbonate enclosure, this device handles direct lightning strikes and surges, ensuring the safety of sensitive electronic equipment.

Key Features:

  • Protection Level: Lightning protection level 3, handling up to 50kA 10/350μs surges.
  • Compliance: Fully compliant with BSEN62305, BSEN61643-11, and BS7671 standards.
  • Combined Arrester: Type 1+2+3 can manage direct lightning strikes and protect sensitive electronic equipment.
  • Performance:
    • Low Let Through Voltage: Less than 1.2kV
    • Fast Response Time: Less than 25ns
  • Visual Status Indication: Provides easy monitoring through a visual window indicator.
  • Safety Feature: Extinguishes follow currents after activation.
  • Remote Monitoring: Changeover contacts can link to BMS, buzzer, light, etc.
  • Mounting: DIN rail mountable for easy installation.
  • Installation Requirements:
    • Minimum Backup Fuse / MCB: 63A
    • Recommended Cable Size: 25mm²
  • Enclosure: Complete in a robust IP65 polycarbonate enclosure for environmental protection.

This SPD is essential for protecting three-phase electrical installations, offering robust protection and user-friendly features.

Downloads

View Product Data Sheet

Additional information

Brand

Surge Devices
Features

With Enclosure
No of Poles

4P
Type of SPD

1, 2 & 3
