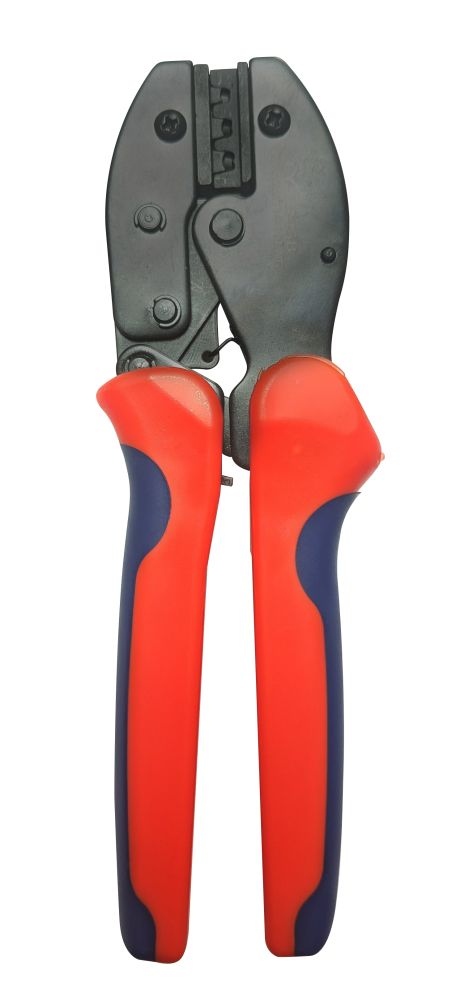

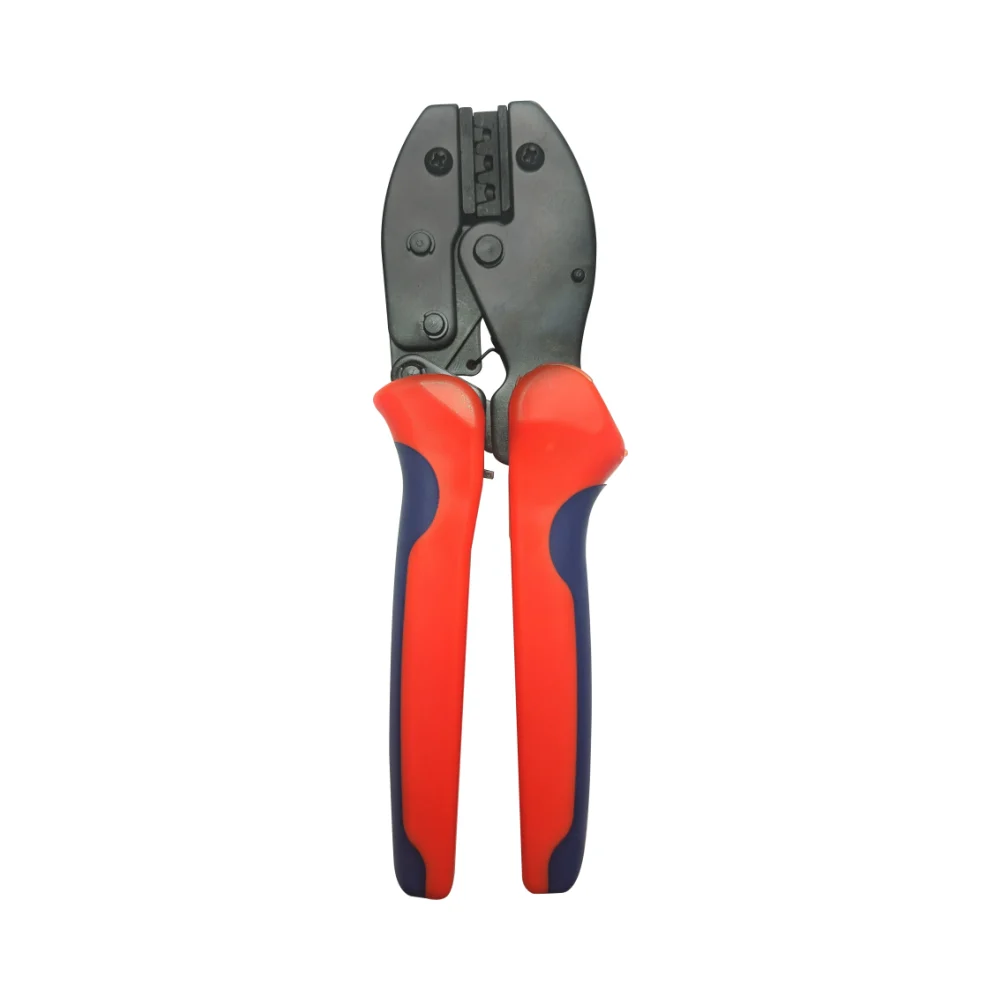

Solar Crimping Tool for MC4 Connector – 2.5-6mm²

A solar crimping tool designed for MC4 connectors with a wire size range of 2.5-6mm² is a specialized tool used in photovoltaic (PV) solar installations. This tool is used for crimping MC4 connector pins onto the cables used in solar panels and other components of the solar system. Here’s more information about this type of crimping tool:

1. Purpose:
   • The primary purpose of a solar crimping tool for MC4 connectors is to create a secure and reliable electrical connection between the copper conductors of the solar panel cables and the male or female pins of the MC4 connectors. This crimped connection ensures low electrical resistance, preventing power loss and heat generation.
2. Wire Size Range (2.5-6mm²):
   • The tool is designed to work with solar cables within a specific wire size range, typically 2.5mm² to 6mm² (square millimeters). This range covers the commonly used wire sizes in PV solar installations.
3. Design:
   • Solar crimping tools for MC4 connectors have a specific jaw design that matches the shape of the MC4 connector pins. The jaws are calibrated to crimp the pins onto the cable with the right amount of force and precision.
   • The tool may have ratcheting mechanisms to ensure consistent and proper crimping pressure for each connection. This helps prevent under-crimping or over-crimping, which can affect the quality of the connection.
4. Use:
   • To use the solar crimping tool, you strip the ends of the solar cables to expose the copper conductors.
   • Insert the stripped cable ends into the appropriate MC4 connector pins (male or female).
   • Place the connector pin into the tool’s jaws and apply pressure to crimp the connector pin securely onto the cable.
   • Proper crimping creates a tight and durable connection, ensuring efficient electrical conductivity and weather resistance.
5. Safety:
   • It’s essential to use the crimping tool correctly and ensure that the crimped connections meet industry and manufacturer standards to maintain the safety and performance of the solar system.
   • Proper safety precautions, including wearing appropriate personal protective equipment (PPE) and following electrical safety guidelines, should be observed during installation.

Using a dedicated solar crimping tool for MC4 connectors is crucial in PV solar installations to create reliable and durable electrical connections, as well as to maintain the system’s safety and efficiency. It’s recommended to follow the manufacturer’s instructions for the specific tool you are using and to consult with a professional solar installer if you are not experienced with PV system installations.
