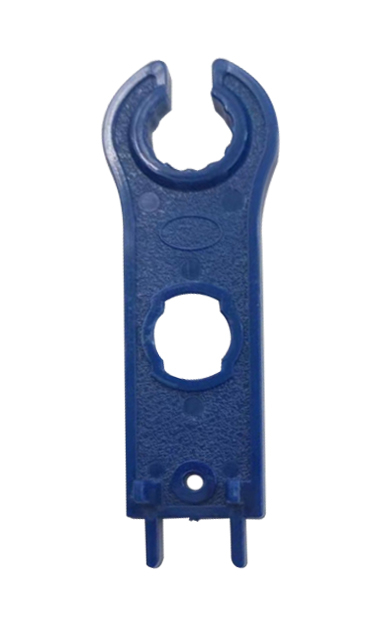

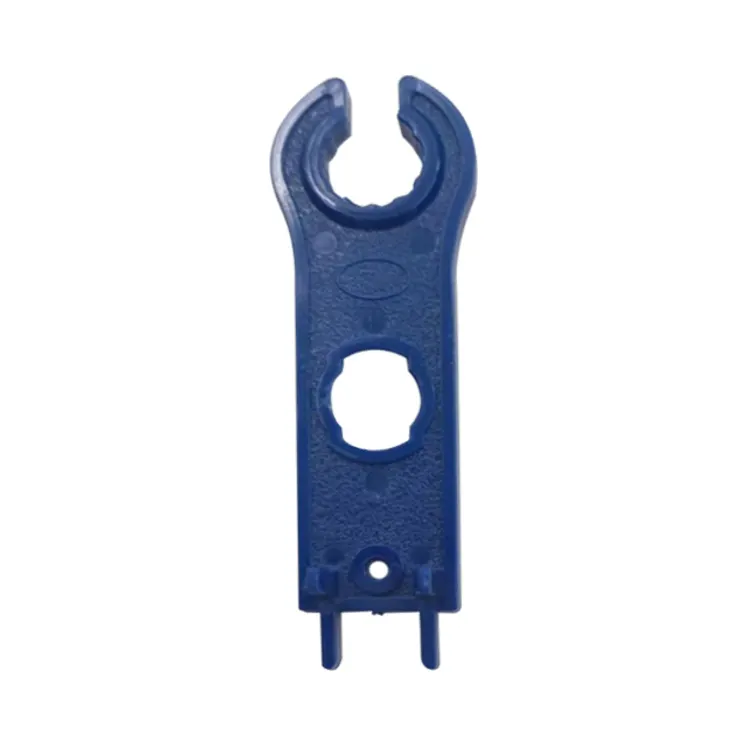

Solar Connector Spanner and Unlocking Tool

Solar connector spanners and unlocking tools are specialized tools used in photovoltaic (PV) solar installations for the assembly, maintenance, and disassembly of solar connectors, particularly MC4 connectors. These tools are designed to ensure safe and efficient connections between solar panels and other components in a solar system. Here’s more information about these tools:

1. Solar Connector Spanner:
   • Purpose: A solar connector spanner is primarily used for tightening or securing MC4 connectors. MC4 connectors often have a locking nut that needs to be tightened securely to ensure a watertight and stable electrical connection.
   • Design: Solar connector spanners are typically small, handheld tools with a specially designed end that fits over the MC4 connector’s locking nut. They may have a wrench-like shape or a unique shape specific to MC4 connectors.
   • Use: To use a solar connector spanner, you place the spanner over the locking nut and turn it in a clockwise direction to tighten the nut securely. This ensures that the connector remains locked in place and prevents accidental disconnection.
2. Unlocking Tool:
   • Purpose: An unlocking tool, also known as an MC4 connector unlocking tool, is used to safely disconnect MC4 connectors. MC4 connectors can be challenging to disconnect by hand, especially if they are under tension or have been exposed to sunlight for an extended period, making them hot and hard to grip.
   • Design: Unlocking tools are designed to fit over the MC4 connector’s locking nut and provide leverage for easier disconnection. They often have a handle or grip for better control.
   • Use: To use an unlocking tool, you place it over the MC4 connector’s locking nut and turn it counterclockwise. This action releases the locking mechanism and allows you to safely disconnect the connector without damaging it or risking electrical shock.

Both the solar connector spanner and the unlocking tool are essential for the proper installation, maintenance, and servicing of solar panels and other components in a PV solar system. They help ensure that connections are secure, prevent accidental disconnections, and make the process of connecting and disconnecting MC4 connectors safer and more manageable.

When working with PV solar installations, it’s crucial to follow safety guidelines and the manufacturer’s instructions for using these tools to prevent electrical hazards and ensure the longevity and efficiency of the solar system. If you’re not experienced with solar installations, it’s advisable to consult with a professional installer or technician who is familiar with the proper use of these tools and the overall PV system installation process.
