RayTech Magic Gel 1000 – 2x500ml

Description

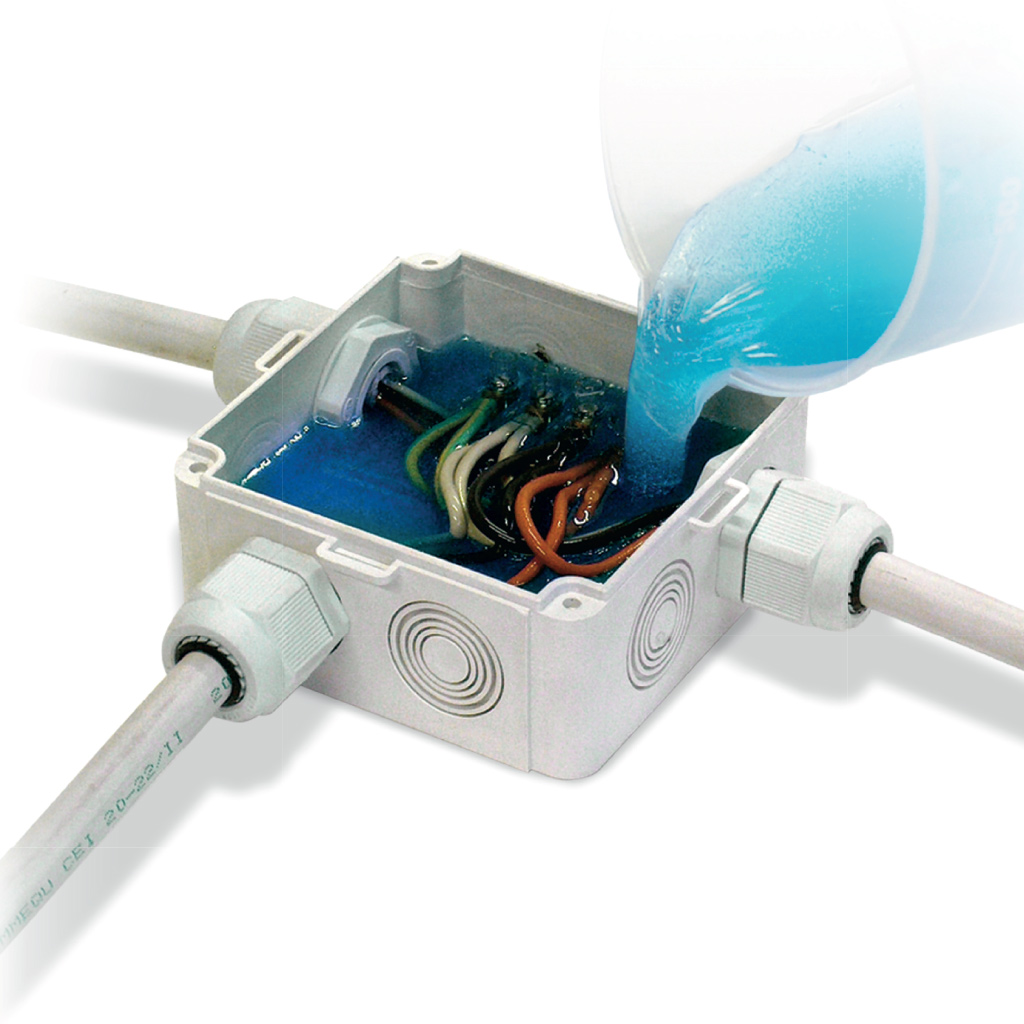

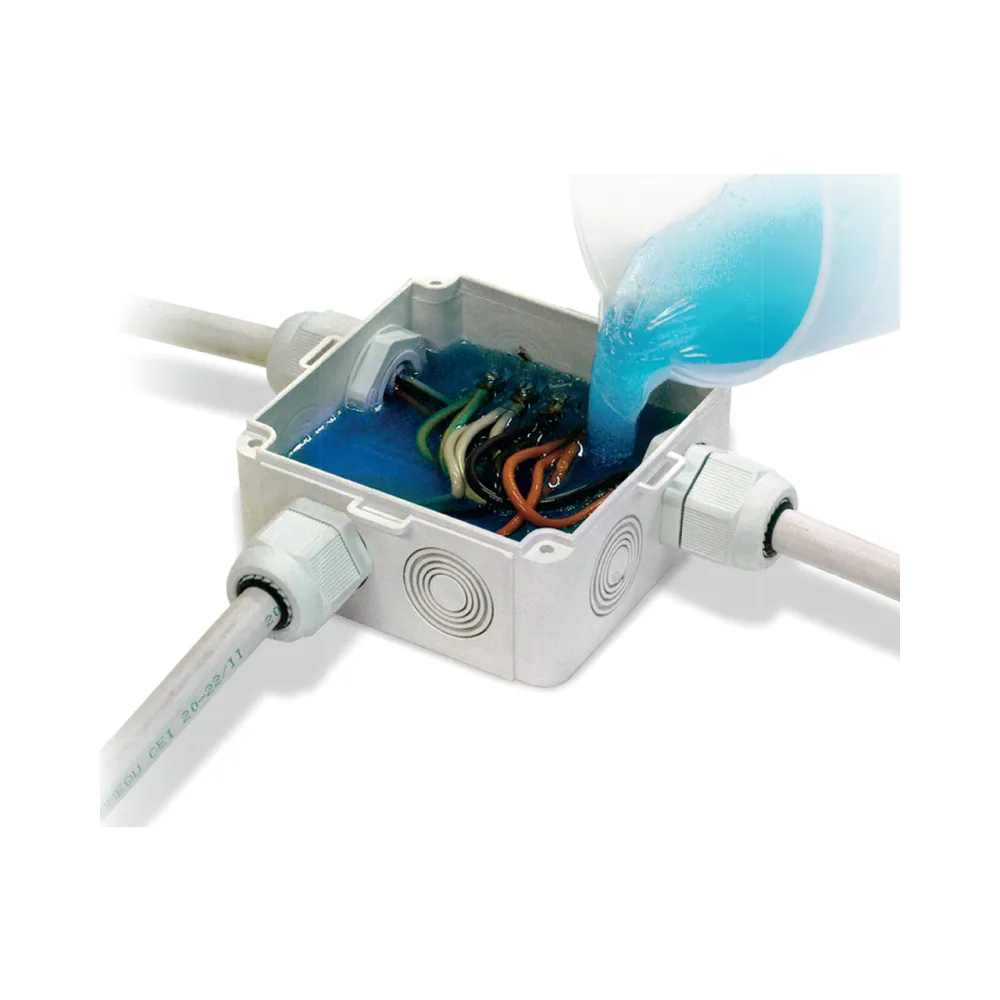

RayTech Magic Gel 1000 is a two-component gel with excellent dielectric and thermal properties. It is designed for connection systems like joint shells or enclosures for power cables. Furthermore, the self-polymer insulation comes in two practical bottles with cold cross-linking and does not thermally stress the materials it contacts.

Key Features

• High Temperature Applications: Ideal for high-temperature environments, making it versatile for various industrial uses.
• Quick Cross-Linking: The gel cross-links in only 10 minutes, ensuring a fast and efficient sealing process.
• Re-Enterable: Accessible even after long working periods, providing flexibility for maintenance and adjustments.
• Non-Toxic and Safe: Completely non-toxic with no shelf life, ensuring safe handling and long-term storage.
• Low Viscosity: Ensures easy pouring and thorough encapsulation of components.
• High Dielectric Strength: Offers over 23 kV/mm dielectric strength, ensuring reliable insulation.
• Volume Resistivity: Provides a volume resistivity of over 2 x 10¹⁵ Ω cm, ensuring excellent electrical insulation properties.
• Temperature Stability: Operates effectively in temperatures ranging from -60°C to +200°C, with short-term overload capabilities up to 250°C.
• UV Stabilised: Stabilised for mold and UV, ensuring durability and longevity in various environments.
• IP68 Protection: Ensures the highest degree of protection in suitable casings.

Specifications

• Gel Type: UL 94-HB
• Cross-Linking Time: Fast (about 10 min. at 23°C)
• Volume Resistivity: Over 2 x 10¹⁵ Ω cm
• Working Temperature: -60°C to +200°C
• Overload Temperature: Up to 250°C (short periods)
• Degree of Protection: IP68 (in proper casings)

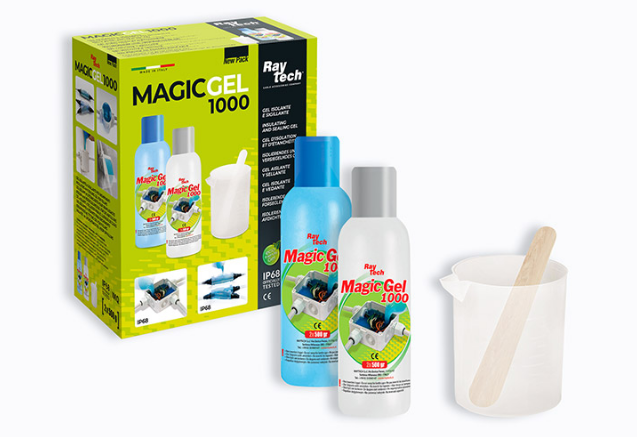

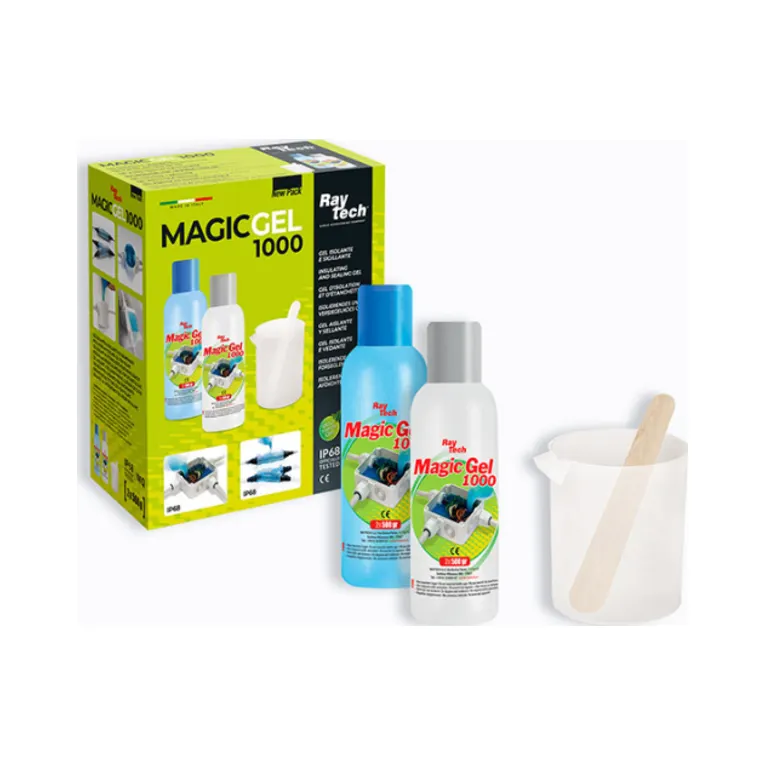

Package Includes

• 2 bottles of gel
• 1 small basin
• 1 mixing spoon
