Description

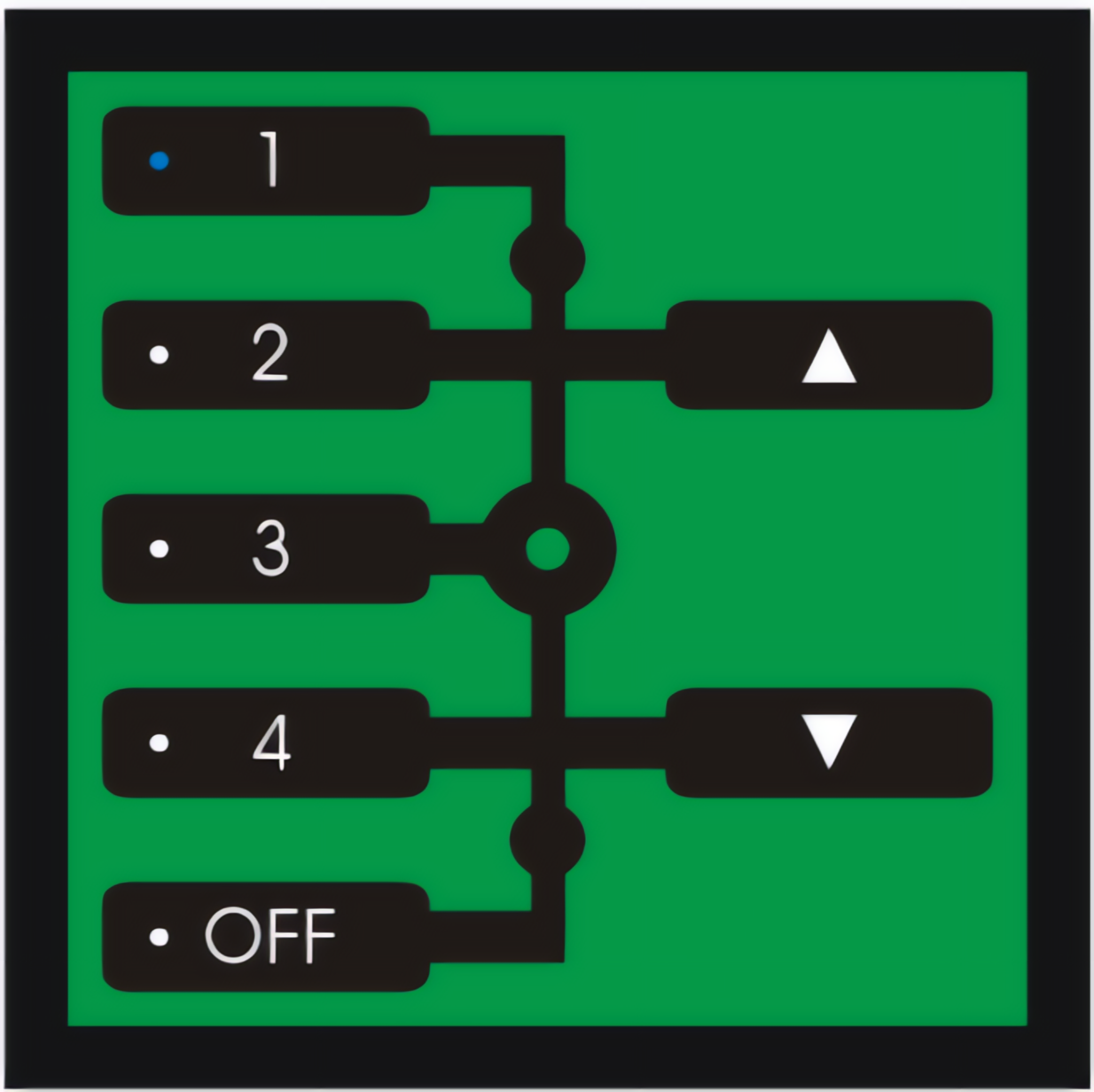

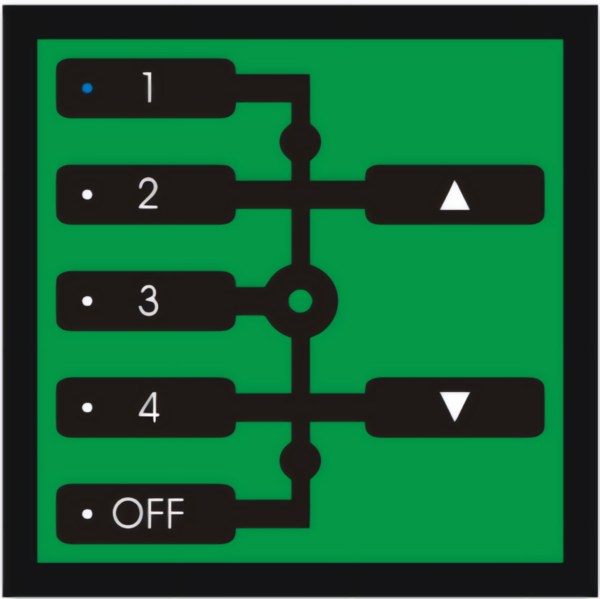

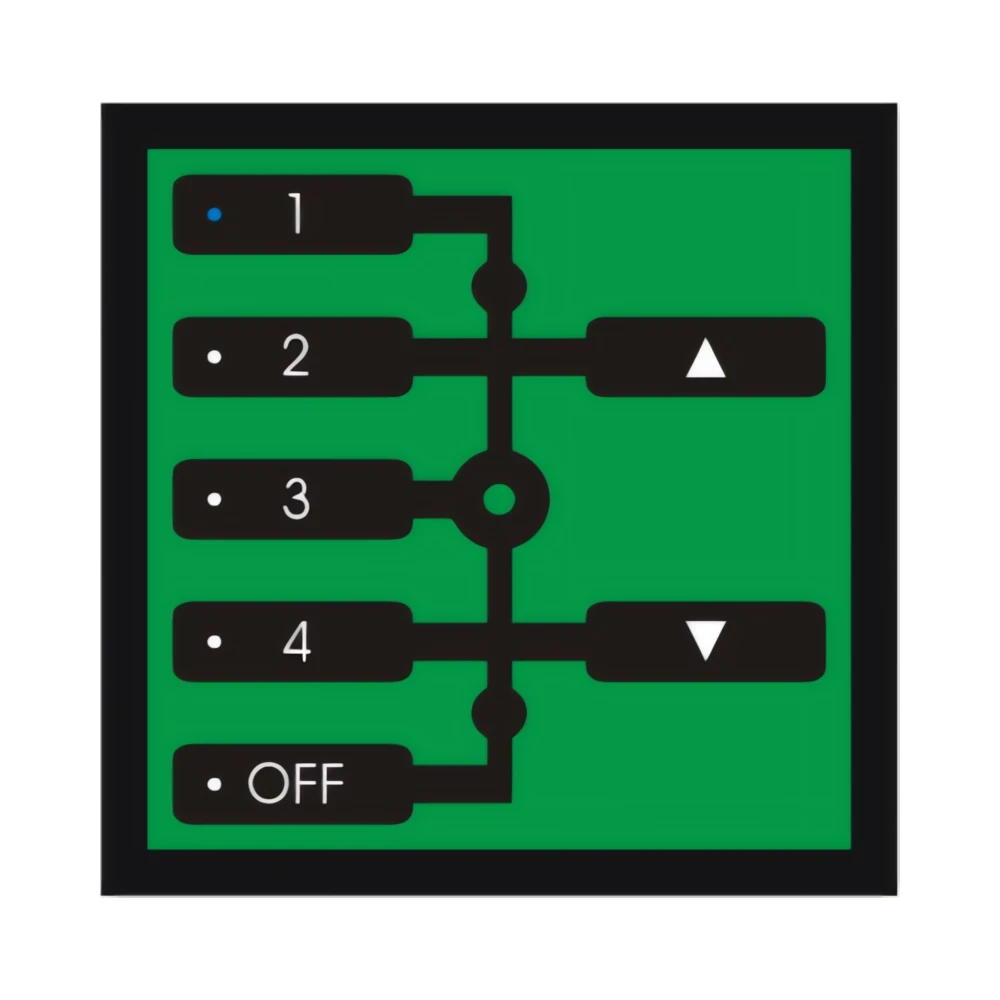

Rako Classic Plate 7-Button Wireless Push Button Module
Maximum feature set, requiring PC programming using RAMPI interface or HUB.
An NFC programmable 7-Button wireless modular controller with 4 scenes, off and master raise & lower control for lighting.
The RNC-070 wireless push button control module is programmable via NFC (Near Field Communication) using Rasoft Pro software and Rako’s RAMPI interface. The RNC-070 has the capability for each button to be customised allowing triggers for single or multiple commands. Each input is fully customisable, can be addressed to separate Rako Rooms or Channels and activate on press, or release which gives a ‘Press and Hold’ function.
Based on the 50 x 50mm Euro module, RNC units are modules only and always require a front plate kit. Panels can either be surface mounted using the pattress, which gives a depth of 14mm, or flush mounted into a standard single gang UK back-box.
Wireless keypads are lithium battery powered with battery life calculated as being 3 years, based on pressing a button 30 times a day
Technical data
| Dimensions | 50x50x12mm – flush mount 92x92x14mm – surface mount |
|---|---|
| Input supply | 6V DC – 2x 3V Lithium coin cell CR2016 |
| Fixing | Flush mounting into standard UK single gang back box, minimum 12mm deep. Surface mounting on standard single gang UK or European back box or direct to flat surface. |
| Weight | 100g |
| Battery life | Greater than 3 years |
| Climate range | Temperature +2C to +40C Humidity +5% to 95% non condensing |
| Standards | Emissions – EN61000-6-3 : 2007 Immunity – EN61000-6-1 : 2007 |
| Communication | Rakom coded fm radio, 433.9MHz |
| Memory | Flash memory (non volatile) |
