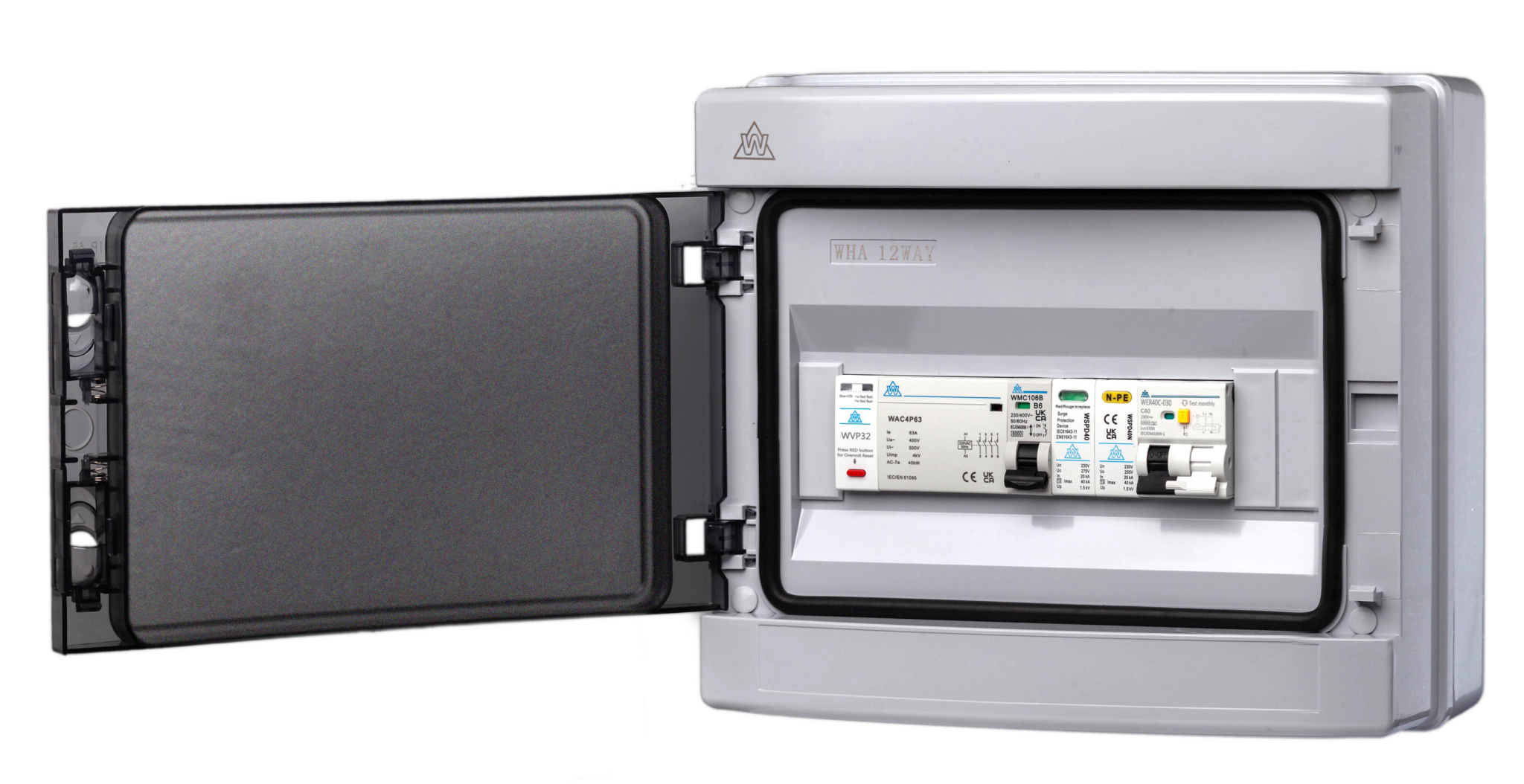

IP65 PME / PEN Fault Detection Unit with Surge Protection
WCED WPEPME08/SP/C32
The WPEPME08/SP/C32 is an IP65-rated, weatherproof PME / PEN Fault Detection Unit designed for EV charging systems requiring robust safety and compliance. This unit integrates essential protective components, including a C32 RCBO, 4P63A contactor, Type 2 Surge Protection Device (SPD), and PME relays, making it a comprehensive solution for outdoor installations.
Ideal for EV chargers with built-in DC leakage protection but lacking PME fault detection, this unit ensures reliable and safe operation.
Key Features of IP65 PME / PEN Fault Detection Unit WPEPME08/SP/C32
- Designed for EV Chargers: Specifically compatible with EV chargers that include DC leakage protection but need additional PME fault detection.
- Comprehensive Protection: Includes a C32 RCBO (Double Pole, Type A), 4P63A contactor, Type 2 SPD, and PME relays to cover all safety needs.
- IP65 Rated: Fully dust-tight and water-resistant, ensuring durability in outdoor environments.
- Compact 12-Module Design: Space-efficient with dimensions of H 255mm, W 295mm, D 140mm, making it suitable for a variety of installations.
- Type 2 SPD: Protects against voltage surges with visual indicators for status: Green (Good) and Red (Replace).
- Durable Build: High-quality construction ensures long-term performance and reliability.
Specifications
- Model: WPEPME08/SP/C32.
- IP Rating: IP65, suitable for outdoor use.
- Dimensions: Height: 255mm, Width: 295mm, Depth: 140mm.

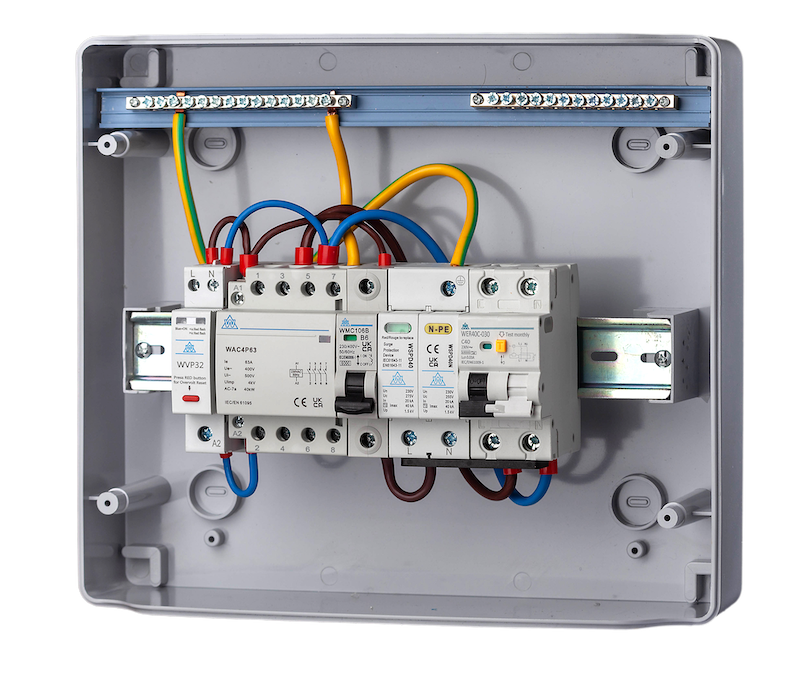

- Included Components:
- C32 RCBO: Double Pole, Type A, rated at 32A.
- 4P63A Contactor: For reliable switching and control.
- Surge Protection Device (SPD): Type 2, protects against voltage surges.
- PME Relays: Actively monitor and isolate faults in PME systems.
- Voltage Range: 207-253V AC.
- Rated Voltage: 220-240V AC.
- Frequency: 50Hz.
Understanding PME Faults, PEN Faults, and PEN Loss
PME faults, PEN faults, and PEN loss describe the same critical condition in PME systems where the PEN (Protective Earth and Neutral) conductor is compromised.
- PEN Fault: Occurs when the PEN conductor is damaged, leading to unsafe voltage levels on the protective earth (PE) conductor.
- PEN Loss: A complete disconnection of the PEN conductor, potentially electrifying connected devices such as EV chargers.
- PME Fault: General term for issues within PME systems that pose safety risks, including electric shock hazards and equipment damage.
The WPEPME08/SP/C32 actively detects and isolates these faults, preventing hazardous conditions and ensuring user safety.
Applications
- Residential: Ideal for single-phase EV chargers like Tesla, addressing PME faults and ensuring compliance with safety standards.
- Commercial: Perfect for outdoor EV charging setups in parking lots and retail spaces.
- Stand-Alone Chargers: Suitable for EV chargers requiring additional fault detection and surge protection.
Why This Unit is Essential
The WPEPME08/SP/C32 ensures the safety and reliability of EV charging systems by addressing PME faults, PEN faults, and PEN loss. Its integration of surge protection, fault detection, and overcurrent protection makes it a critical component for compliant and secure installations. The IP65-rated enclosure allows for dependable outdoor use, simplifying installation and providing long-term durability.
