Description
PME / PEN Fault Detection Unit with Load Management and Kilowatt Hour Meter
WCED WPEPME12/LB

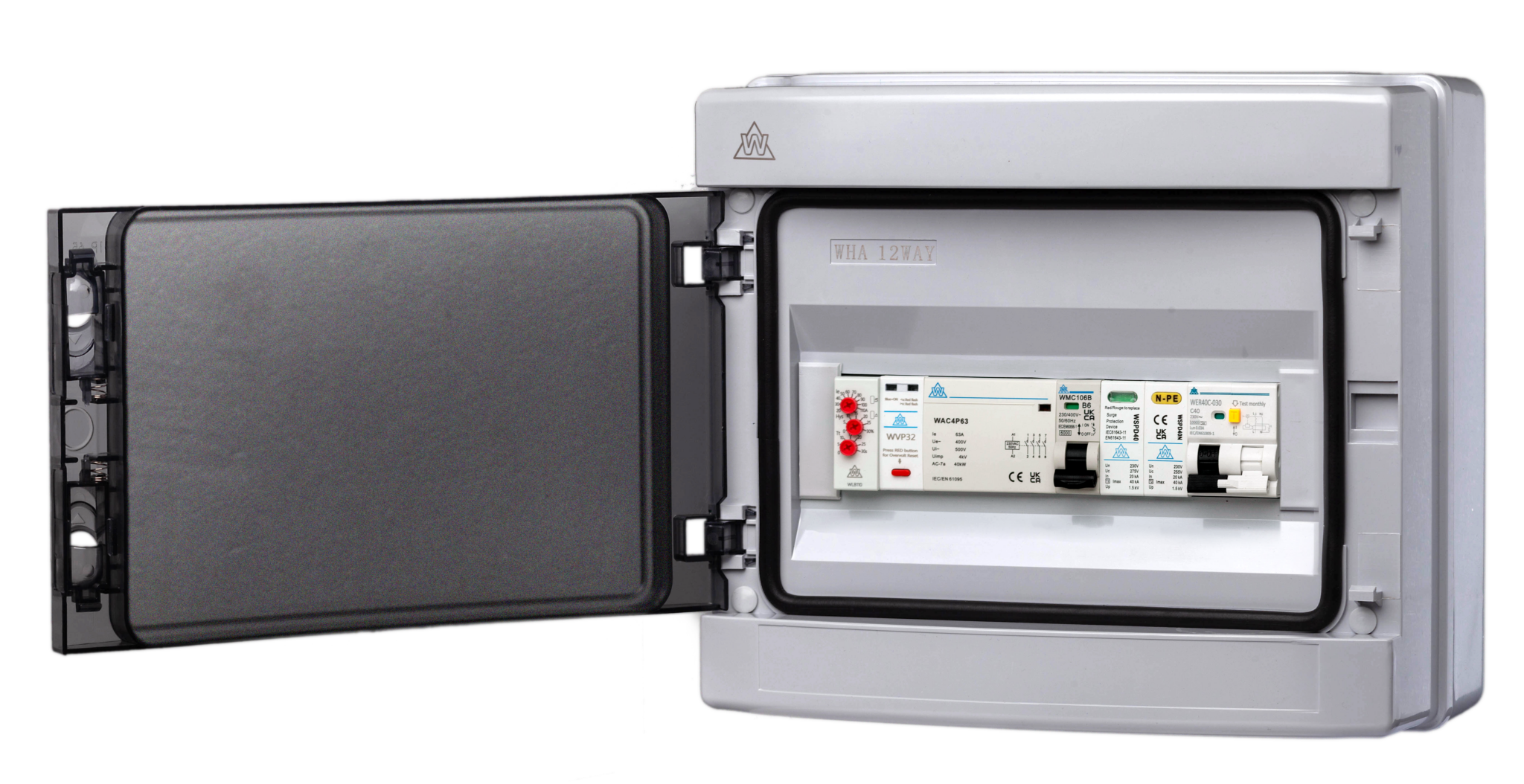

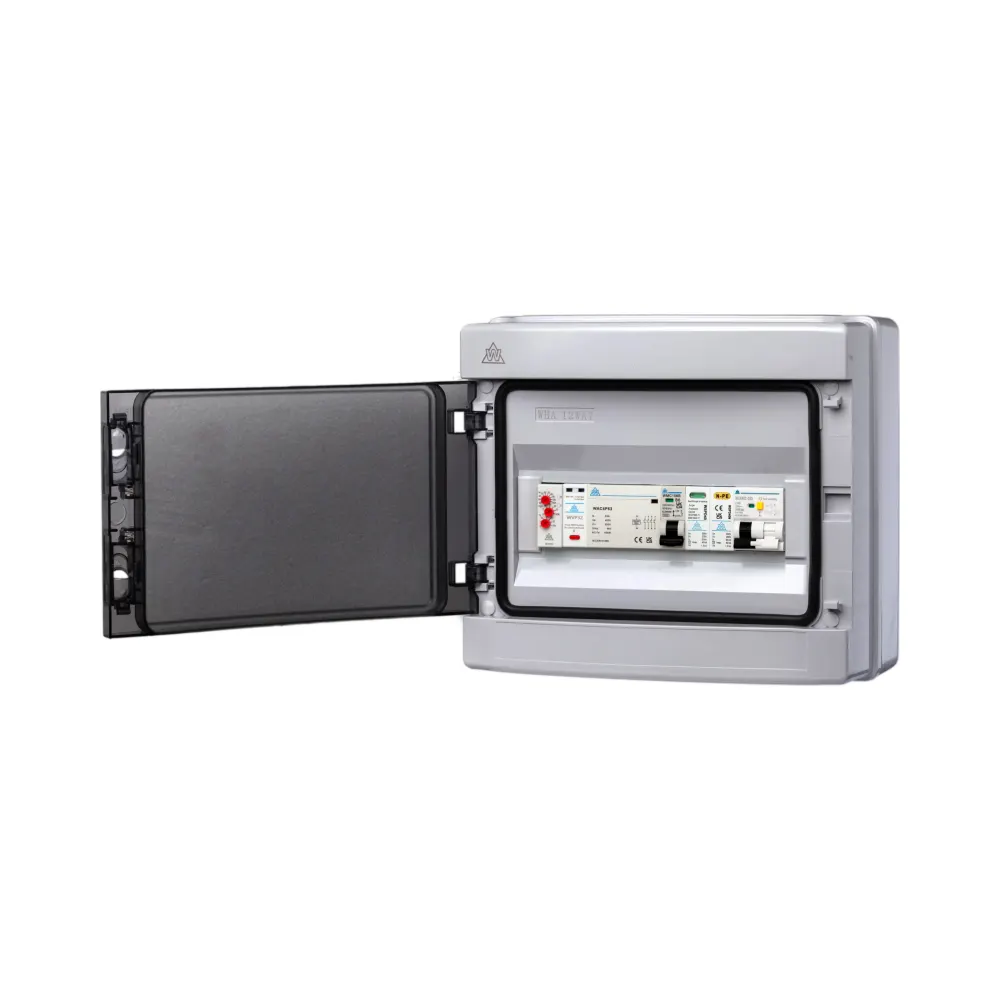

The WPEPME12/LB is a weatherproof, IP65-rated PME / PEN Fault Detection Unit designed for EV charging systems requiring advanced safety and compliance. This 12-module unit combines PME fault detection, load management, and a built-in kilowatt-hour meter to deliver comprehensive protection for chargers that lack integral PME protection, earth leakage protection, or overload protection. It is ideal for installations in residential, commercial, and mixed-use properties with high-energy demands.
Key Features of IP65 PME / PEN Fault Detection Unit WPEPME12/LB
- PME / PEN Fault Detection: Monitors and isolates faults related to PME faults, PEN faults, or PEN loss, ensuring safety and compliance.

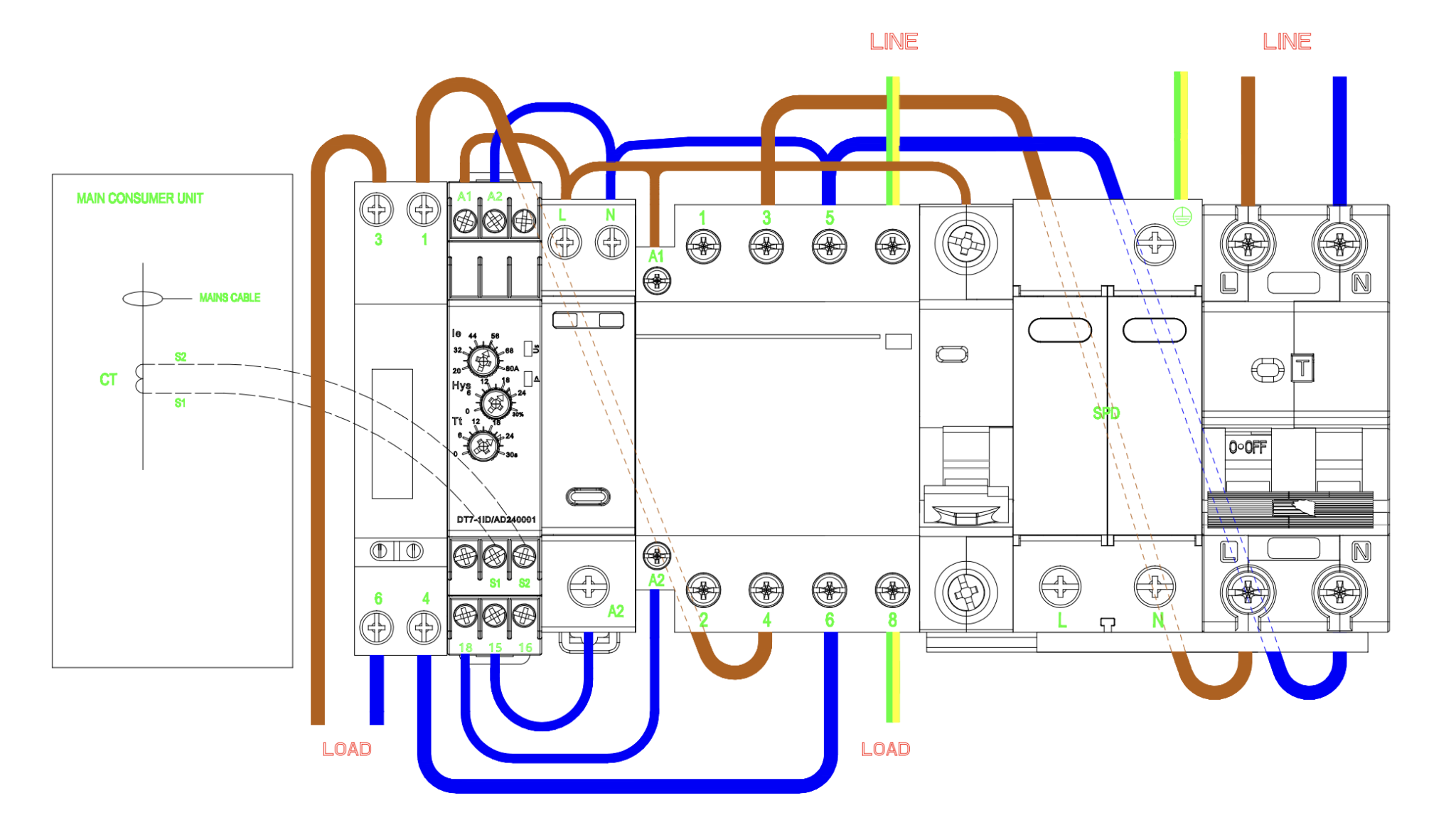

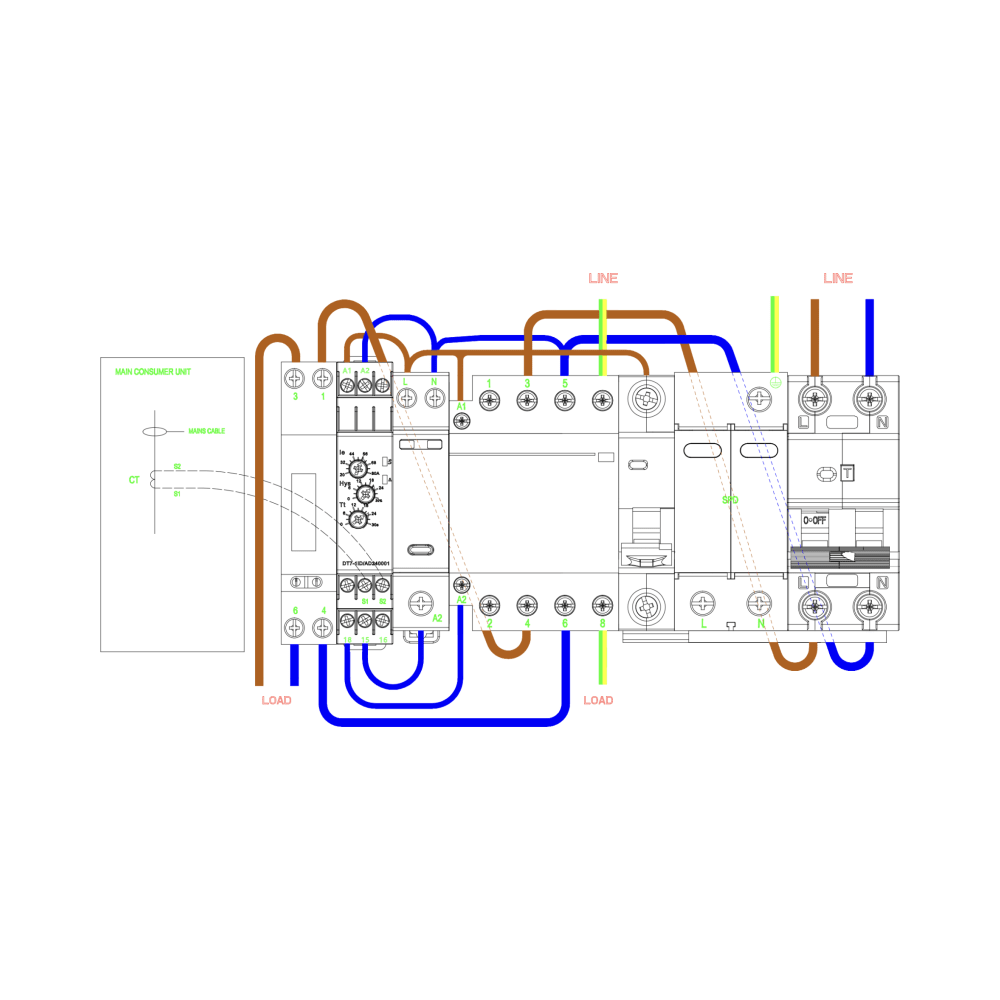

- Load Management: Utilises a current transformer on the main incoming supply to distribute power efficiently, preventing overloads.
- Kilowatt-Hour Meter: Built-in meter provides real-time monitoring of energy usage, helping users track consumption.
- Automatic Voltage Monitoring:
- Under-Voltage Protection: Isolates supply if voltage drops below 207V and automatically resets when normal voltage is restored.
- Over-Voltage Protection: Isolates supply if voltage exceeds 253V, requiring a manual reset via the RED “RESET” button for safety.
- Integrated Protection: Includes a C40 RCBO, relays, and a Type 2 Surge Protection Device (SPD) for comprehensive coverage.
- Weatherproof Design: IP65-rated enclosure ensures reliable operation in outdoor environments.
- Compact 12-Module Design: Space-efficient with dimensions suitable for various installations.
Specifications of IP65 PME / PEN Fault Detection Unit WPEPME12/LB
- Model: WPEPME12/LB
- IP Rating: IP65, designed for outdoor use.
- Voltage Monitoring Range: 207V-253V AC.
- RCBO: C40, Double Pole, Type A.
- Surge Protection: Type 2 SPD with visual indicators: Green (Good), Red (Replace).
- Kilowatt-Hour Meter: Integrated for real-time energy tracking.
- Rated Voltage: 230V / 240V AC.
- Frequency: 50Hz.
- Relays: Integrated for fault detection and load management.
- Dimensions: 12-module compact design.
Load Management Explained
Load management ensures that the available power capacity is distributed efficiently across all connected devices, preventing overloading of the electrical system. The WPEPME12/LB achieves this by using a current transformer to monitor the main incoming supply. This feature is especially useful in properties with high-energy appliances like induction hobs, electric showers, and heating systems, alongside EV chargers.
Understanding PME Faults, PEN Faults, and PEN Loss
PME faults, PEN faults, and PEN loss are safety-critical conditions caused by failures in PME systems:
- PEN Fault: Partial failure of the PEN conductor, leading to unsafe voltage levels on the protective earth conductor (PE).
- PEN Loss: Complete disconnection of the PEN conductor, creating a risk of electric shock and damage to connected devices.
- PME Fault: A general term for faults within PME systems that can result in non-compliance and hazardous conditions.
The WPEPME12/LB actively detects and isolates these faults, ensuring the safety of users, EV chargers, and connected systems.
Applications
- Residential: Perfect for single-phase EV chargers like Tesla, providing safety by addressing PME faults and PEN loss.
- Commercial: Suitable for outdoor EV charging setups in retail spaces, parking lots, and office environments.
- Mixed-Use Properties: Ideal for setups requiring PME fault detection, load management, and energy monitoring.
Why This Unit is Essential
The WPEPME12/LB is a critical component for ensuring safe and compliant EV charging installations. Its combination of PME fault detection, load management, and kilowatt-hour metering makes it an essential solution for modern electrical systems. The IP65 weatherproof enclosure provides durability, while the integrated surge protection ensures long-term reliability.
