Description
IP65 PME / PEN Fault Detection Unit with Surge Protection
WCED WPEPME08/SP/C40

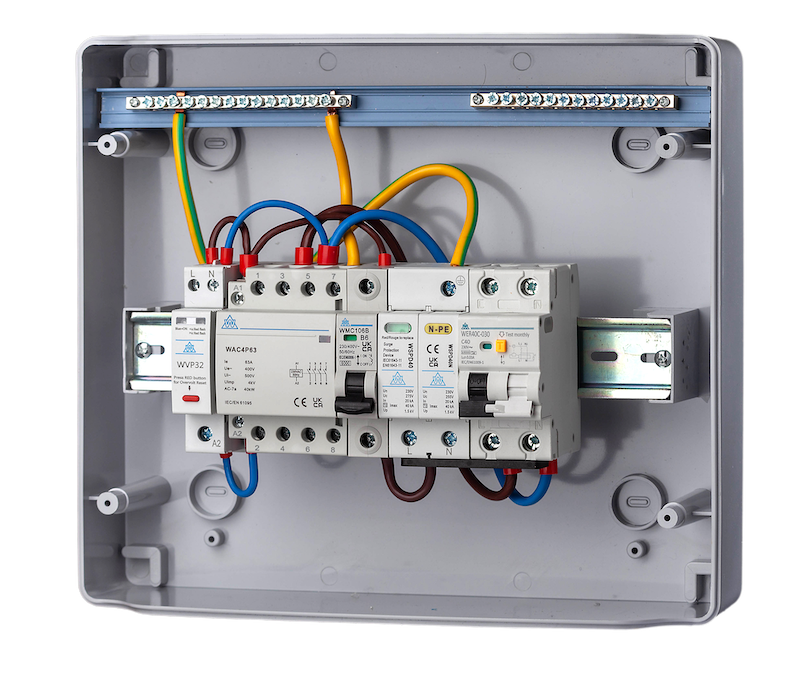

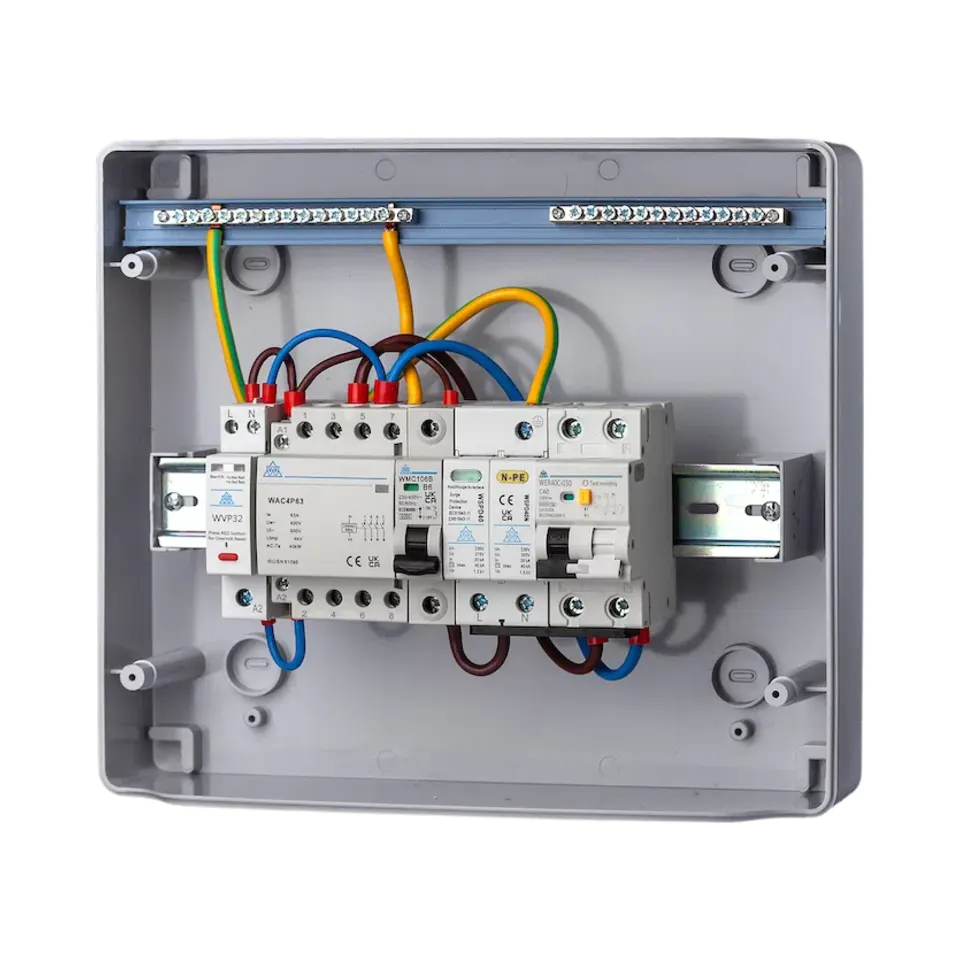

The WPEPME08/SP/C40 is a durable, weatherproof PME / PEN Fault Detection Unit designed for EV charging systems requiring enhanced safety and compliance. Featuring a C40 RCBO, this unit is perfect for higher current demands. It integrates essential protective components, including a 4P63A contactor, Type 2 Surge Protection Device (SPD), and PME relays, ensuring reliable performance for outdoor installations.
Ideal for EV chargers with built-in DC leakage protection but without PME fault detection.
Key Features of IP65 PME / PEN Fault Detection Unit WPEPME08/SP/C40
- Designed for EV Chargers: Specifically compatible with EV chargers that include DC leakage protection but need PME fault detection.
- Enhanced Current Protection: Equipped with a C40 RCBO (Double Pole, Type A), ideal for higher load applications.
- Comprehensive Protection: Combines a C40 RCBO, 4P63A contactor, Type 2 SPD, and PME relays in one compact unit.

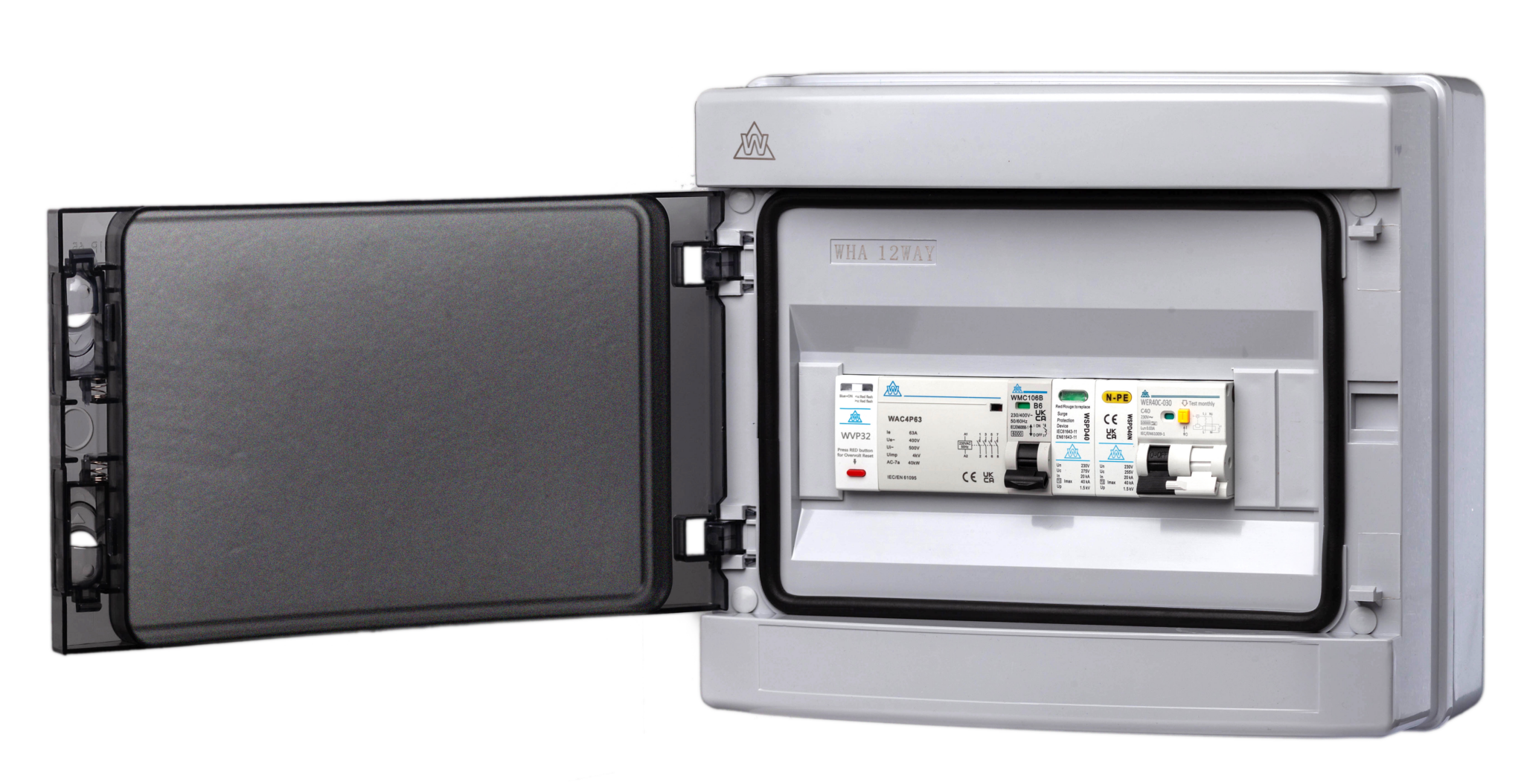

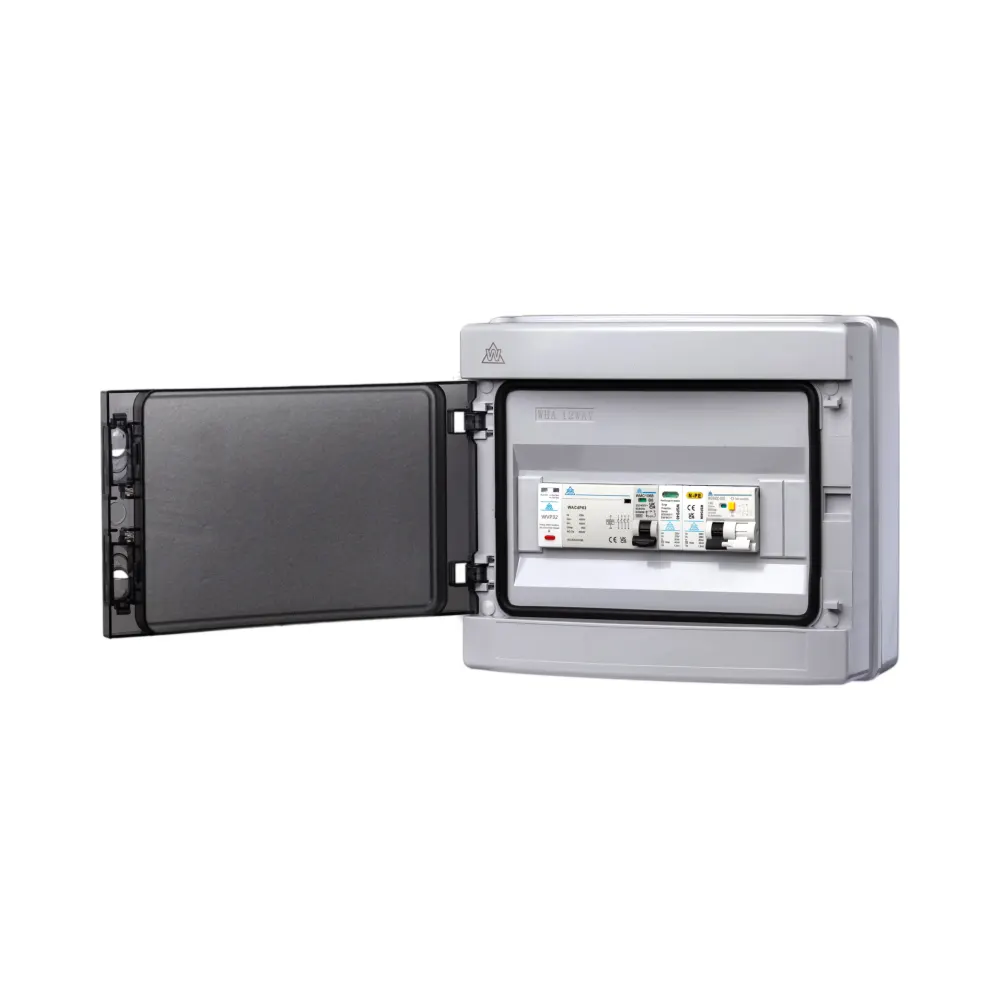

- IP65 Weatherproof Design: Fully dust-tight and water-resistant, ensuring reliable operation in outdoor environments.
- Compact 12-Module Design: Space-efficient with dimensions of H 255mm, W 295mm, D 140mm, making it easy to install in various settings.
- Type 2 SPD: Protects against harmful voltage surges, with visual indicators to show status: Green (Good) and Red (Replace).
Specifications
- Model: WPEPME08/SP/C40
- IP Rating: IP65, suitable for outdoor use.
- Dimensions: Height: 255mm, Width: 295mm, Depth: 140mm.
- Included Components:
- C40 RCBO: Double Pole, Type A, rated at 40A.
- 4P63A Contactor: For reliable switching and control.
- Surge Protection Device (SPD): Type 2, protects against voltage surges.
- PME Relays: Actively monitor and isolate faults in PME systems.
- Voltage Range: 207-253V AC.
- Rated Voltage: 220-240V AC.
- Frequency: 50Hz.
Understanding PME Faults, PEN Faults, and PEN Loss
PME faults, PEN faults, and PEN loss all refer to the same critical issue within PME (Protective Multiple Earthing) systems: the compromise of the PEN (Protective Earth and Neutral) conductor.
- PEN Fault: A partial failure of the PEN conductor, potentially electrifying the protective earth conductor (PE).
- PEN Loss: A complete disconnection of the PEN conductor, creating unsafe voltage conditions on the PE.
- PME Fault: A general term encompassing faults within PME systems that can lead to hazards like electric shock or equipment damage.
The WPEPME08/SP/C40 actively detects and isolates these faults, preventing hazardous conditions and ensuring safety for users and equipment.
Applications
- Residential: Ideal for single-phase EV chargers, such as Tesla, providing safety by addressing PME faults and PEN loss.
- Commercial: Suitable for outdoor EV charging setups in parking lots and retail spaces.
- Stand-Alone Chargers: Designed for EV chargers requiring additional fault detection and surge protection.
Why This Unit is Essential
The WPEPME08/SP/C40 ensures safe and compliant EV charging by addressing PME faults, PEN faults, and PEN loss. Its integration of surge protection, fault detection, and enhanced current handling makes it a critical component for modern installations. With an IP65-rated enclosure, it is built to withstand outdoor conditions, simplifying installation and providing reliable performance.
