Description
WCED WPEPME08/C32
PME / PEN Fault Detection IP65 Unit for Single Phase EV Chargers

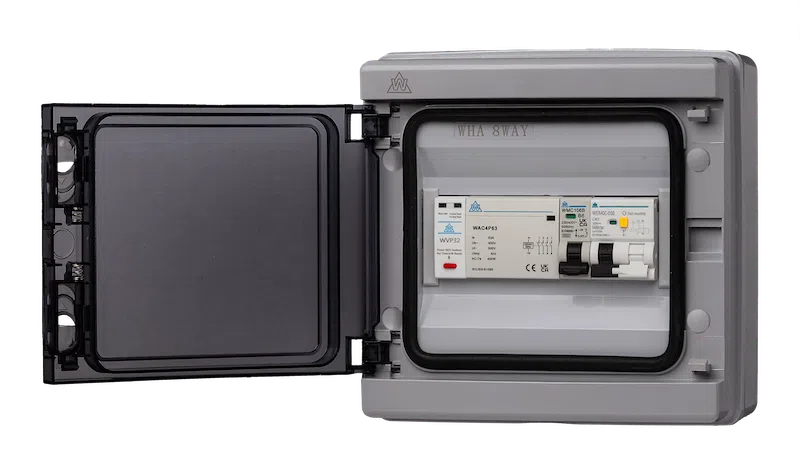

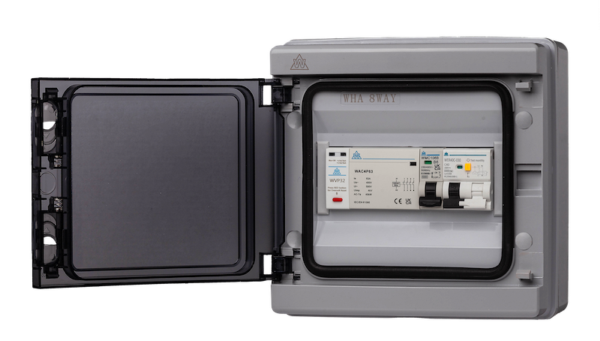

The WCED WPEPME08/C32 is a compact, weatherproof PME / PEN Fault Detection Unit designed specifically for single-phase EV chargers. Its IP65-rated enclosure ensures reliable outdoor installation, protecting against environmental elements. This unit actively detects and isolates PME faults, including PEN faults and PEN loss, making it ideal for ensuring safe and compliant EV charging systems without requiring an earth rod.
Understanding PME Faults, PEN Faults, and PEN Loss
PME faults, PEN faults, and PEN loss all refer to the same critical safety condition within PME (Protective Multiple Earthing) systems: a compromise in the PEN (Protective Earth and Neutral) conductor.
- PEN Fault: A partial compromise of the PEN conductor, which can electrify the protective earth conductor (PE) and connected equipment.
- PEN Loss: A complete disconnection of the PEN conductor, causing the PE to carry live voltage, posing serious safety risks.
- PME Fault: A general term describing faults within PME systems that can result in hazardous conditions, such as electric shock or equipment damage.
The WCED WPEPME08/C32 detects these issues and disconnects the system, ensuring safety for users and equipment.

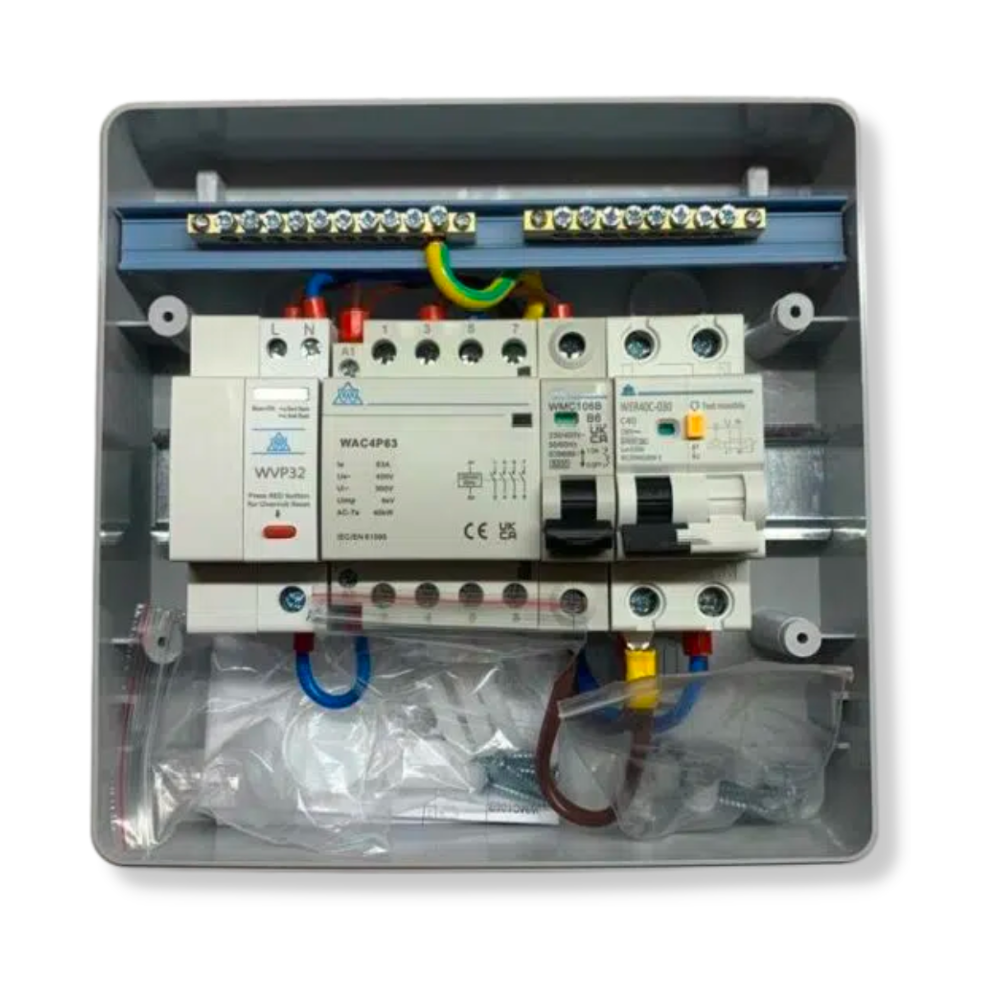

Key Features of IP65 PME / PEN Fault Detection Unit WPEPME08/C32
- IP65 Weatherproof Design: Suitable for outdoor installation, protecting against dust, water, and environmental factors.
- C32 RCBO (Double Pole, Type A): Provides overcurrent and residual current protection for single-phase systems, with a 32A rating.
- 4 Pole 63A Contactor: Ensures reliable switching and protection.
- PME Fault Detection Relays: Actively monitor and isolate faults, preventing hazards caused by PME faults or PEN loss.
- Compact 6-Module Design: Saves space while providing comprehensive fault detection.
- Durable Construction: Built from high-quality materials to ensure long-term performance.
Specifications
- Model: WCED WPEPME08/C32
- IP Rating: IP65, designed for outdoor use.
- Dimensions: Height: 210mm, Width: 215mm, Depth: 105mm.
- RCBO: C32, Double Pole, Type A.
- Contactor: 4 Pole, 63A.
- Voltage Range: 207-253V AC.
- Rated Voltage: 220-240V AC.
- Frequency: 50Hz.
Applications
- Residential: Ideal for single-phase EV chargers, such as Tesla, ensuring safety by addressing PME faults and PEN loss.
- Commercial: Perfect for small-scale outdoor EV charging installations in parking lots and retail environments.
- Stand-Alone Chargers: Suitable for single-phase chargers with integral DC leakage protection but lacking PME fault detection.
Why This Unit is Essential
The WCED WPEPME08/C32 is critical for ensuring safe EV charging in single-phase systems. It actively detects and isolates PME faults, including PEN faults and PEN loss, while offering robust outdoor protection. Its IP65-rated enclosure makes it a reliable choice for external installations, removing the need for an earth rod and simplifying installation.
