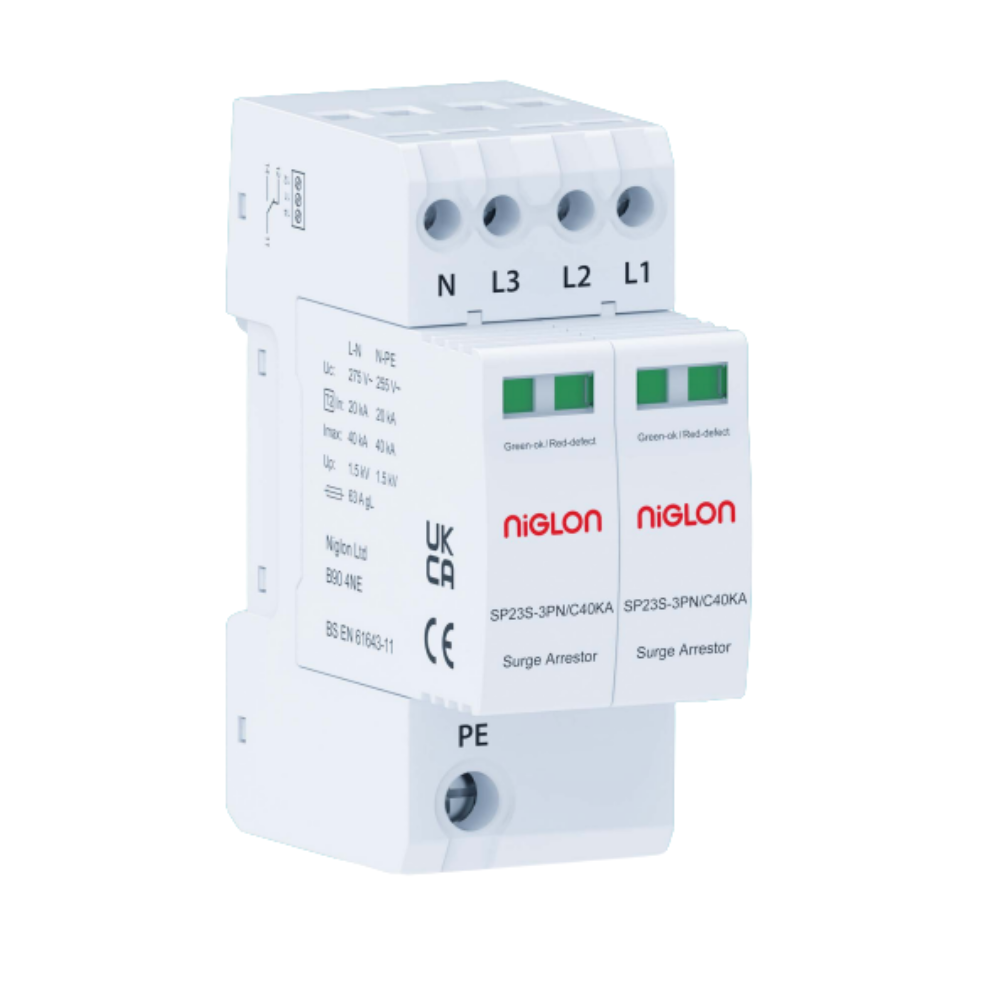

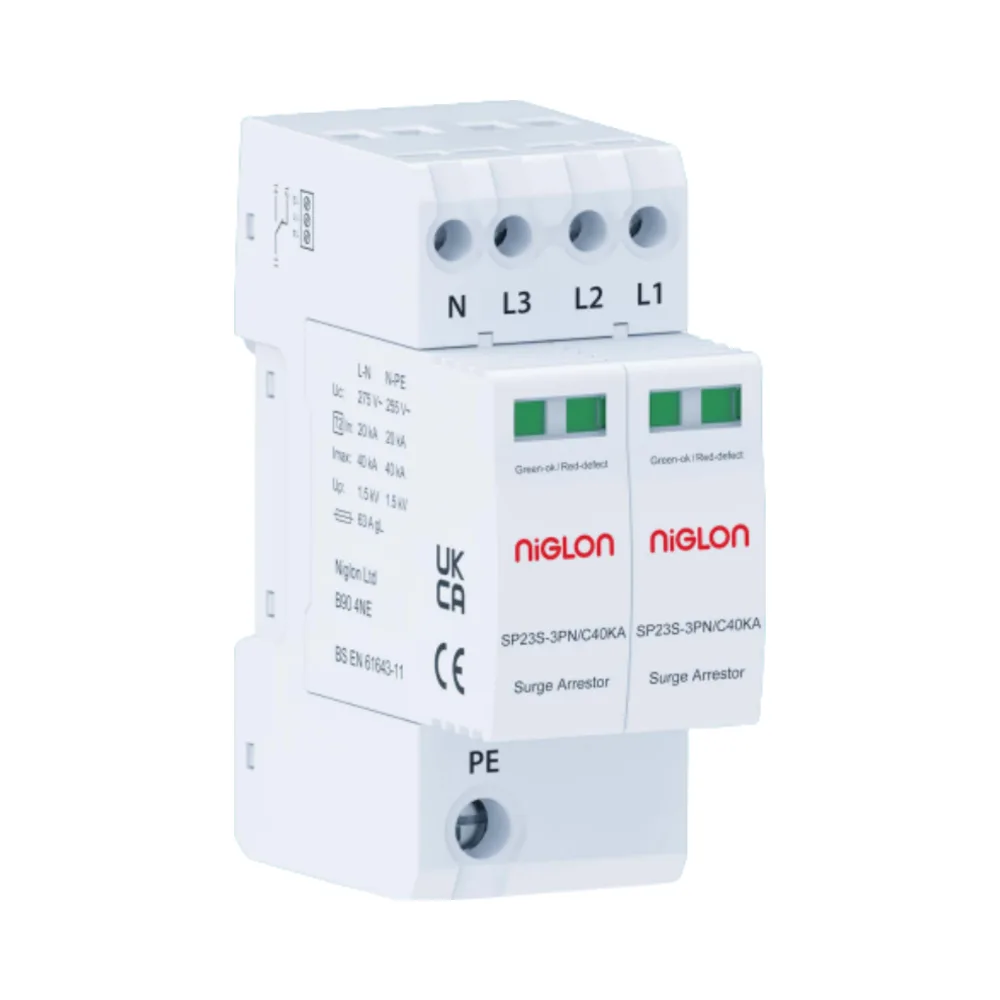

Niglon SP23S-3PN/C40KA 40kA Type 2 Surge Protection Device
Three Pole + Neutral Lightning & Surge Arrestor with Remote Contact
The Niglon SP23S-3PN/C40KA 40kA Type 2 Surge Protection Device (SPD) is a high-performance surge protection solution, designed to protect electrical installations from transient overvoltages caused by switching operations and indirect lightning strikes. This compact two-module SPD is suitable for distribution panels in areas with low exposure to lightning, ensuring reliable protection for sensitive electrical equipment in commercial and industrial environments.
Built with high-energy MOV and GDT protective elements, this SPD provides efficient surge suppression and enhanced durability. It features a remote signal contact for external monitoring, allowing for quick fault detection, while its green/red fault indicator ensures easy visual status checks.
Key Features
- Type 2 SPD – Protects against transient overvoltages from switching operations and indirect lightning strikes
- Three Pole + Neutral (3PN) Configuration – Designed for TT and TN-S network systems
- 40kA Maximum Discharge Current (Imax 8/20µs) – Handles high-energy surges
- 20kA Nominal Discharge Current (In 8/20µs) – Ensures continuous protection
- 275V Max Continuous Operating Voltage (Uc) – Suitable for standard electrical networks
- 1.5kV Voltage Protection Level (Up) – Reduces overvoltage impact on equipment
- Remote Signaller Contact – Enables external system monitoring
- Thermal Protection with Fault Indicator – Green (OK) / Red (Replace)
- Compact 2-Module DIN Rail Mounting – Saves space in distribution boards
- UL94 V-0 Thermoplastic Housing – Provides high fire resistance
- Certified to IEC 61643-11:2011 & IEC 61643-11:2012 – Compliant with international surge protection standards
Technical Specifications of the Niglon SP23S-3PN/C40KA 40kA Type 2 Surge Protection Device
- Product Code: SP23S-3PN/C40KA
- Type: Type 2 SPD
- Network System: TT, TN-S
- Mode of Protection: L-N, N-PE
- Protective Element: High Energy MOV & GDT
- Mounting: DIN Rail (2 Modules)
- Max Cable Size:
- L, N: 16mm²
- PE: 35mm²
- Terminal Screw Torque:
- L, N: 1.5Nm
- PE: 2.0-2.5Nm
- Remote Signaller: Yes (Max Cable 1.5mm²)
- Max Continuous Operating Voltage (Uc): 275V
- Nominal Discharge Current (In 8/20µs): 20kA
- Max Discharge Current (Imax 8/20µs): 40kA
- Voltage Protection Level (Up): 1.5kV
- Housing Material: Thermoplastic UL 94 V-0
- Thermal Protection: Yes
- Compliance: IEC 61643-11:2011, IEC 61643-11:2012
- Backup Protection: Niglon ref. MCB10C3-63 (if required, see technical drawing)
Why Choose This Product?
The Niglon SP23S-3PN/C40KA SPD is a space-saving, high-performance surge protection device, providing efficient transient overvoltage suppression, remote monitoring capability, and compliance with international standards. Designed for distribution panels, it is an ideal solution for safeguarding electrical installations in commercial and industrial applications.
