40kA Type 2 Surge Protection Device

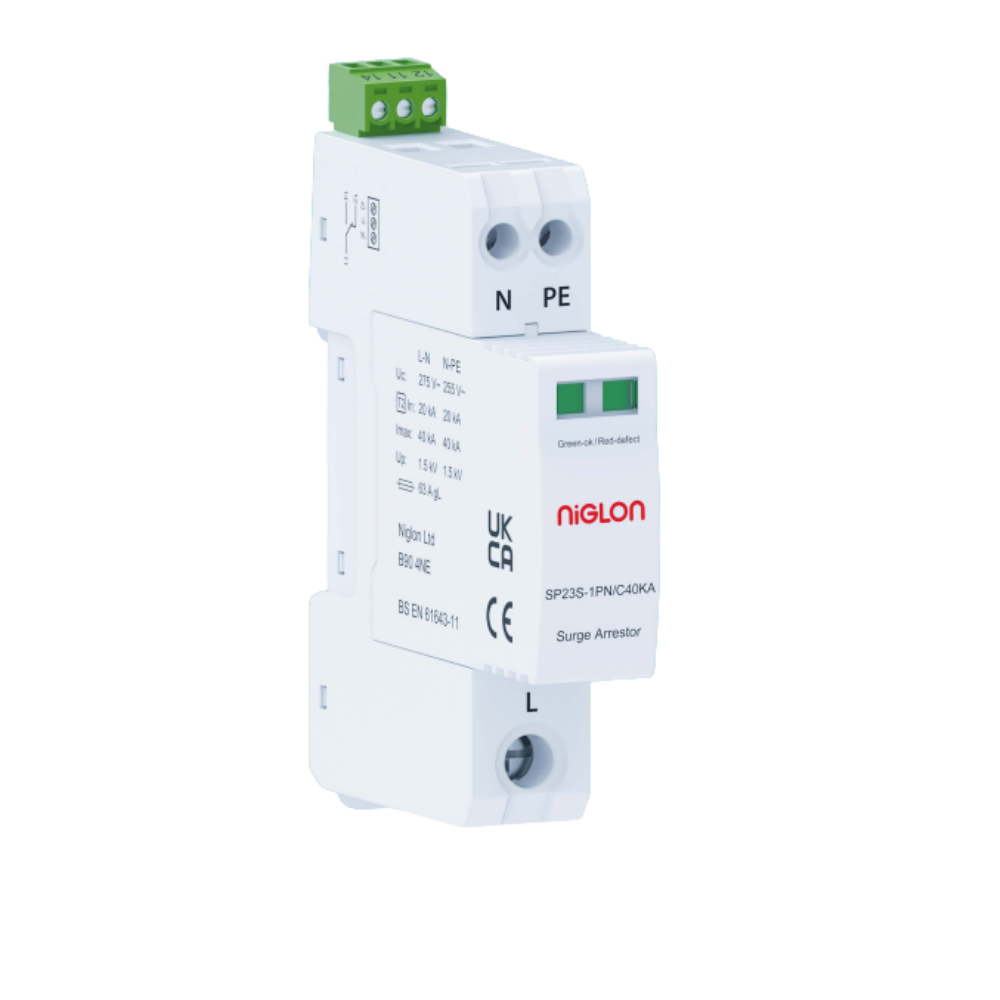

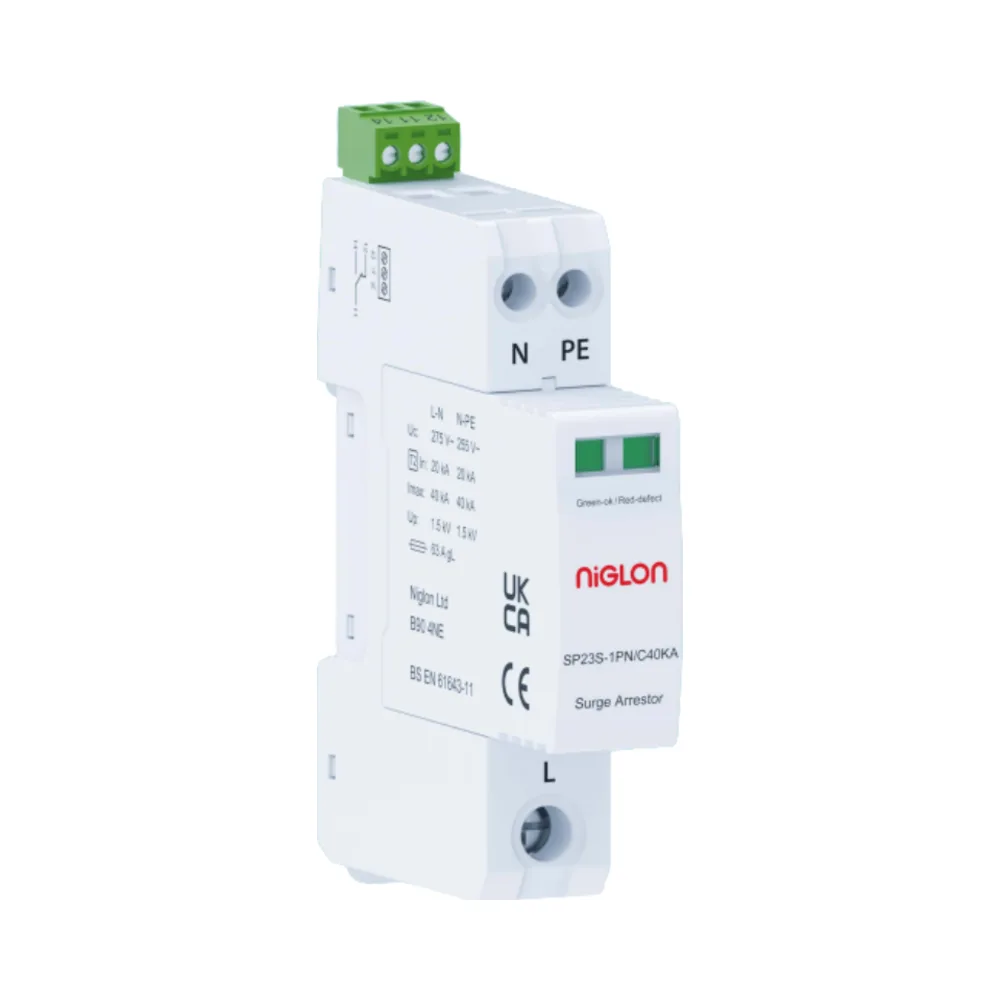

Niglon SP23S-1PN/C40KA – Single Pole + Neutral Lightning & Surge Arrestor
The Niglon SP23S-1PN/C40KA 40kA Type 2 Surge Protection Device (SPD) is a compact and efficient lightning and surge arrestor, designed to protect electrical installations from transient overvoltages. Suitable for distribution panels, this SPD ensures optimal protection for sensitive equipment in commercial and industrial environments.
Featuring a single-module DIN rail mounting design, this Type 2 SPD integrates a high-energy MOV & GDT protective element, providing superior suppression against electrical surges. It includes a remote contact for external monitoring, allowing for quick detection of failures, while the green/red fault indicator ensures easy visual status checks.
Key Features
- Type 2 SPD – Protects against transient overvoltages from switching operations and indirect lightning strikes
- Compact Single-Module Design – Saves space in distribution panels
- 40kA Maximum Discharge Current (Imax 8/20µs) – Handles high-energy surges
- 20kA Nominal Discharge Current (In 8/20µs) – Ensures continuous protection
- 275V Max Continuous Operating Voltage (Uc) – Compatible with standard electrical networks
- 1.5kV Voltage Protection Level (Up) – Reduces overvoltage impact on equipment
- Remote Signaller Contact – Enables external monitoring for status detection
- Thermal Protection with Fault Indicator – Green (OK) / Red (Replace)
- DIN Rail Mounted (1 Module Wide) – Allows for quick and easy installation
- UL94 V-0 Thermoplastic Housing – Provides high fire resistance
- Certified to IEC 61643-11:2011 & IEC 61643-11:2012 – Compliant with industry safety standards
Technical Specifications of the Niglon SP23S-1PN/C40KA 40kA Type 2 Surge Protection Device
- Product Code: SP23S-1PN/C40KA
- Type: Type 2 SPD
- Network System: TT, TN-S
- Mode of Protection: L-N, N-PE
- Protective Element: High Energy MOV & GDT
- Mounting: DIN Rail (1 Module)
- Max Cable Size:
- N, PE: 16mm²
- L: 35mm²
- Terminal Screw Torque:
- N, PE: 1.5Nm
- L: 3.0Nm
- Remote Signaller: Yes (Max Cable 1.5mm²)
- Max Continuous Operating Voltage (Uc): 275V
- Nominal Discharge Current (In 8/20µs): 20kA
- Max Discharge Current (Imax 8/20µs): 40kA
- Voltage Protection Level (Up): 1.5kV
- Housing Material: Thermoplastic UL 94 V-0
- Thermal Protection: Yes
- Compliance: IEC 61643-11:2011, IEC 61643-11:2012
- Backup Protection: Niglon ref. MCB6B1-63 (if required, see technical drawing)
Why Choose This Product?
The Niglon SP23S-1PN/C40KA SPD is an efficient and space-saving surge protection solution, designed to safeguard electrical installations from transient overvoltages. With remote monitoring capability, single-module DIN rail mounting, and compliance with international standards, it is an ideal choice for residential, commercial, and industrial distribution boards.
