32A Curve B 30mA Bi-Directional A Type RCBO – Compact RCBO, Switched Line & Neutral, 6kA
High-Load Circuit Protection with Solar Compatibility – Niglon RCBO1-32/30SAX2 32A RCBO

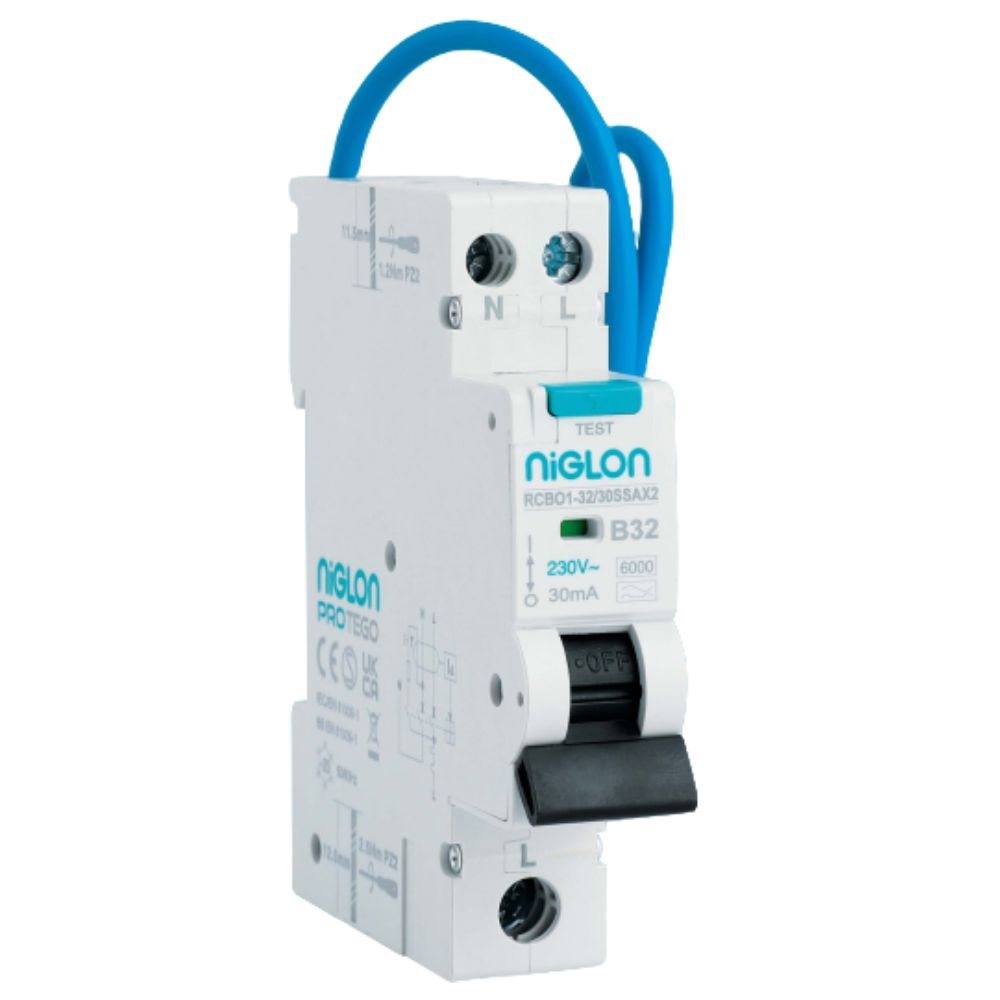

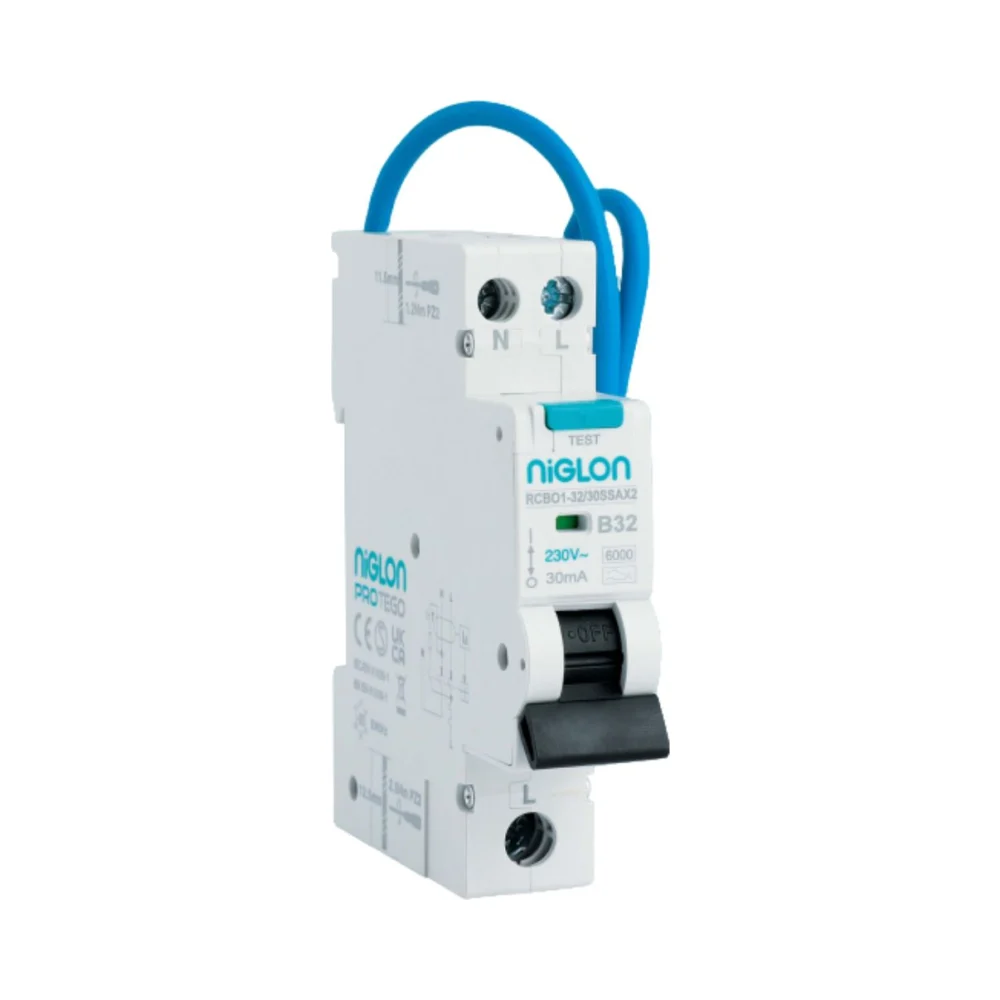

Niglon RCBO1-32/30SAX2
The Niglon RCBO1-32/30SAX2 32A RCBO is built to protect ring mains, socket circuits, and high-use power outlets. It combines overcurrent, short circuit, and 30mA residual current protection in a compact 18mm module. Designed with a Curve B tripping profile, it’s suitable for general-purpose circuits carrying higher loads.
This model features bi-directional detection, which is vital for solar PV systems where current may flow in reverse. Many traditional RCBOs only protect circuits when current flows in one direction. However, this device continues to protect regardless of energy flow, making it perfect for PV-ready consumer units.
You also benefit from Type A RCD protection, as well as switched line and neutral, which simplifies maintenance and enhances safety across your installation.
Key Features of the Niglon RCBO1-32/30SAX2 32A RCBO
- 32A Current Rating – Ideal for ring mains, kitchen sockets, and high-demand outlets
- Curve B Tripping – Fast disconnection at 3–5x rated current
- 30mA Type A RCD – Detects AC and pulsating DC earth leakage faults
- Bi-Directional Function – Required for PV installations with reverse energy flow
- Switched Line & Neutral – Allows safer servicing and complete isolation
- Breaking Capacity: 6kA – Meets domestic board standards
- Voltage: 230V AC, 50Hz
- Cable Capacity: 25mm² (line in), 10mm² (line/neutral out)
- Width: 18mm – Compact RCBO fits into space-constrained boards
- Standards: BS EN 61009-1, BS7671:2018
Applications
- Ring mains and general socket circuits
- Kitchen power outlets or utility areas
- PV installations needing full-directional fault protection
- 18th Edition consumer unit upgrades
Why Choose the Niglon RCBO1-32/30SAX2 32A RCBO?
The Niglon RCBO1-32/30SAX2 32A RCBO offers safe, compact, and compliant protection for higher-use circuits. Its bi-directional RCD detection, combined with Curve B tripping and switched line and neutral, ensures full safety—especially in solar PV-ready installations.
Summary
The Niglon RCBO1-32/30SAX2 32A RCBO is a bi-directional, Type A RCBO offering 30mA RCD protection and Curve B tripping. It’s ideal for ring mains, power circuits, and solar installations in 18mm form.
