Description

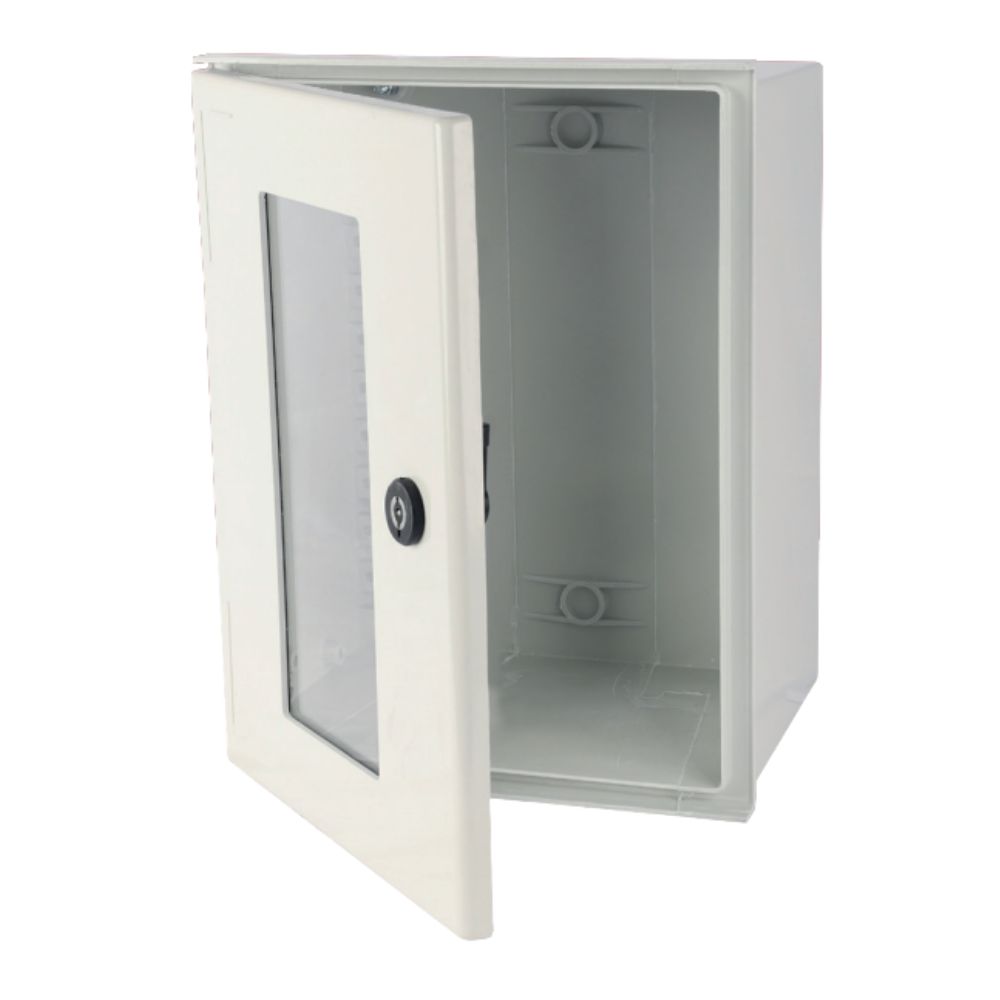

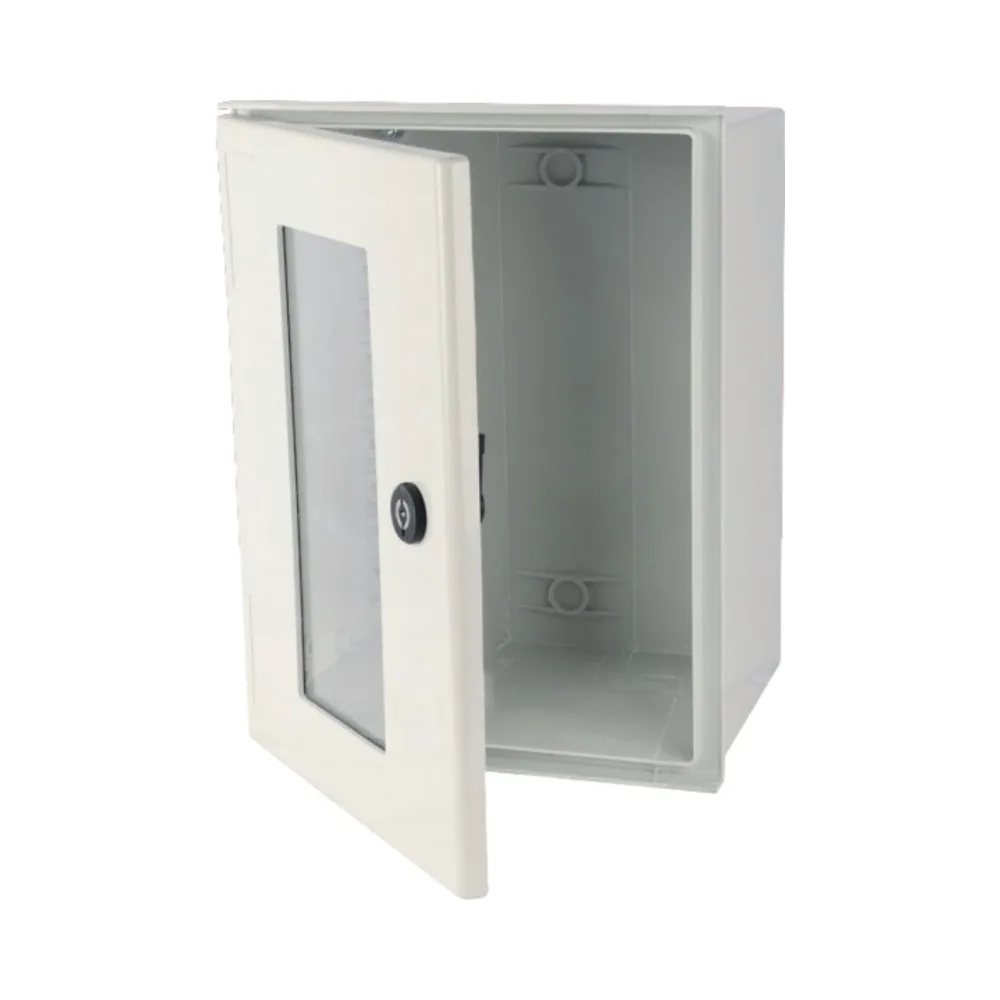

GRP Enclosure with Glazed Door (300mm x 250mm x 140mm)
Niglon PG302514 – Wall-Mounted Glass Reinforced Polyester (GRP) Enclosure
Durable GRP Enclosure with Glazed Door for Outdoor and Industrial Applications
The Niglon PG302514 GRP Enclosure with a glazed door is a weather-resistant and highly durable electrical housing, designed for outdoor and industrial installations. Manufactured from Glass Reinforced Polyester (GRP), it provides exceptional durability, impact resistance, and corrosion protection, ensuring long-term performance in demanding environments.
The glazed door panel allows for easy visual inspection of enclosed components without needing to open the door, making it ideal for control panels, automation systems, and electrical setups that require monitoring. With an IP66 rating, this enclosure fully protects against dust and strong water jets, ensuring reliable performance even in extreme conditions.
Additionally, its IK08 impact resistance enhances mechanical strength, while its RAL7035 light grey finish maintains a professional and uniform appearance.
Key Features
- Constructed from Glass Reinforced Polyester (GRP) for maximum durability and strength
- Glazed door for quick visual inspection, reducing unnecessary access
- Corrosion-resistant and non-conductive, ensuring electrical safety
- IP66 ingress protection, safeguarding against dust and powerful water jets
- IK08 impact resistance, providing high mechanical strength
- Flame-resistant up to 960°C Glow Wire, meeting fire safety standards
- Wide operating temperature range, from -30°C to +105°C
- Rated for up to 1000V, making it suitable for high-voltage applications
- Secure single-lock system, preventing unauthorised access
- Easily machinable, allowing for custom modifications
- Lightweight yet robust, simplifying installation and handling
Technical Specifications of the Niglon PG302514 GRP Enclosure with Glazed Door
- Material: Glass Reinforced Polyester (GRP)
- Flame Test: 960°C Glow Wire
- Ingress Protection: IP66 / IK08
- Standards Compliance: BSEN 62208, BSEN 62262, BSEN 60529
- Height: 300mm
- Width: 250mm
- Depth: 140mm
- Useable Depth (with backplate): 113mm
- Window Size (Width x Height): 115mm x 220mm
- Number of Locks: 1
- Operating Temperature: -30°C to +105°C
- Thermal Class: A
- Rated Voltage: 1000V
- Weight: 2.2kg
Available Accessories (not included)
- Document Pocket: A4DOCW
- Polyester Backplate (268 x 213mm): PBP321
- Metal Backplate (268 x 213mm): MBP321
- Small Ventilation Device: P-SVD
- Large Ventilation Device: P-LVD
- Key Lock with Butterfly Handle: P-DL
- Padlock Hasp: P-PH
- Wall Fixing Kit: P-WFK
Why Choose Niglon PG302514 GRP Enclosure with Glazed Door
- Trusted industry brand, delivering high-quality electrical enclosures
- Designed to withstand extreme conditions, ensuring long-term durability
- Glazed door for visual monitoring, reducing maintenance time
- IP66-rated, providing complete environmental shielding
- Lightweight yet highly durable, simplifying installation and handling
- Easily customisable, allowing for specific project modifications
Summary
The Niglon PG302514 GRP Enclosure with a glazed door is a robust and weatherproof electrical housing, built for industrial and outdoor electrical applications. Constructed from Glass Reinforced Polyester (GRP), it delivers corrosion resistance, impact protection, and electrical insulation, ensuring long-term performance.
With IP66 ingress protection, IK08 impact resistance, and a secure single-lock system, this enclosure offers maximum protection in harsh environments. Its glazed door allows for quick monitoring, making it a practical choice for electrical setups that require visual inspection.
